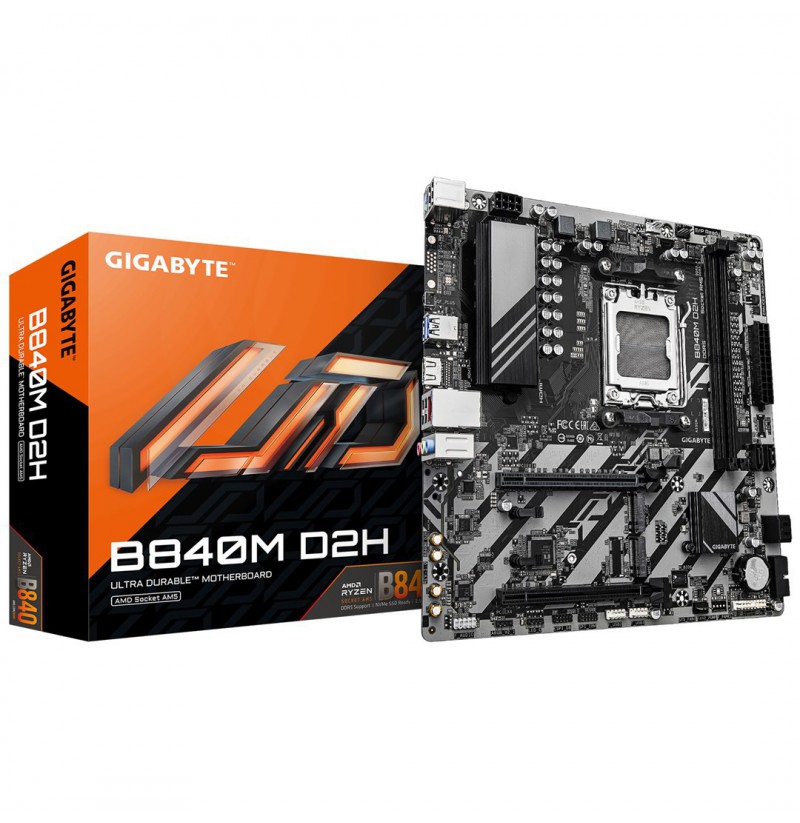

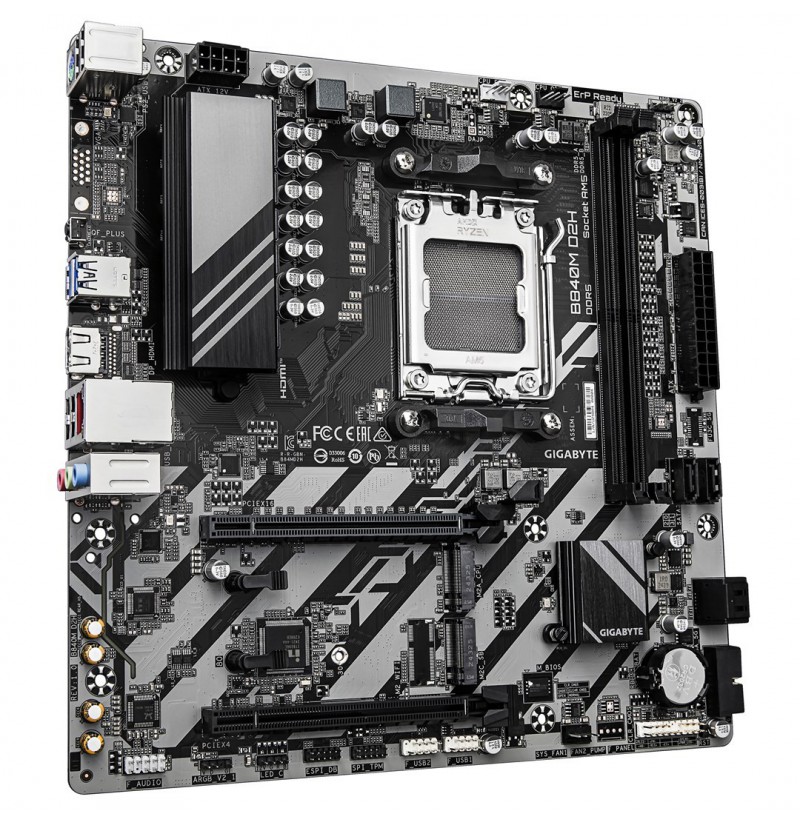

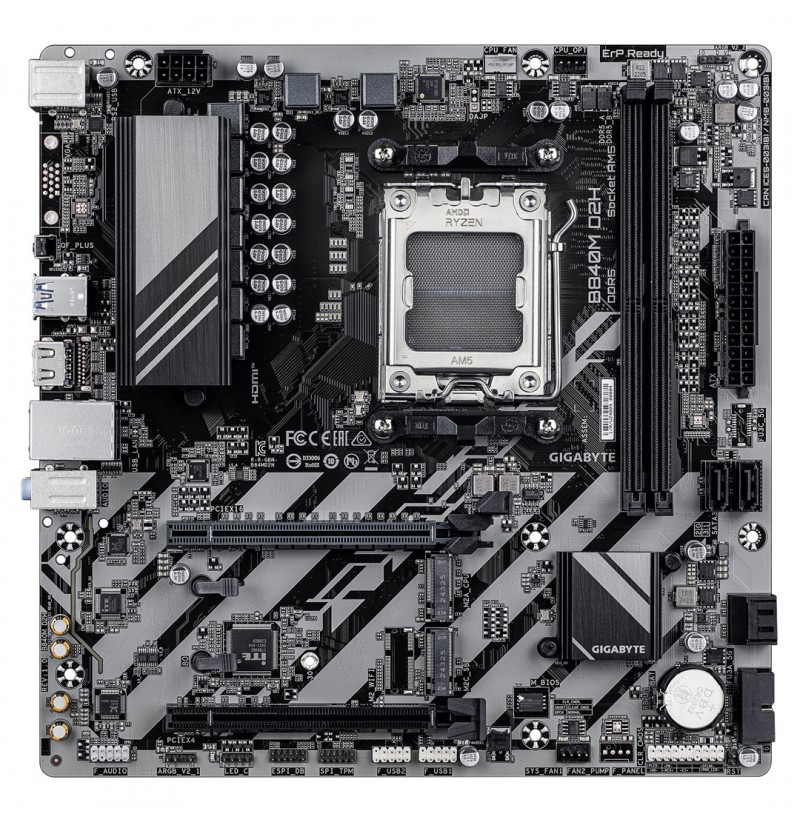

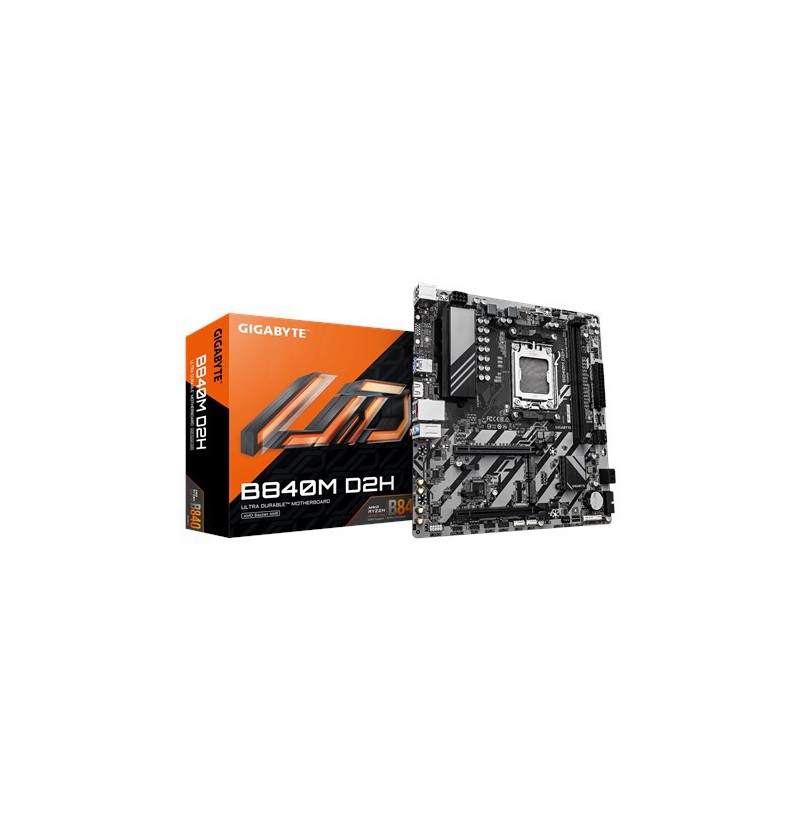

Gigabyte B840M D2H | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces SATA

GIGABYTE B840M D2H Motherboard - AMD Ryzen 9000 CPUs, 5+2+2 Phases VRM, up to 7600MHz DDR5, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1
Warranty period: 3 year(s)
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
Processor manufacturer: AMD
Parallel processing technology support: Not supported
HDCP: Yes
Maximum resolution: 4096 x 2160 pixels
DirectX version: 12.0
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 10 x64, Windows 11 x64
PC health monitoring: Water cooling, Fan, Voltage, Temperature
Motherboard form factor: micro ATX
Motherboard chipset: AMD B840
Power source type: ATX
Audio chip: Realtek ALC897
Motherboard chipset family: AMD
Product colour: Dark brown
Component for: PC
Cooling type: Passive
Unbuffered memory: Yes
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Maximum internal memory: 128 GB
Supported memory clock speeds: 6200, 6666, 7000, 6600, 6000, 5200, 4400 MHz, 5600, 7200, 7600, 6800, 6400 MHz, 4800
Number of memory slots: 2
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 7600 MHz
Maximum internal memory per slot: 64 GB
Height: 35 mm
Width: 244 mm
Depth: 244 mm
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi: No
LAN controller: Realtek RTL8125
USB 2.0 connectors: 2
Number of CPU fan connectors: 2
ATX Power connector (24-pin): Yes
Front panel audio connector: Yes
EPS power connector (8-pin): Yes
Number of SATA III connectors: 4
Number of chassis fan connectors: 1
CPU fan connector: Yes
TPM connector: Yes
Front panel connector: Yes
Number of RGB LED pin headers: 3
Number of water pump connectors: 1
Number of EPS power connectors (8-pin): 1
RGB LED pin header: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
ACPI version: 5.0
System Management BIOS (SMBIOS) version: 2.7
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Desktop Management Interface (DMI) version: 2.7
Package depth: 265 mm
Package width: 265 mm
Package weight: 1.03 kg
Package height: 54 mm
Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries included: Yes
Screws included: Yes
Number of HDDs supported: 4
Number of storage drives supported: 6
RAID levels: 10, 0, 1
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
RAID support: Yes
HDMI version: 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
Microphone in: Yes
Line-in: Yes
Ethernet LAN (RJ-45) ports: 1
Headphone outputs: 1
PS/2 ports quantity: 1
USB 2.0 ports quantity: 4
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
2nd M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 4.0
2nd M.2 highest PCI Express generation: 3.0
1st M.2 largest key size: 2580
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Number of battery cells: 1
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Weight: 940 g
Products per shipping (inner) case: 1 pc(s)
