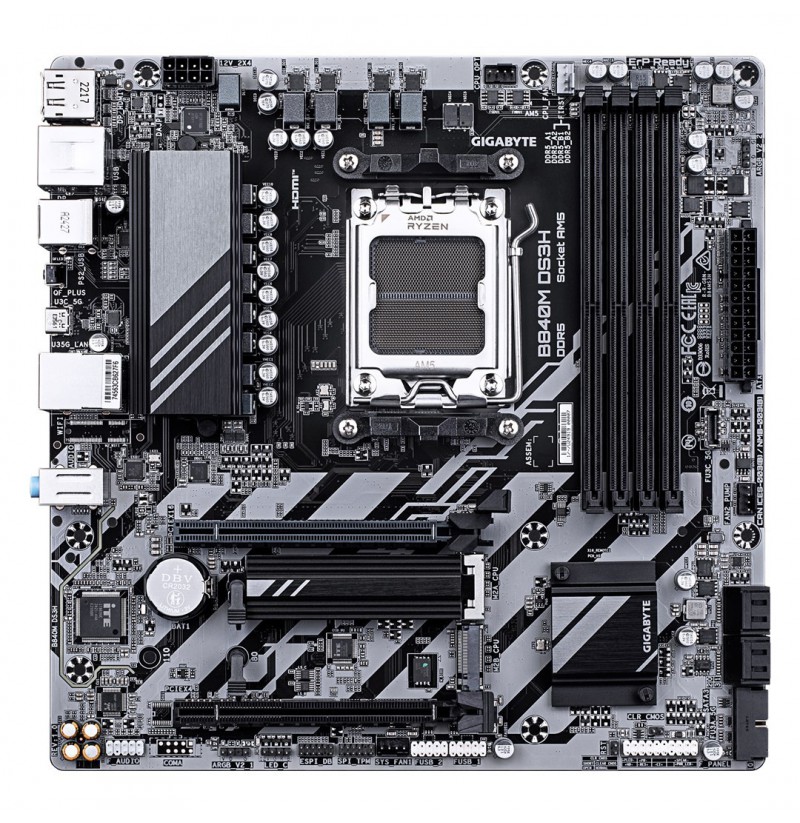

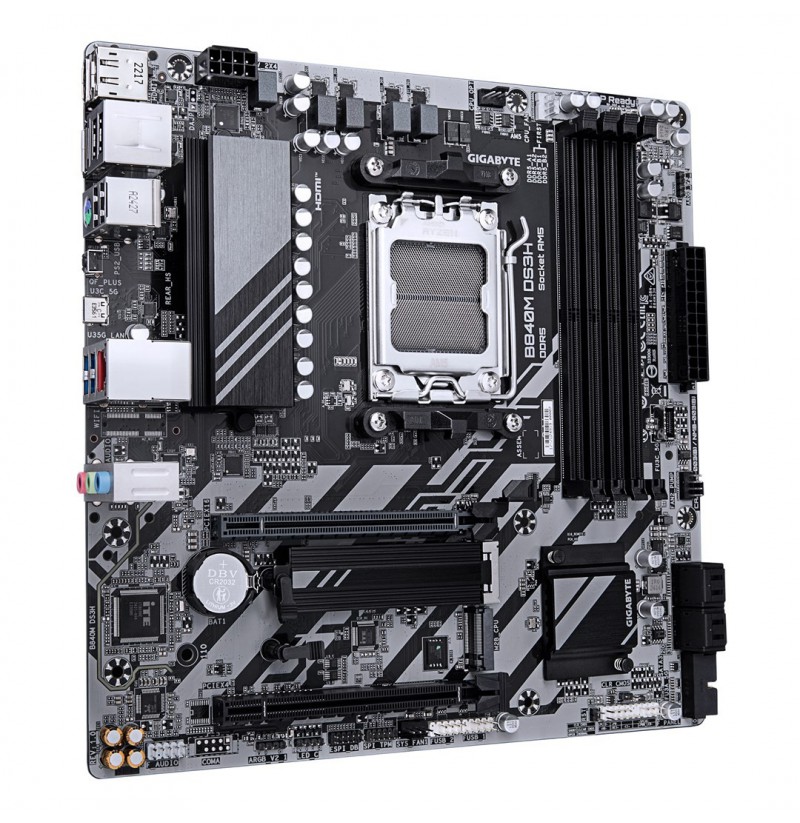

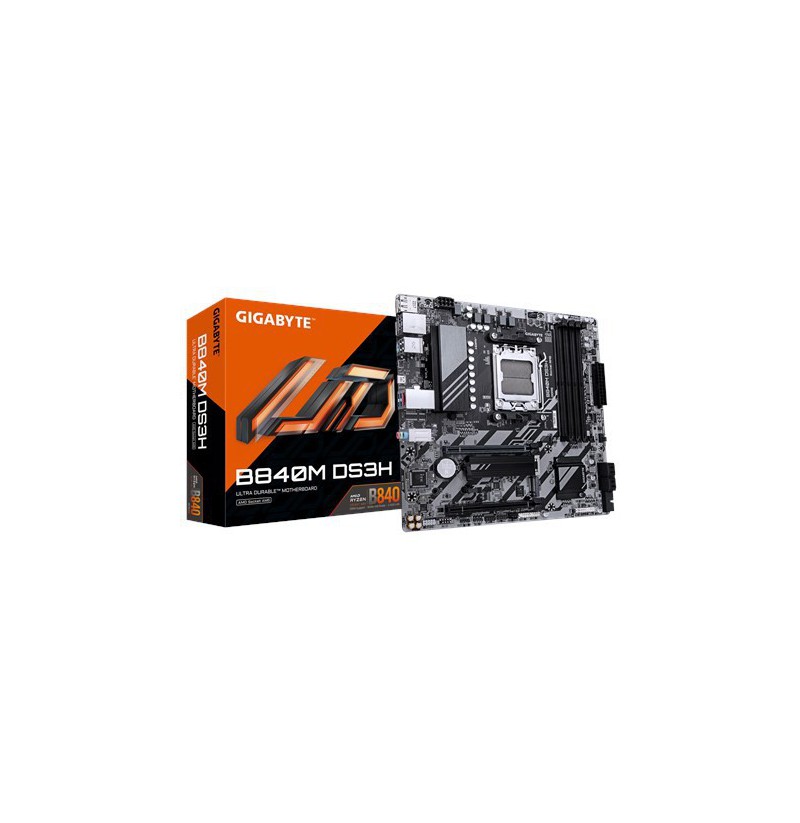

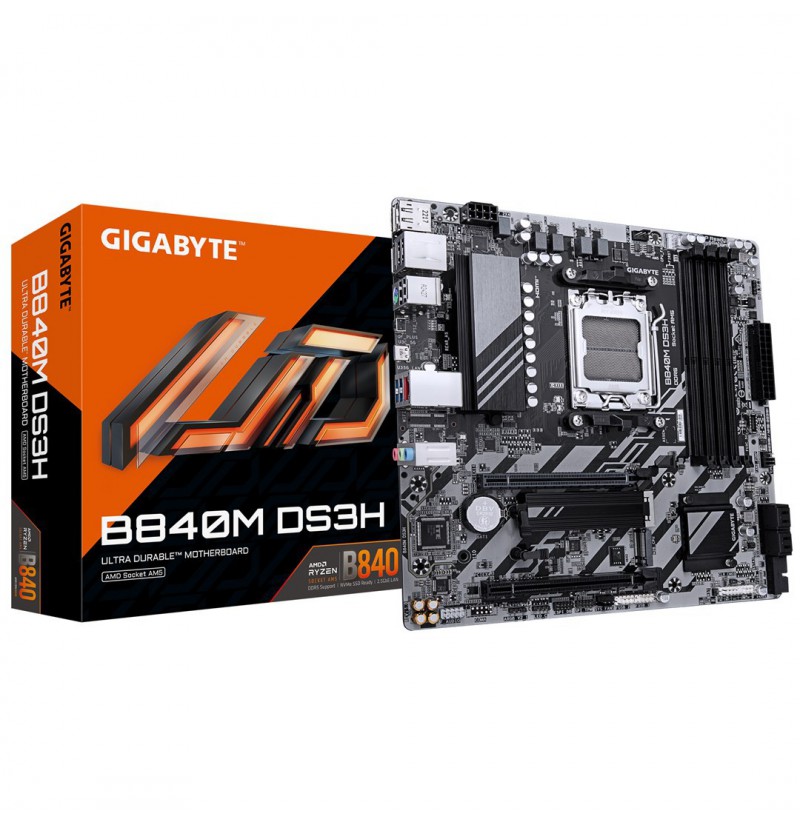

Gigabyte B840M DS3H | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces SATA

GIGABYTE B840M DS3H Motherboard - AMD Ryzen 9000 CPUs, 8+2+2 Phases VRM, up to 8200MHz DDR5, 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1
Warranty period: 3 year(s)
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series
Processor manufacturer: AMD
Supported processor sockets: Socket AM5
Maximum resolution: 4096 x 2160 pixels
Parallel processing technology support: Not supported
HDCP: Yes
DirectX version: 12.0
Component for: PC
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard chipset family: AMD
Cooling type: Passive
Power source type: ATX
Motherboard form factor: micro ATX
PC health monitoring: Water cooling, Voltage, Fan, Temperature
Product colour: Dark brown
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Motherboard chipset: AMD B840
Memory channels: Dual-channel
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Supported memory clock speed (max): 8200 MHz
Maximum internal memory per slot: 64 GB
Number of memory slots: 4
ECC сompatibility: Non-ECC
Supported memory clock speeds: 4400, 7950, 7900, 4800, 6600, 6400 MHz, 6800, 7600, 7800, 8000, 5600, 7200, 6000, 7400, 5200, 7000, 8200, 6200, 6666
Unbuffered memory: Yes
Maximum internal memory: 256 GB
Height: 35 mm
Width: 244 mm
Depth: 244 mm
Ethernet LAN: Yes
Wi-Fi: No
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125
RGB LED pin header: Yes
Number of water pump connectors: 2
CPU fan connector: Yes
TPM connector: Yes
ATX Power connector (24-pin): Yes
Number of SATA III connectors: 4
Front panel connector: Yes
Number of RGB LED pin headers: 3
EPS power connector (8-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 2.0 connectors: 2
Front panel audio connector: Yes
Number of chassis fan connectors: 2
Number of CPU fan connectors: 2
Number of EPS power connectors (8-pin): 1
System Management BIOS (SMBIOS) version: 2.7
Desktop Management Interface (DMI) version: 2.7
BIOS memory size: 256 Mbit
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
ACPI version: 5.0
Package depth: 265 mm
Package width: 265 mm
Package weight: 1.13 kg
Package height: 54 mm
Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries included: Yes
Screws included: Yes
RAID levels: 10, 0, 1
RAID support: Yes
Number of storage drives supported: 6
Number of HDDs supported: 4
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
Supported storage drive types: HDD & SSD

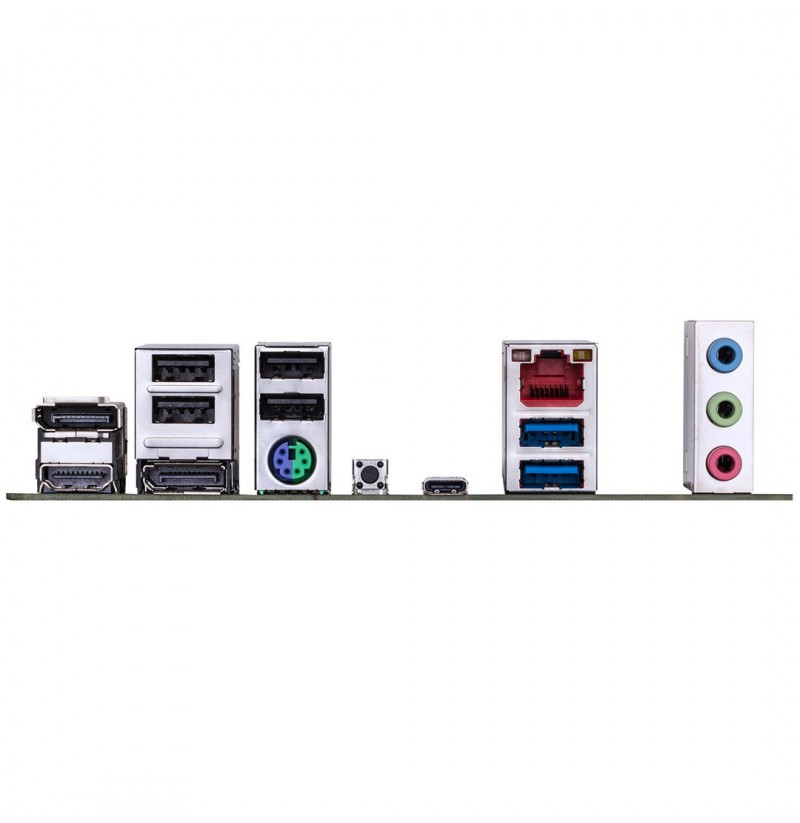

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Line-in: Yes
HDMI ports quantity: 1
DisplayPort version: 1.4
HDMI version: 2.1
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Headphone outputs: 1
DisplayPorts quantity: 2
Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
PS/2 ports quantity: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 2
1st M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2580
2nd M.2 largest key size: 25110
2nd M.2 highest PCI Express generation: 4.0
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells: 1
Lithium weight per battery: 0.07 g
Battery type: CR2032
Battery weight: 3 g
Weight: 1.05 kg
Products per shipping (inner) case: 1 pc(s)
