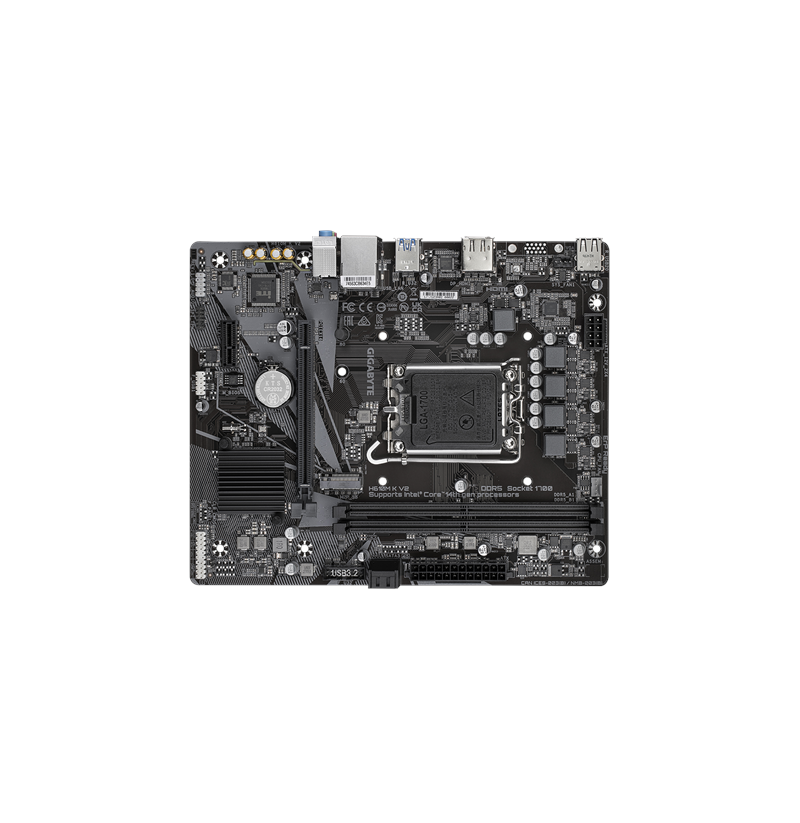

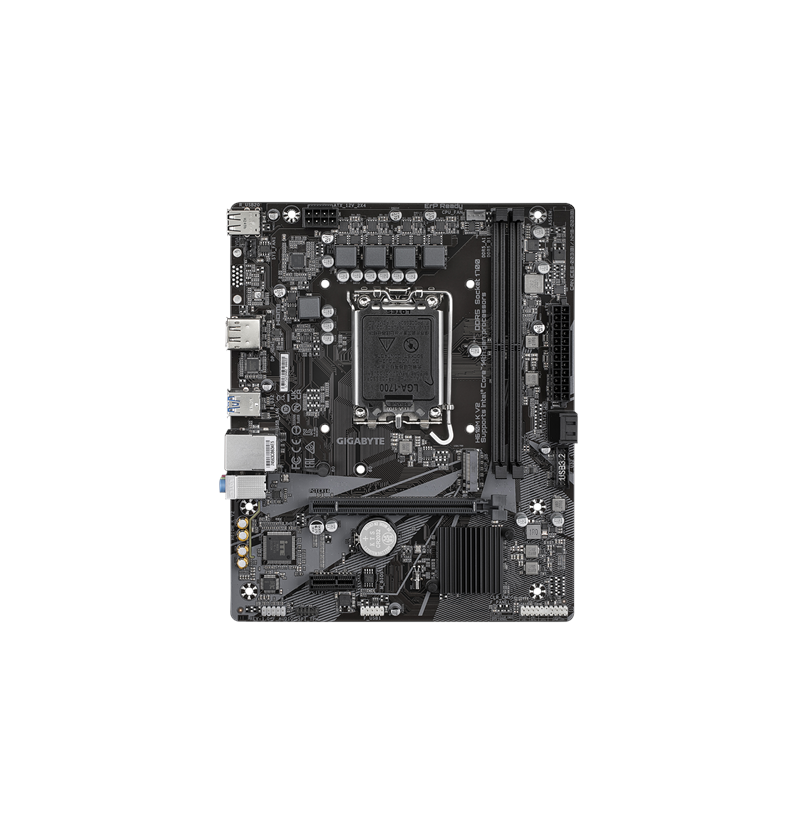

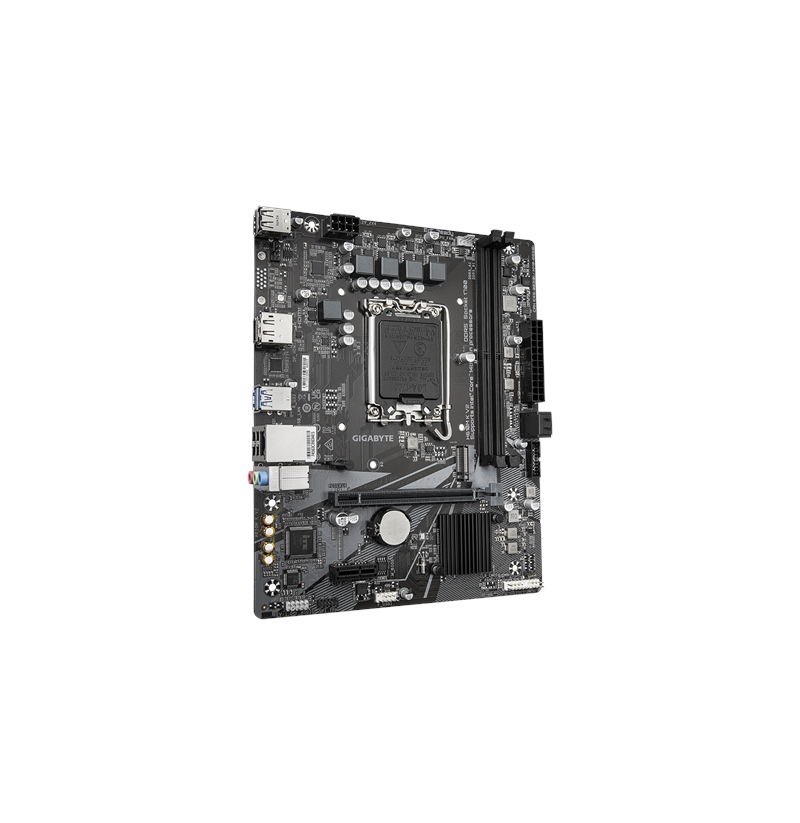

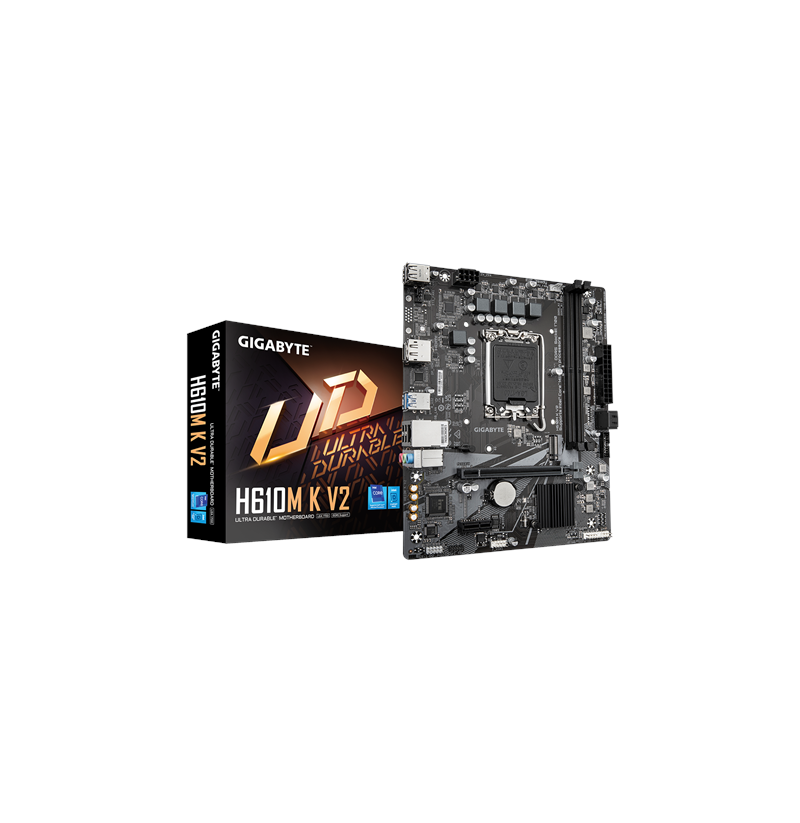

Gigabyte H610M K V2 | Processor family Intel | Processor socket LGA1700 | DDR5 | Supported hard disk drive interfaces M.2, SATA

Warranty period: 3 year(s)
Compatible processor series: Intel Core i3 12th Gen, Intel Core i9 13th Gen, Intel Core i5 12th Gen, Intel Core i7 14th Gen, Intel Core i9 14th Gen, Intel® Celeron®, Intel Core i3 14th Gen, Intel Core i3 13th Gen, Intel Core i7 13th Gen, Intel® Pentium® Gold, Intel Core i7 12th Gen, Intel Core i5 14th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen
Supported processor sockets: LGA 1700
Processor manufacturer: Intel
Processor socket: LGA 1700
Parallel processing technology support: Not supported
DirectX version: 12.0
HDCP: Yes
Maximum resolution: 4096 x 2160 pixels
PC health monitoring: Water cooling, Temperature, Voltage, Fan
Product colour: Dark brown
Audio chip: Realtek ALC897
Cooling type: Passive
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Audio output channels: 7.1 channels
Motherboard chipset: Intel H610
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
Power source type: ATX
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
Number of memory slots: 2
Supported memory clock speeds: 4800 MHz, 5200, 4400, 5600
Maximum internal memory: 128 GB
Memory slots type: DIMM
Unbuffered memory: Yes
ECC сompatibility: ECC & Non-ECC
Maximum internal memory per slot: 64 GB
Supported memory clock speed (max): 5600 MHz
Width: 226 mm
Height: 35 mm
Depth: 185 mm
Ethernet LAN: Yes
LAN controller: Realtek RTL8111H
Wi-Fi: No
Ethernet interface type: Gigabit Ethernet
Front panel connector: Yes
CPU fan connector: Yes
TPM connector: Yes
EPS power connector (8-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
ATX Power connector (24-pin): Yes
Front panel audio connector: Yes
Number of SATA III connectors: 2
USB 2.0 connectors: 1
Number of CPU fan connectors: 1
Number of EPS power connectors (8-pin): 1
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI
Package width: 265 mm
Package depth: 235 mm
Package weight: 723 g
Package height: 52 mm
Batteries included: Yes
Screws included: Yes
Number of storage drives supported: 3
Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III
Supported storage drive types: HDD & SSD
Number of HDDs supported: 2
Headphone outputs: 1
Line-in: Yes
DisplayPorts quantity: 1
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
DisplayPort version: 1.2
Microphone in: Yes
HDMI version: 2.1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 3.0
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells: 1
Battery type: CR2032
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Weight: 650 g
Products per shipping (inner) case: 1 pc(s)
