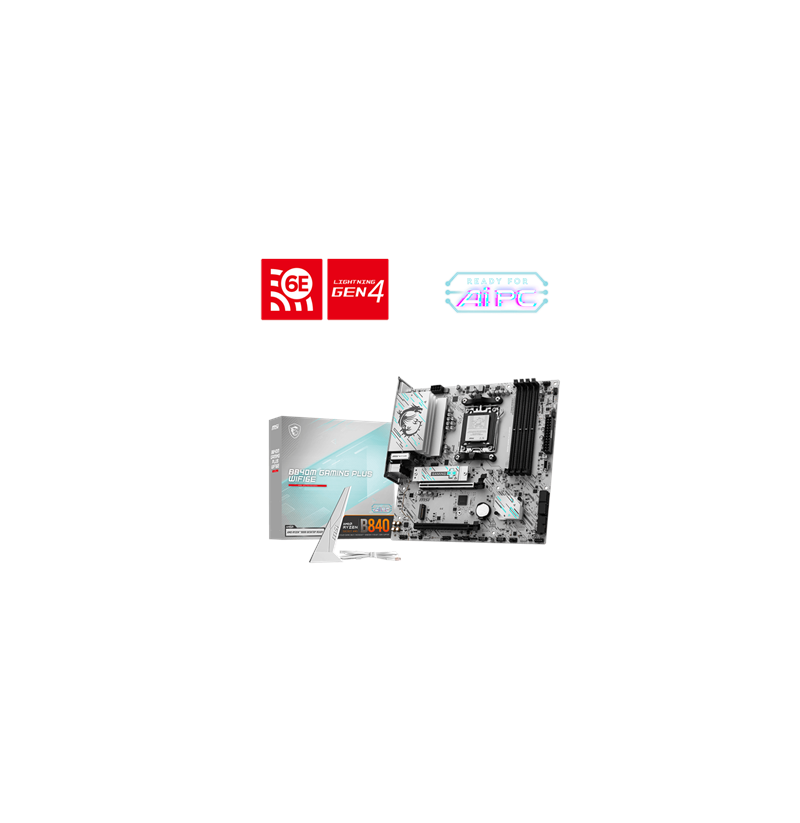

MSI B840M GAMING PLUS WIFI6E | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces SATA, M

Supported processor sockets: Socket AM5
Processor socket: Socket AM5
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series
On-board graphics card: No
Windows operating systems supported: Windows 11 x64
Product colour: White
Audio output channels: 7.1 channels
Audio chip: Realtek ALC897
Motherboard chipset family: AMD
Motherboard chipset: AMD B840
Motherboard form factor: micro ATX
Memory slots type: DIMM
Supported memory clock speed (max): 8000 MHz
Supported memory clock speeds: 8000, 4800, 6400 MHz, 5600 MHz
ECC сompatibility: Non-ECC
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Maximum internal memory: 256 GB
Depth: 243.8 mm
Width: 243.8 mm
Bluetooth: Yes
Bluetooth version: 5.3
LAN controller: Realtek RTL8125D
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax), 802.11g, 802.11b
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
RGB LED pin header: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Number of CPU fan connectors: 1
Number of RGB LED pin headers: 4
USB 2.0 connectors: 4
Number of SATA III connectors: 4
Number of HDDs supported: 4
RAID levels: 1, 10, 0
Number of storage drives supported: 6
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
RAID support: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 2.0 ports quantity: 4
PCI Express x16 slots: 2
1st M.2 highest PCI Express generation: 4.0
2nd M.2 highest PCI Express generation: 4.0
Number of M.2 (M) slots: 2
1st M.2 largest key size: 2280
2nd M.2 largest key size: 2280
