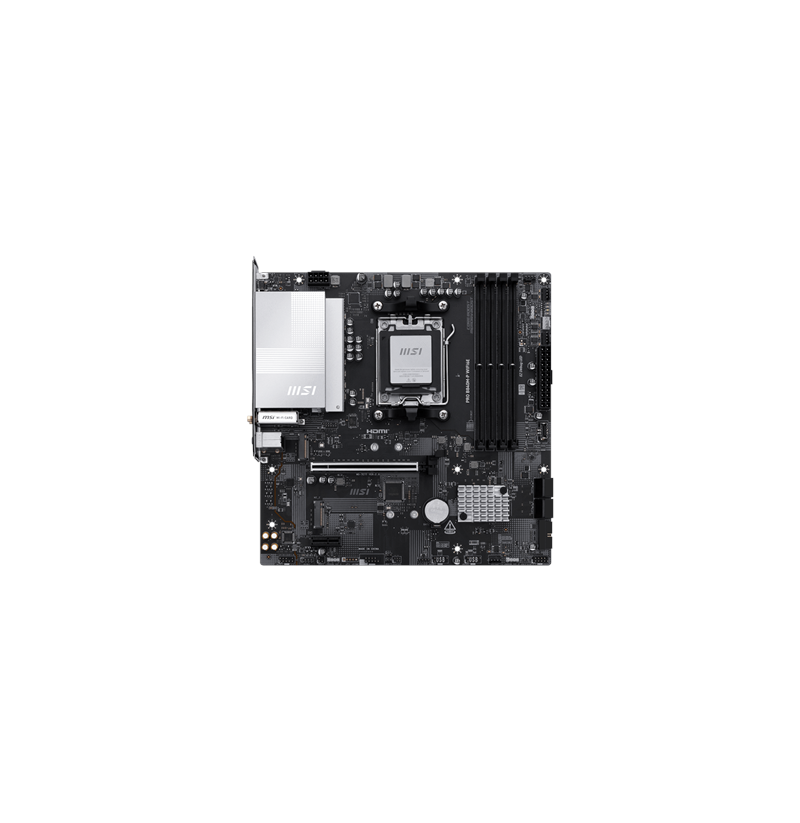

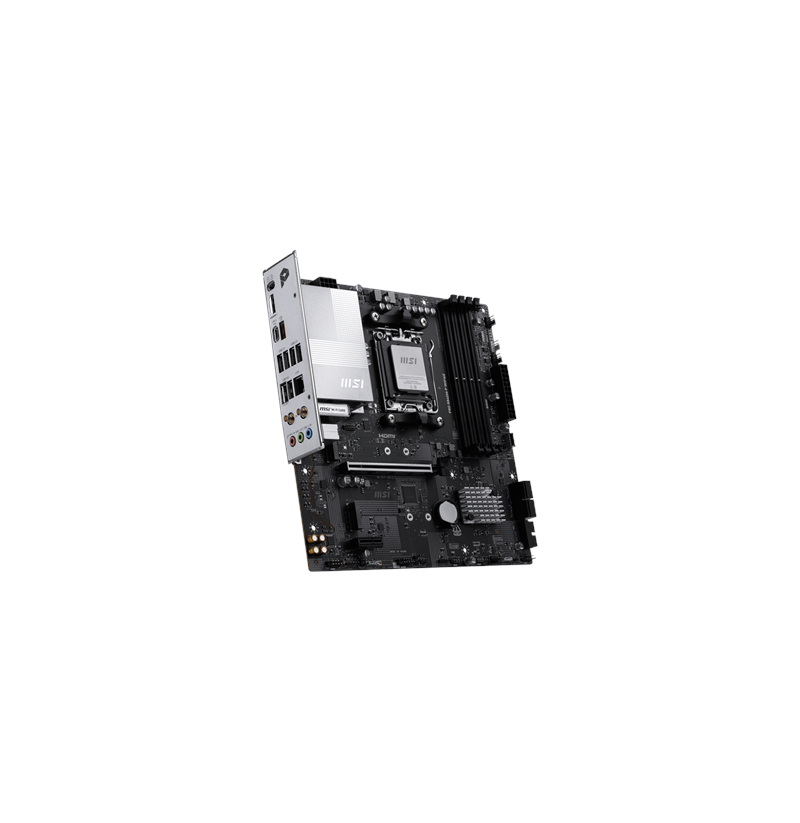

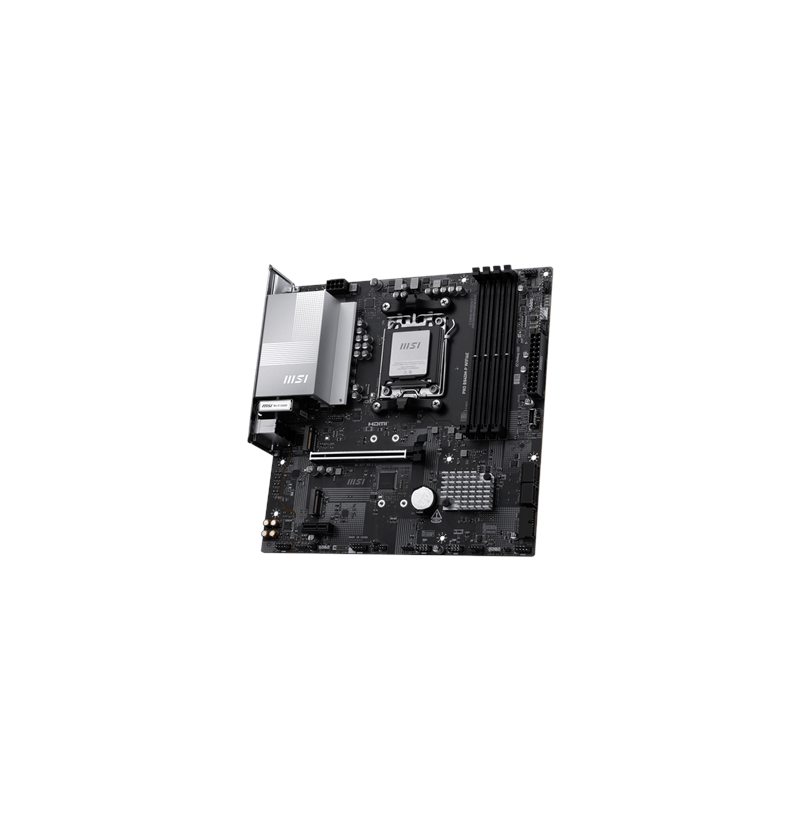

MSI PRO B840M-P WIFI6E | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces SATA

Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series
Processor manufacturer: AMD
Supported processor sockets: Socket AM5
Processor socket: Socket AM5
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11 x64
Motherboard chipset: AMD B840
Motherboard form factor: micro ATX
Power source type: ATX
Motherboard chipset family: AMD
Memory channels: Dual-channel
Supported memory clock speeds: 8000, 6400, 4800, 5600
Maximum internal memory: 256 GB
Unbuffered memory: Yes
Supported memory types: DDR5-SDRAM
Supported memory clock speed (max): 8000 MHz
Number of memory slots: 4
ECC сompatibility: Non-ECC
Width: 243.8 mm
Depth: 243.8 mm
Bluetooth: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11g, 802.11n, 802.11ac, 802.11a, Wi-Fi 6 (802.11ax)
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth version: 5.3
Wi-Fi: Yes
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3
Total number of SATA connectors: 4
Front panel connector: Yes
USB 2.0 connectors: 4
CPU fan connector: Yes
TPM connector: Yes
RGB LED pin header: Yes
Number of RGB LED pin headers: 4
Clear CMOS button: Yes
Quick installation guide: Yes
Antenna included: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID levels: 0, 10, 1
Number of storage drives supported: 6
RAID support: Yes
Number of HDDs supported: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
HDMI version: 2.1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
PCI Express x16 slots: 1
Number of M.2 (M) slots: 2
2nd M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
PCI Express x1 slots: 1
