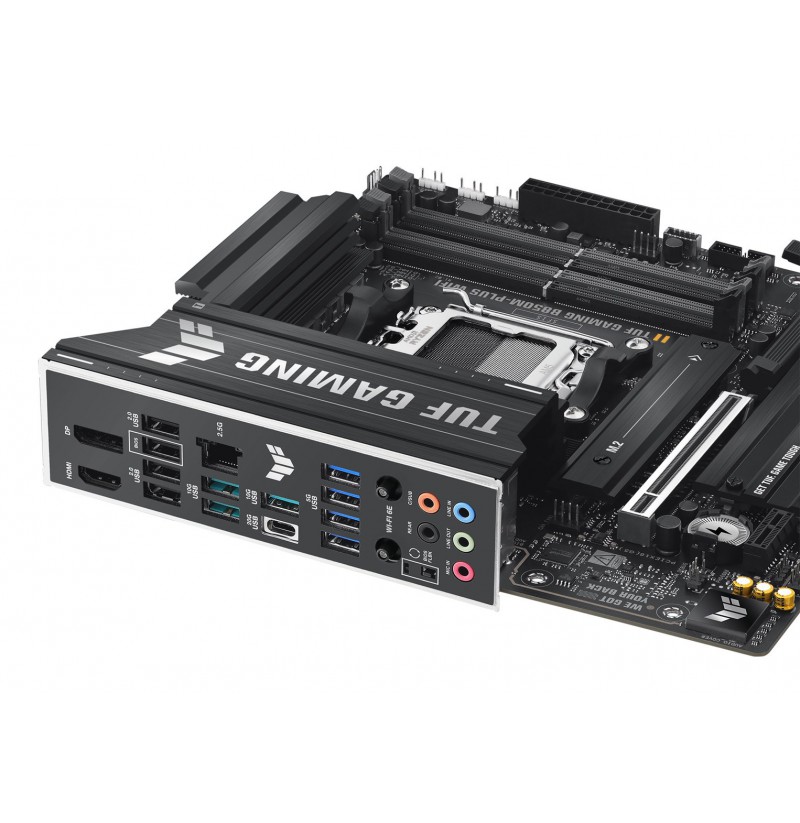

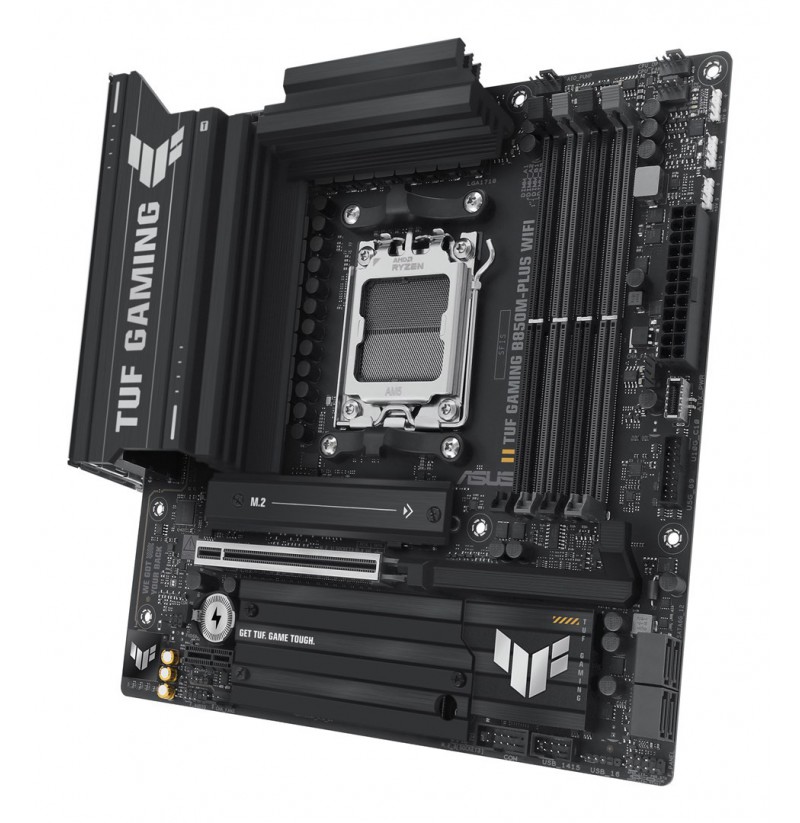

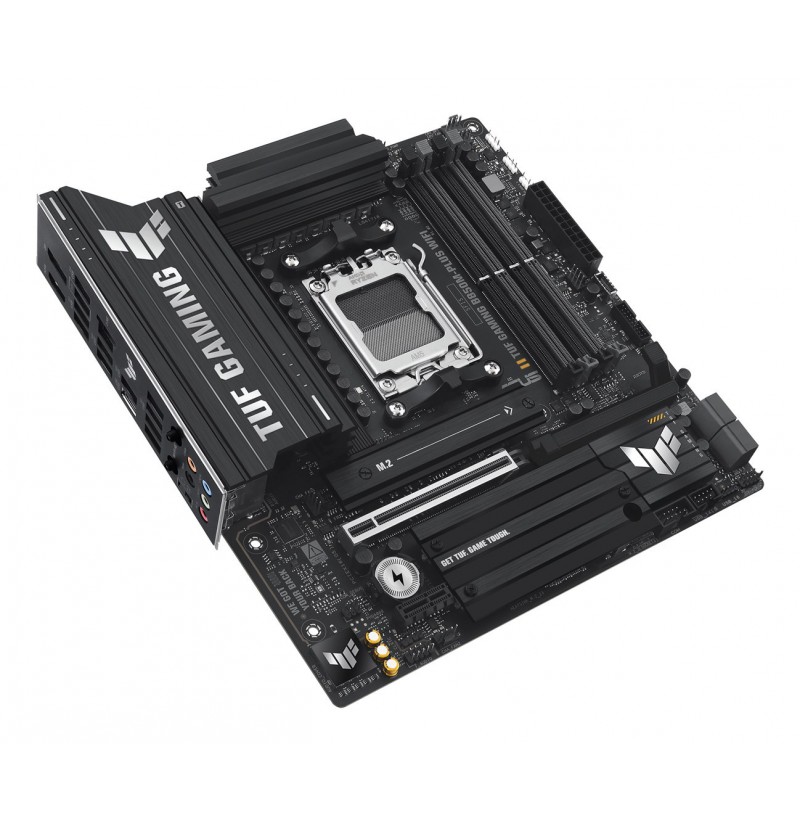

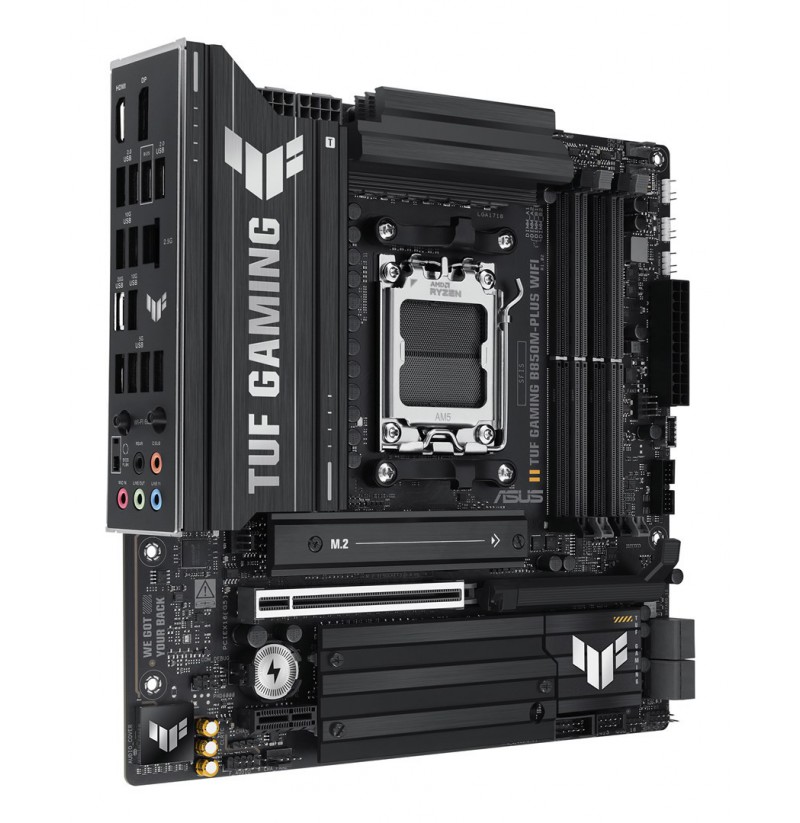

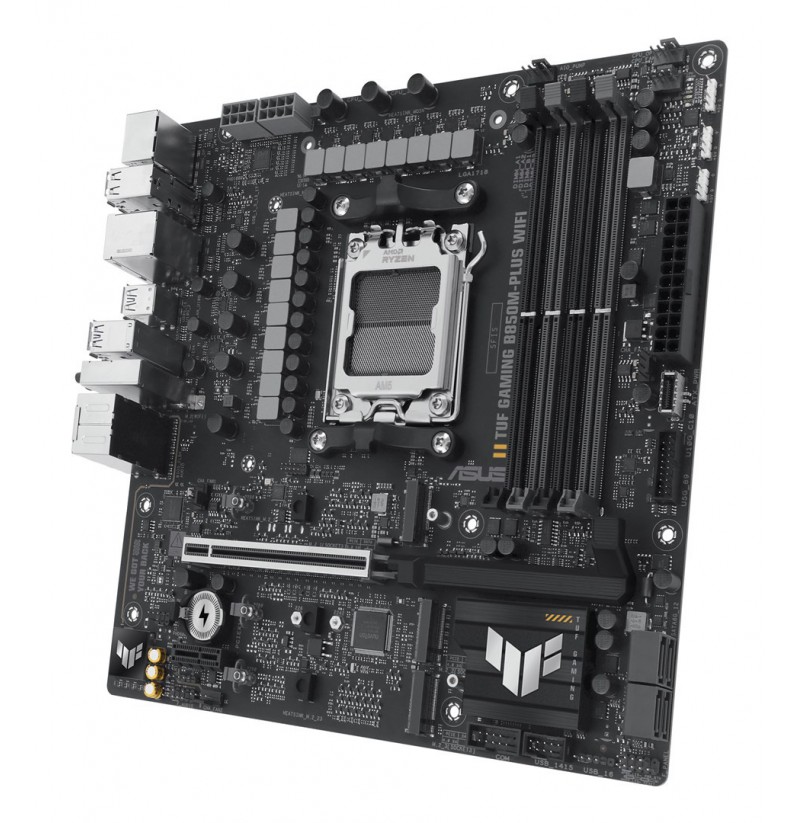

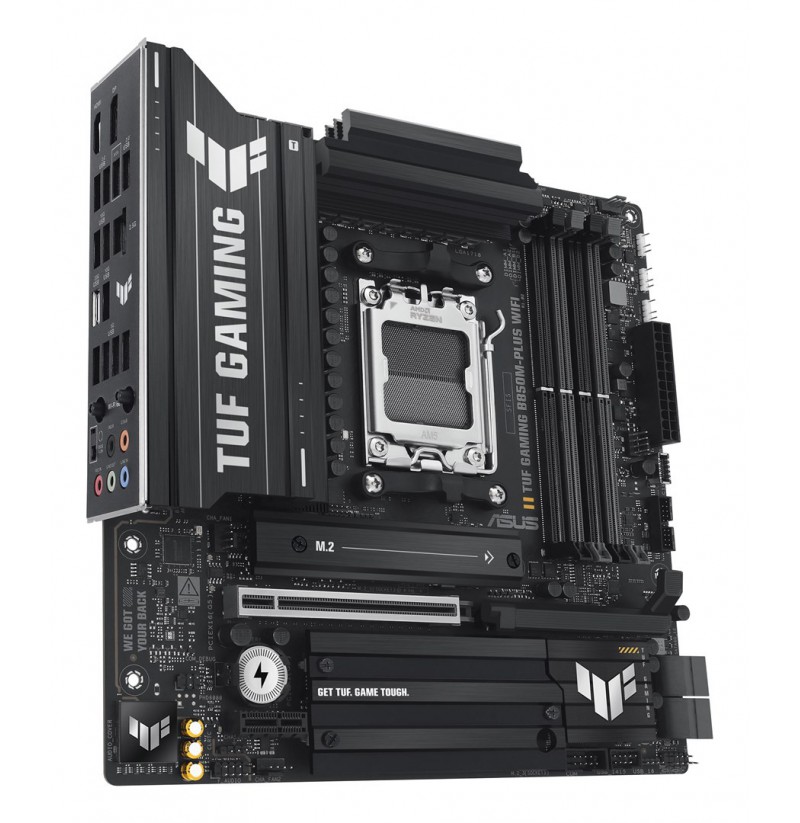

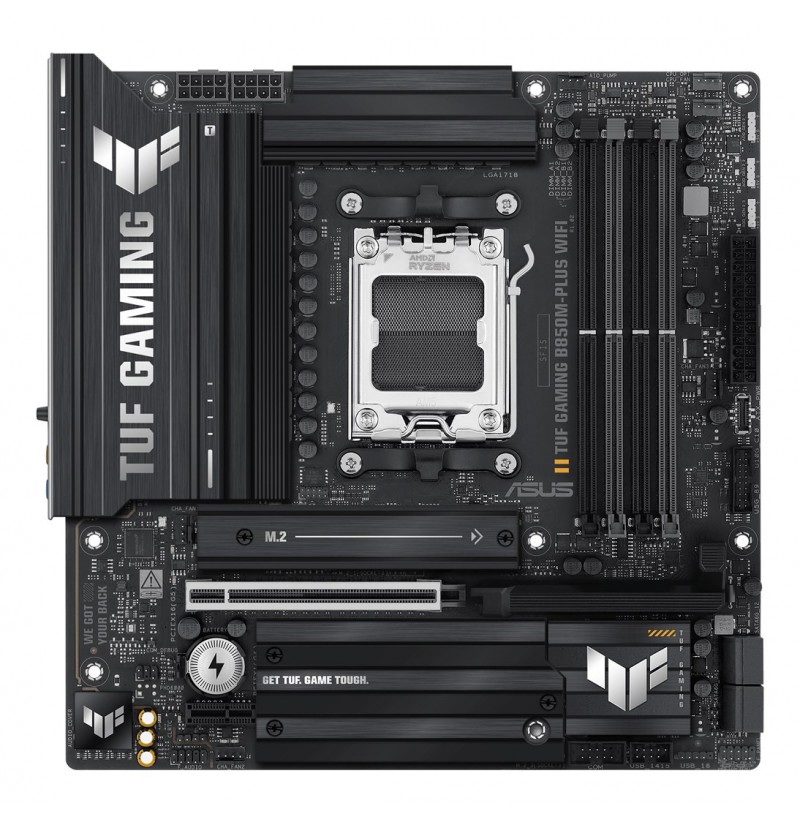

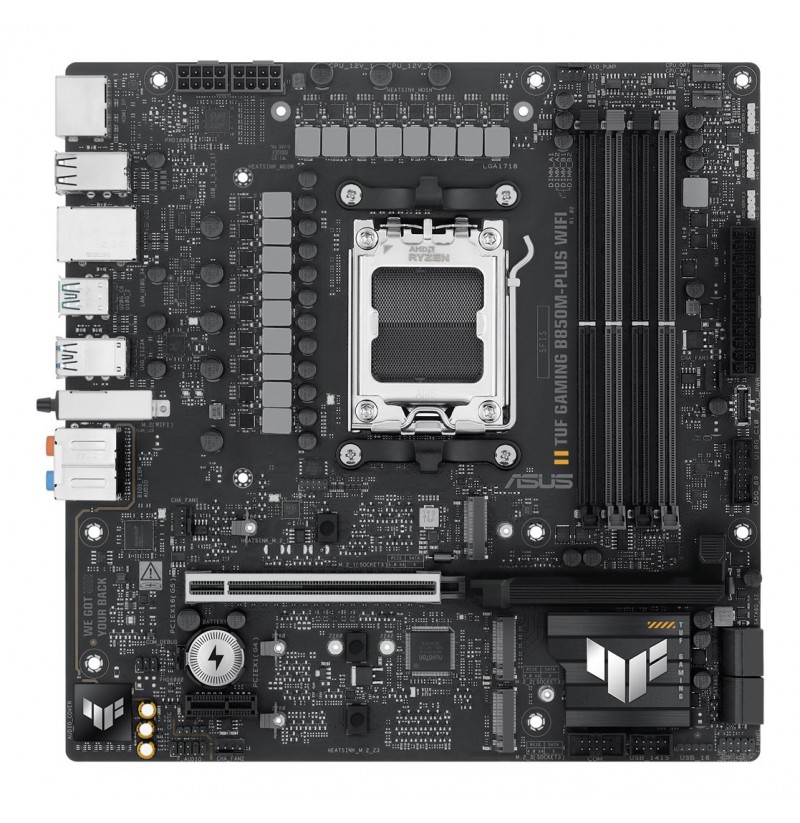

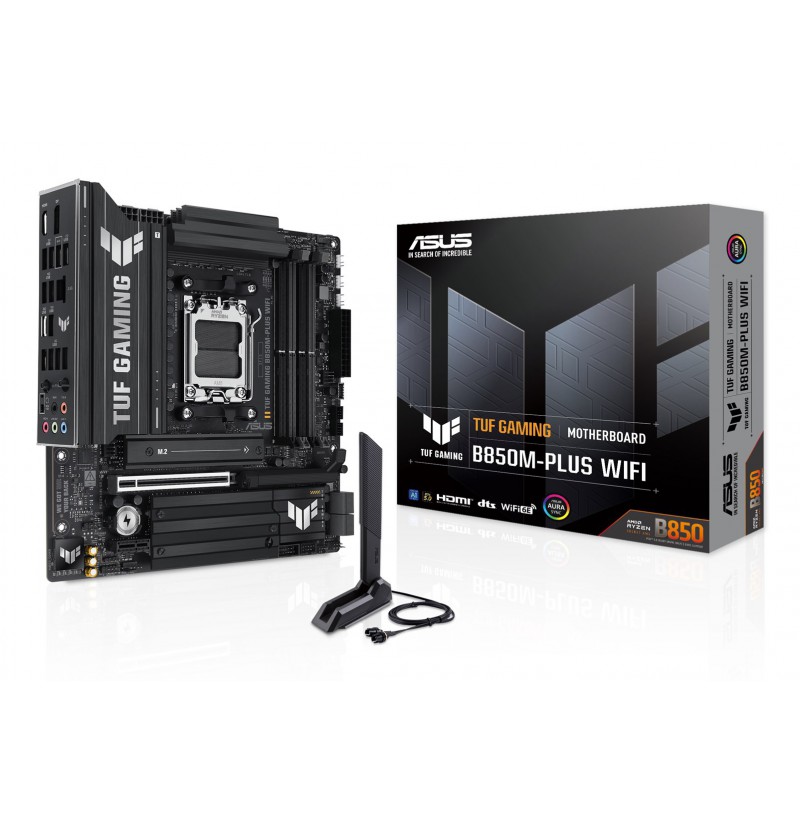

ASUS TUF GAMING B850M-PLUS WIFI AMD B850 Socket AM5 micro ATX

Supported processor sockets: Socket AM5
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series
Processor socket: Socket AM5
On-board graphics card: No
Parallel processing technology support: Not supported
Component for: PC
Windows operating systems supported: Windows 10 x64, Windows 11
Audio output channels: 7.1 channels
Motherboard chipset: AMD B850
Audio chip: Realtek ALC1220P
Product colour: Black
Motherboard chipset family: AMD
Motherboard form factor: micro ATX
Number of memory slots: 4
Memory channels: Dual-channel
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
ECC сompatibility: ECC & Non-ECC
Maximum internal memory: 192 GB
Unbuffered memory: Yes
Depth: 244 mm
Width: 244 mm
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet LAN: Yes
Bluetooth version: 5.3
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth: Yes
Number of SATA III connectors: 4
Number of COM connectors: 1
Front panel audio connector: Yes
12V power connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Chassis intrusion connector: Yes
CPU fan connector: Yes
Front panel connector: Yes
ATX Power connector (24-pin): Yes
Number of chassis fan connectors: 3
S/PDIF out connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 2
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Package width: 275 mm
Package weight: 1.68 kg
Package height: 67.5 mm
Package depth: 275 mm

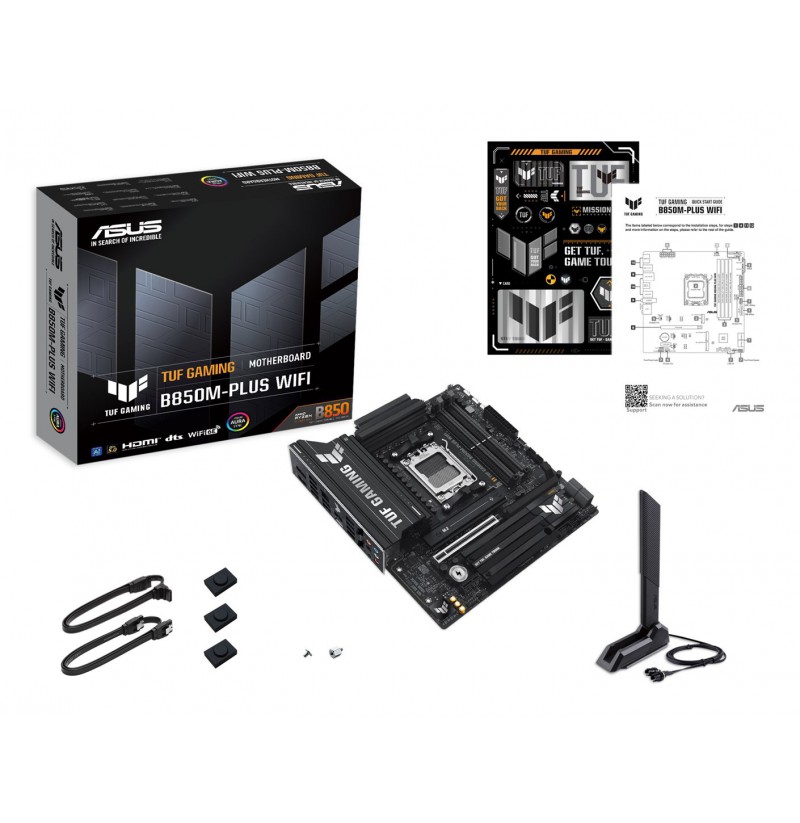

Cables included: SATA

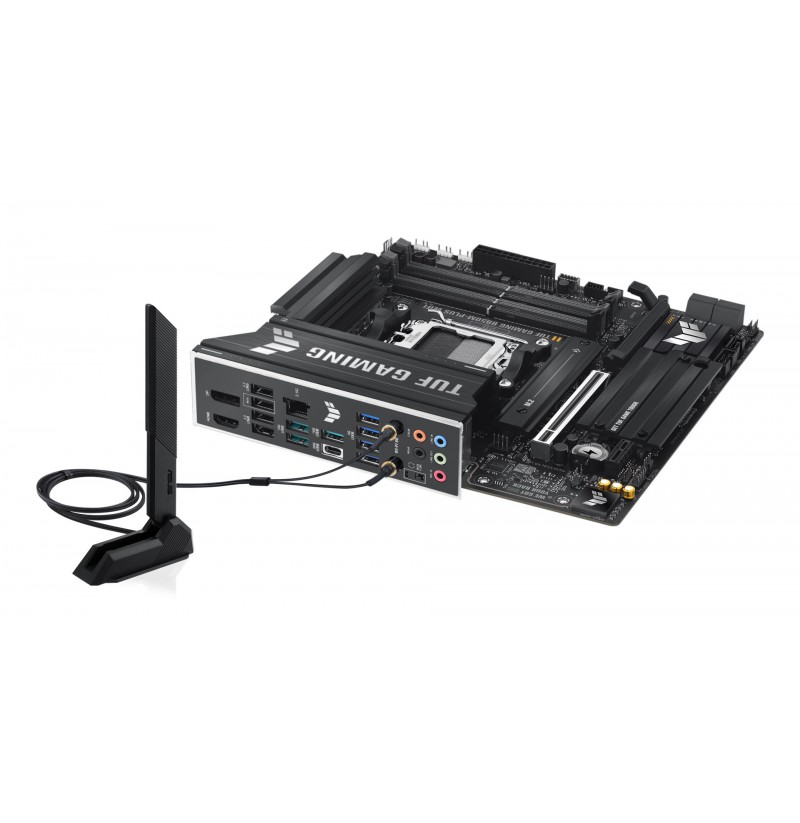

Antenna included: Yes
Screws included: Yes
RAID support: Yes
RAID levels: 10, 1, 5, 0
Number of storage drives supported: 7
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III

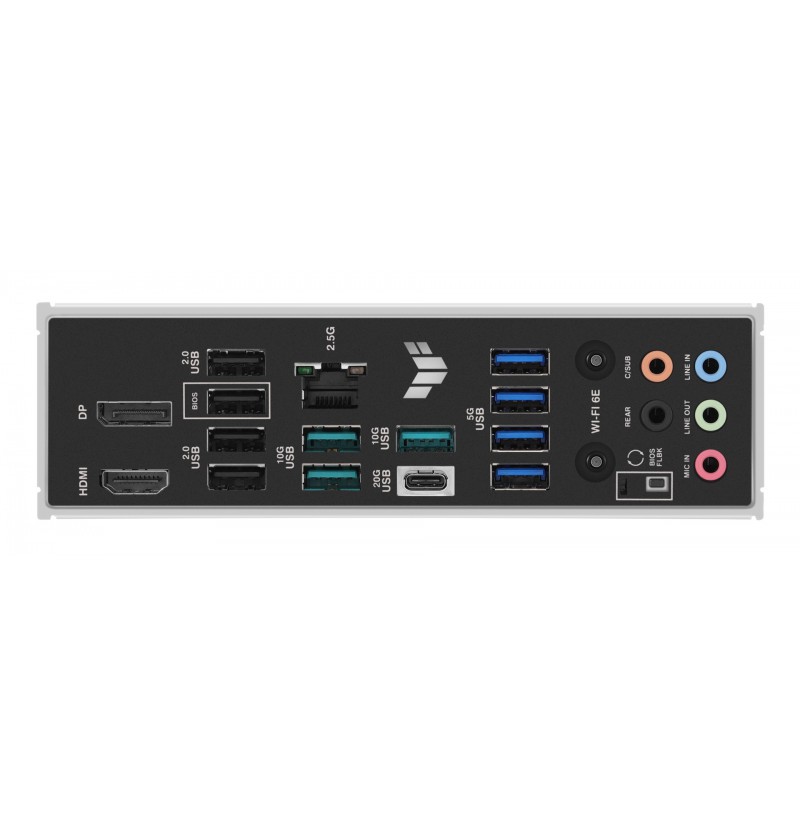

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
WiFi-AP antenna jack: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
DisplayPorts quantity: 1
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
2nd M.2 largest key size: 2280
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0
2nd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 2280
3rd M.2 highest PCI Express generation: 4.0
Weight: 1.2 kg
