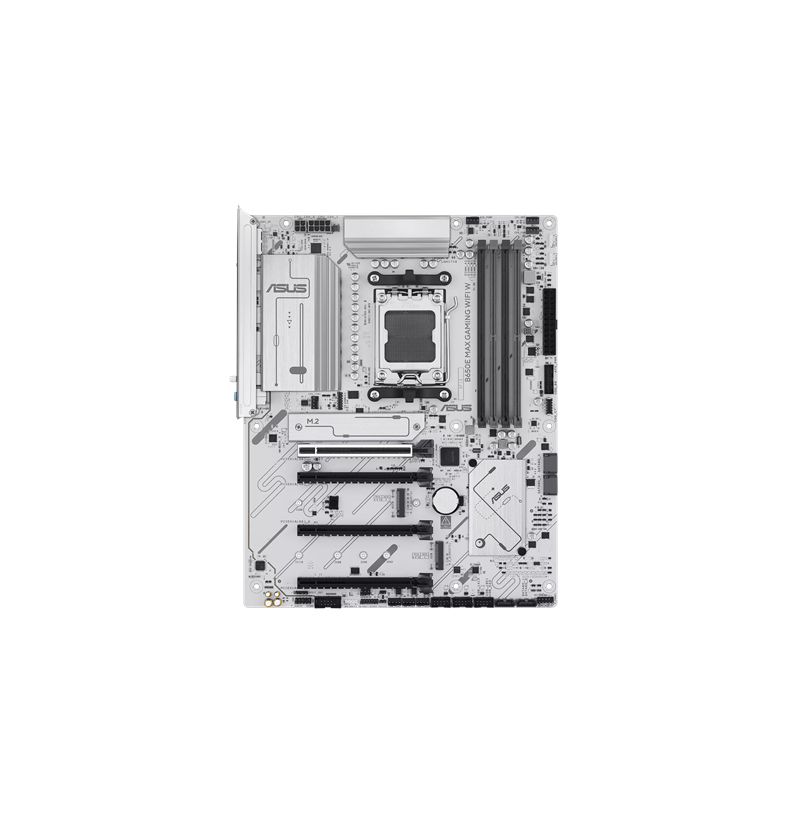

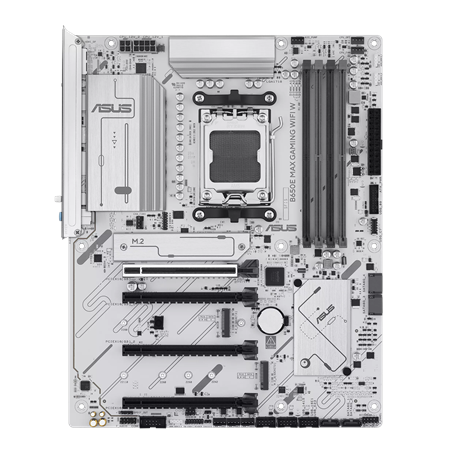

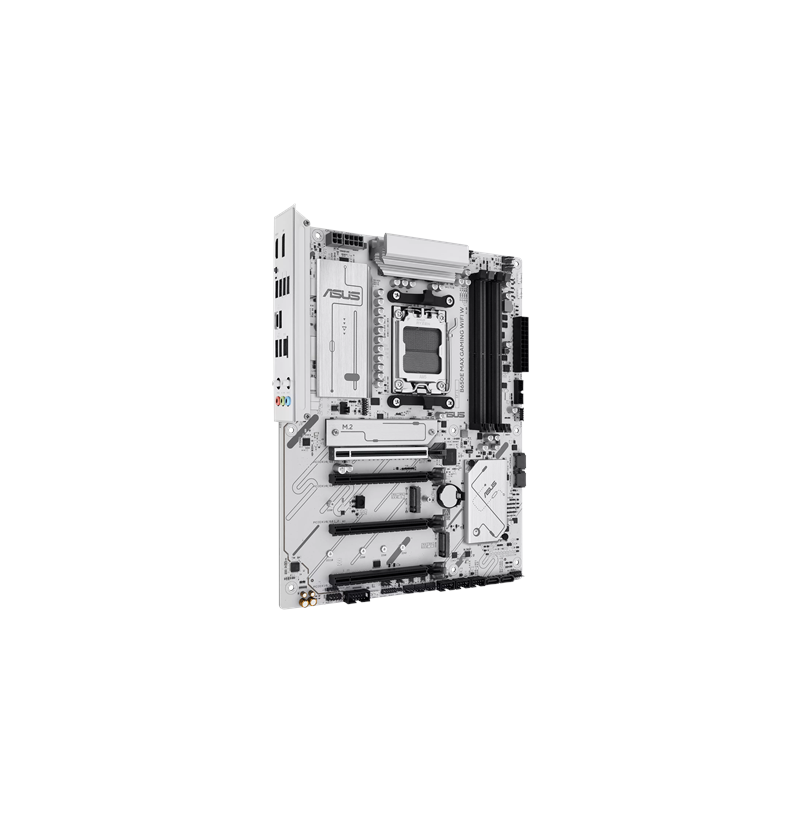

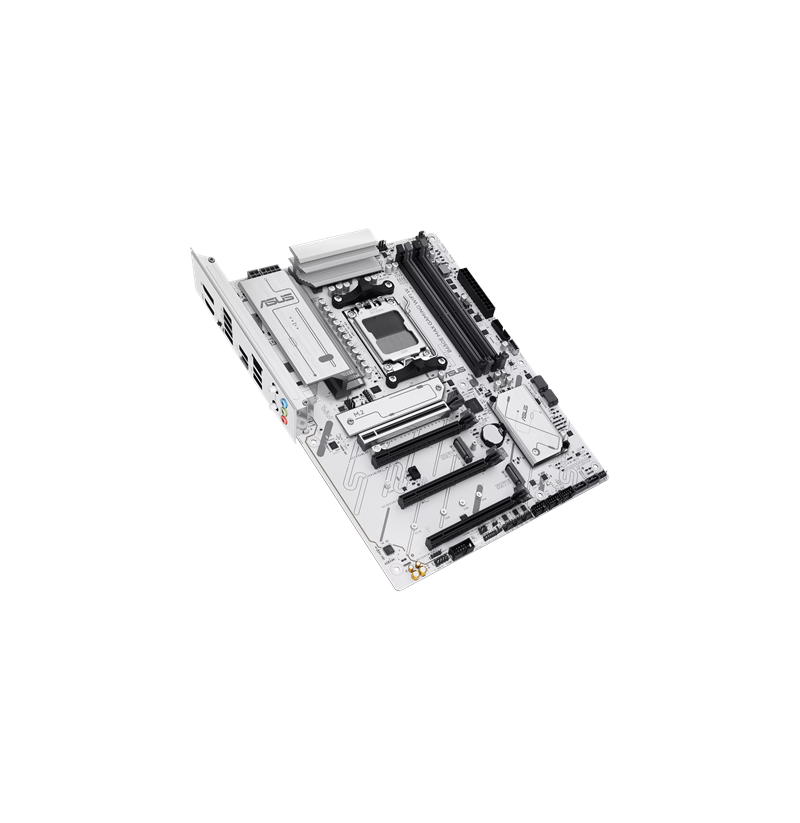

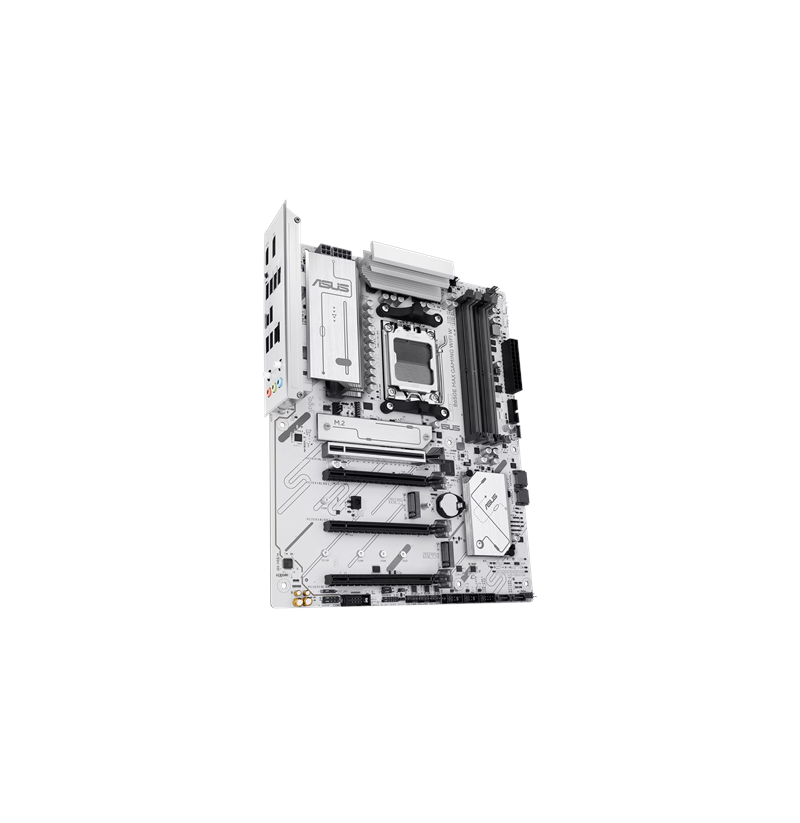

Asus B650E MAX GAMING WIFI W | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces SATA, M

Supported processor sockets: Socket AM5
Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series
Parallel processing technology support: Not supported
On-board graphics card: No
Motherboard form factor: ATX
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 10 x64, Windows 11
Motherboard chipset: AMD B650
Cooling type: Passive
Product colour: White
Motherboard chipset family: AMD
Memory channels: Dual-channel
Maximum internal memory: 256 GB
Unbuffered memory: Yes
Number of memory slots: 4
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
ECC сompatibility: ECC & Non-ECC
Depth: 244 mm
Width: 305 mm
Bluetooth: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Wi-Fi: Yes
Bluetooth version: 5.3
Number of SATA III connectors: 4
Peripheral (Molex) power connectors (4-pin): 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of COM connectors: 1
S/PDIF out connector: Yes
EPS power connector (8-pin): Yes
Number of chassis fan connectors: 4
USB 2.0 connectors: 3
Front panel audio connector: Yes
Chassis intrusion connector: Yes
Thunderbolt headers: 1
ATX Power connector (24-pin): Yes
TPM connector: Yes
CPU fan connector: Yes
Front panel connector: Yes
12V power connector: Yes
RGB LED pin header: Yes
Number of RGB LED pin headers: 3
Number of CPU fan connectors: 1
BIOS type: UEFI AMI
Package weight: 1.26 kg
Package height: 68 mm
Package width: 353 mm
Package depth: 273 mm
Cables included: SATA
Screws included: Yes
Antenna included: Yes
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
RAID levels: 1, 5, 10, 0
RAID support: Yes
Number of HDDs supported: 4
Number of storage drives supported: 7
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 2.0 ports quantity: 2
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
HDMI ports quantity: 1
Line-in: Yes
Microphone in: Yes
WiFi-AP antenna jack: 1
PCI Express x16 (Gen 3.x) slots: 2
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 4.x) slots: 1
3rd M.2 largest key size: 22110
1st M.2 largest key size: 2280
PCI Express x16 (Gen 5.x) slots: 1
2nd M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0
2nd M.2 highest PCI Express generation: 4.0
3rd M.2 highest PCI Express generation: 4.0
