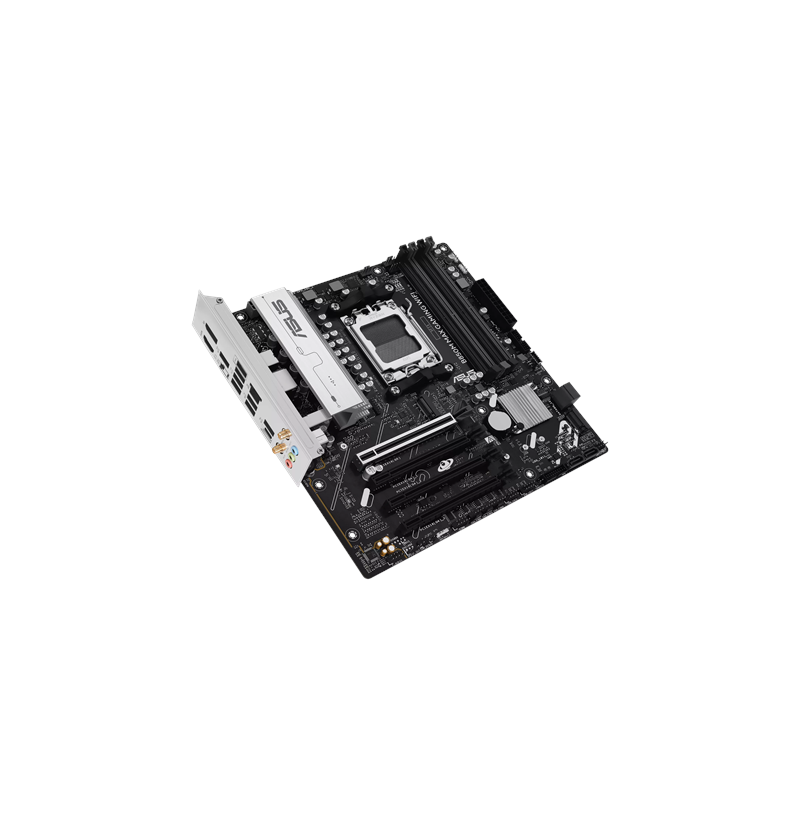

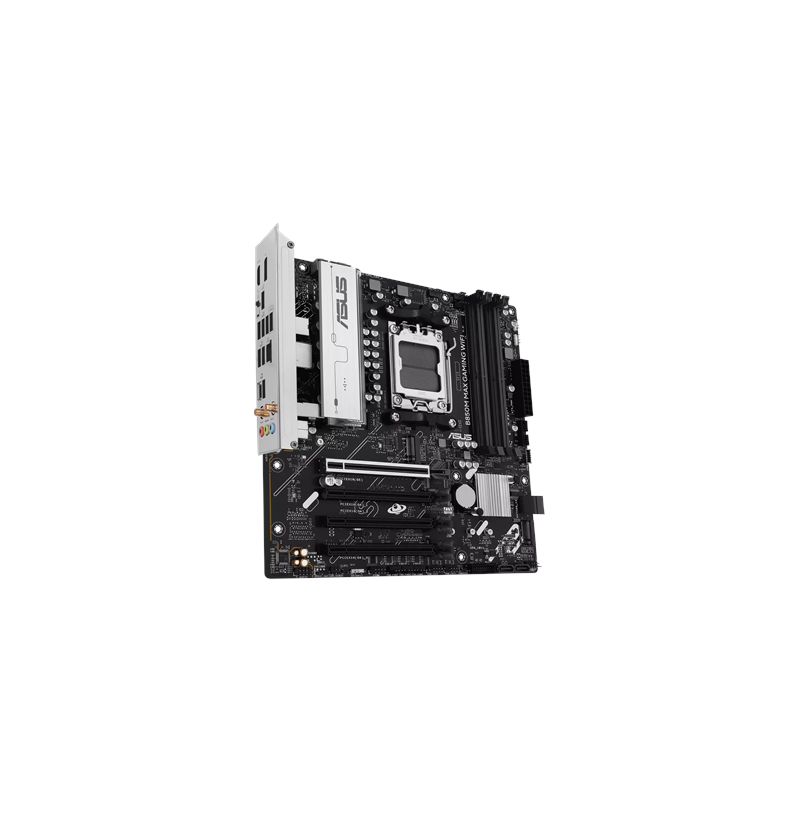

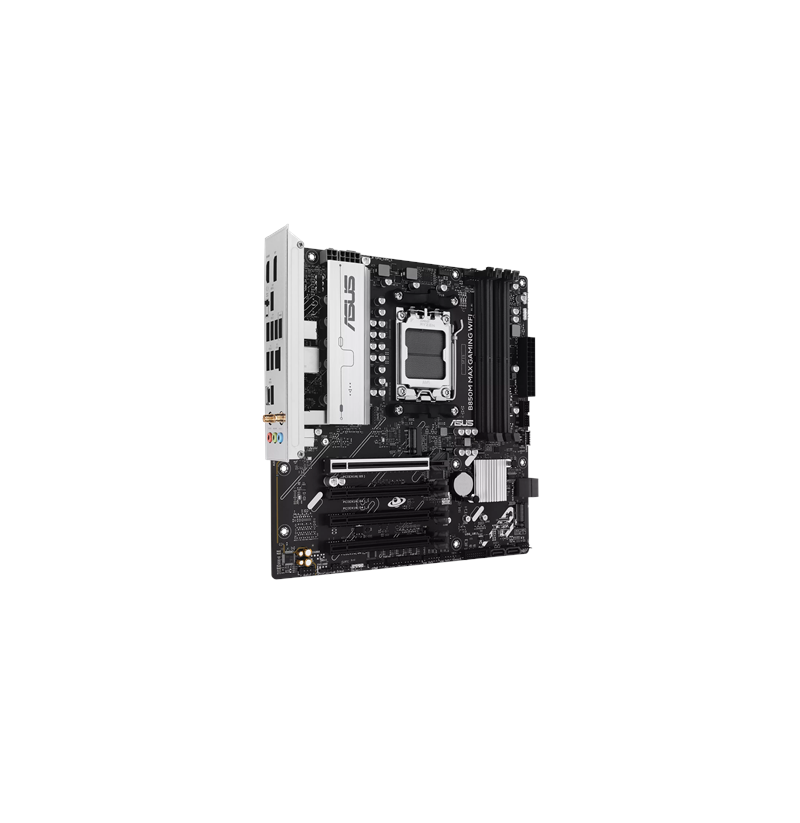

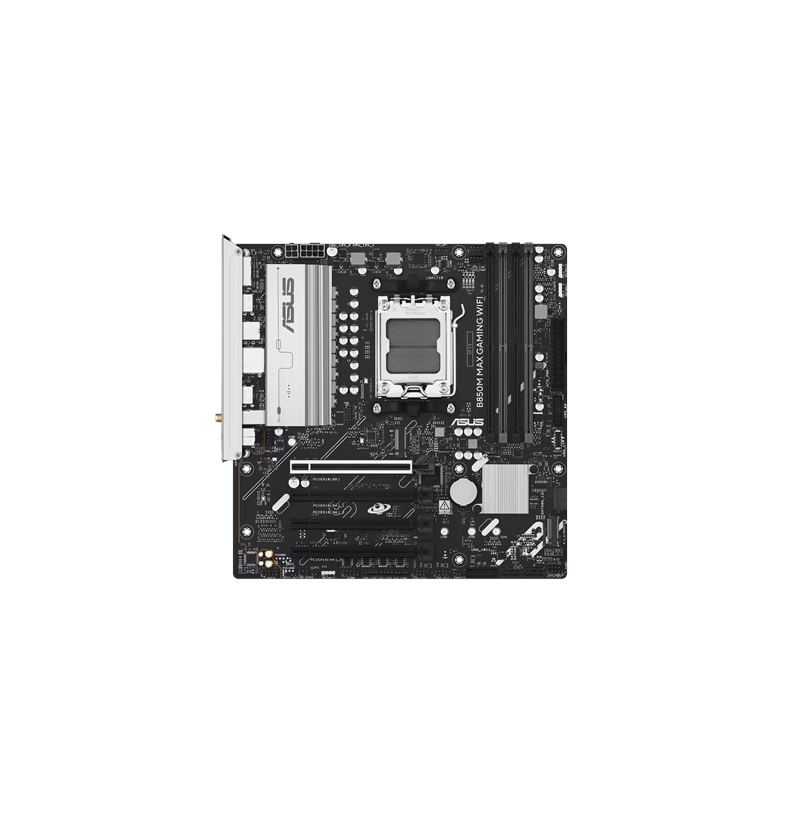

Motherboard MB AMD B850 MATX ASUS

Supported processor sockets: Socket AM5
Processor socket: Socket AM5
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
Parallel processing technology support: Not supported
On-board graphics card: No
Product colour: Black
Motherboard chipset: AMD B850
Cooling type: Passive
Motherboard chipset family: AMD
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
Component for: PC
Windows operating systems supported: Windows 11, Windows 10 x64
Maximum internal memory: 256 GB
Unbuffered memory: Yes
Memory channels: Dual-channel
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
ECC сompatibility: ECC & Non-ECC
Width: 244 mm
Depth: 244 mm
Bluetooth: Yes
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Wi-Fi: Yes
Bluetooth version: 5.4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3
S/PDIF out connector: Yes
Number of chassis fan connectors: 4
Number of SATA III connectors: 4
Front panel audio connector: Yes
USB 2.0 connectors: 2
CPU fan connector: Yes
ATX Power connector (24-pin): Yes
Chassis intrusion connector: Yes
12V power connector: Yes
Front panel connector: Yes
TPM connector: Yes
EPS power connector (8-pin): Yes
Number of COM connectors: 1
Number of RGB LED pin headers: 3
RGB LED pin header: Yes
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Package weight: 1.38 kg
Package depth: 275 mm
Package height: 67.5 mm
Package width: 275 mm
Cables included: SATA
Antenna included: Yes
Screws included: Yes
RAID levels: 1, 5, 10, 0
RAID support: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 7
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 5
DisplayPorts quantity: 1
Microphone in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
WiFi-AP antenna jack: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
HDMI ports quantity: 1
Line-in: Yes
Number of M.2 (M) slots: 3
3rd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
1st M.2 largest key size: 2280
3rd M.2 highest PCI Express generation: 3.0
1st M.2 highest PCI Express generation: 5.0
PCI Express x16 (Gen 4.x) slots: 3
PCI Express x16 (Gen 5.x) slots: 1
Weight: 859 g
