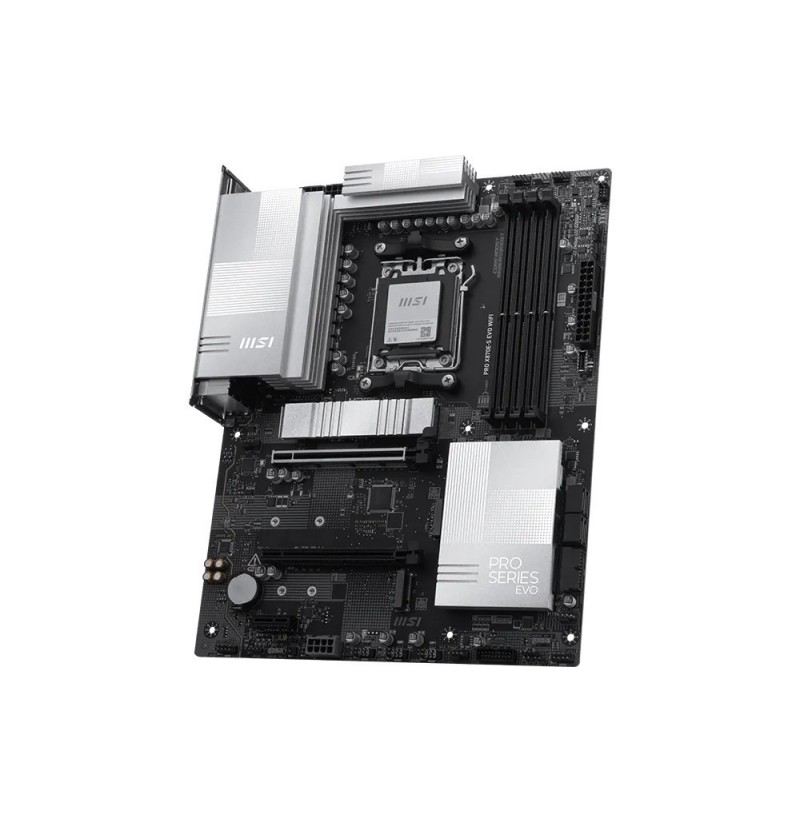

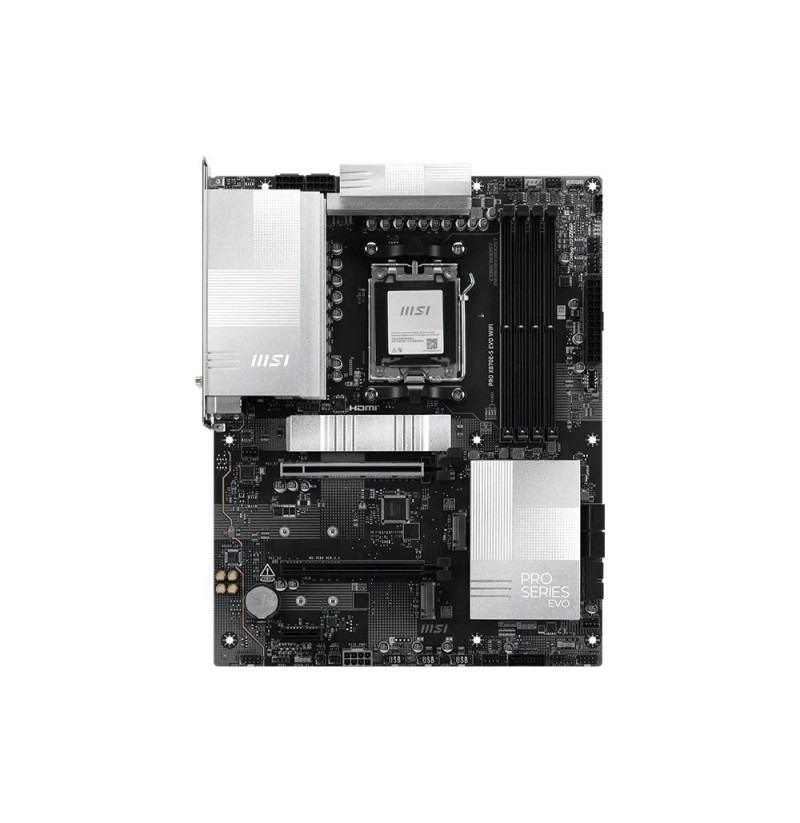

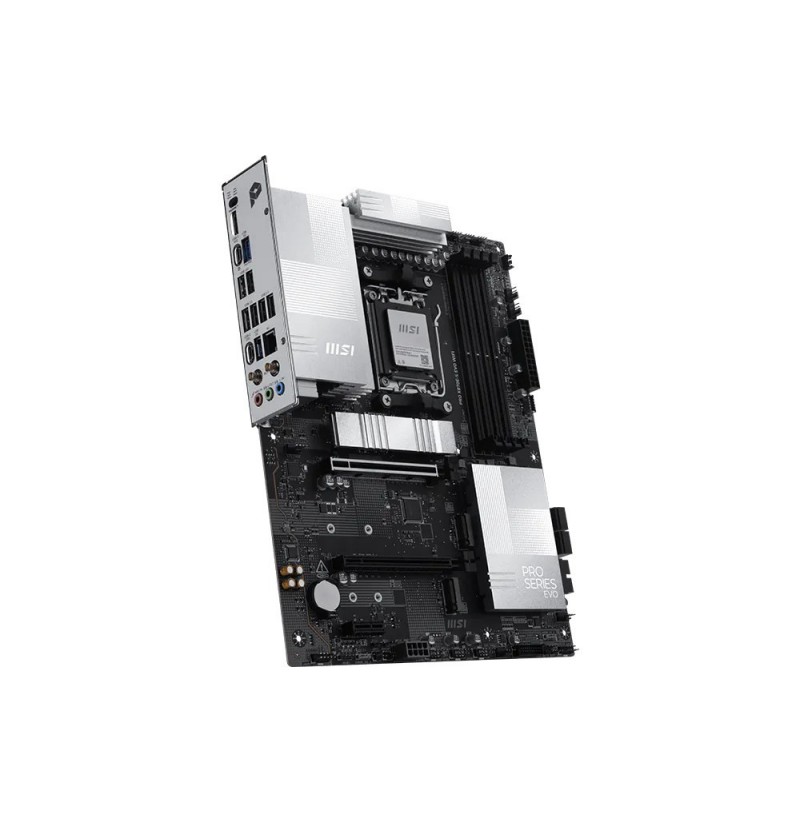

MSI PRO X870E-S EVO WIFI | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces SATA, M.2 |

Supported processor sockets: Socket AM5
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series
Processor socket: Socket AM5
On-board graphics card: No
Motherboard chipset: AMD X870E
Motherboard chipset family: AMD
Audio chip: Realtek ALC897
Product colour: Black
Component for: PC
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11 x64
Motherboard form factor: ATX
PC health monitoring: CPU, Voltage, Fan, Temperature
Number of memory slots: 4
Memory slots type: DIMM
Supported memory clock speeds: 8200, 4800 MHz, 5600
Maximum internal memory: 256 GB
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory types: DDR5-SDRAM
Supported memory clock speed (max): 8200 MHz
Wi-Fi: Yes
Wi-Fi standards: Wi-Fi 7 (802.11be)
Bluetooth: Yes
Bluetooth version: 5.4
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Total number of SATA connectors: 4
Number of SATA III connectors: 4
TPM connector: Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
ATX Power connector (24-pin): Yes
RGB LED pin header: Yes
USB 2.0 connectors: 6
BIOS memory size: 512 Mbit
ACPI version: 6.5
System Management BIOS (SMBIOS) version: 3.7
BIOS type: UEFI AMI
RAID levels: 1, 0
RAID support: Yes
Number of storage drives supported: 7
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI version: 2.1
DisplayPort version: 1.4
DisplayPorts quantity: 2
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
USB4 Gen 2x2 ports quantity: 1
USB4 Gen 3x2 ports quantity: 1
PCI Express x16 slots: 3
Number of M.2 (M) slots: 3
1st M.2 largest key size: 2280
PCI Express x1 slots: 1
3rd M.2 highest PCI Express generation: 4.0
2nd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 2280
2nd M.2 largest key size: 22110
1st M.2 highest PCI Express generation: 5.0
