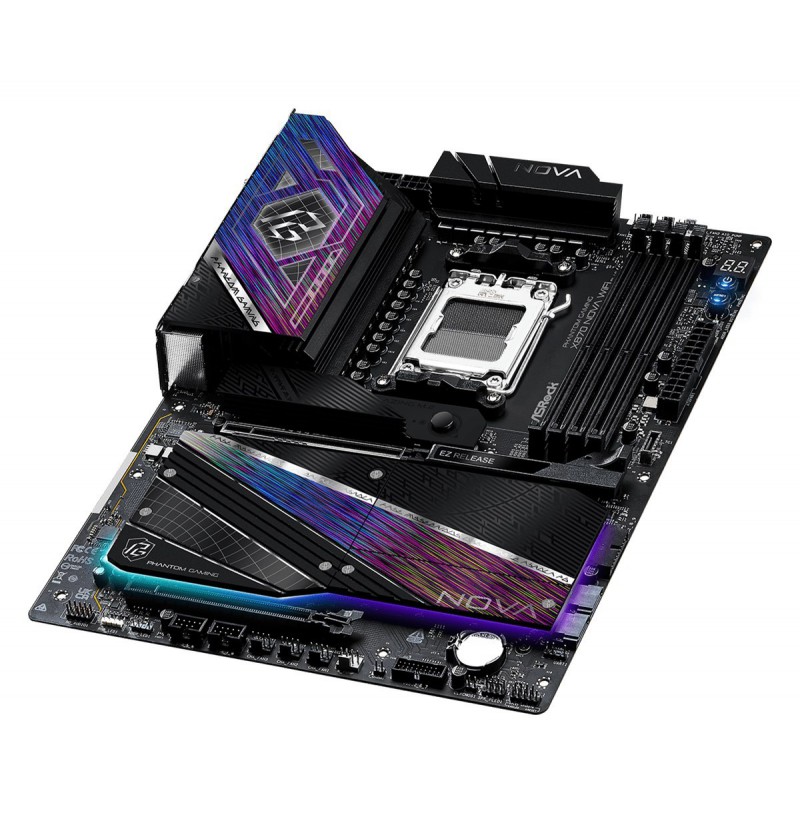

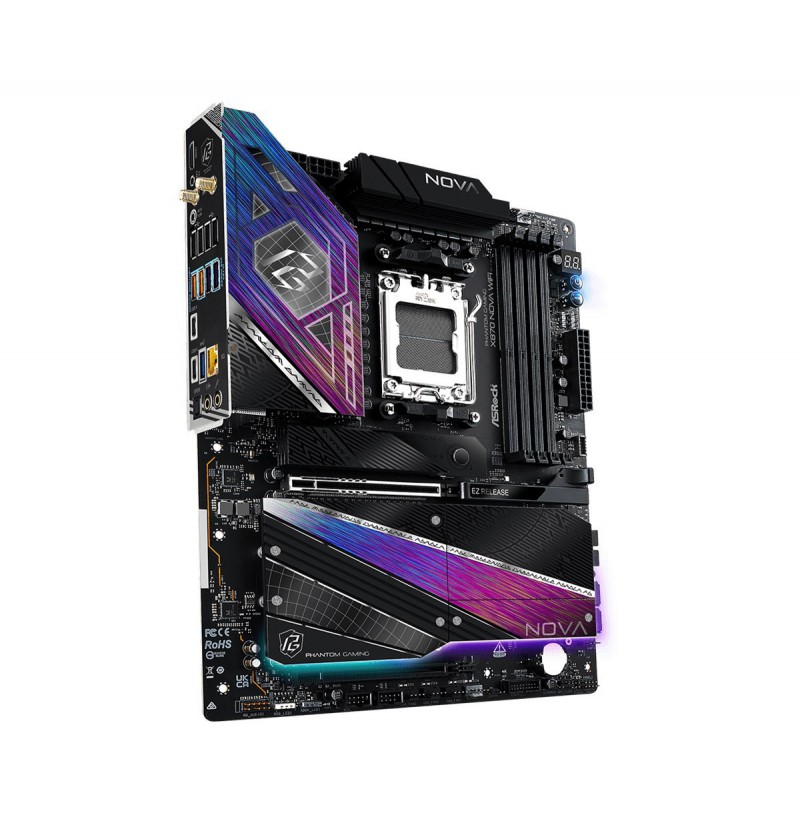

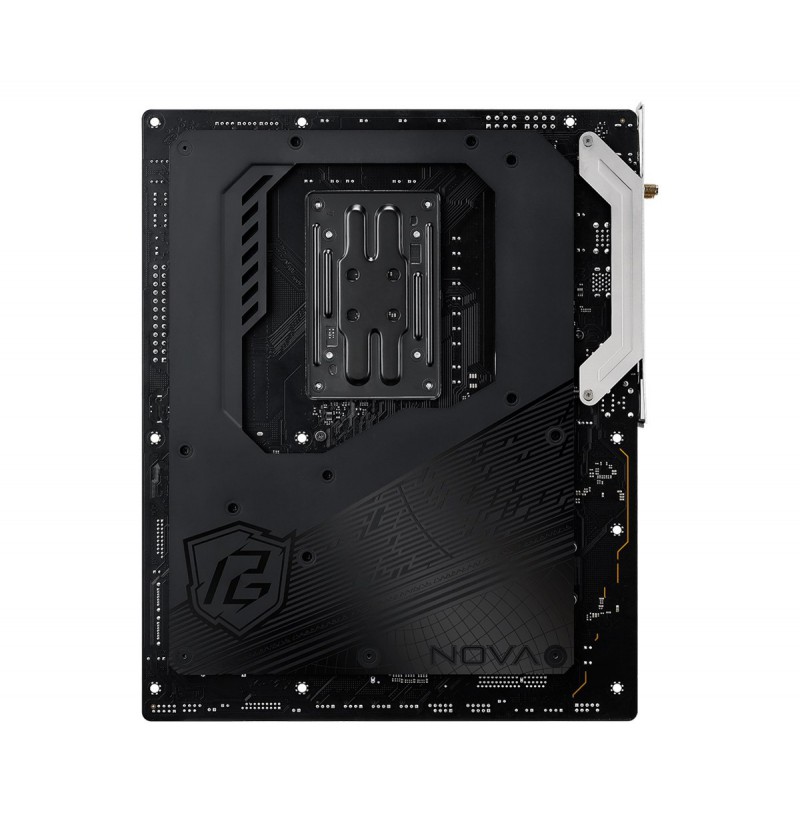

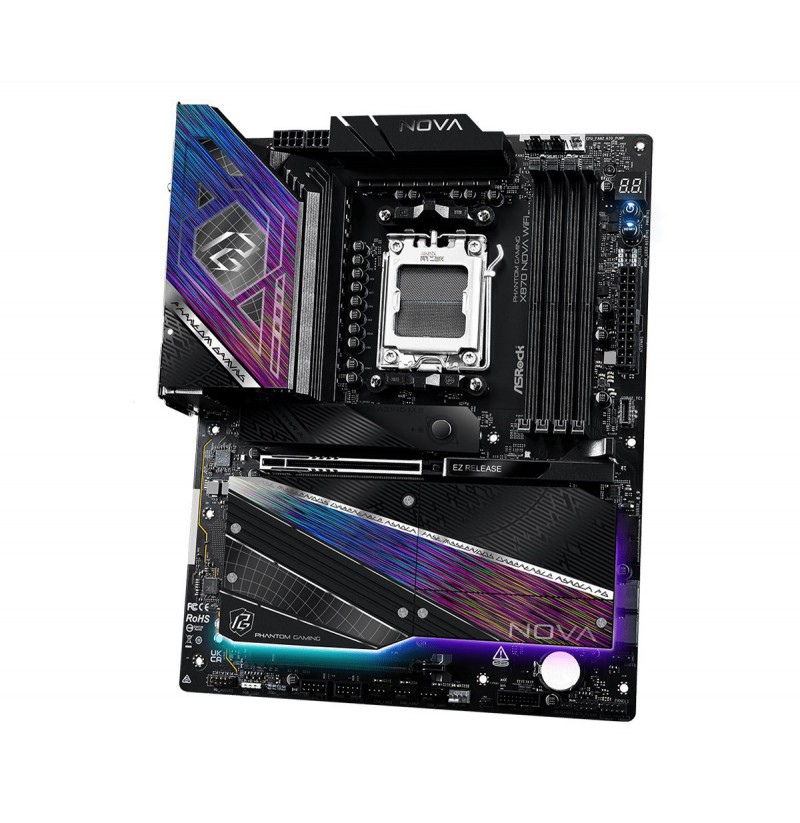

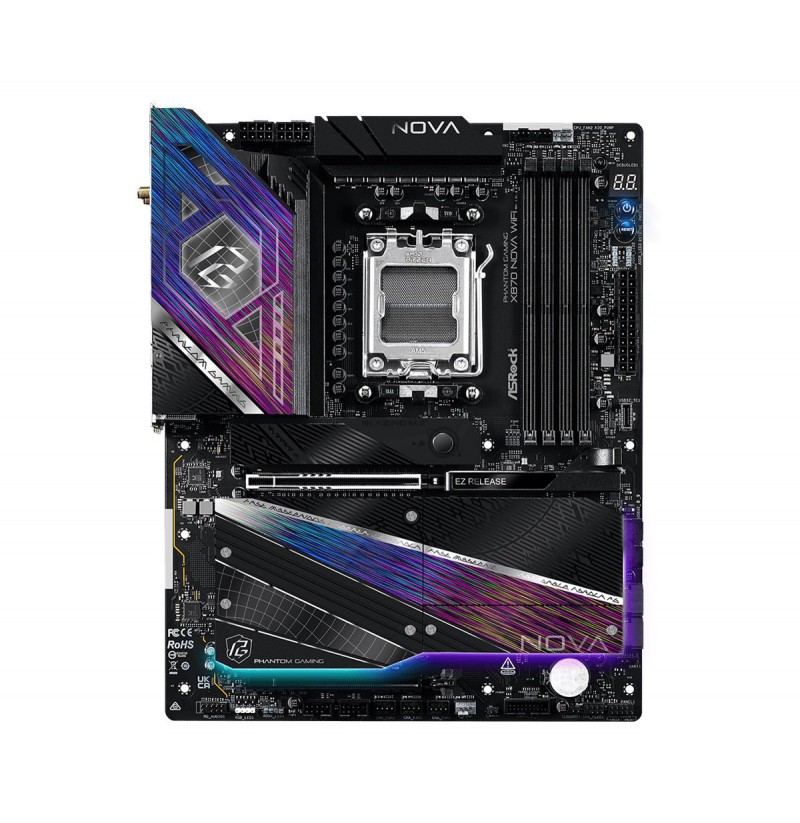

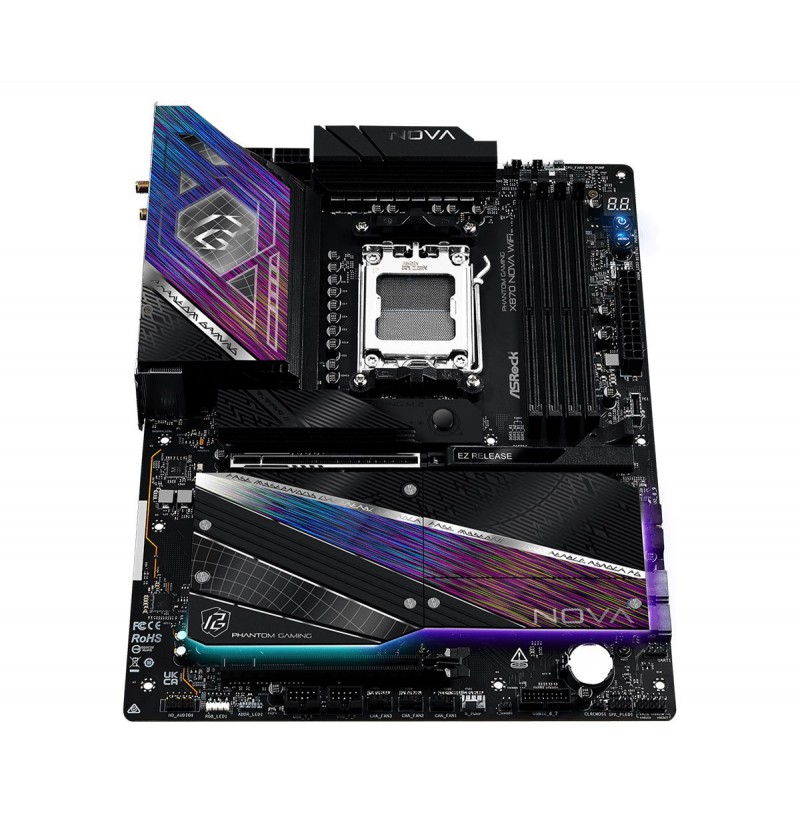

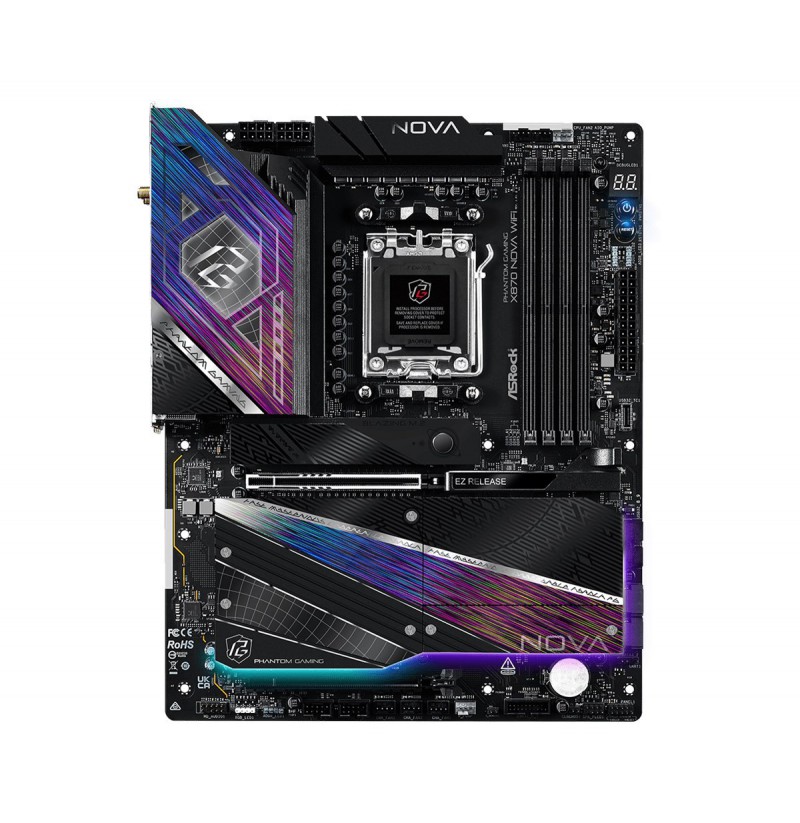

Asrock X870 NOVA WIFI AMD X870 Socket AM5 ATX

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor manufacturer: AMD
Processor socket: Socket AM5
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: AMD
Audio chip: Realtek ALC4082
Motherboard chipset: AMD X870
Supported memory clock speeds: 8400 MHz
Memory channels: Dual-channel
Maximum internal memory: 256 GB
ECC сompatibility: ECC & Non-ECC
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Width: 305 mm
Depth: 244 mm
Bluetooth: Yes
Wi-Fi standards: 802.11g, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), 802.11b, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be)
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
LAN controller: Realtek RTL8126
Ethernet interface type: 5 Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi: Yes
Bluetooth version: 5.4
ATX Power connector (24-pin): Yes
Front panel audio connector: Yes
EPS power connector (8-pin): Yes
USB 2.0 connectors: 2
CPU fan connector: Yes
Number of EPS power connectors (8-pin): 2
USB 3.2 Gen 2x2 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of CPU fan connectors: 2
RGB LED pin header: Yes
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Cables included: SATA
Antenna included: Yes
Supported storage drive types: HDD & SSD
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
RAID levels: 1, 10, 0
Microphone in: Yes
S/PDIF out port: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 2.0 ports quantity: 4
HDMI ports quantity: 1
USB4 Gen 2x2 ports quantity: 2
Number of M.2 (M) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
