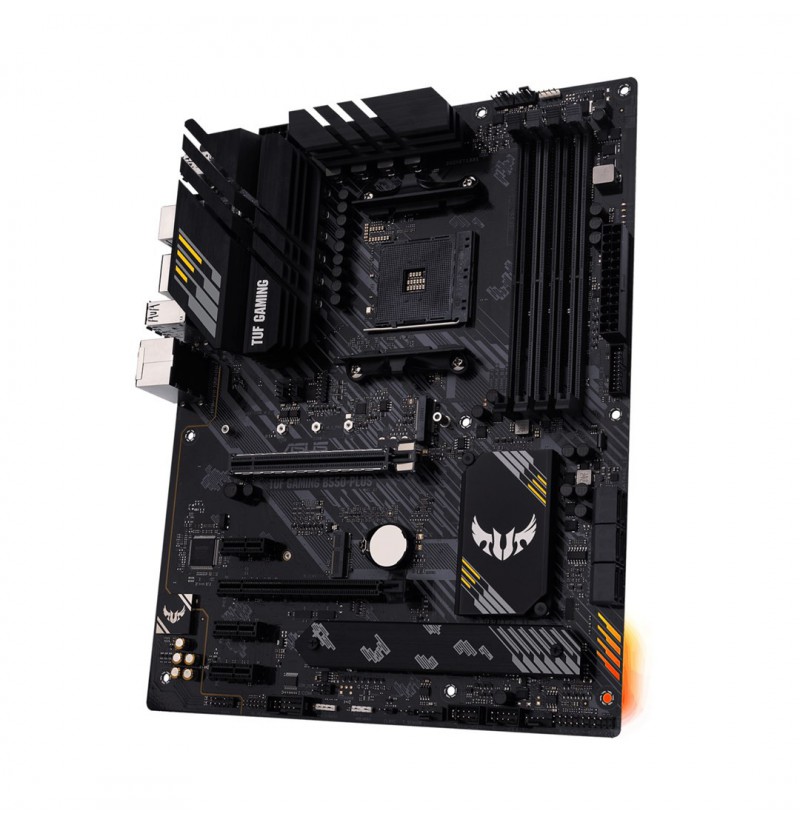

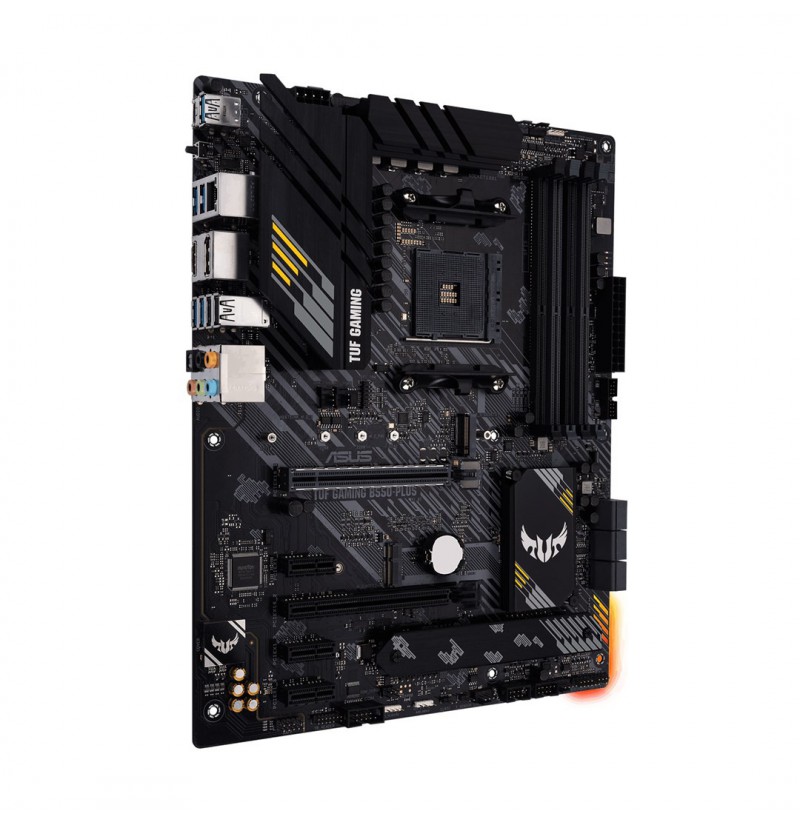

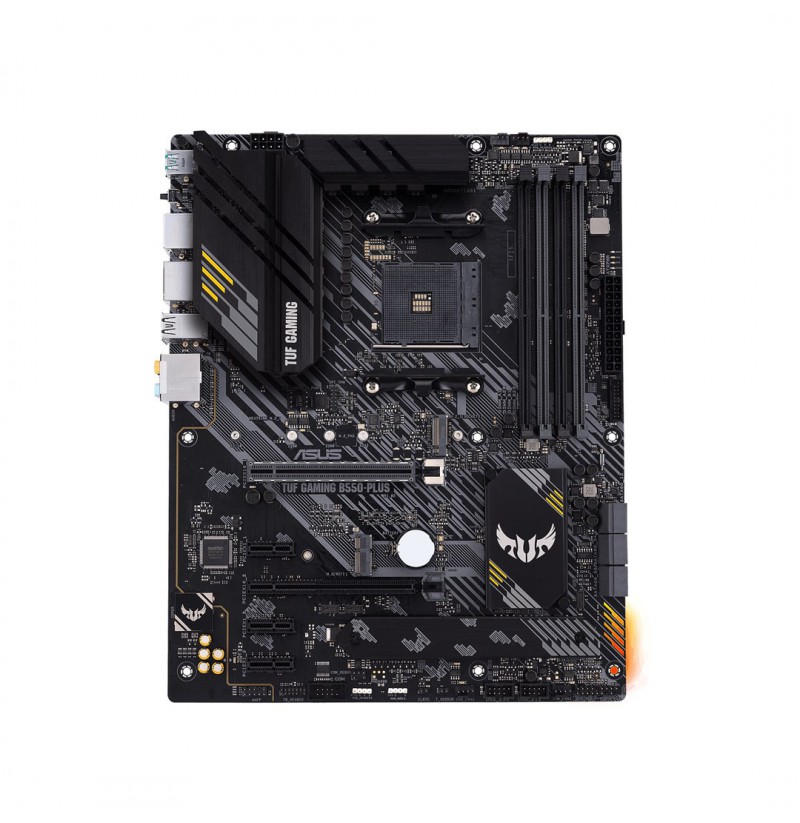

ASUS TUF Gaming B550-PLUS Socket AM4 Micro ATX AMD B550

Supported processor sockets: Socket AM4
Processor socket: Socket AM4
Compatible processor series: 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen 5
Maximum number of SMP processors: 1
Processor manufacturer: AMD
Parallel processing technology support: 2-Way CrossFireX
Audio output channels: 7.1 channels
Motherboard chipset: AMD B550
Audio chip: Realtek ALC S1200A
Motherboard chipset family: AMD
Motherboard form factor: ATX
Windows operating systems supported: Windows 10 x64
Supported memory clock speeds: 2400, 2800, 3000, 3200 MHz, 2666, 4266, 3733, 4400 MHz, 4600, 4133, 4000, 3600, 3466, 3866, 2133, 3333
Maximum internal memory: 128 GB
Number of memory slots: 4
Memory channels: Dual-channel
Supported memory types: DDR4-SDRAM
Memory slots type: DIMM
Depth: 244 mm
Width: 305 mm
LAN controller: Realtek RTL8125B
Wi-Fi: No
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Number of SATA III connectors: 6
Front panel audio connector: Yes
Number of SATA connectors: 4
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
ATX Power connector (24-pin): Yes
Number of chassis fan connectors: 3
EPS power connector (8-pin): Yes
CPU fan connector: Yes
TPM connector: Yes
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
Cables included: SATA
Drivers included: Yes
Supported storage drive interfaces: M.2, Serial ATA
RAID levels: 1, 0, 10

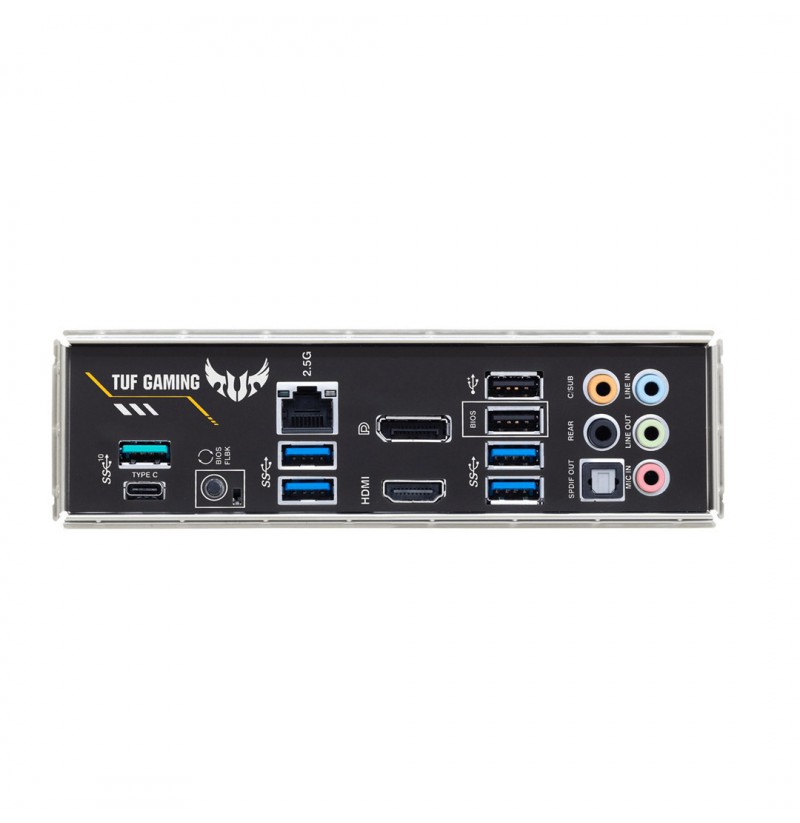

Ethernet LAN (RJ-45) ports: 1
S/PDIF out port: Yes
DisplayPorts quantity: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
HDMI ports quantity: 1
PS/2 ports quantity: 1
PCI Express x1 (Gen 3.x) slots: 3
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
