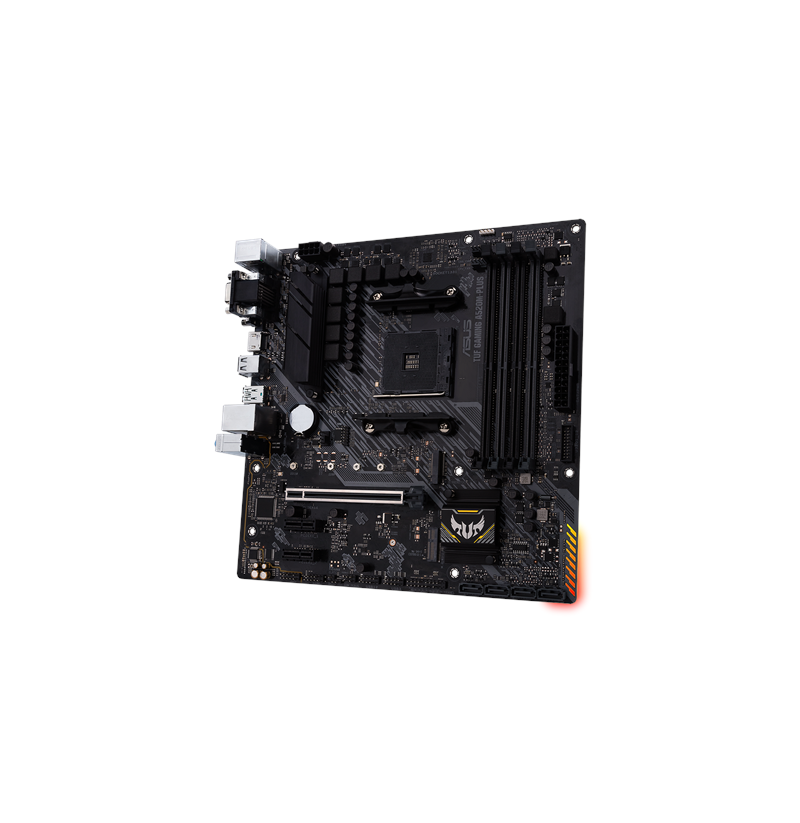

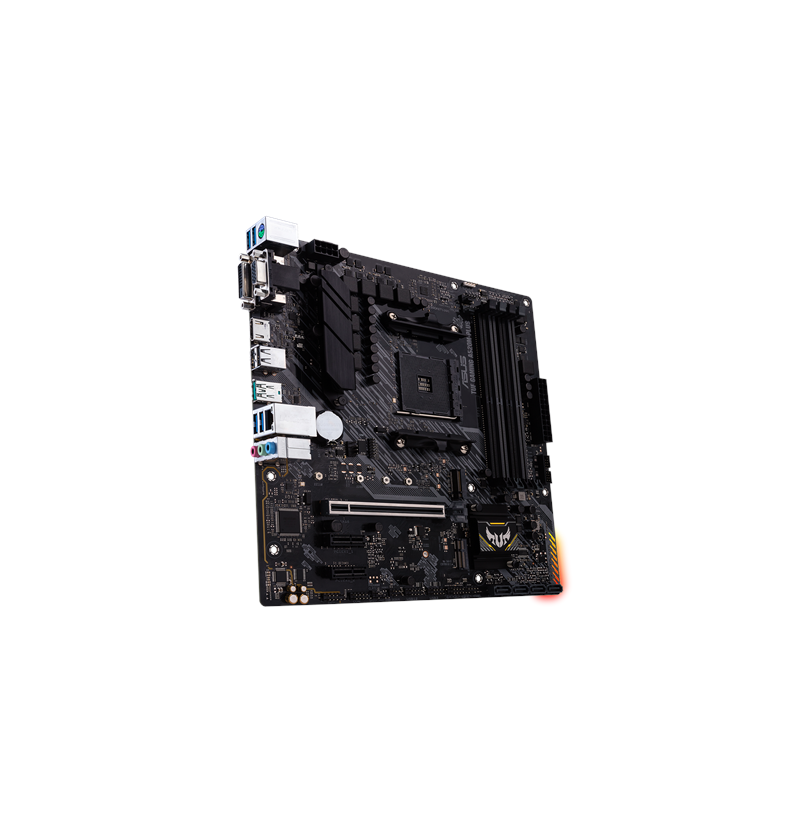

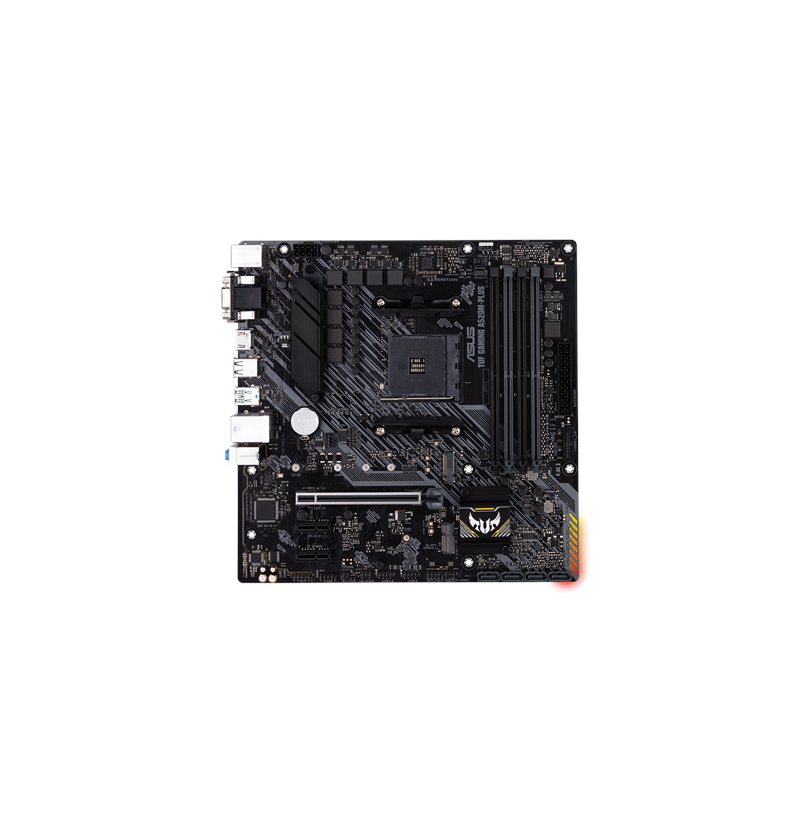

ASUS TUF GAMING A520M-PLUS WIFI - bund

Processor manufacturer: AMD
Supported processor sockets: Socket AM4
Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series
Processor socket: Socket AM4
Maximum resolution: 3840 x 2160 pixels
Parallel processing technology support: Not supported
Motherboard chipset: AMD A520
Windows operating systems supported: Windows 10 x64
Audio chip: Realtek ALC887 / Realtek ALC897
Motherboard chipset family: AMD
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
Memory channels: Dual-channel
Unbuffered memory: Yes
Supported memory clock speeds: 3200, 2666, 4266, 2133, 3000, 3600, 3866, 4600, 3733, 4400 MHz, 2400, 2800, 3333, 4466, 3466, 4133, 4000, 4800
Maximum internal memory: 128 GB
ECC сompatibility: ECC
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Height: 67 mm
Width: 244 mm
Depth: 244 mm
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Wi-Fi standards: Wi-Fi 5 (802.11ac), 802.11g, Wi-Fi 4 (802.11n), 802.11a, 802.11b
Bluetooth: Yes
Wake-on-LAN ready: Yes
Ethernet LAN: Yes
Wi-Fi: Yes
Bluetooth version: 5.0
Ethernet interface type: Gigabit Ethernet
WLAN controller model: Realtek RTL8821CE
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
ATX Power connector (24-pin): Yes
EPS power connector (8-pin): Yes
CPU fan connector: Yes
TPM connector: Yes
S/PDIF out connector: Yes
USB 2.0 connectors: 2
Number of COM connectors: 1
Front panel audio connector: Yes
Number of SATA III connectors: 4
Number of chassis fan connectors: 2
RGB LED pin header: Yes
12V power connector: Yes
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
Cables included: SATA
Drivers included: Yes
RAID levels: 0, 1, 10
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III
Number of storage drives supported: 5
DisplayPort version: 1.2
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
USB 2.0 ports quantity: 2
DisplayPorts quantity: 1
HDMI version: 2.1
USB connector type: USB Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1
Microphone in: Yes
Headphone outputs: 3
WiFi-AP antenna jack: 1
VGA (D-Sub) ports quantity: 1
Number of M.2 (M) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 2
Weight: 900 g
Harmonized System (HS) code: 84733020
Warnings: Store away from water and sources of moisture., Dispose of according to local electro-waste regulations., Avoid direct contact with sensitive electronic components.
