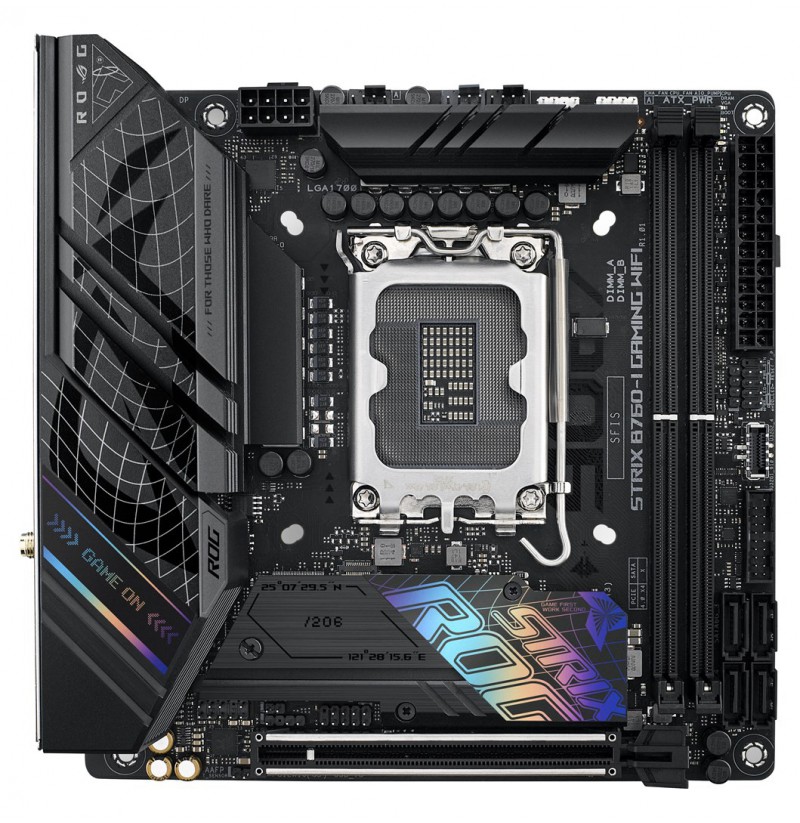

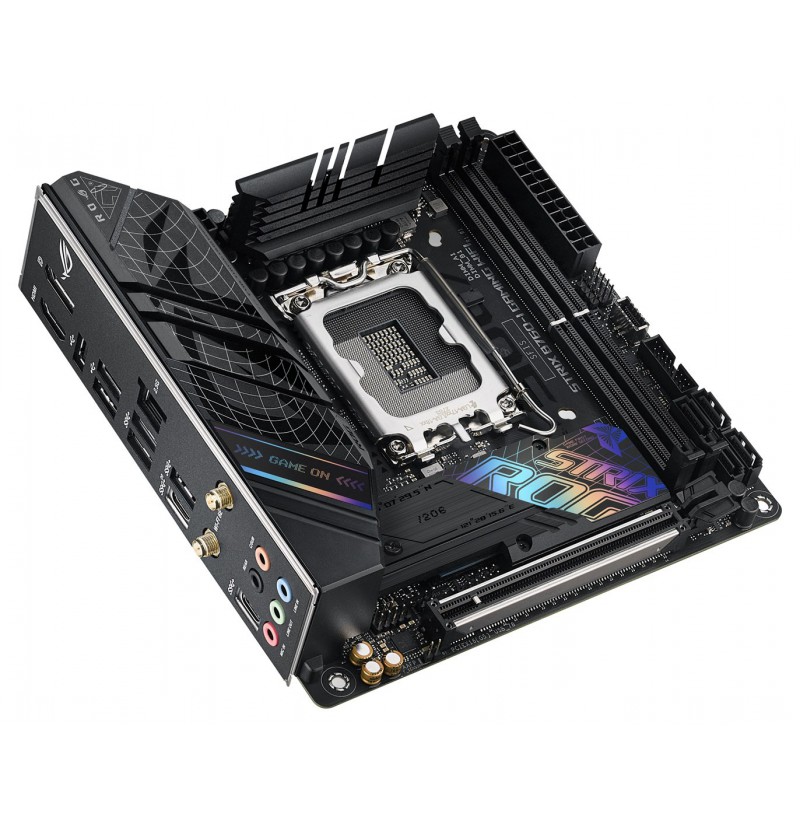

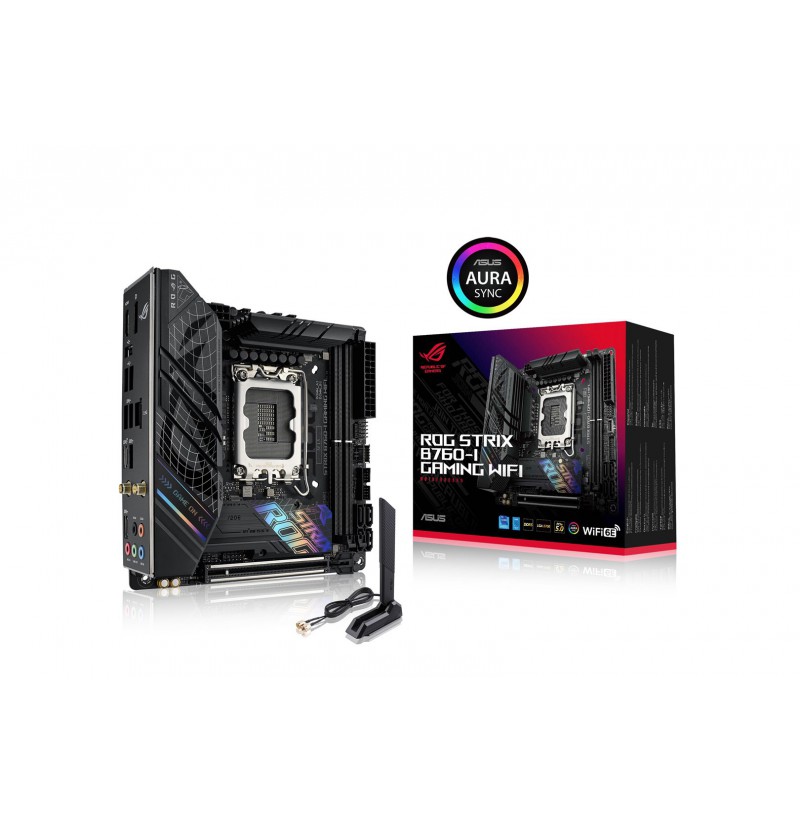

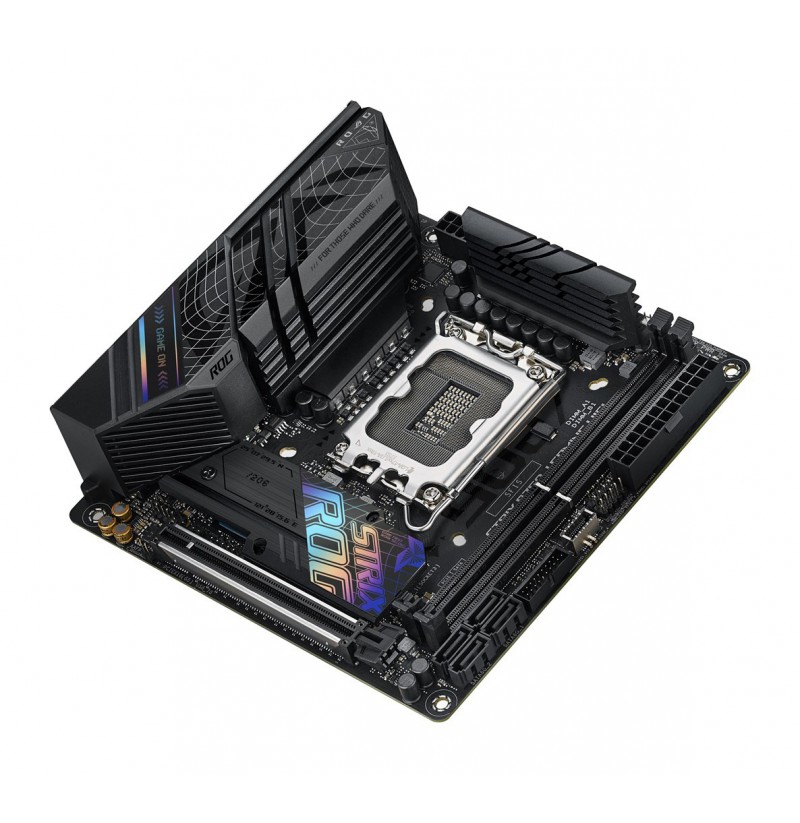

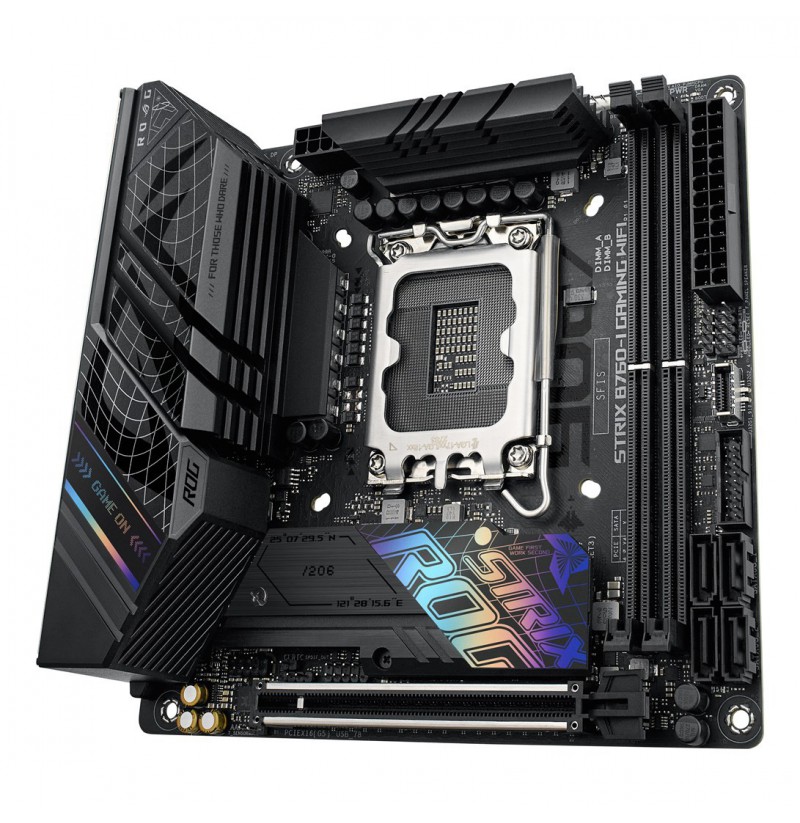

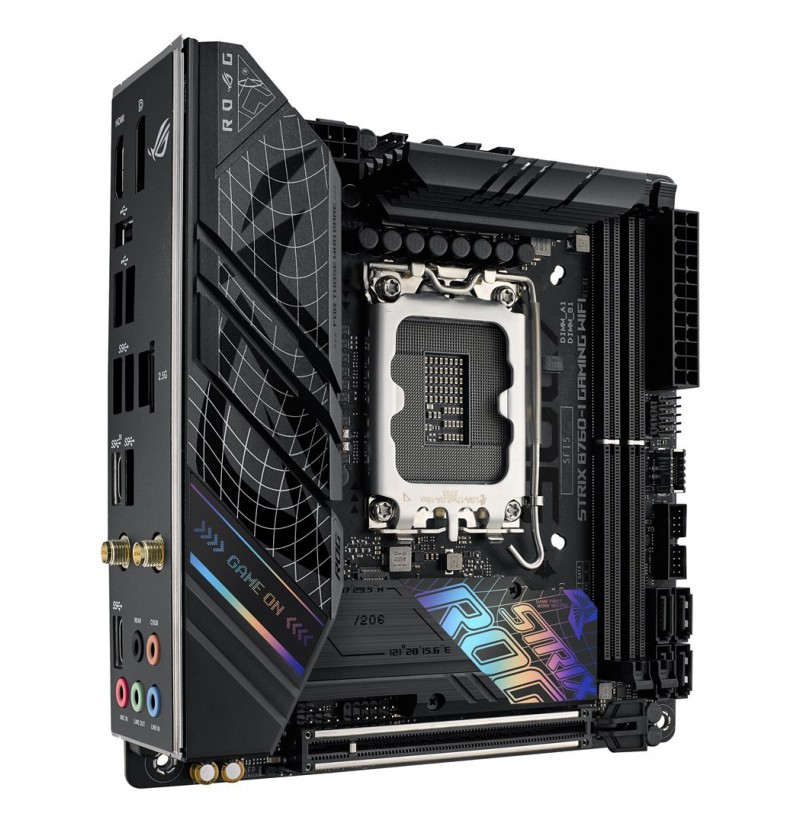

Asus | ROG STRIX B760-I GAMING WIFI | Processor family Intel | Processor socket LGA1700 | DDR5 SDRAM | Supported hard disk drive

Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3
Maximum number of SMP processors: 1
Supported processor sockets: LGA 1700
Processor manufacturer: Intel
Processor socket: LGA 1700
Parallel processing technology support: Not supported
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Audio output channels: 7.1 channels
Motherboard form factor: mini ITX
Audio chip: SupremeFX S1220A
Motherboard chipset family: Intel
Motherboard chipset: Intel B760
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Number of memory slots: 2
Supported memory clock speed (max): 7600 MHz
Memory channels: Dual-channel
Supported memory clock speeds: 6800, 6400, 5200, 6000, 5600, 7200, 5800, 5400, 7600, 6600, 7000, 4800, 6200, 5000
Maximum internal memory: 64 GB
Unbuffered memory: Yes
ECC сompatibility: Non-ECC
Height: 50 mm
Depth: 170 mm
Width: 170 mm
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth version: 5.3
Wi-Fi: Yes
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), 802.11g, 802.11b, Wi-Fi 5 (802.11ac)
Bluetooth: Yes
RGB LED pin header: Yes
12V power connector: Yes
ATX Power connector (24-pin): Yes
EPS power connector (8-pin): Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
CPU fan connector: Yes
Number of chassis fan connectors: 1
Front panel audio connector: Yes
USB 2.0 connectors: 1
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
BIOS type: UEFI AMI
Package height: 185 mm
Package width: 226 mm
Package depth: 94 mm
Package weight: 1.28 kg
Cables included: SATA
User guide: Yes
Number of HDDs supported: 4
RAID levels: 1, 0, 5, 10
Number of storage drives supported: 6
Supported storage drive types: HDD & SSD
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
Line-in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Headphone outputs: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
USB 2.0 ports quantity: 3
HDMI ports quantity: 1
Microphone in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Ethernet LAN (RJ-45) ports: 1
DisplayPorts quantity: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 2
Weight: 644 g
Warnings: Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage.
