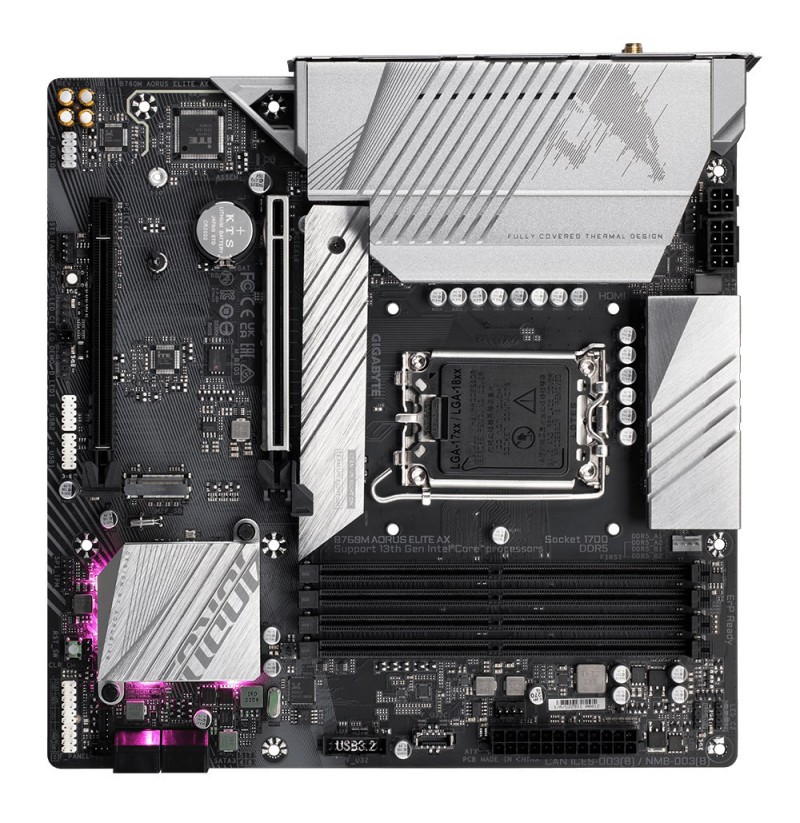

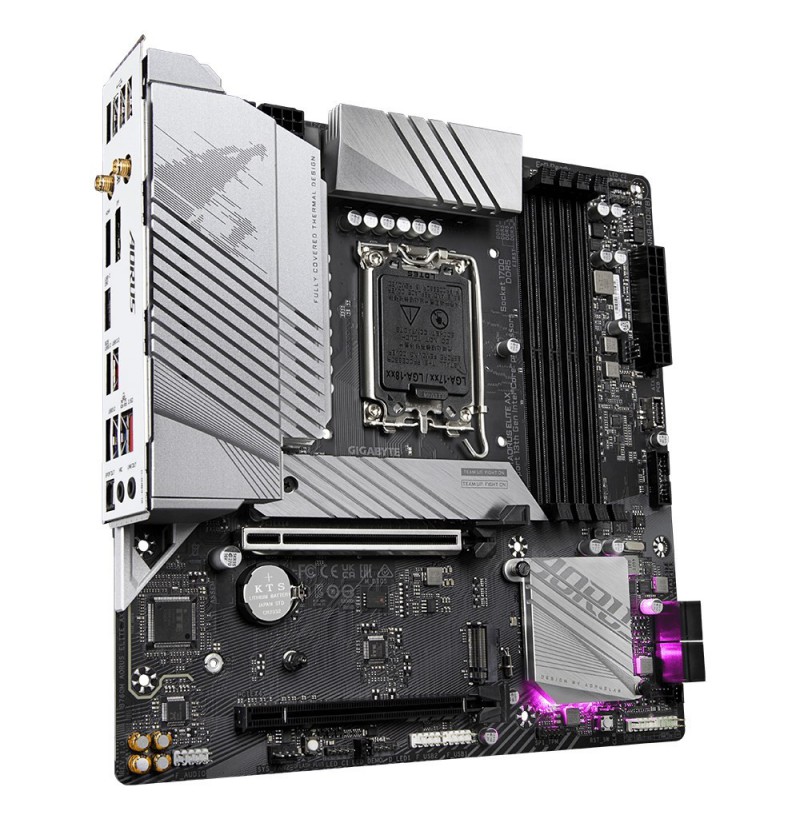

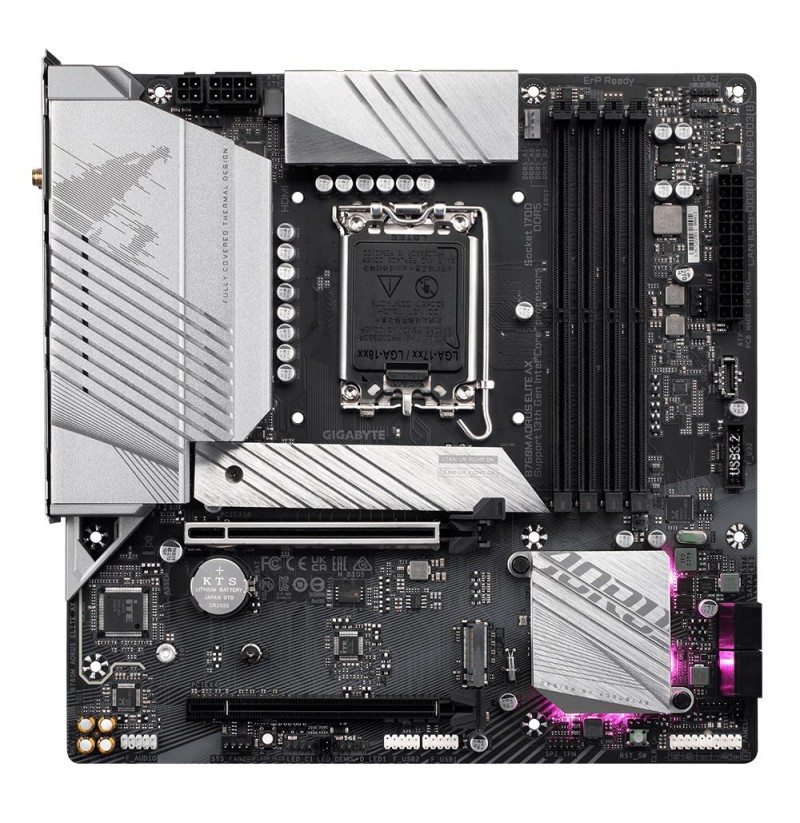

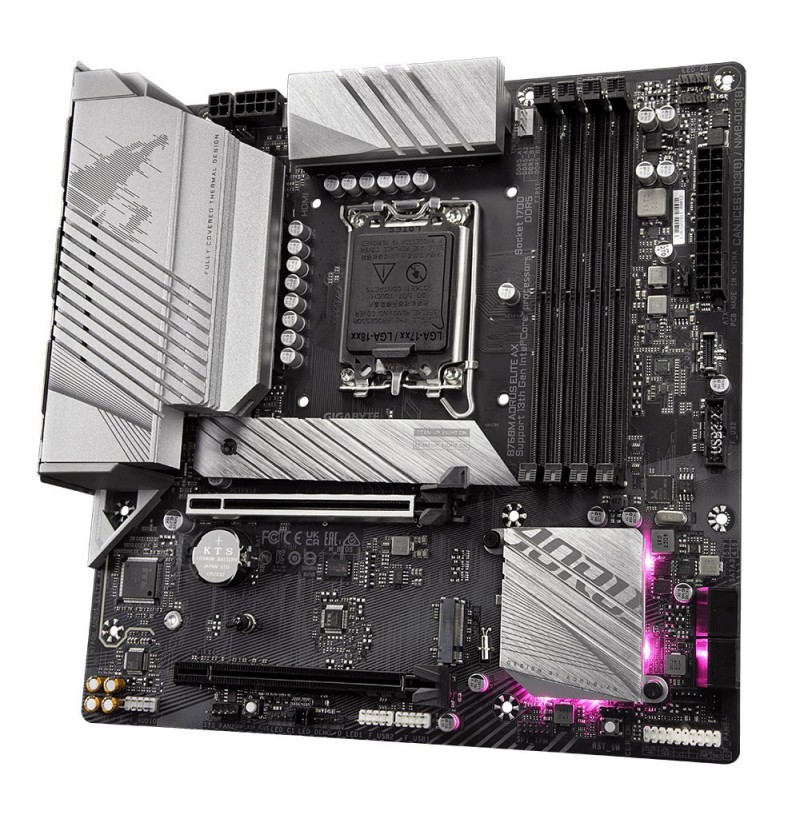

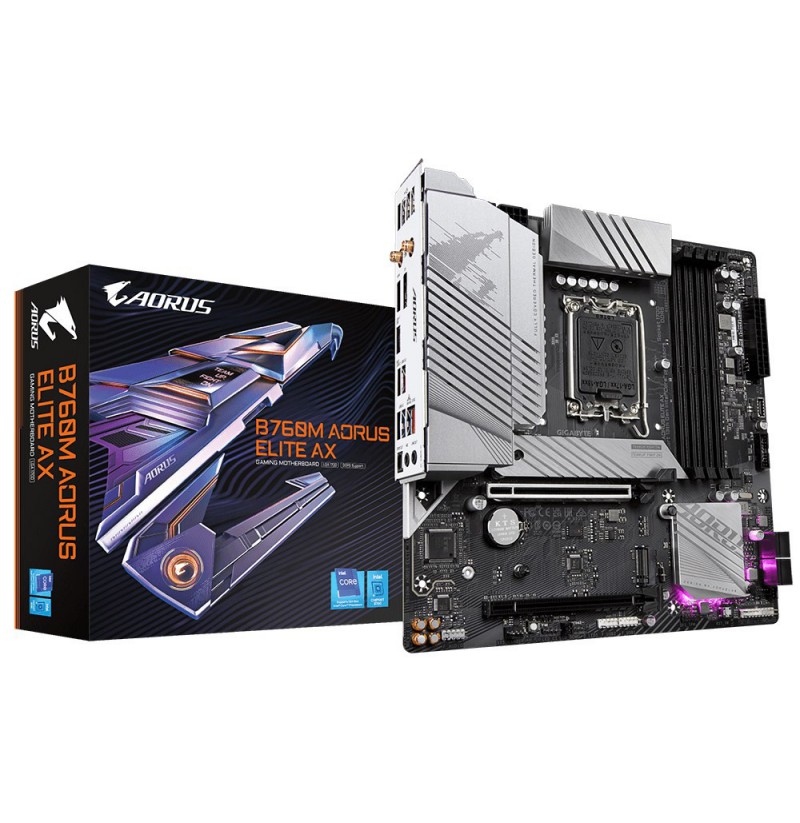

Gigabyte B760M AORUS ELITE AX motherboard LGA 1700 micro ATX Padidinti

Gigabyte B760M AORUS ELITE AX motherboard LGA 1700 micro ATX

175,66 €

B760M AORUS ELITE AX

4719331851309

Galimas pasirinkimas

 pristatymas 5...7 d.d.


Processor socket: LGA 1700
Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3
Processor manufacturer: Intel
Supported processor sockets: LGA 1700
Maximum resolution: 4096 x 2304 pixels
HDCP: Yes
Parallel processing technology support: CrossFireX
Audio output channels: 7.1 channels
Motherboard chipset: Intel B760
Windows operating systems supported: Windows 11, Windows 10
PC health monitoring: Fan, Temperature, Water cooling, Voltage
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Power source type: ATX
Unbuffered memory: Yes
Supported memory clock speeds: 6200, 7400, 5300 MHz, 6600, 6400, 5600 MHz, 7200, 5800, 5400, 6800, 6000, 4000, 4800, 7600, 7000
Maximum internal memory: 128 GB
Supported memory clock speed (max): 7600 MHz
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Depth: 244 mm
Width: 244 mm
Bluetooth: Yes
Ethernet LAN: Yes
Wi-Fi standards: 802.11g, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), 802.11b
Wi-Fi: Yes
Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet
Bluetooth version: 5.3
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
S/PDIF out connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
RGB LED pin header: Yes
Front panel connector: Yes
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
Thunderbolt headers: 2
TPM connector: Yes
Number of chassis fan connectors: 3
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 2
CPU fan connector: Yes
Peripheral (Molex) power connectors (4-pin): 1
Desktop Management Interface (DMI) version: 2.7
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of storage drives supported: 6
RAID levels: 5, 10, 1, 0
RAID support: Yes
Headphone outputs: 1
Microphone in: Yes

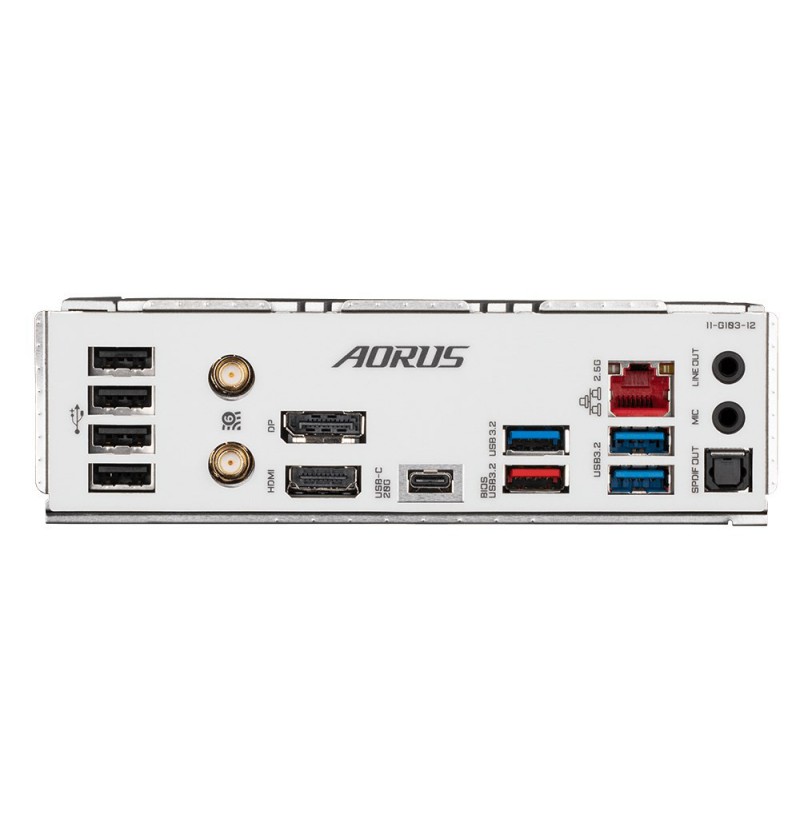

HDMI ports quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
WiFi-AP antenna jack: 2
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 2.0 ports quantity: 4
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 1
