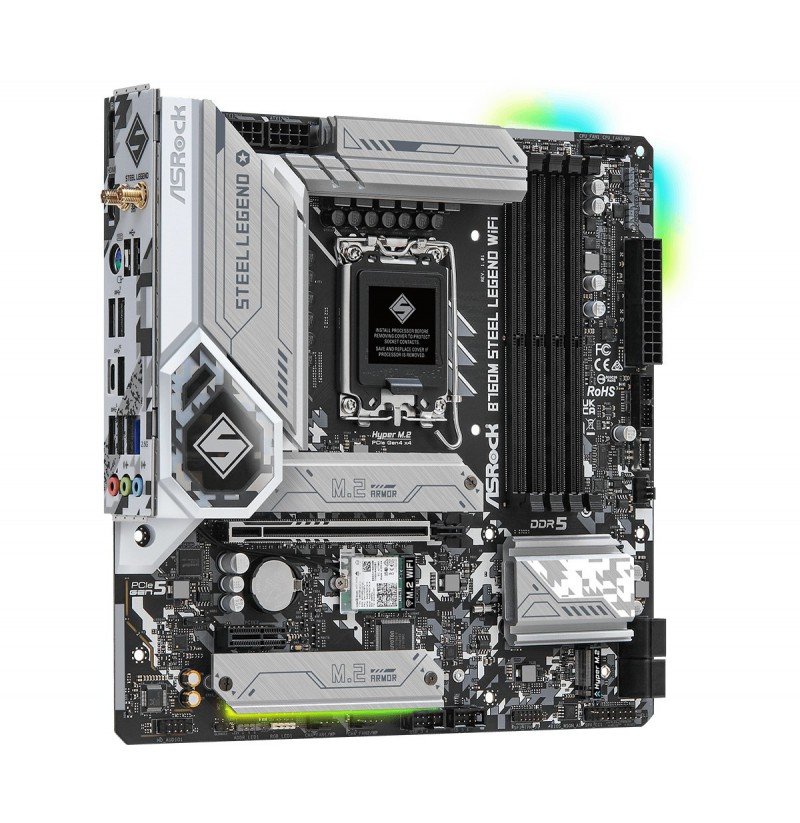

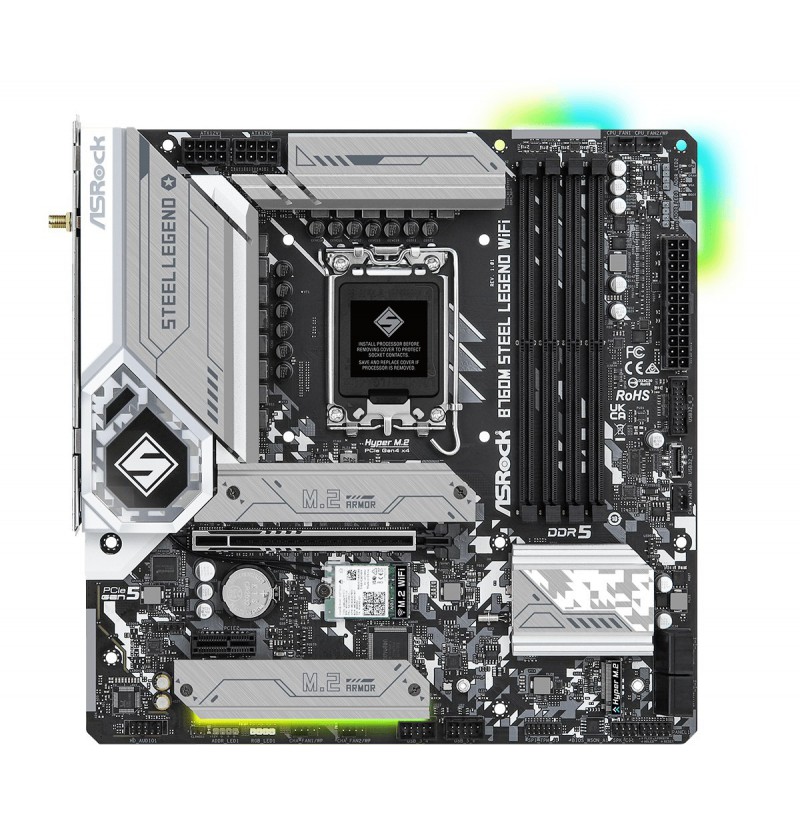

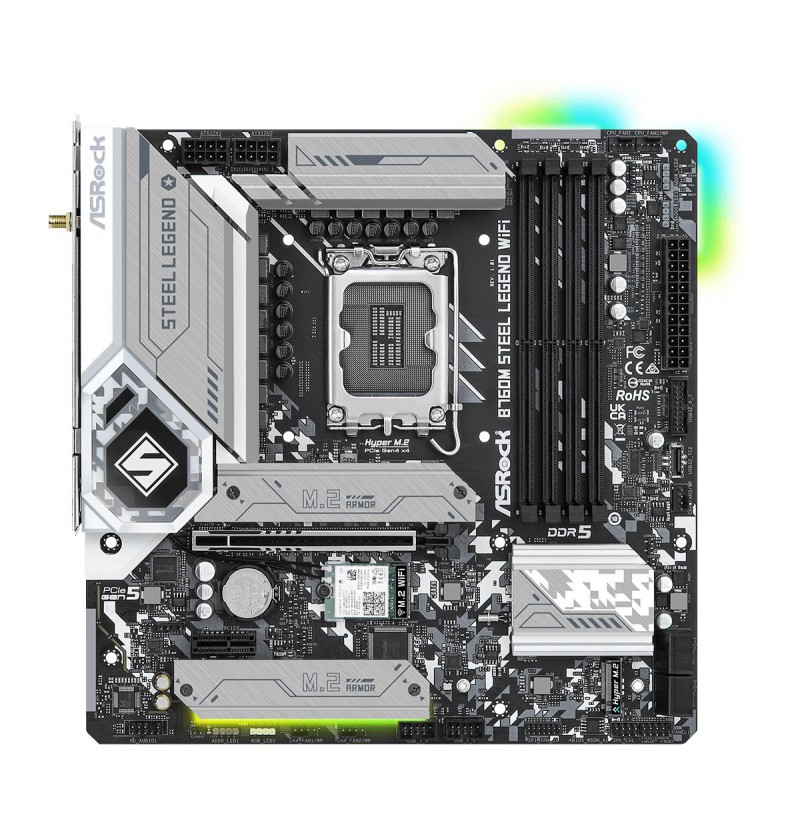

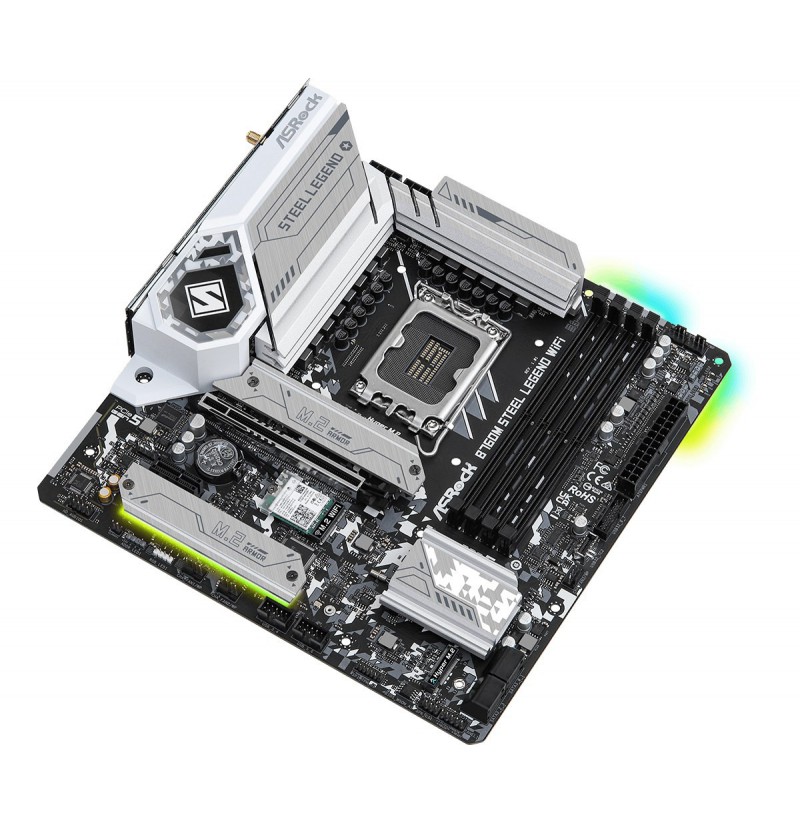

Mainboard Asrock B760M STEEL LEGEND WIFI

Compatible processor series: Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Processor manufacturer: Intel
Processor socket: LGA 1700
Maximum number of SMP processors: 1
Motherboard form factor: micro ATX
Motherboard chipset: Intel B760
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Motherboard chipset family: Intel
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Maximum internal memory: 128 GB
Unbuffered memory: Yes
ECC сompatibility: Non-ECC
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Memory slots type: DIMM
Width: 244 mm
Depth: 244 mm
LAN controller: Dragon RTL8125BG
Bluetooth: Yes
Wi-Fi: Yes
Wi-Fi standards: Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 6E (802.11ax), 802.11g, Wi-Fi 4 (802.11n), 802.11a
Bluetooth version: 5.3
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of SATA III connectors: 4
USB 2.0 connectors: 2
RGB LED pin header: Yes
TPM connector: Yes
BIOS type: UEFI AMI
Cables included: SATA
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III

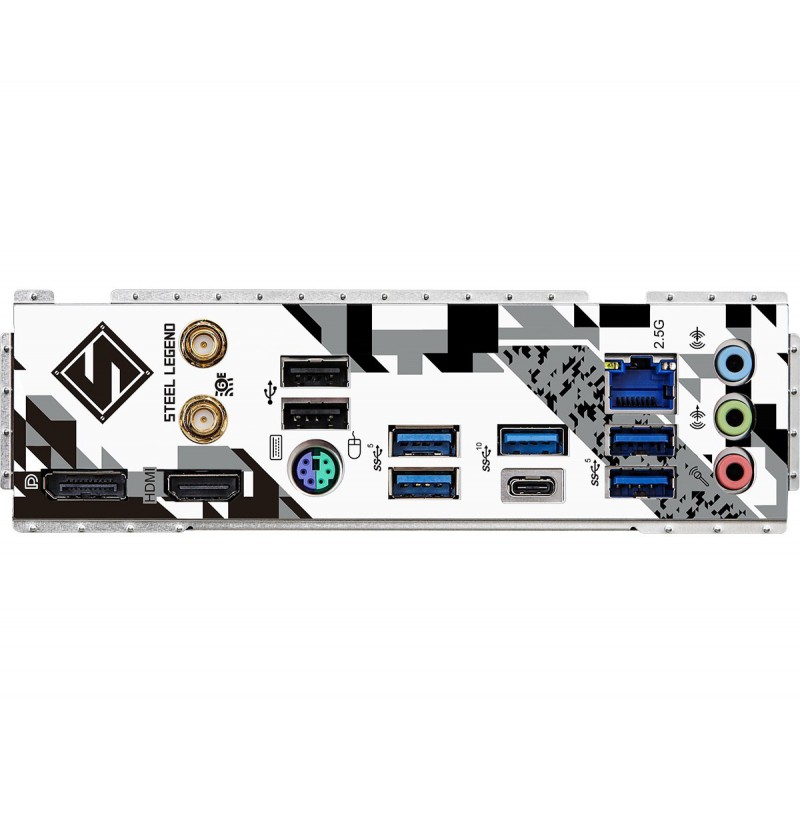

DisplayPort version: 1.4
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 2
DisplayPorts quantity: 1
PS/2 ports quantity: 1
Microphone in: Yes
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Line-in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Number of M.2 (M) slots: 1
PCI Express x4 (Gen 1.x) slots: 1
PCI Express x1 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Warnings: Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
