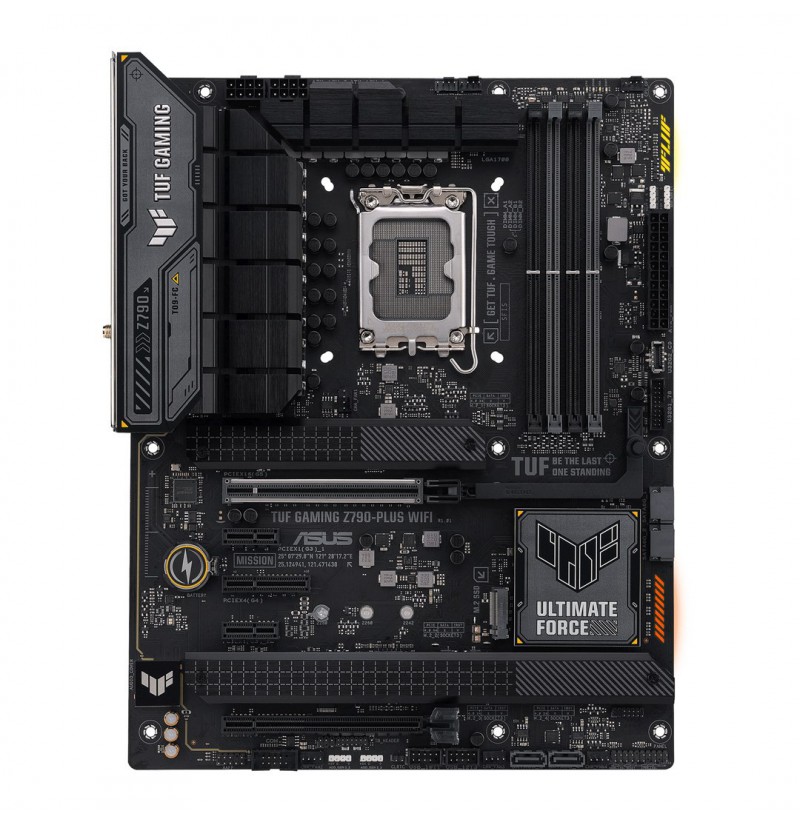

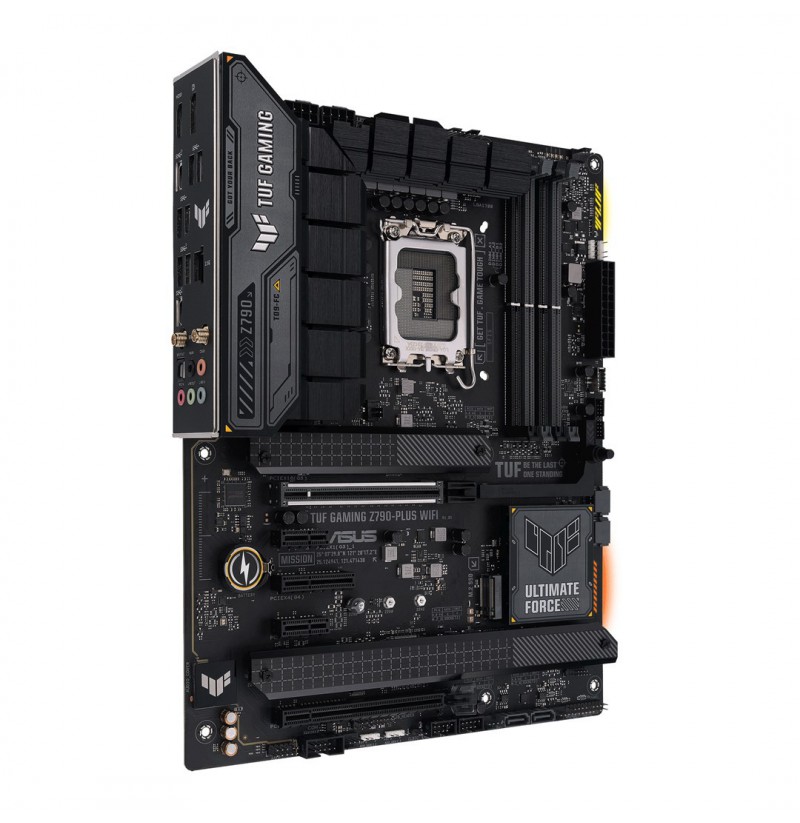

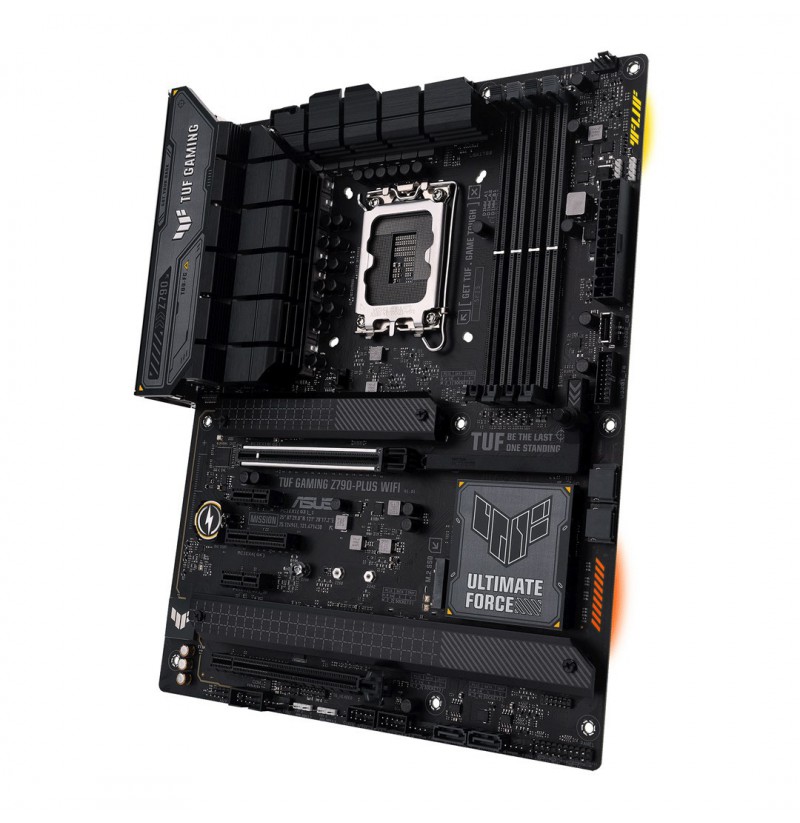

ASUS TUF GAMING Z790-PLUS WIFI Intel Z790 LGA 1700 ATX

Compatible processor series: Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®
Processor manufacturer: Intel
Processor socket: LGA 1700
Supported processor sockets: LGA 1700
On-board graphics card: No
Parallel processing technology support: Not supported
Product colour: Black
Audio output channels: 7.1 channels
Power source type: ATX
Windows operating systems supported: Windows 10, Windows 11
Audio chip: Realtek S1220A
Motherboard chipset family: Intel
Motherboard chipset: Intel Z790
Motherboard form factor: ATX
ECC сompatibility: Non-ECC
Supported memory clock speeds: 6200, 5600, 5000, 6600, 6000, 6800, 7200, 5800, 5400, 4800, 7000, 6400, 5200
Supported memory clock speed (max): 7200 MHz
Unbuffered memory: Yes
Memory channels: Dual-channel
Maximum internal memory: 128 GB
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Width: 305 mm
Depth: 244 mm
Bluetooth: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Ethernet LAN: Yes
Bluetooth version: 5.3
Wi-Fi standards: Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, Wi-Fi 6 (802.11ax), 802.11b
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 2
EPS power connector (8-pin): Yes
CPU fan connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Front panel audio connector: Yes
Thunderbolt headers: 1
Number of COM connectors: 1
Number of SATA III connectors: 4
RGB LED pin header: Yes
ATX Power connector (24-pin): Yes
Number of chassis fan connectors: 4
12V power connector: Yes
BIOS type: UEFI AMI
User guide: Yes
Cables included: SATA
RAID support: Yes
RAID levels: 5, 1, 10, 0
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Microphone in: Yes
WiFi-AP antenna jack: 2
Headphone outputs: 1
Line-in: Yes
HDMI version: 2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
DisplayPort version: 1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
S/PDIF out port: Yes
HDMI ports quantity: 1
DisplayPorts quantity: 1
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x4 (Gen 4.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 4
