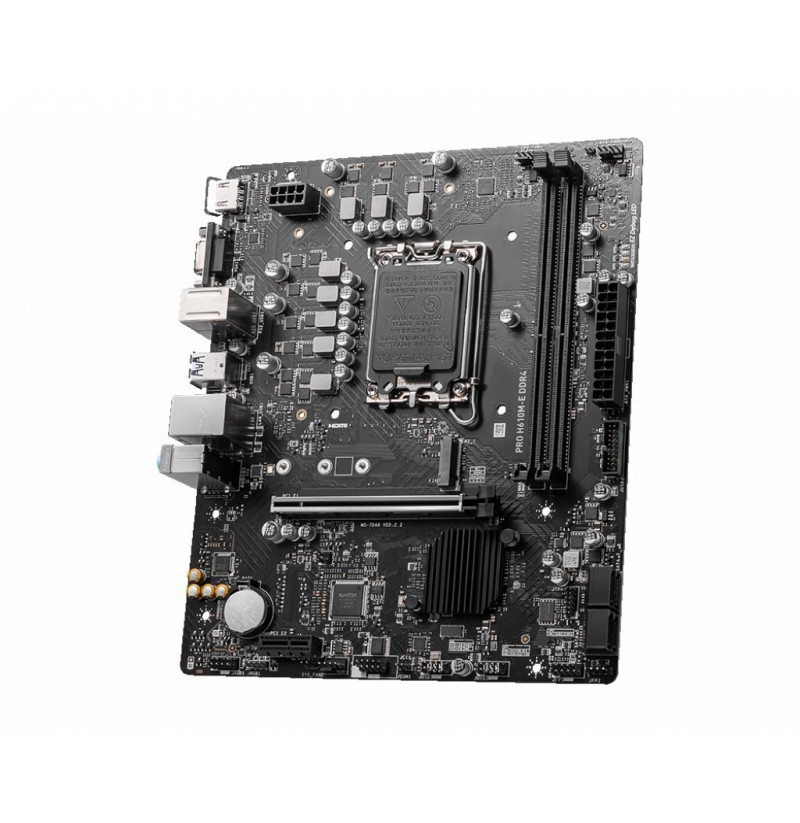

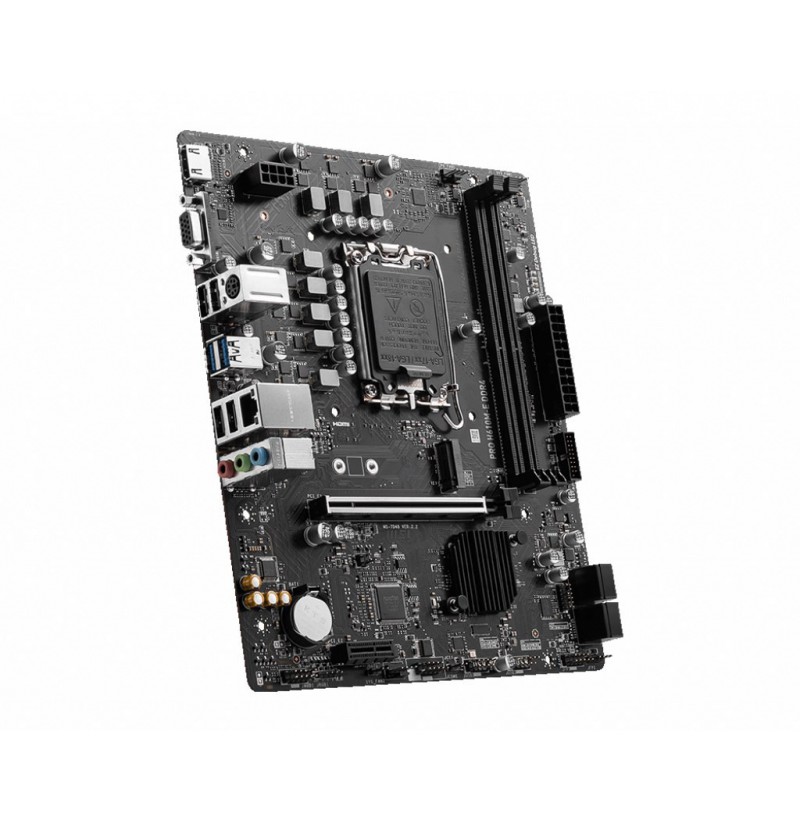

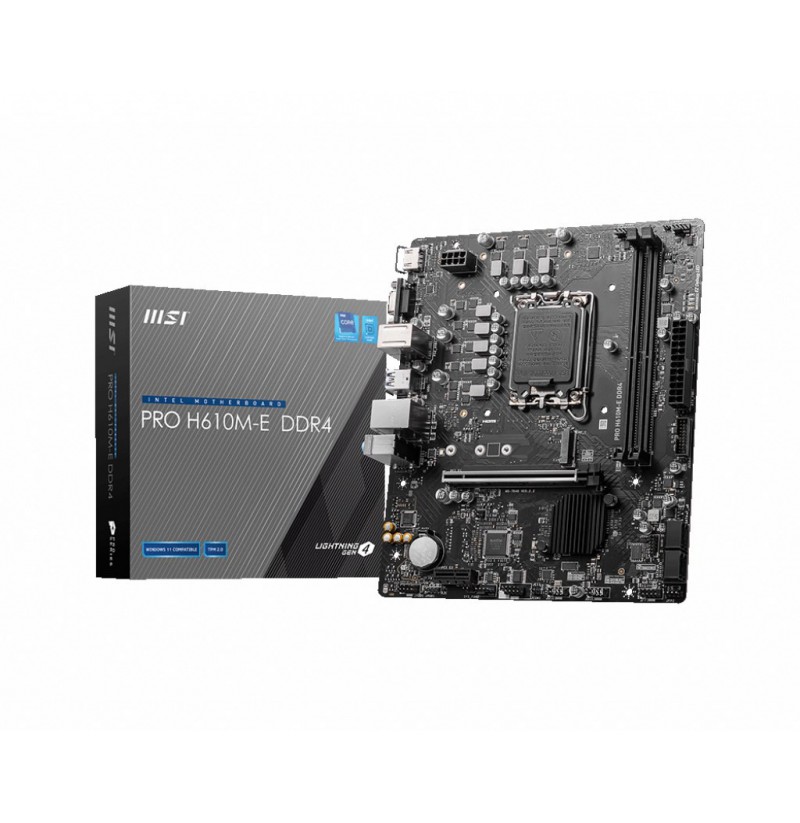

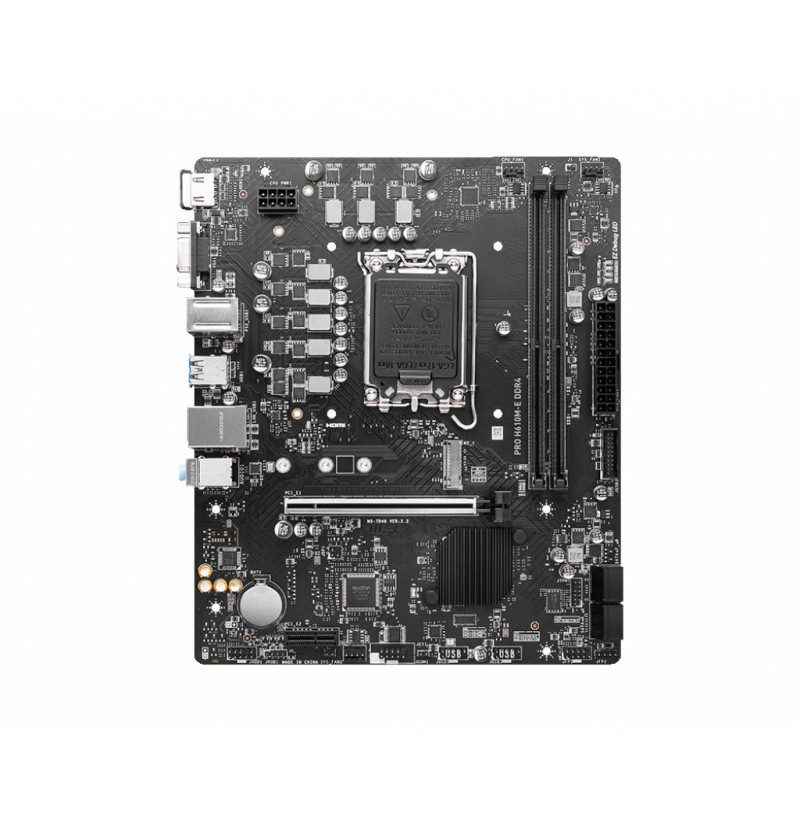

MSI | PRO H610M-E DDR4 | Processor family Intel | Processor socket LGA1700 | DDR4 DIMM | Memory slots 2 | Supported hard disk d

Compatible processor series: Intel® Core™ i9
Processor manufacturer: Intel
Supported processor sockets: LGA 1700
Maximum number of SMP processors: 1
Processor socket: LGA 1700
Parallel processing technology support: Not supported
Motherboard chipset family: Intel
Audio chip: Realtek ALC897
Motherboard form factor: micro ATX
Audio output channels: 7.1 channels
Motherboard chipset: Intel H610
Supported memory clock speed (max): 3200 MHz
Supported memory types: DDR4-SDRAM
Memory slots type: DIMM
Supported memory clock speeds: 3000, 3200, 2666, 2133 MHz, 2933
Number of memory slots: 2
Maximum internal memory: 64 GB
Memory channels: Dual-channel
Height: 65 mm
Wi-Fi: No
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
CPU fan connector: Yes
TPM connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
Front panel audio connector: Yes
12V power connector: Yes
Number of chassis fan connectors: 1
USB 2.0 connectors: 4
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
Drivers included: Yes
Cables included: SATA
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III

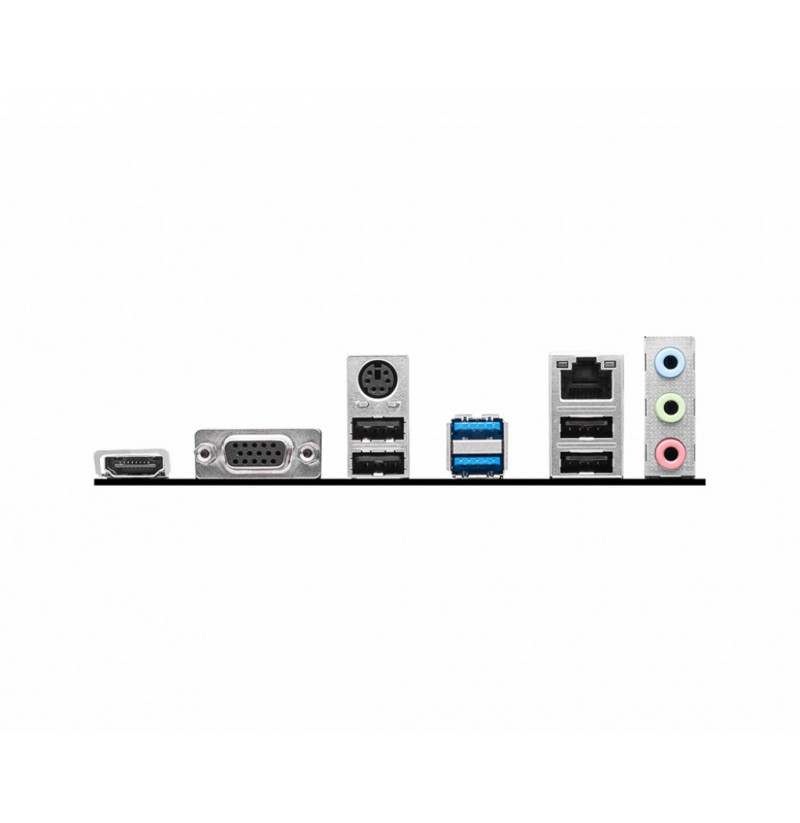

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
USB 2.0 ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
VGA (D-Sub) ports quantity: 1
Weight: 760 g
Warnings: Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply.
