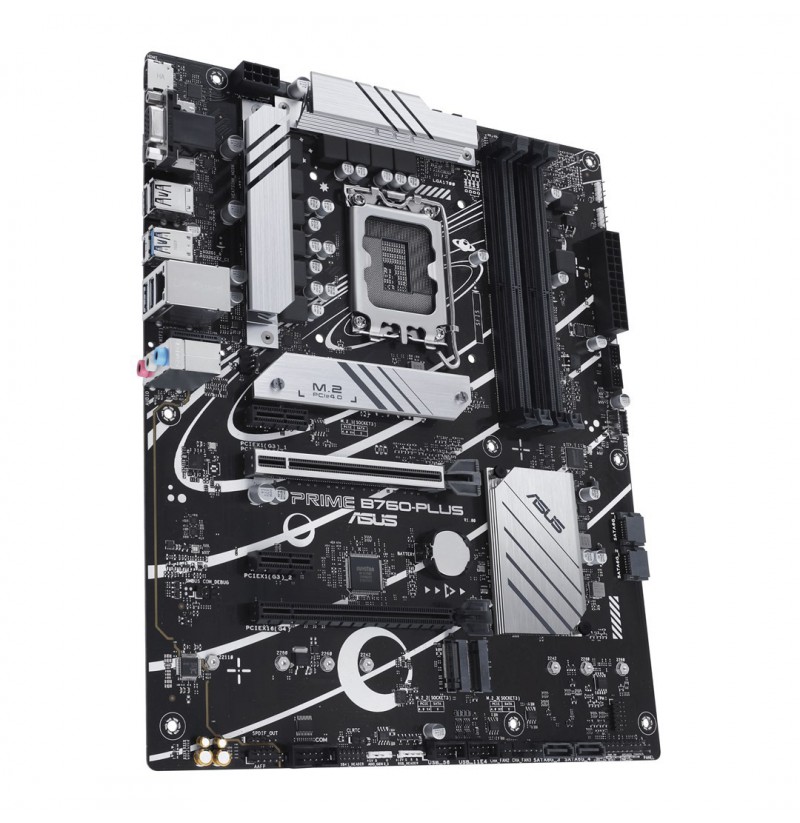

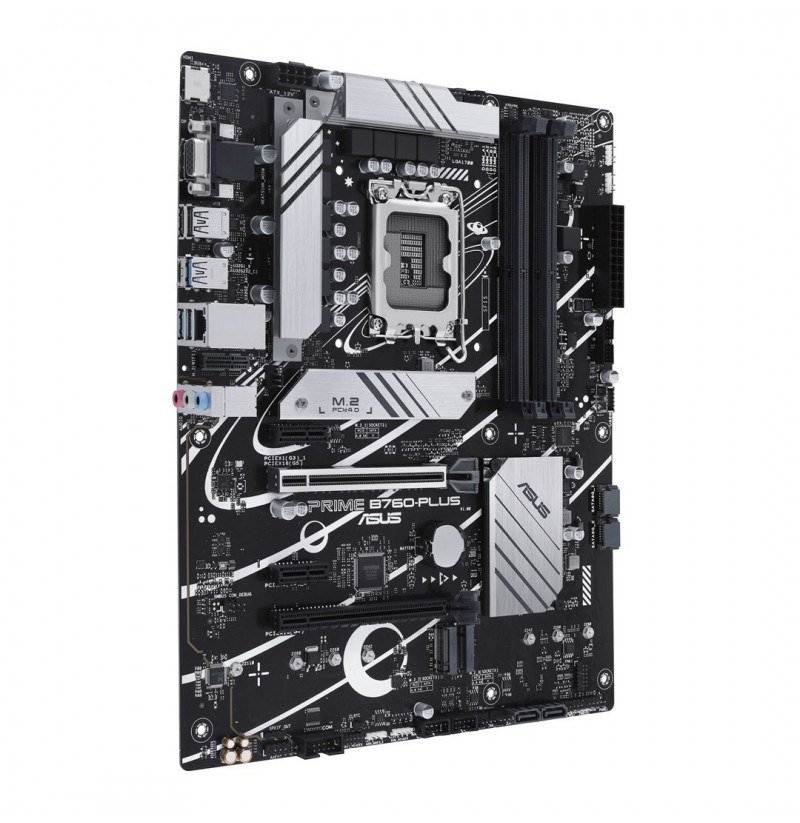

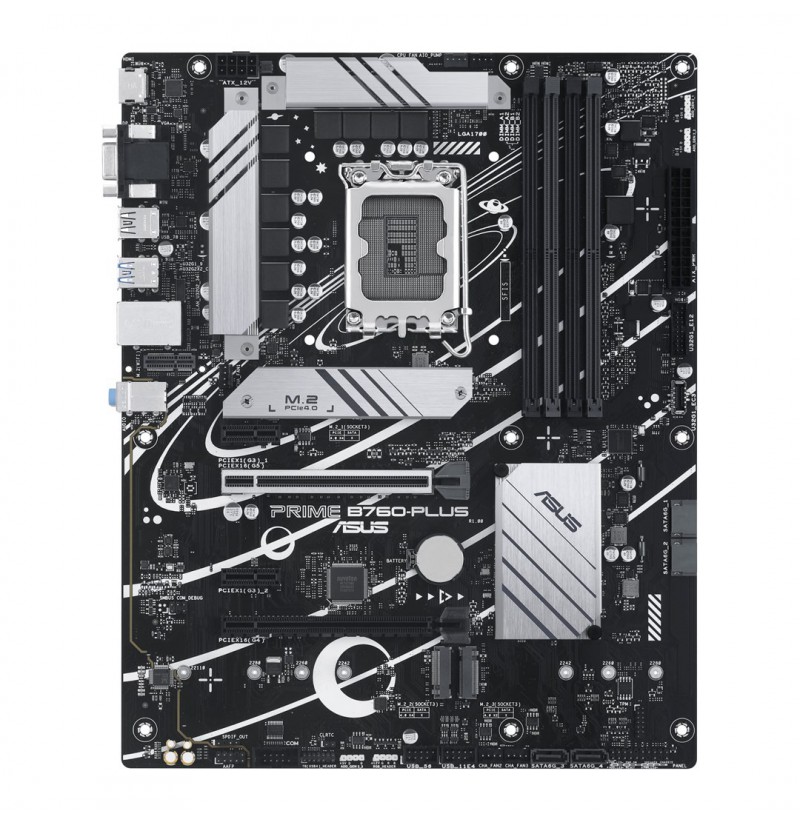

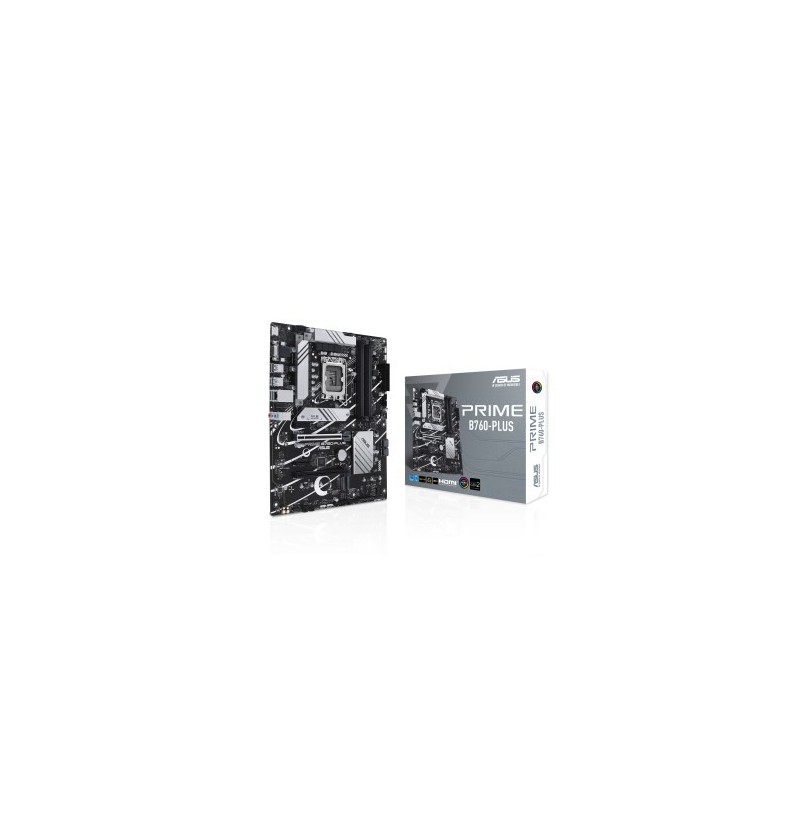

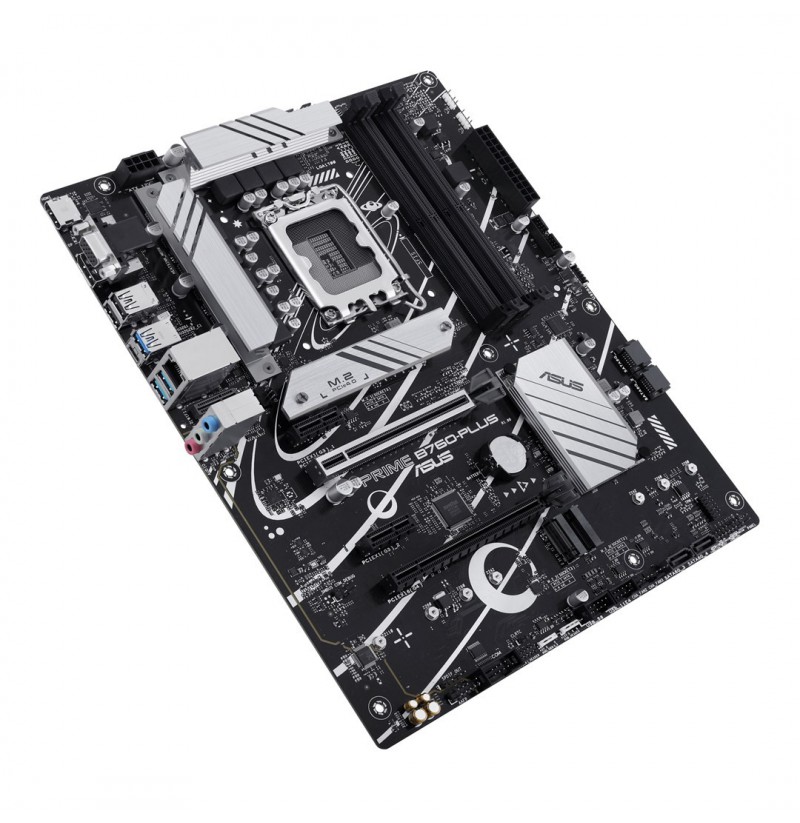

ASUS PRIME B760-PLUS Intel B760 LGA 1700 ATX

Supported processor sockets: LGA 1700
Compatible processor series: Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor manufacturer: Intel
Maximum number of SMP processors: 1
Processor socket: LGA 1700
Parallel processing technology support: Not supported
Motherboard form factor: ATX
Cooling type: Passive
Windows operating systems supported: Windows 11, Windows 10 x64
Audio output channels: 7.1 channels
Motherboard chipset: Intel B760
Motherboard chipset family: Intel
Power source type: ATX
ECC сompatibility: Non-ECC
Supported memory clock speeds: 4800, 6600, 6200, 5200, 6800, 5600, 7200, 6400, 5000, 6000, 5800, 5400, 7000
Maximum internal memory: 192 GB
Memory channels: Dual-channel
Unbuffered memory: Yes
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Number of memory slots: 4
Depth: 244 mm
Height: 36 mm
Width: 305 mm
Ethernet interface type: Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi: No
Number of SATA III connectors: 4
Number of chassis fan connectors: 3
ATX Power connector (24-pin): Yes
Number of COM connectors: 1
Front panel audio connector: Yes
Peripheral (Molex) power connectors (4-pin): 1
Thunderbolt headers: 1
EPS power connector (8-pin): Yes
S/PDIF out connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
TPM connector: Yes
CPU fan connector: Yes
Front panel connector: Yes
USB 2.0 connectors: 2
12V power connector: Yes
RGB LED pin header: Yes
BIOS type: UEFI AMI
Package height: 53 mm
Package weight: 1.2 kg
Package depth: 266 mm
Package width: 328 mm
Cables included: SATA
Supported storage drive types: HDD & SSD
RAID levels: 1, 5, 10, 0
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
Number of storage drives supported: 7
Number of HDDs supported: 4

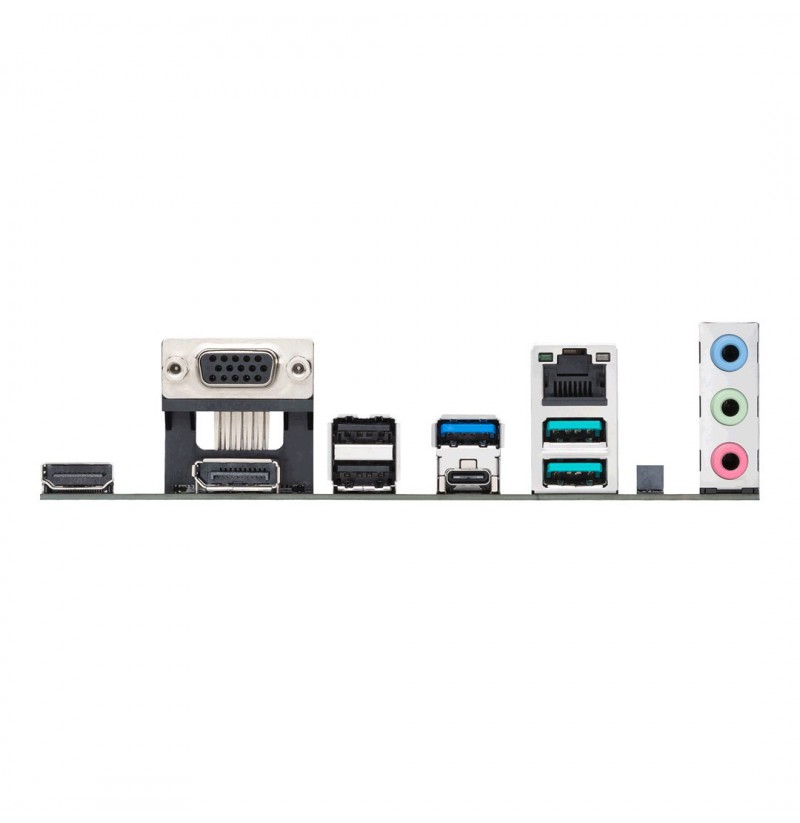

Ethernet LAN (RJ-45) ports: 1
DisplayPorts quantity: 1
DisplayPort version: 1.4
USB 2.0 ports quantity: 2
HDMI version: 2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
VGA (D-Sub) ports quantity: 1
Line-in: Yes
Headphone outputs: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Number of M.2 (M) slots: 3
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Weight: 760 g
Warnings: Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
