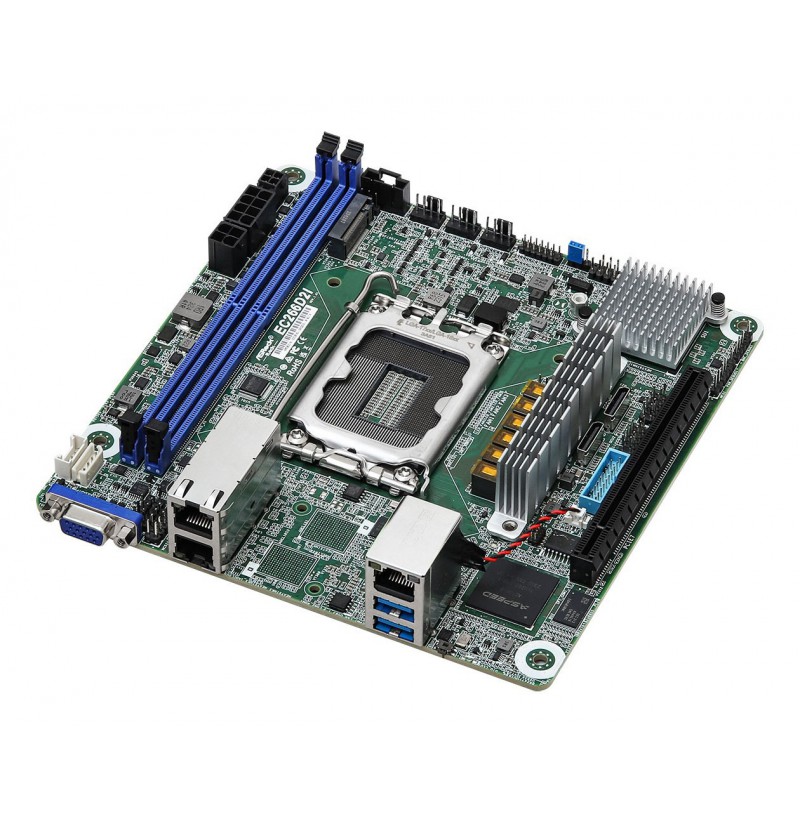

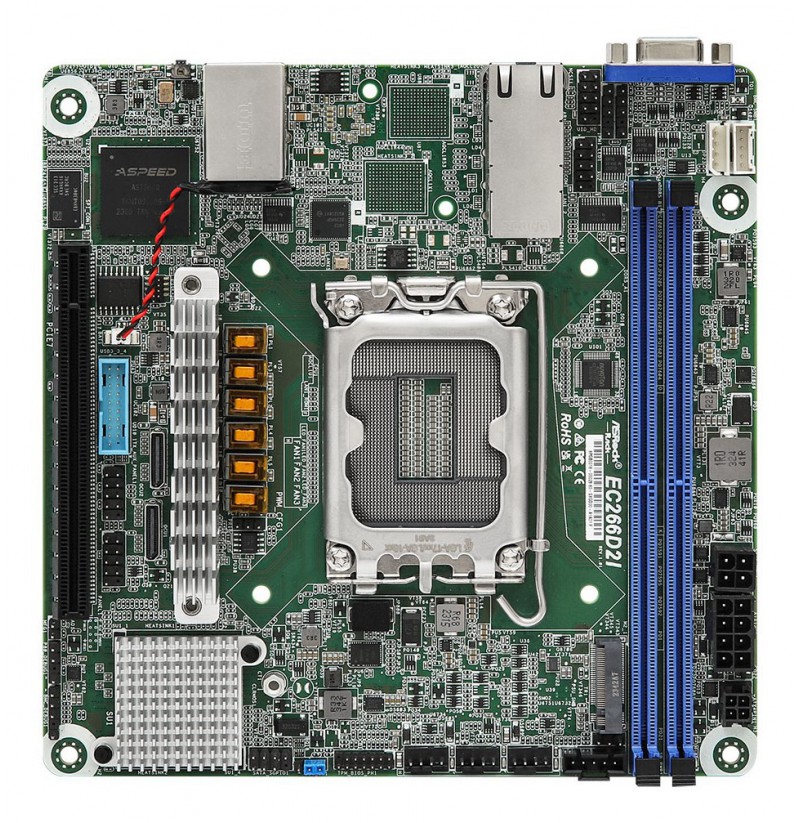

Nauja Asrock EC266D2I motherboard Intel C266 LGA 1700 mini ITX Padidinti

Asrock EC266D2I motherboard Intel C266 LGA 1700 mini ITX

383,24 €

4711430521763

Galimas pasirinkimas

 pristatymas 5...7 d.d.


Processor socket: LGA 1700
Supported processor sockets: LGA 1700
Compatible processor series: Intel® Xeon®, Intel® Pentium® Gold, Intel Xeon E
Processor manufacturer: Intel
On-board graphics card model: Aspeed AST2600
Motherboard chipset: Intel C266
PC health monitoring: Fan, CPU
Motherboard form factor: mini ITX
Motherboard chipset family: Intel
Memory voltage: 1.1 V
Number of memory slots: 2
Maximum internal memory: 32 GB
Supported memory types: DDR5-SDRAM
Supported memory clock speed (max): 4800 MHz
ECC сompatibility: ECC
Operating temperature (T-T): 10 - 35 °C
Storage relative humidity (H-H): 20 - 90%
Storage temperature (T-T): -40 - 70 °C
Width: 170.2 mm
Depth: 170.2 mm
Ethernet LAN: Yes
Wi-Fi: No
Peripheral (Molex) power connectors (4-pin): 1
Number of COM connectors: 1
ATX Power connector (24-pin): Yes
Number of SATA III connectors: 8
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3
EPS power connector (8-pin): Yes
TPM connector: Yes
ACPI version: 6.4
BIOS type: AMI
BIOS memory size: 256 Mbit
System Management BIOS (SMBIOS) version: 2.8
RAID levels: 1, 5, 10, 0
RAID support: Yes
IPMI LAN (RJ-45) port: Yes
VGA (D-Sub) ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
Number of M.2 (M) slots: 1
PCI Express OCuLink connectors (NVMe support): 2
PCI Express x16 (Gen 5.x) slots: 1
