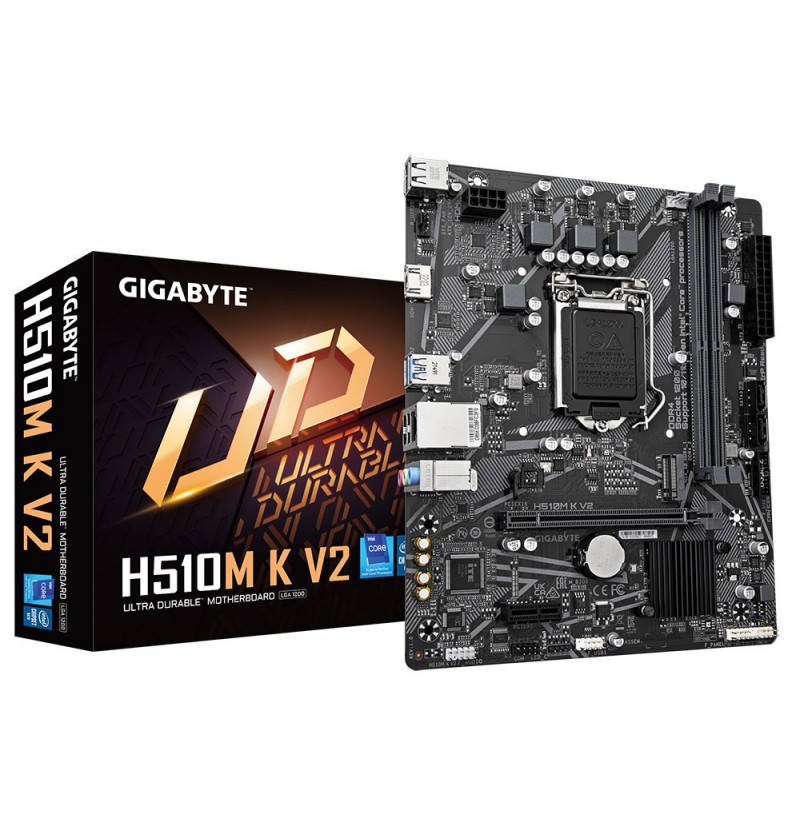

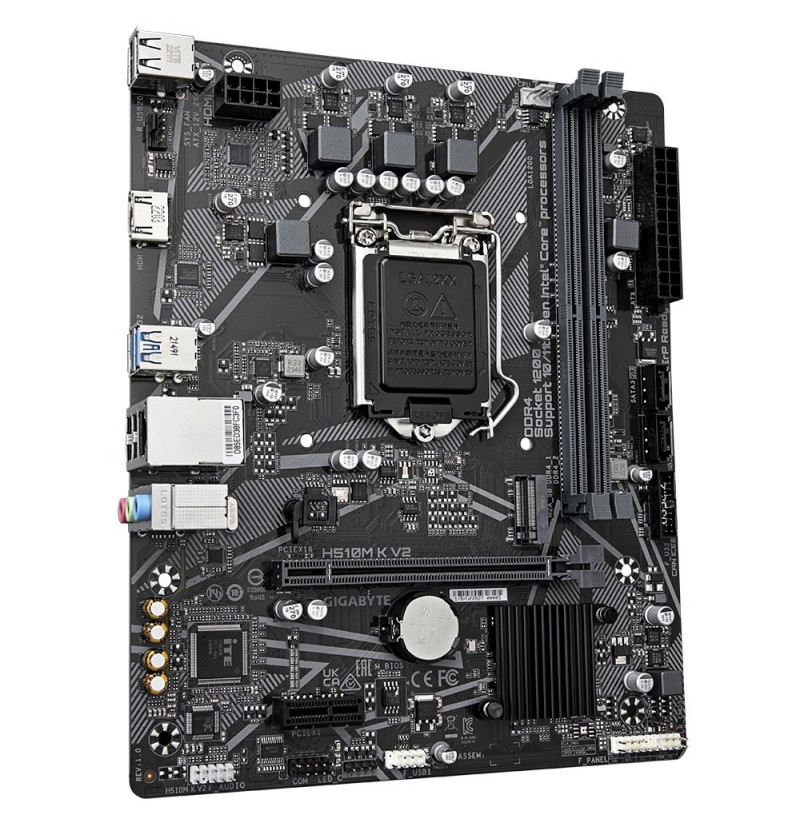

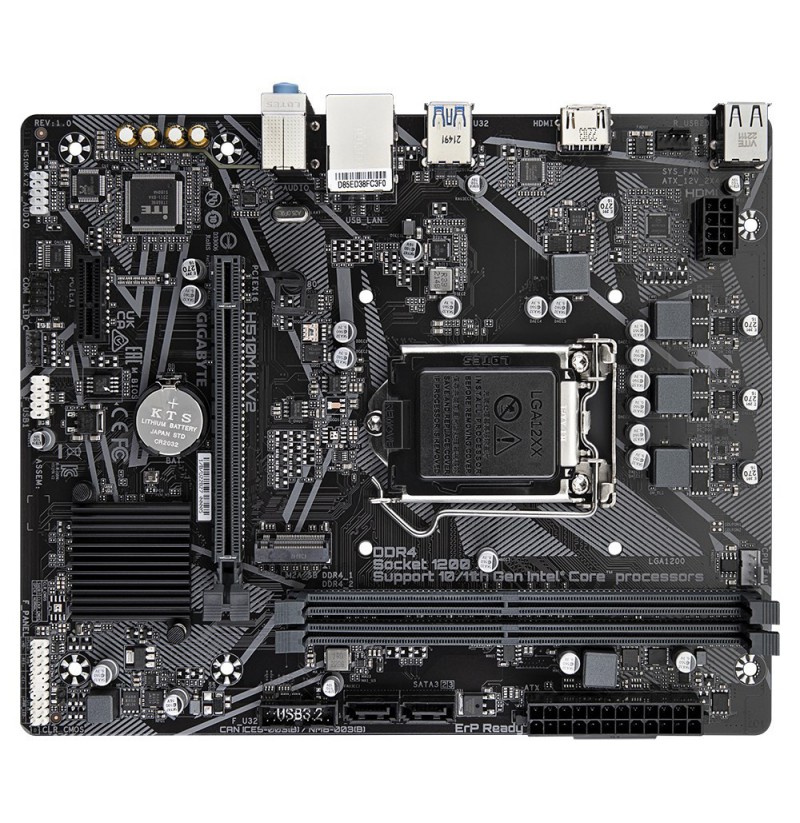

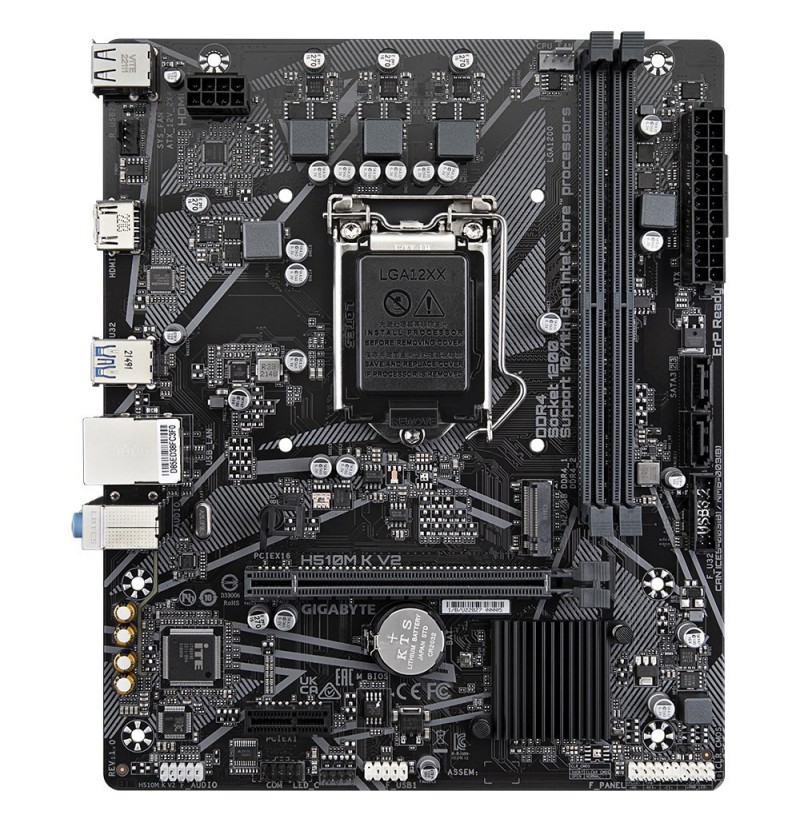

Gigabyte H510M K V2 (rev. 1.0) Intel H470 Express LGA 1200 (Socket H5) micro ATX Padidinti

Gigabyte H510M K V2 (rev. 1.0) Intel H470 Express LGA 1200 (Socket H5) micro ATX

69,79 €

4719331855253

Galimas pasirinkimas

 pristatymas 11...13 d.d.


Processor socket: LGA 1200 (Socket H5)
Processor manufacturer: Intel
Maximum number of SMP processors: 1
Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i3, Intel® Core™ i5
Supported processor sockets: LGA 1200 (Socket H5)
Graphics card: HD Graphics
On-board graphics card: Yes
Maximum resolution: 4096 x 2160 pixels
Graphics card family: Intel
HDCP: Yes
Power source type: ATX
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Cooling type: Active
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
Audio output channels: 7.1 channels
PC health monitoring: Voltage, Temperature, Fan
Motherboard chipset: Intel H470 Express
Supported memory types: DDR4-SDRAM
Memory channels: Dual-channel
Number of memory slots: 2
Memory slots type: DIMM
Maximum internal memory: 64 GB
Supported memory clock speeds: 2933, 3200, 2666 MHz, 2400, 3000, 2133
Supported memory module capacities: 32GB
Width: 226 mm
Depth: 185 mm
Wi-Fi: No
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Number of SATA III connectors: 2
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
Power fan connector: Yes
Serial port headers: 1
CPU fan connector: Yes
RGB LED pin header: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
EPS power connector (8-pin): Yes
12V power connector: Yes
USB 2.0 connectors: 1
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI
Number of storage drives supported: 2
Supported storage drive interfaces: M.2, PCI Express 3.0, SATA
Supported storage drive types: SSD
Ethernet LAN (RJ-45) ports: 1
Headphone outputs: 1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Microphone in: Yes
Line-in: Yes
USB 2.0 ports quantity: 4
Mini PCI Express slots: 1
