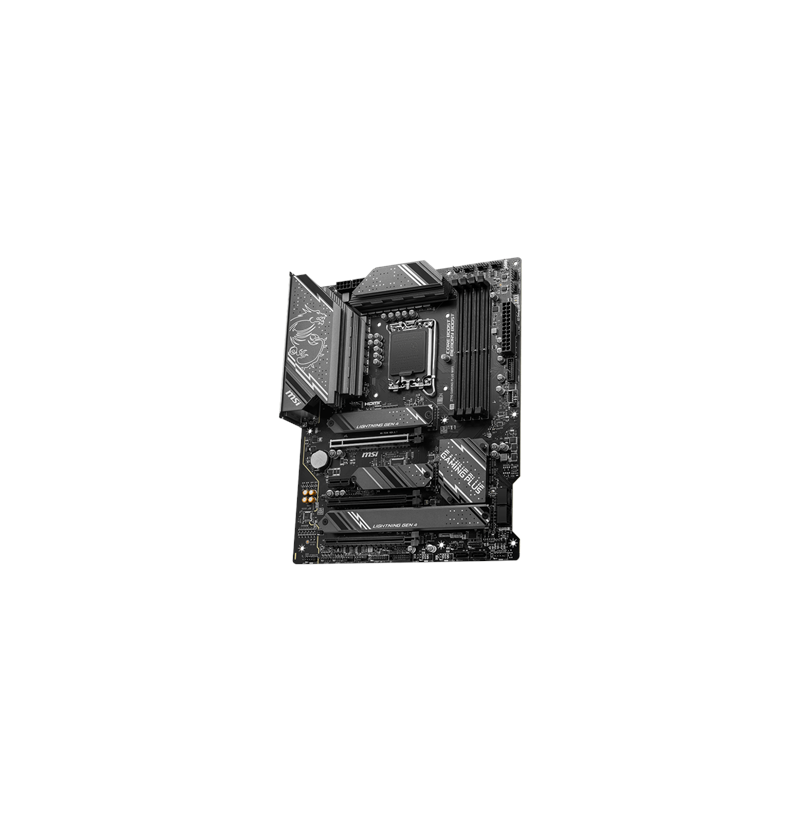

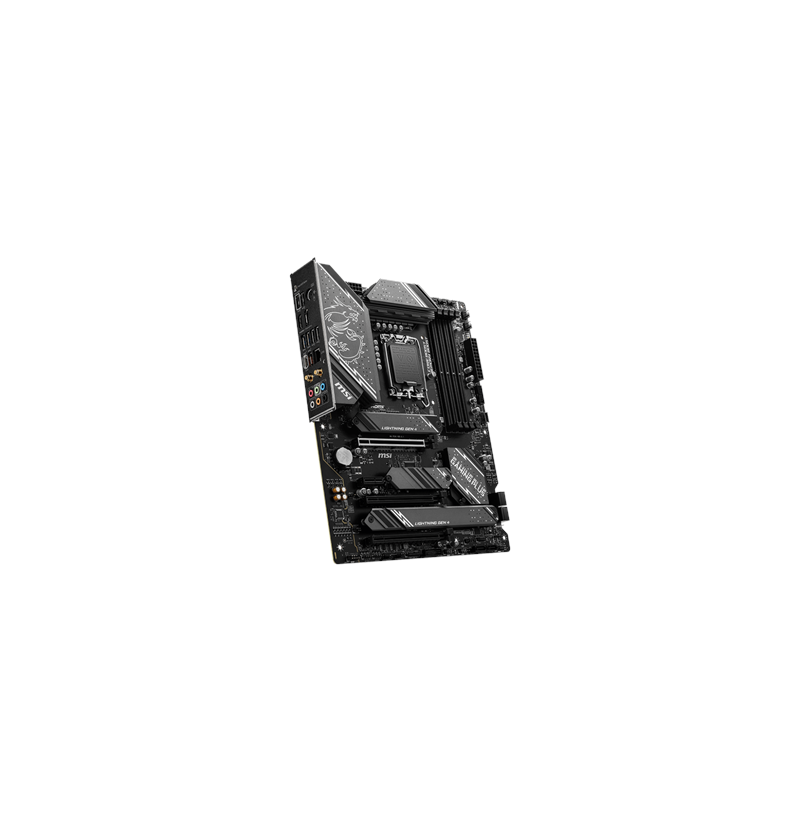

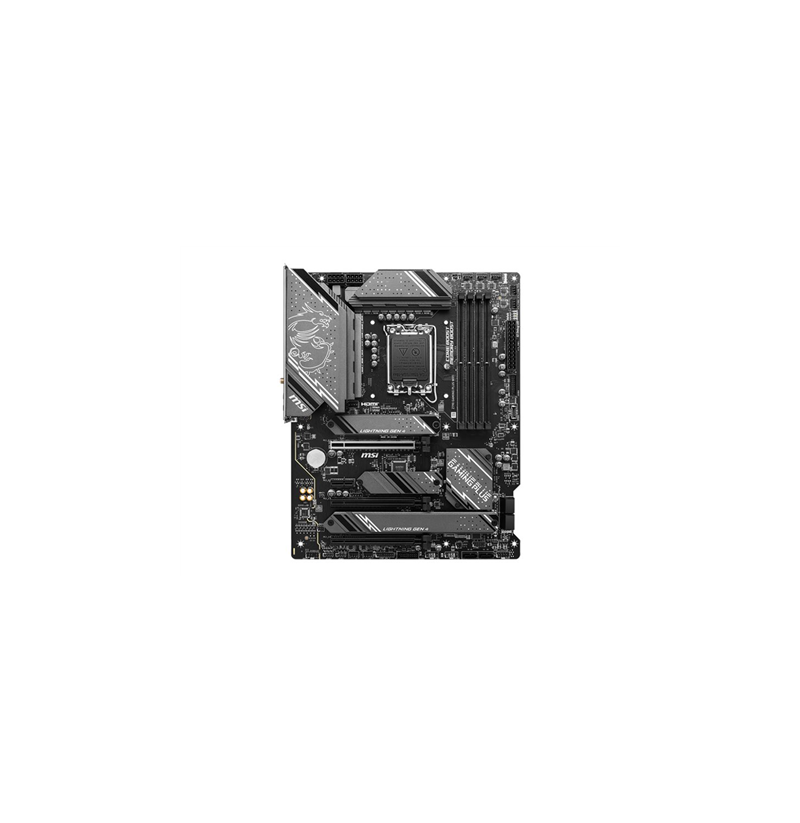

MSI Z790 GAMING PLUS WIFI Processor family Intel Processor socket LGA1700 DDR5 Number of SATA connectors 6 Padidinti

MSI Z790 GAMING PLUS WIFI DDR5 LGA1700 ATX MB PCIe x16 HDMI 4xSATA

223,61 €

Z790 GAMING PLUS WIFI

4711377134712

Galimas pasirinkimas

 3..5 d.d.


Processor socket: LGA 1700
Compatible processor series: Intel® Pentium® Gold, Intel® Celeron®
Supported processor sockets: LGA 1700
Processor manufacturer: Intel
Parallel processing technology support: Not supported
On-board graphics card: No
Audio chip: Realtek ALC897
Product colour: Black
Audio output channels: 7.1 channels
Motherboard form factor: ATX
Motherboard chipset: Intel Z790
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Supported memory clock speeds: 6400 MHz, 6800, 5000, 5600, 7200, 6200, 7000, 5800, 5400, 6000, 5200, 6600, 4800
Supported memory clock speed (max): 7200 MHz
Supported memory types: DDR5-SDRAM
ECC сompatibility: Non-ECC
Maximum internal memory: 192 GB
Number of memory slots: 4
Depth: 304.8 mm
Width: 243.8 mm
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi standards: 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), 802.11b, 802.11g
Bluetooth: Yes
Wi-Fi: Yes
Ethernet LAN: Yes
Bluetooth version: 5.3
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
TPM connector: Yes
Number of SATA III connectors: 6
RGB LED pin header: Yes
Front panel connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
USB 2.0 connectors: 4
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
Cables included: SATA
RAID levels: 10, 0, 5, 1
RAID support: Yes
Supported storage drive interfaces: M.2, PCI Express
Supported storage drive types: HDD & SSD
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
HDMI version: 2.1
S/PDIF out port: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
USB 2.0 ports quantity: 4
PCI slots: 4
Number of M.2 (M) slots: 4
Warnings: Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage.
