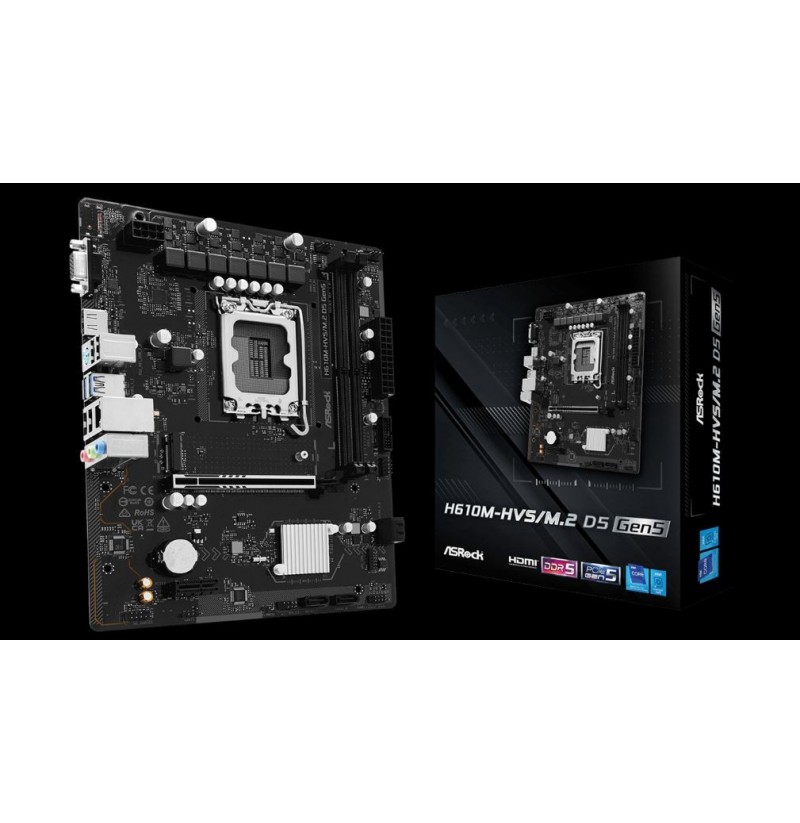

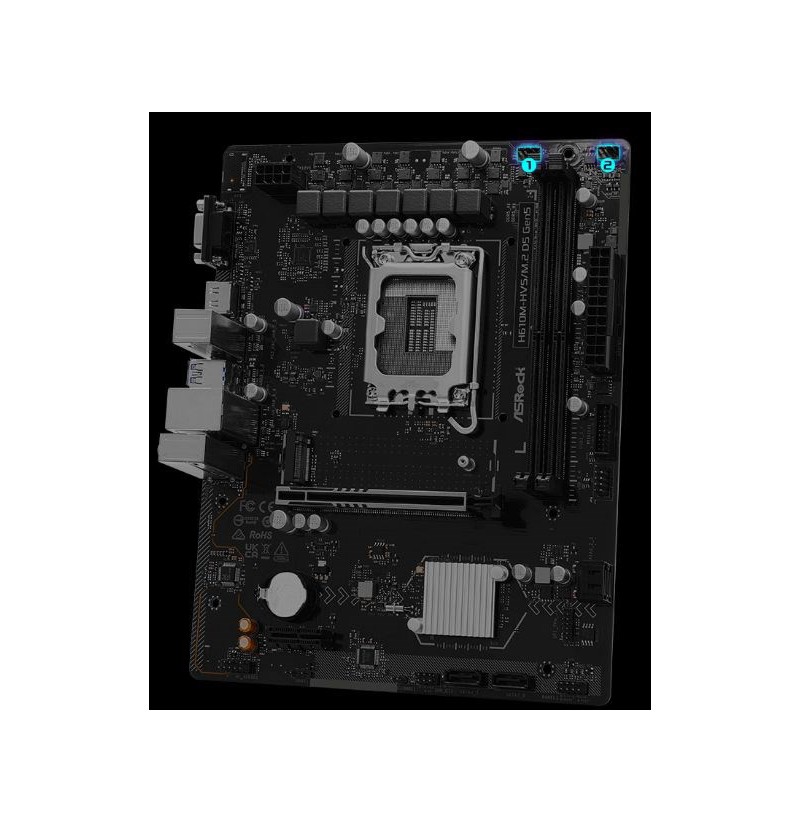

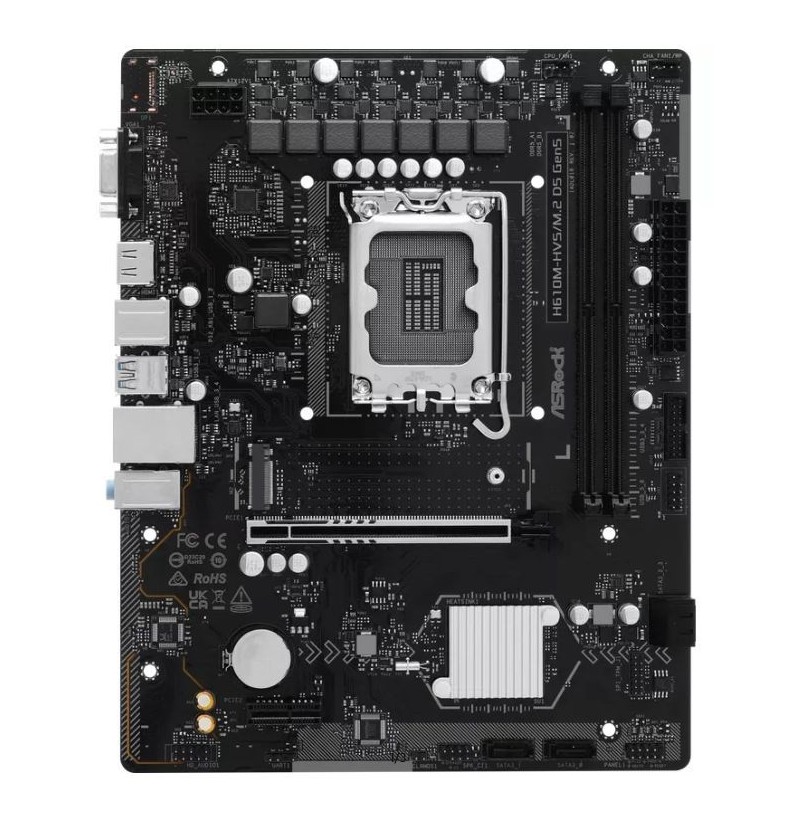

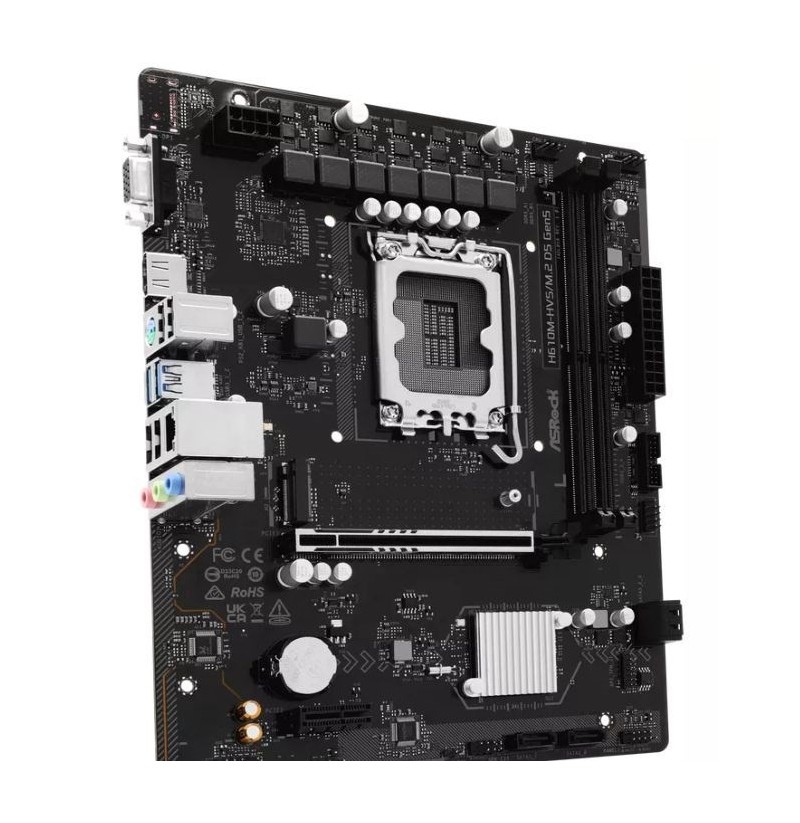

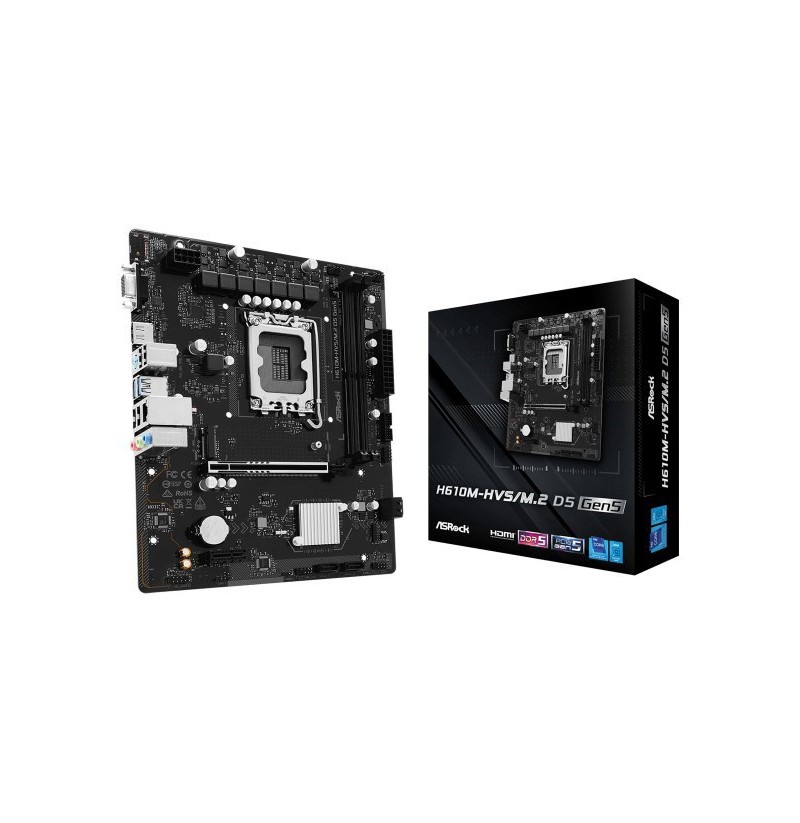

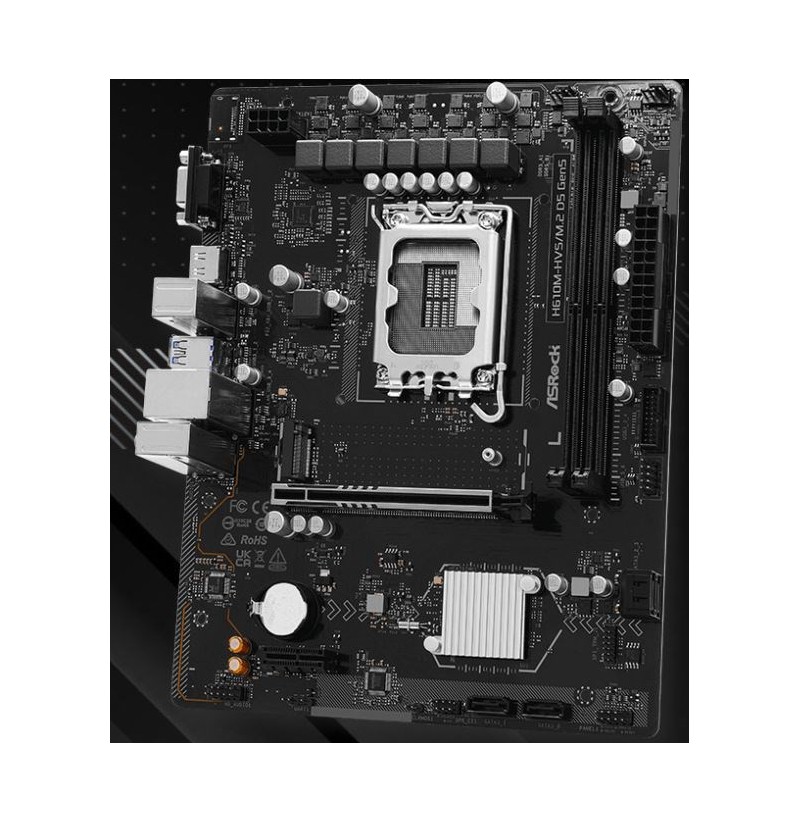

Asrock H610M-HVS/M.2 D5 GEN5 motherboard

Compatible processor series: Intel Core i3 12th Gen, Intel Core i3 14th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen, Intel Core i7 12th Gen, Intel Core i5 14th Gen, Intel Core i7 13th Gen, Intel Core i9 13th Gen, Intel Core i5 12th Gen, Intel Core i7 14th Gen, Intel Core i3 13th Gen, Intel Core i9 14th Gen
Processor socket: LGA 1700
Processor manufacturer: Intel
HDCP version: 2.3
On-board graphics card model: Intel Iris Xe Graphics
HDCP: Yes
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard chipset: Intel H610
Motherboard form factor: micro ATX
Audio chip: Realtek ALC897
Memory slots type: DIMM
Memory channels: Dual-channel
Number of memory slots: 2
Supported memory types: DDR5-SDRAM
Unbuffered memory: Yes
Supported memory clock speeds: 4800 MHz, 5600
Maximum internal memory: 128 GB
Width: 244 mm
Depth: 193 mm
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
LAN controller: Realtek 8111H
Number of SATA III connectors: 4
CPU fan connector: Yes
TPM connector: Yes
Chassis intrusion connector: Yes
ATX Power connector (24-pin): Yes
RGB LED pin header: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of chassis fan connectors: 1
12V power connector: Yes
USB 2.0 connectors: 1
BIOS type: UEFI AMI
Cables included: SATA

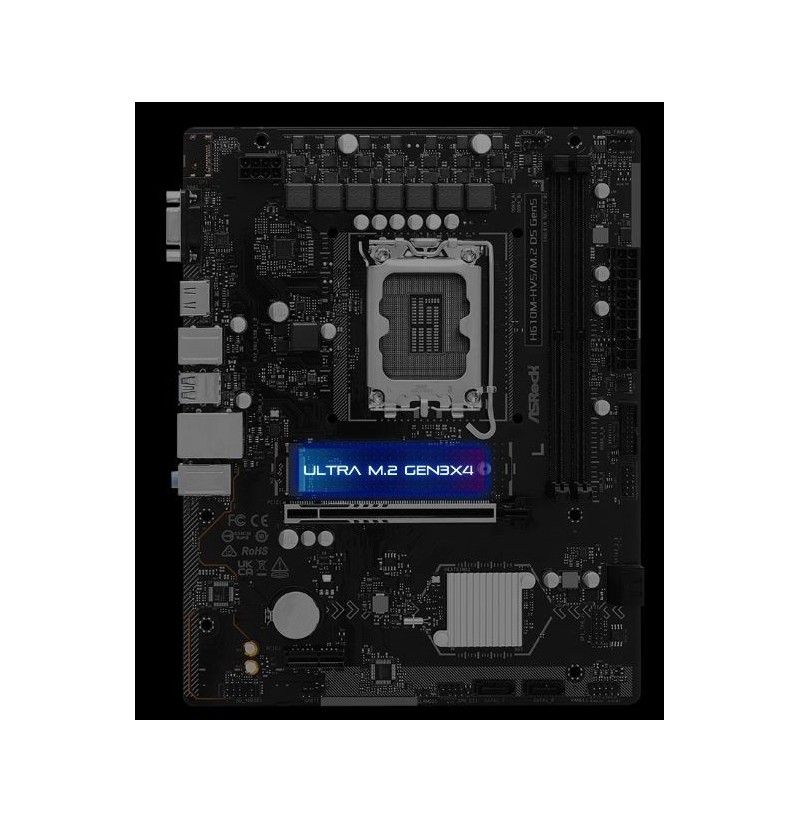

Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
HDMI ports quantity: 1
PS/2 ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
DisplayPort version: 1.4
VGA (D-Sub) ports quantity: 1
USB 2.0 ports quantity: 4
DisplayPorts quantity: 1
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
