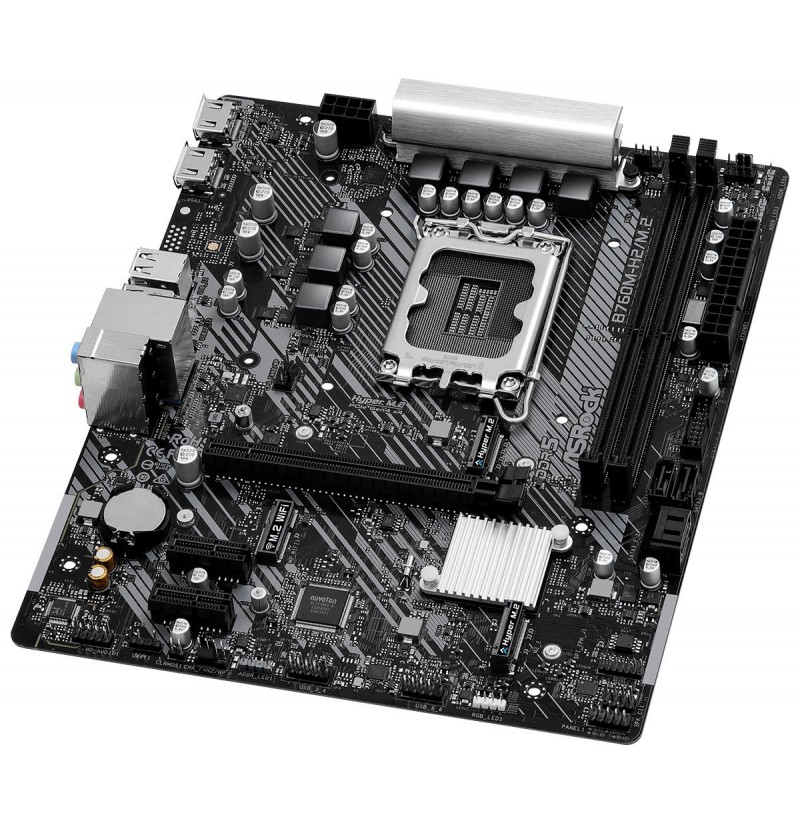

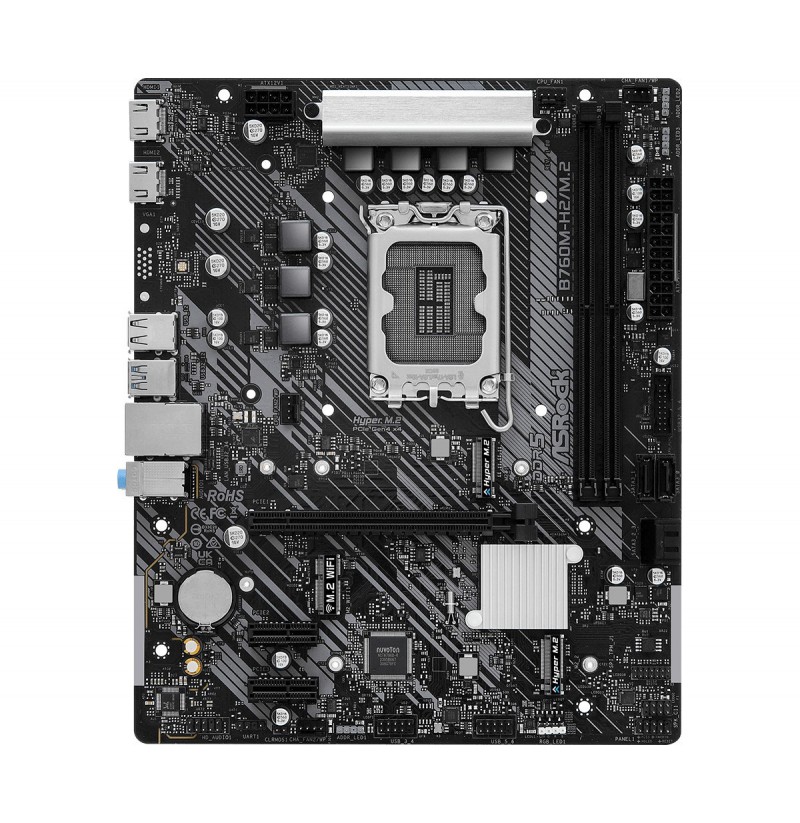

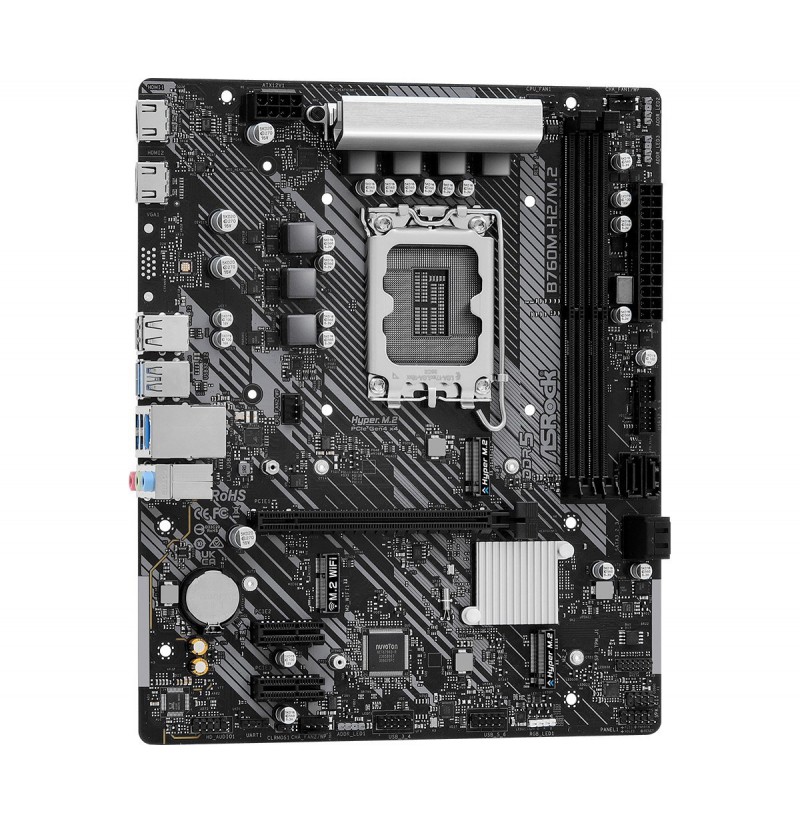

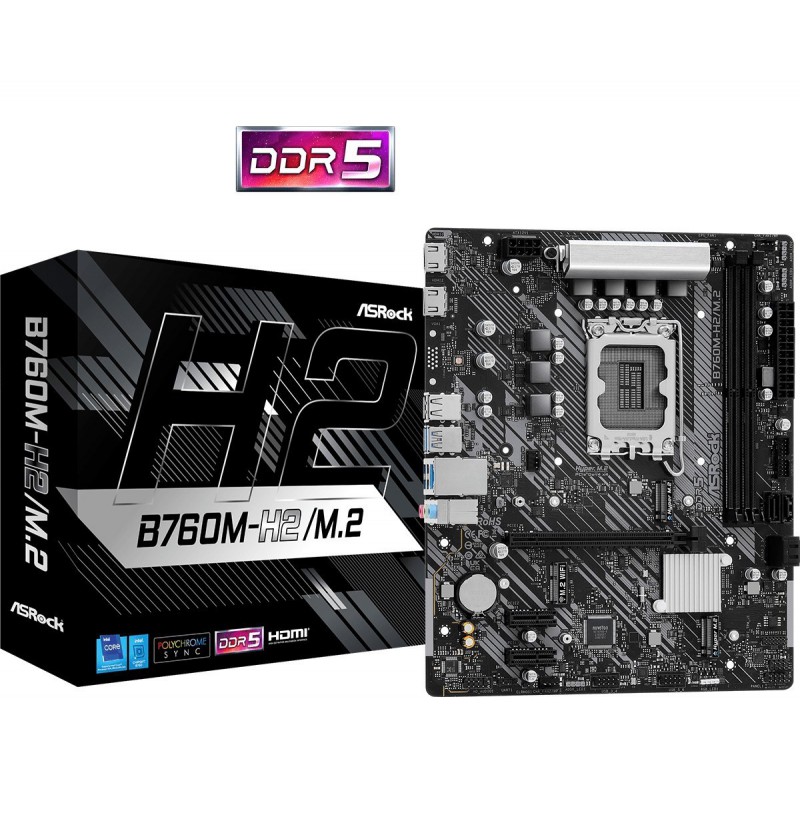

Mainboard ASRock B760M-H2/M.2 Padidinti

Mainboard ASRock B760M-H2/M.2

92,83 €

B760M-H2/M.2

4710483944215

Galimas pasirinkimas

 pristatymas 5...7 d.d.


Processor manufacturer: Intel
Compatible processor series: Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i5
Maximum number of SMP processors: 1
Processor socket: LGA 1700
Parallel processing technology support: Not supported
Motherboard chipset: Intel B760
Motherboard chipset family: Intel
Audio output channels: 7.1 channels
Audio chip: Realtek ALC897
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Motherboard form factor: micro ATX
Maximum internal memory: 96 GB
Unbuffered memory: Yes
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Number of memory slots: 2
Depth: 201 mm
Width: 244 mm
LAN controller: Dragon RTL8125BG
Ethernet LAN: Yes
Wi-Fi: Yes (Requires antenna)
Ethernet interface type: Gigabit Ethernet
Front panel audio connector: Yes
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
TPM connector: Yes
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 2
LED connector: Y
12V power connector (8-pin): Y
BIOS type: UEFI AMI
RAID levels: 0, 1, 10, 5
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
USB 2.0 ports quantity: 2
WiFi-AP antenna jack: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 2
Number of audio jack connectors: 3
PCI Express x1 (Gen 3.x) slots: 2
Number of M.2 (M) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
