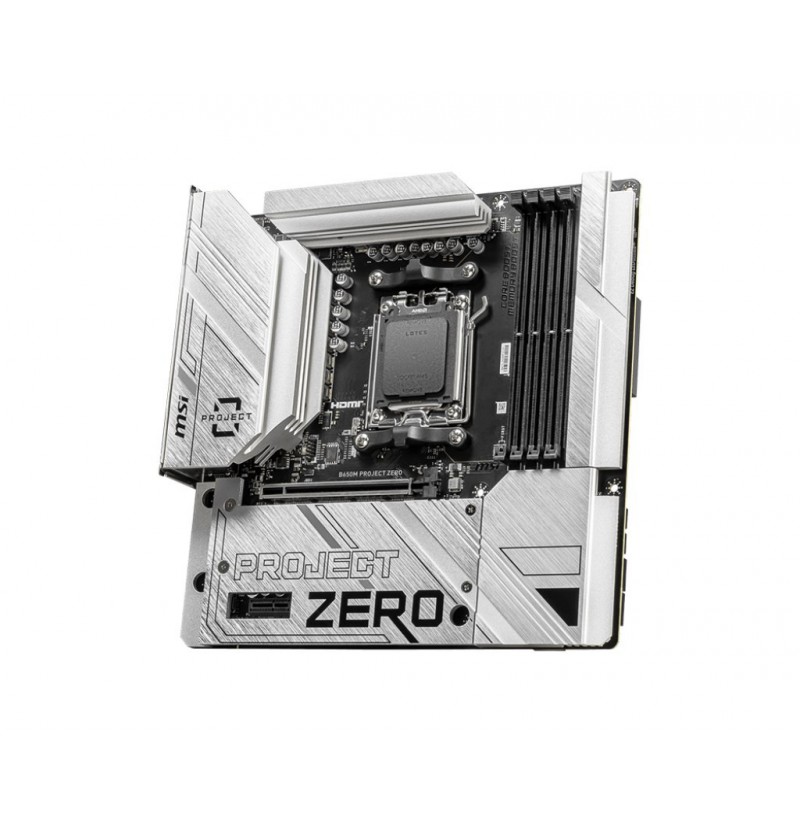

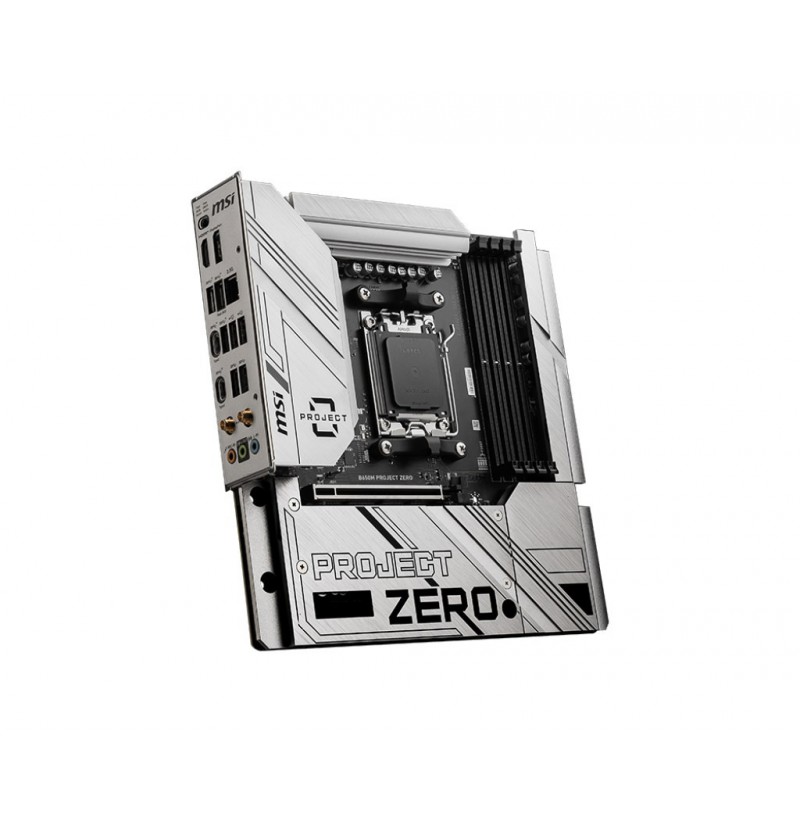

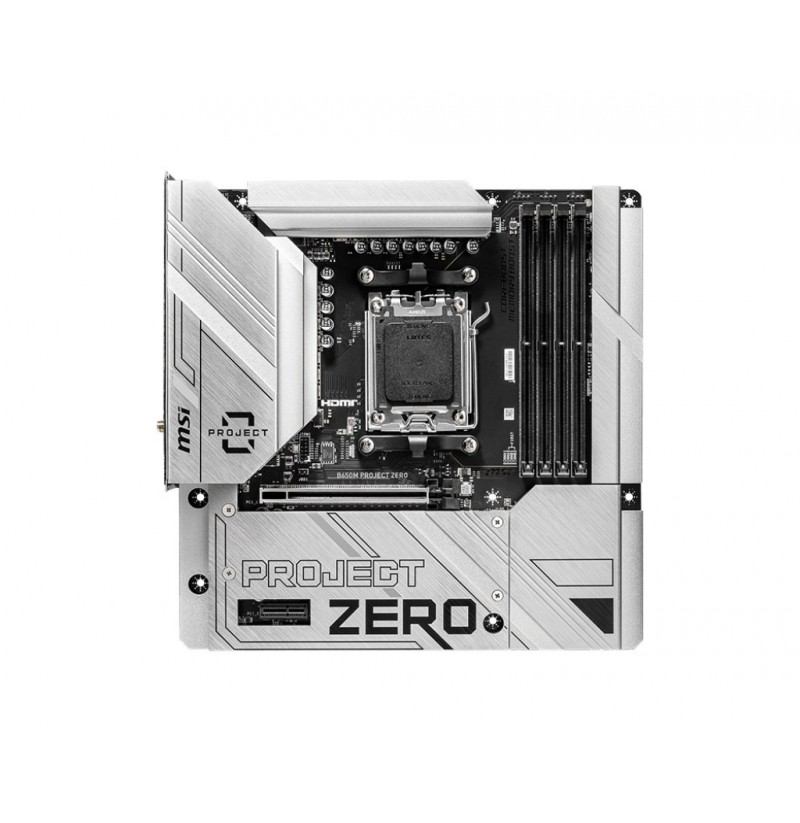

MSI B650M PROJECT ZERO motherboard AMD B650 Socket AM5 micro ATX Padidinti

MSI B650M PROJECT ZERO motherboard AMD B650 Socket AM5 micro ATX

230,49 €

4711377126649

Galimas pasirinkimas

 pristatymas 5...7 d.d.


Supported processor sockets: Socket AM5
Processor socket: Socket AM5
Processor manufacturer: AMD
Maximum internal memory supported by processor: 128 GB
Parallel processing technology support: Not supported
On-board graphics card: No
Motherboard chipset family: AMD
Product colour: White
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard chipset: AMD B650
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
Maximum internal memory: 128 GB
Supported memory clock speeds: 5800, 5400, 6600, 7600, 7400, 6400, 6800, 6000, 6200, 4800, 5200, 5600, 5000, 7000
Memory channels: Dual-channel
Unbuffered memory: Yes
ECC сompatibility: Non-ECC
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Supported memory clock speed (max): 7600 MHz
Width: 243.8 mm
Depth: 243.8 mm
Bluetooth: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), 802.11b, 802.11a, Wi-Fi 6 (802.11ax), 802.11g
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth version: 5.3
Wi-Fi: Yes
Ethernet LAN: Yes
Number of SATA III connectors: 4
TPM connector: Yes
USB 2.0 connectors: 4
CPU fan connector: Yes
Chassis intrusion connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Front panel audio connector: Yes
Front panel connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
RGB LED pin header: Yes
BIOS type: UEFI AMI
Cables included: SATA
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express
RAID support: Yes
RAID levels: 5, 0, 10
S/PDIF out port: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
DisplayPort version: 1.4
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
HDMI ports quantity: 1
USB 2.0 ports quantity: 2
HDMI version: 2.1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
PCI Express x16 slots: 1
Number of M.2 (M) slots: 2
PCI Express x1 slots: 1
Warnings: Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty., Avoid contact with liquids to prevent electronic damage.
