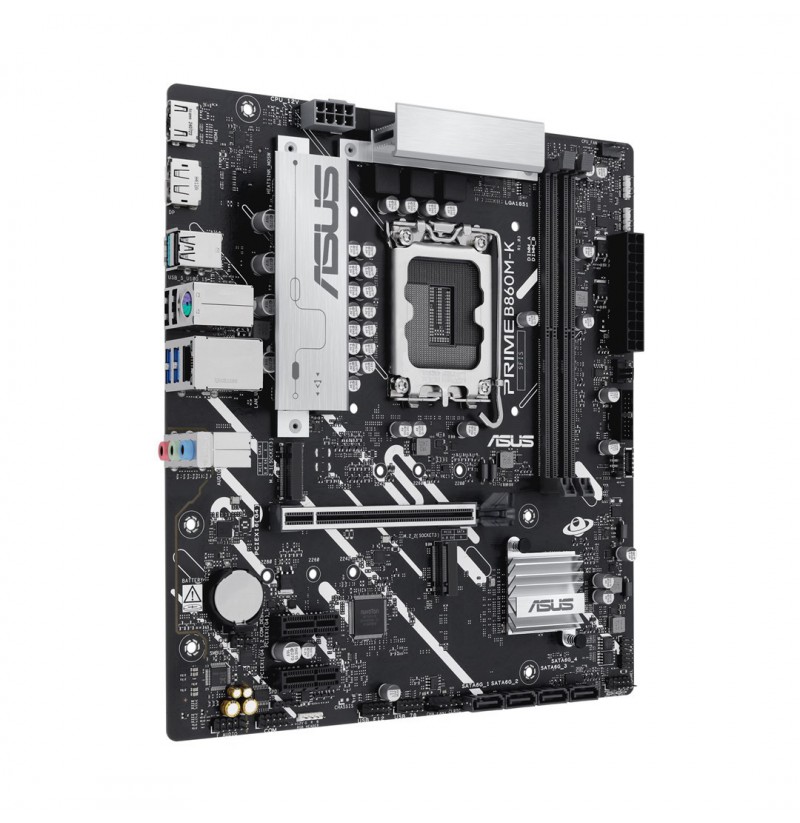

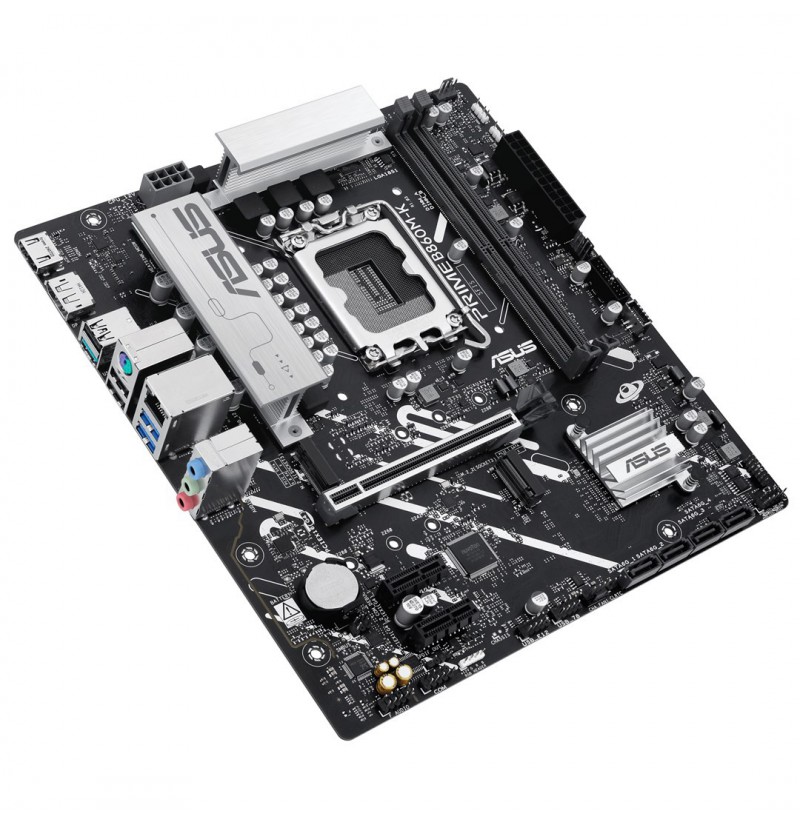

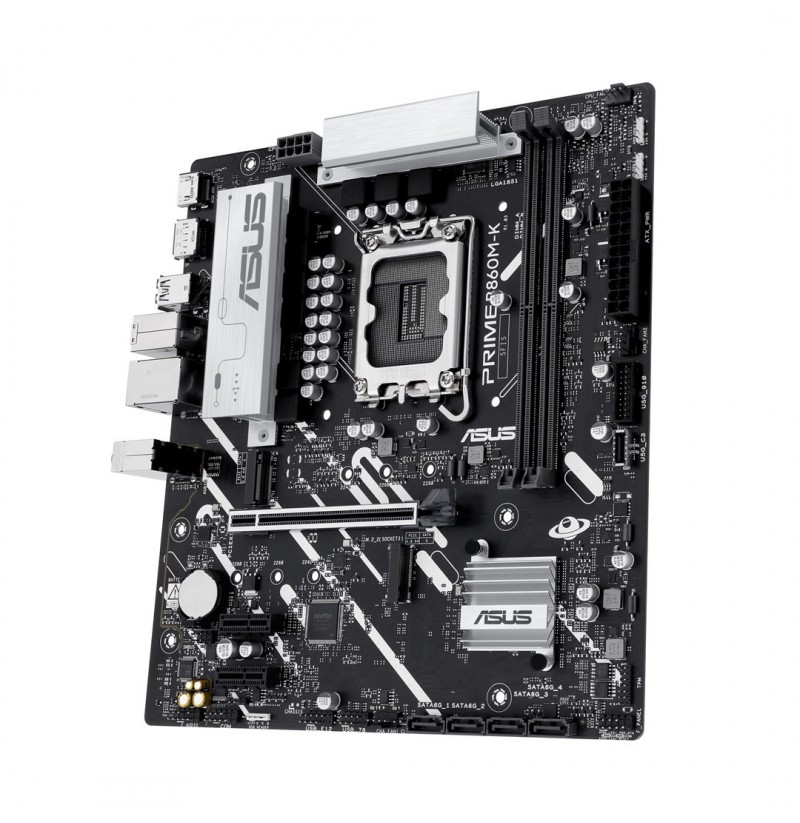

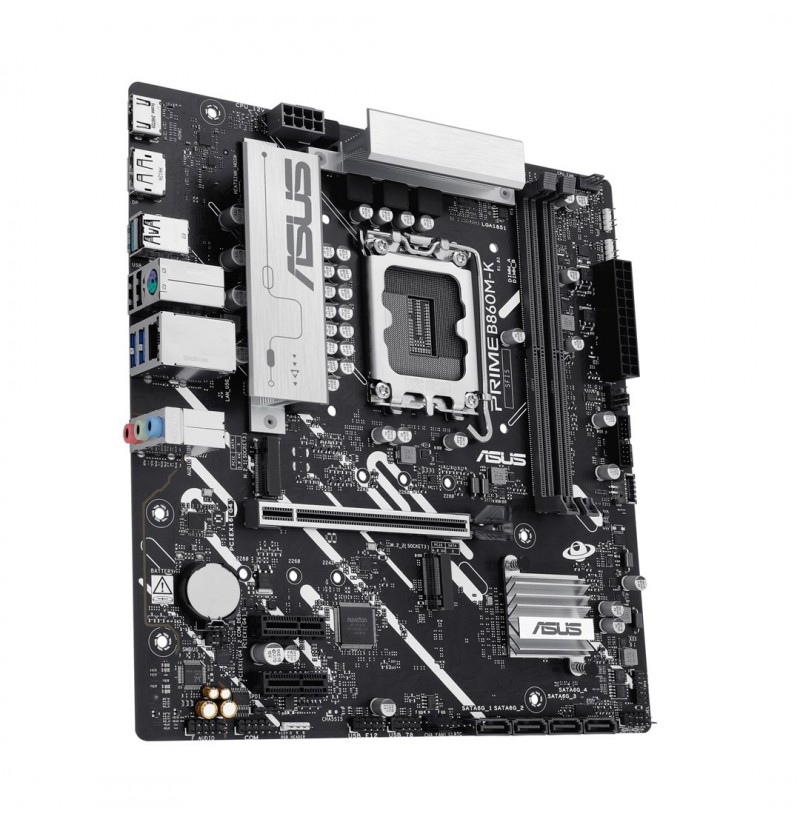

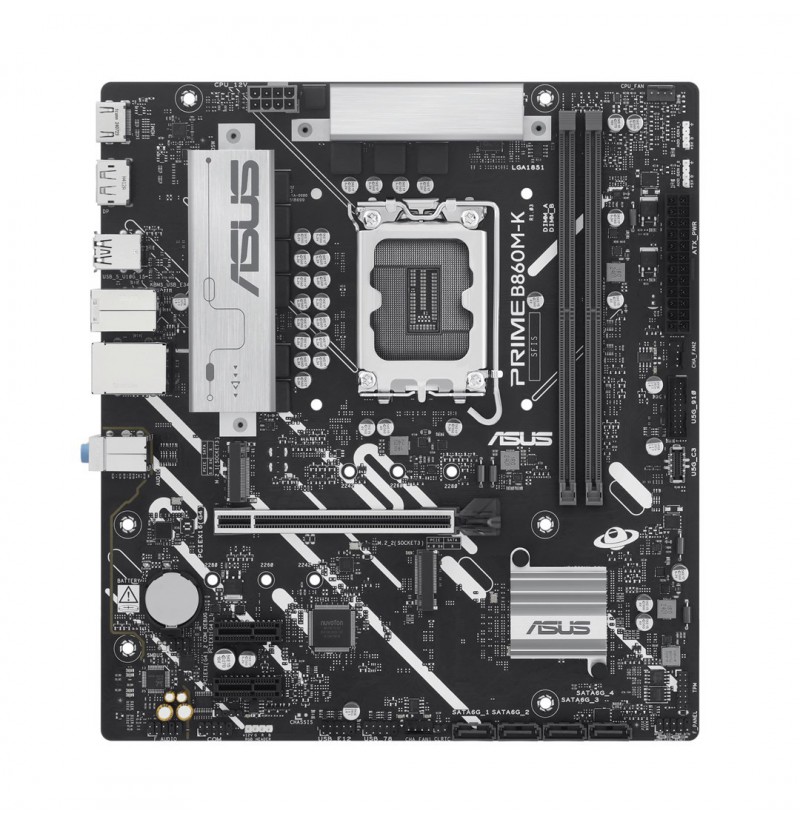

ASUS PRIME B860M-K Intel B860 LGA 1851 (Socket V1) micro ATX Padidinti

ASUS PRIME B860M-K LGA1851 DDR5 mATX MB 1xHDMI 1xDP 2xM.2 4xSATA

130,75 €

90MB1JT0-M0EAY0

4711387808498

Galimas pasirinkimas

 3..5 d.d.


Processor socket: LGA 1851 (Socket V1)
Compatible processor series: Intel Core Ultra (Series 2)
Processor manufacturer: Intel
Supported processor sockets: LGA 1851
Parallel processing technology support: Not supported
Motherboard chipset: Intel B860
Audio output channels: 7.1 channels
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
Windows operating systems supported: Windows 10 x64, Windows 11
Component for: PC
ECC сompatibility: Non-ECC
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Number of memory slots: 2
Memory channels: Dual-channel
Unbuffered memory: Yes
Maximum internal memory: 128 GB
Width: 244 mm
Depth: 222 mm
Wi-Fi: No
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
TPM connector: Yes
RGB LED pin header: Yes
Number of SATA III connectors: 4
USB 2.0 connectors: 2
ATX Power connector (24-pin): Yes
12V power connector: Yes
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
S/PDIF out connector: Yes
Number of chassis fan connectors: 2
Front panel connector: Yes
CPU fan connector: Yes
Number of COM connectors: 1
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Package depth: 263 mm
Package height: 51.5 mm
Package weight: 1.07 kg
Package width: 270 mm
Cables included: SATA
Number of HDDs supported: 4
Number of storage drives supported: 6
RAID support: Yes
RAID levels: 10, 5, 1, 0
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III

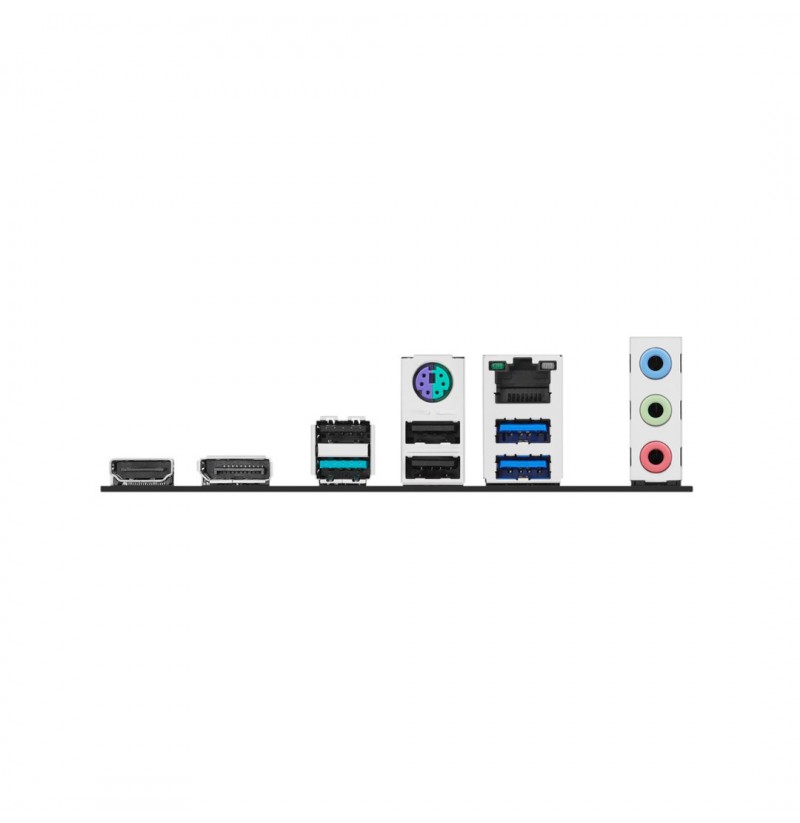

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
PS/2 ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 2
DisplayPorts quantity: 1
PCI Express x1 (Gen 4.x) slots: 2
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0
PCI Express x16 (Gen 4.x) slots: 1
2nd M.2 largest key size: 2280
Number of M.2 (M) slots: 2
2nd M.2 highest PCI Express generation: 4.0
