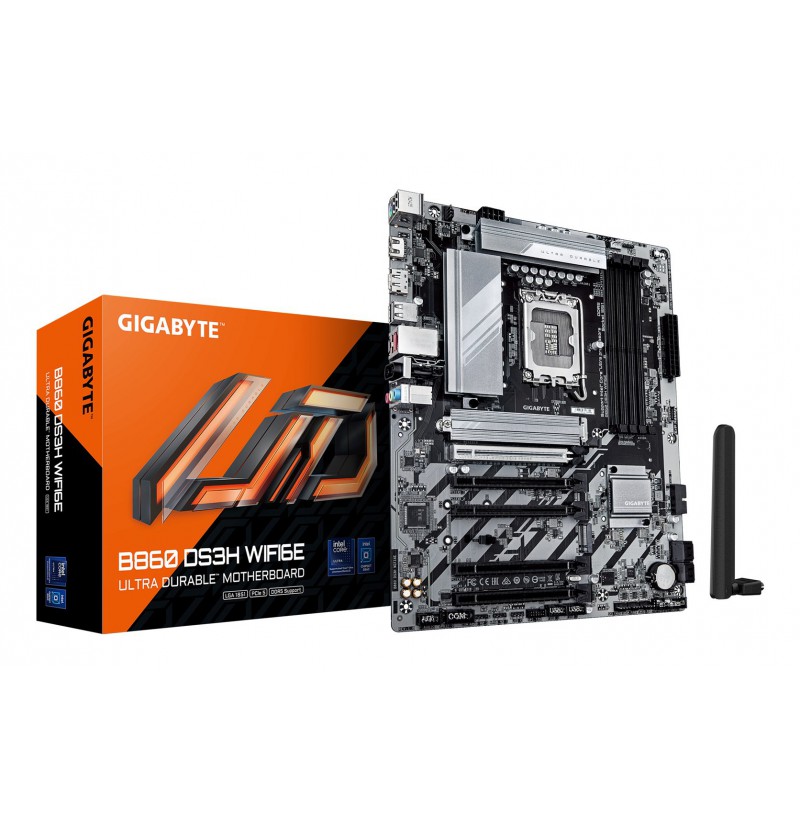

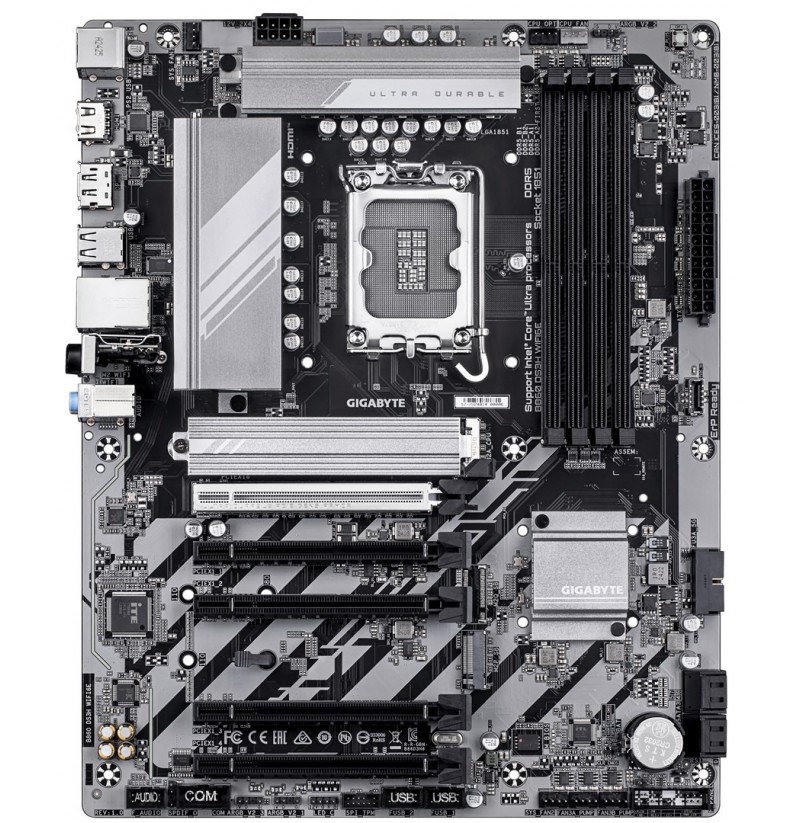

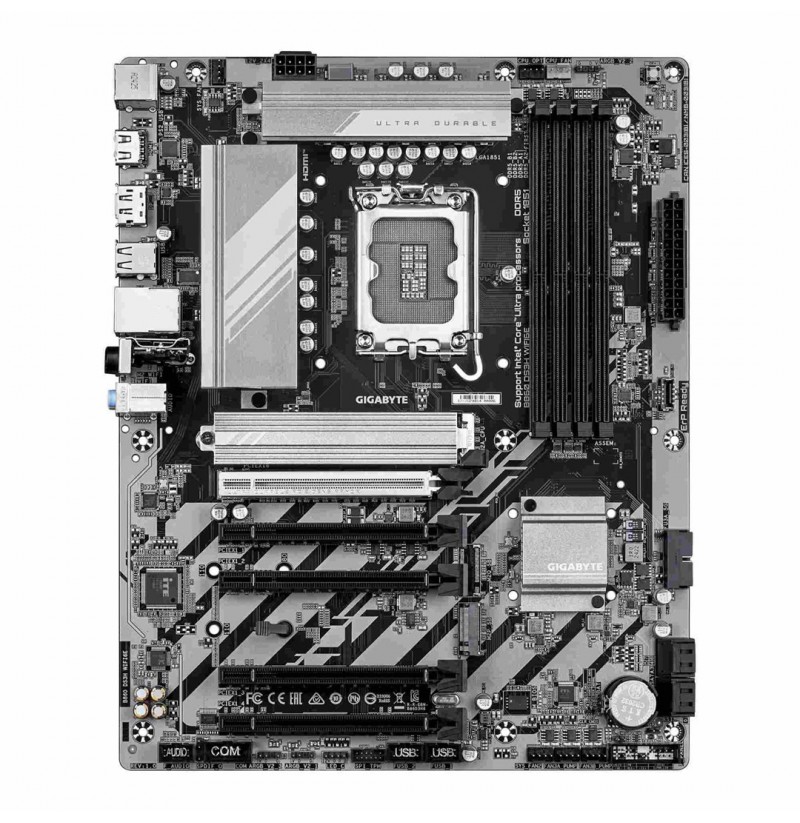

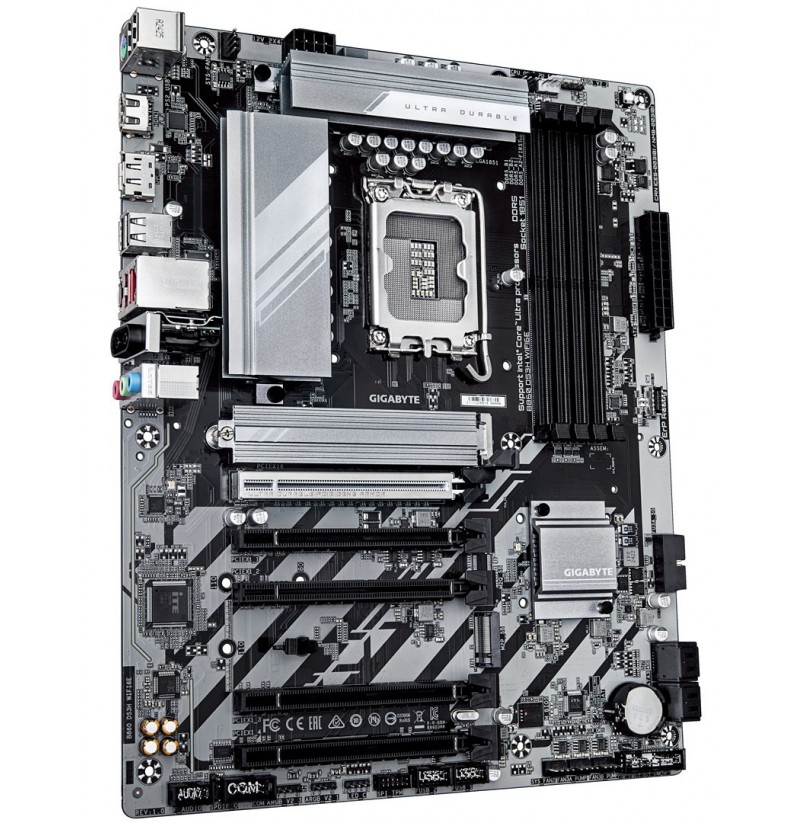

GIGABYTE B860 DS3H WIFI6E Motherboard - Intel Core Ultra Series CPUs, 8+1+2+2 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 +

GIGABYTE B860 DS3H WIFI6E Motherboard - Intel Core Ultra Series CPUs, 8+1+2+2 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2x2
Warranty period: 3 year(s)
Processor manufacturer: Intel
Supported processor sockets: LGA 1851
Compatible processor series: Intel Core Ultra (Series 2)
Processor socket: LGA 1851 (Socket V1)
HDCP: Yes
Maximum resolution: 4096 x 2160 pixels
Parallel processing technology support: Not supported
DirectX version: 12.0
Motherboard form factor: ATX
Cooling type: Passive
PC health monitoring: Voltage, Fan, Water cooling, Temperature
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Component for: PC
Product colour: Dark brown
Motherboard chipset family: Intel
Motherboard chipset: Intel B860
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Power source type: ATX
Supported memory clock speeds: 8600, 8400, 8266, 6400, 6800, 7400, 6600, 7000, 8200, 5600 MHz, 7200, 8800, 7600, 7800, 8000, 9066, 7950, 7900
Supported memory types: DDR5-SDRAM
ECC сompatibility: ECC & Non-ECC
Number of memory slots: 4
Supported memory clock speed (max): 9066 MHz
Memory channels: Dual-channel
Maximum internal memory per slot: 64 GB
Maximum internal memory: 256 GB
Memory slots type: DIMM
Unbuffered memory: Yes
Height: 35 mm
Depth: 244 mm
Width: 305 mm
Wi-Fi standards: Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), 802.11g, 802.11b
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth version: 5.3
LAN controller: Realtek RTL8125
WLAN controller model: Intel Wi-Fi 6E AX211
Wi-Fi: Yes
Bluetooth: Yes
RGB LED pin header: Yes
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
Number of RGB LED pin headers: 4
Number of CPU fan connectors: 2
Front panel audio connector: Yes
CPU fan connector: Yes
Front panel connector: Yes
Number of chassis fan connectors: 4
S/PDIF out connector: Yes
TPM connector: Yes
Number of water pump connectors: 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
EPS power connector (8-pin): Yes
Serial port headers: 1
USB 2.0 connectors: 2
Number of EPS power connectors (8-pin): 1
BIOS memory size: 256 Mbit
System Management BIOS (SMBIOS) version: 2.7
BIOS type: UEFI AMI
Desktop Management Interface (DMI) version: 2.7
Clear CMOS jumper: Yes
ACPI version: 5.0
Package depth: 270 mm
Package width: 335 mm
Package height: 80 mm
Bundled software: Norton Internet Security (OEM version) LAN bandwidth management software
Batteries included: Yes
Antenna included: Yes
Screws included: Yes
Number of storage drives supported: 6
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD
RAID levels: 1, 10, 0, 5
RAID support: Yes
PS/2 ports quantity: 1
USB 2.0 ports quantity: 4
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
DisplayPorts quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
WiFi-AP antenna jack: 2
DisplayPort version: 2.1
Headphone outputs: 1
Line-in: Yes
Microphone in: Yes
USB 3.2 Gen 2x2 Type-C ports quantity: 1
2nd M.2 largest key size: 25110
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 4
1st M.2 largest key size: 25110
1st M.2 highest PCI Express generation: 5.0
2nd M.2 highest PCI Express generation: 4.0
PCI Express x16 (Gen 5.x) slots: 1
Lithium weight per battery: 0.07 g
Battery type: CR2032
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells: 1
Battery weight: 3 g
Weight: 2 kg
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
