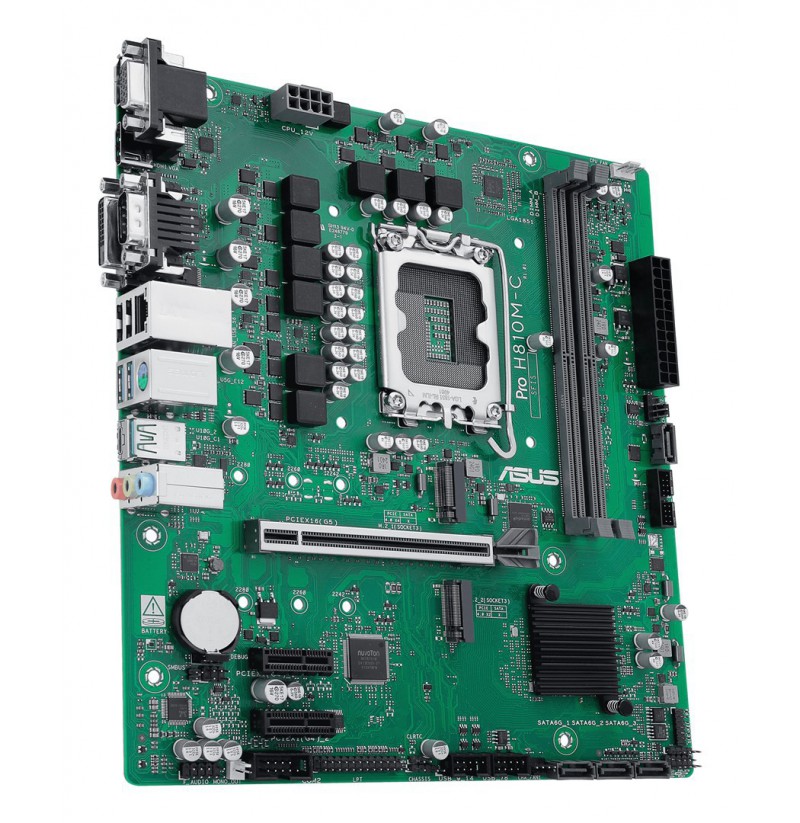

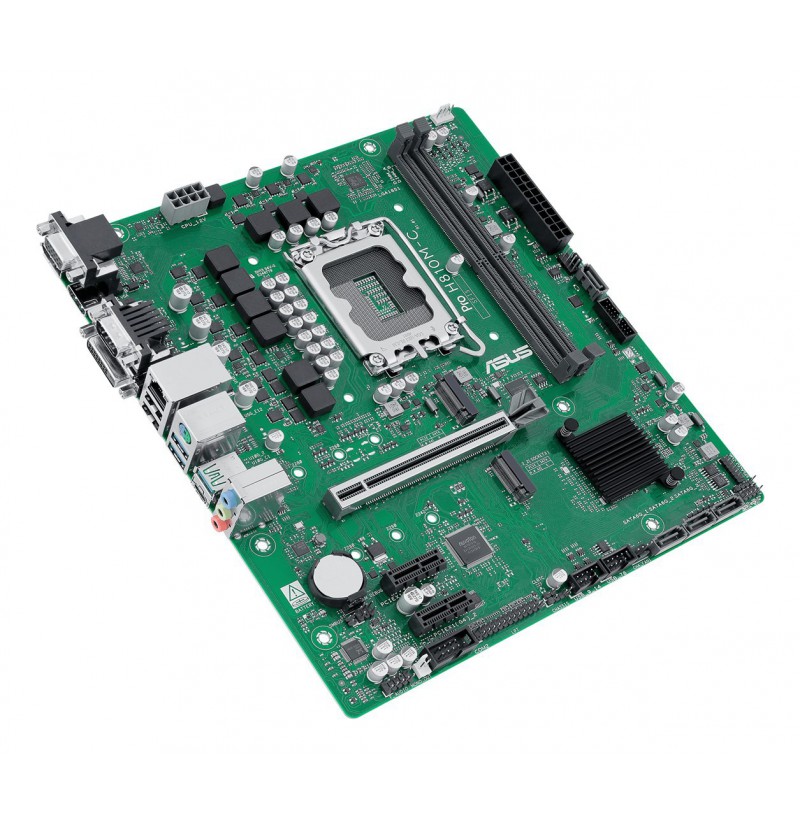

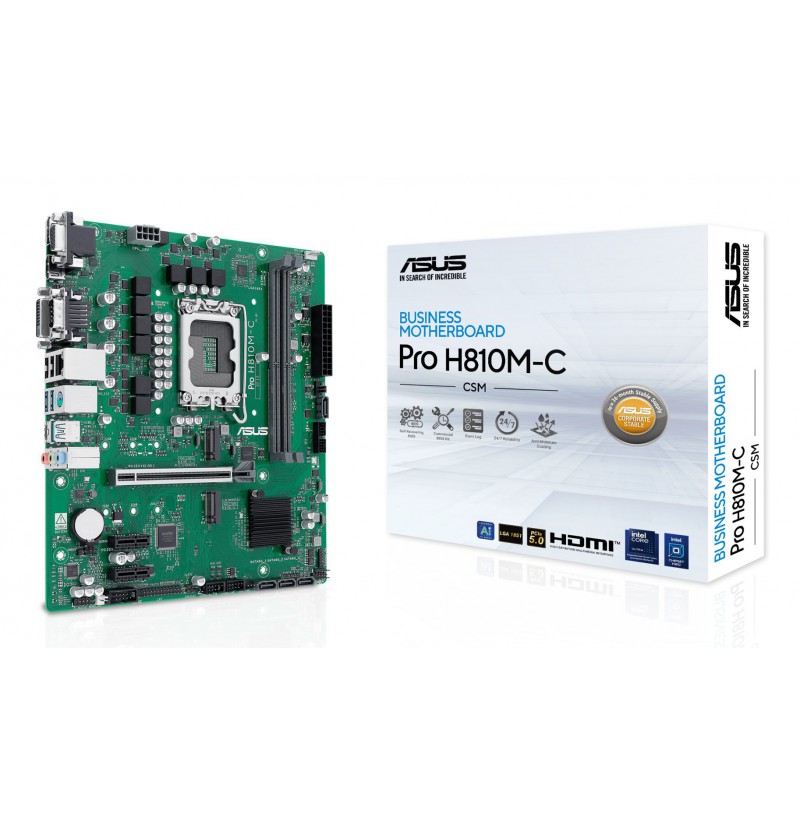

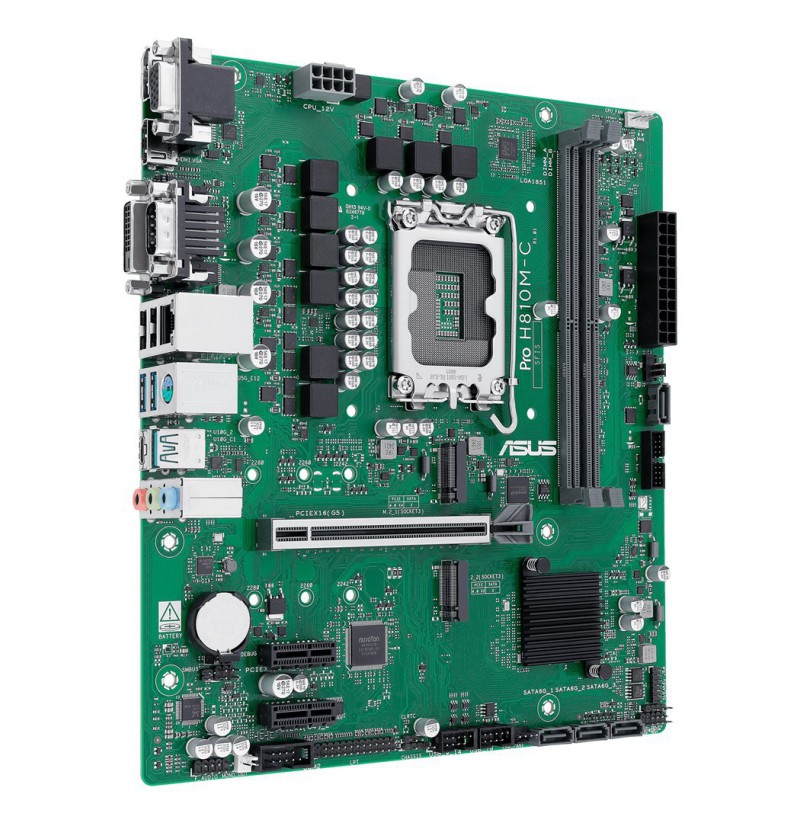

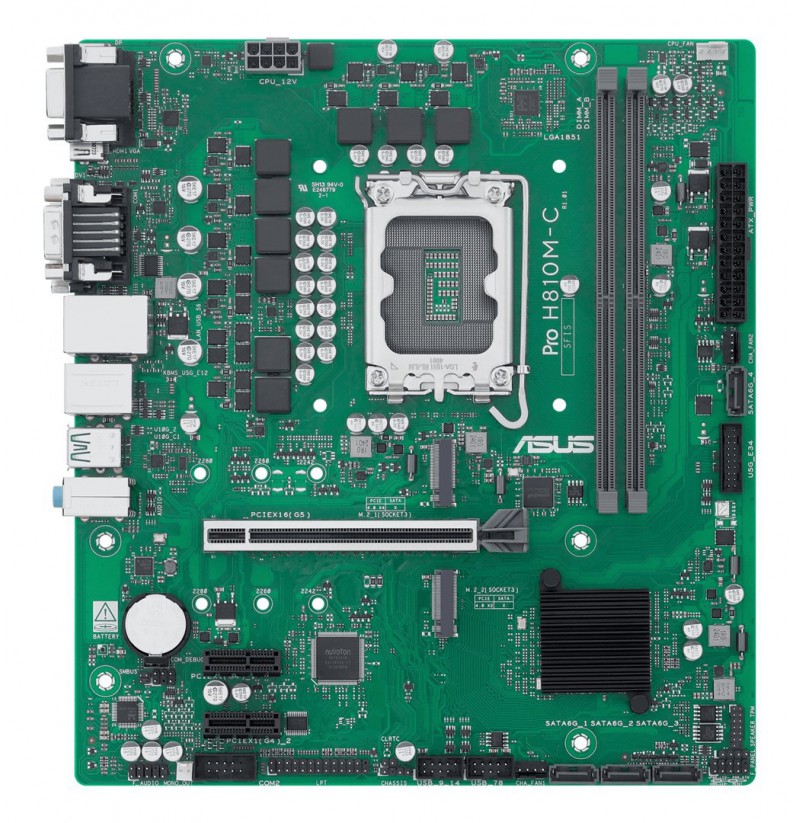

ASUS PRO H810M-C-CSM Intel H810 LGA 1851 (Socket V1) micro ATX

Compatible processor series: Intel Core Ultra (Series 2)
Processor manufacturer: Intel
Supported processor sockets: LGA 1851
Processor socket: LGA 1851 (Socket V1)
Parallel processing technology support: Not supported
Windows operating systems supported: Windows 10 x64, Windows 11
Audio output channels: 7.1 channels
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
Motherboard chipset: Intel H810
Maximum internal memory: 128 GB
Memory channels: Dual-channel
Number of memory slots: 2
Unbuffered memory: Yes
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
ECC сompatibility: Non-ECC
Width: 244 mm
Depth: 222 mm
Ethernet LAN: Yes
Top Wi-Fi standard: Not available
Ethernet interface type: Gigabit Ethernet
Wi-Fi: No
Audio connector: Yes
Chassis intrusion connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 2
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
Front panel connector: Yes
CPU fan connector: Yes
TPM connector: Yes
12V power connector: Yes
Number of chassis fan connectors: 2
Front panel audio connector: Yes
Number of COM connectors: 1
Number of CPU fan connectors: 1
BIOS type: UEFI AMI
Package weight: 1 kg
Package depth: 263 mm
Package height: 51.5 mm
Package width: 270 mm
Cables included: SATA
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 6
DVI-D ports quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
COM ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
VGA (D-Sub) ports quantity: 1
PS/2 ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
DisplayPorts quantity: 1
PCI Express x1 (Gen 4.x) slots: 2
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 2
1st M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
1st M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
