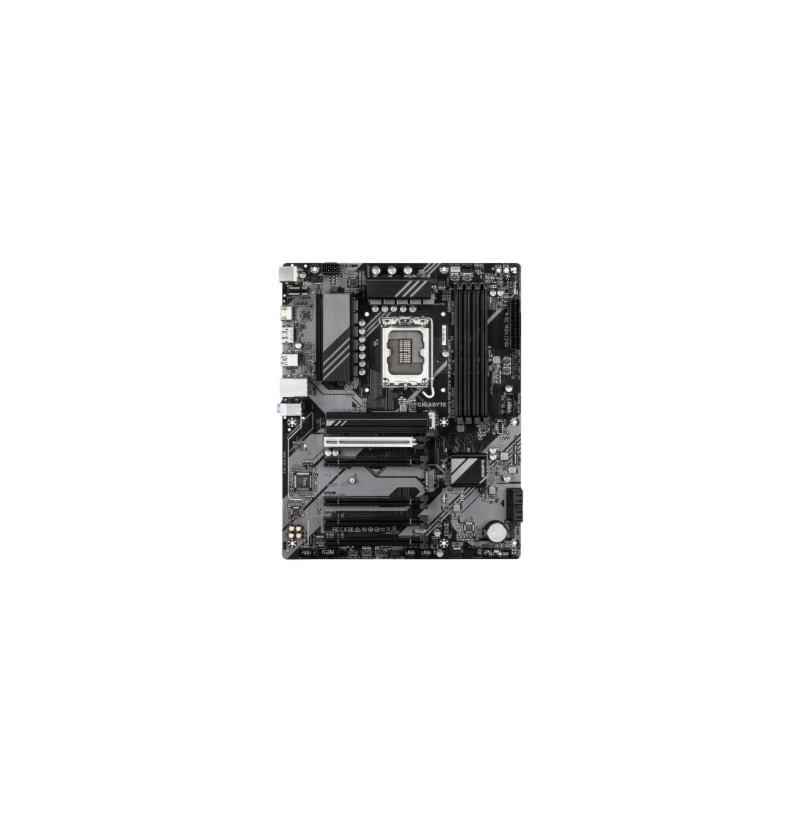

Gigabyte B760 DS3H GEN5 | Processor family Intel | Processor socket LGA1700 | DDR5 | Supported hard disk drive interfaces M.2, S

Warranty period: 3 year(s)
Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i9 13th Gen, Intel Core i5 13th Gen, Intel® Pentium® Gold, Intel Core i7 12th Gen, Intel Core i5 12th Gen, Intel Core i7 14th Gen, Intel Core i5 14th Gen, Intel Core i7 13th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i9 12th Gen, Intel Core i9 14th Gen
Processor manufacturer: Intel
Supported processor sockets: LGA 1700
Processor socket: LGA 1700
Maximum resolution: 4096 x 2304 pixels
HDCP: Yes
DirectX version: 12.0
Parallel processing technology support: Not supported
PC health monitoring: Water cooling, Voltage, Fan, Temperature
Motherboard form factor: ATX
Audio chip: Realtek ALC897
Product colour: Dark brown
Motherboard chipset: Intel B760 Express
Audio output channels: 7.1 channels
Motherboard chipset family: Intel
Power source type: ATX
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Cooling type: Passive
Supported memory clock speeds: 4800 MHz, 5200, 4400, 5600
Maximum internal memory: 256 GB
Unbuffered memory: Yes
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Maximum internal memory per slot: 64 GB
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Supported memory clock speed (max): 5600 MHz
Memory slots type: DIMM
Width: 305 mm
Depth: 244 mm
Height: 35 mm
LAN controller: Realtek RTL8111H
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wi-Fi: No
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
S/PDIF out connector: Yes
Serial port headers: 1
Front panel audio connector: Yes
USB 2.0 connectors: 2
EPS power connector (8-pin): Yes
CPU fan connector: Yes
TPM connector: Yes
Front panel connector: Yes
Number of chassis fan connectors: 4
Number of EPS power connectors (8-pin): 1
Number of RGB LED pin headers: 4
Number of CPU fan connectors: 2
Number of water pump connectors: 2
RGB LED pin header: Yes
12V power connector: Yes
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
Desktop Management Interface (DMI) version: 2.7
Package weight: 1.5 kg
Package width: 335 mm
Package depth: 270 mm
Package height: 80 mm
Bundled software: Norton® Internet Security (OEM version)LAN bandwidth management software
Batteries included: Yes
Screws included: Yes
Supported storage drive types: HDD & SSD
RAID support: Yes
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
Number of storage drives supported: 6
RAID levels: 5, 10, 1, 0
Number of HDDs supported: 4
USB 2.0 ports quantity: 4
DisplayPorts quantity: 1
DisplayPort version: 1.2
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
HDMI version: 2.1
Microphone in: Yes
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Headphone outputs: 1
Line-in: Yes
USB 3.2 Gen 2x2 Type-C ports quantity: 1
PCI Express x16 (Gen 3.x) slots: 4
Number of M.2 (M) slots: 2
1st M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 4.0
PCI Express x16 (Gen 5.x) slots: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery weight: 3 g
Weight: 1.32 kg
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
