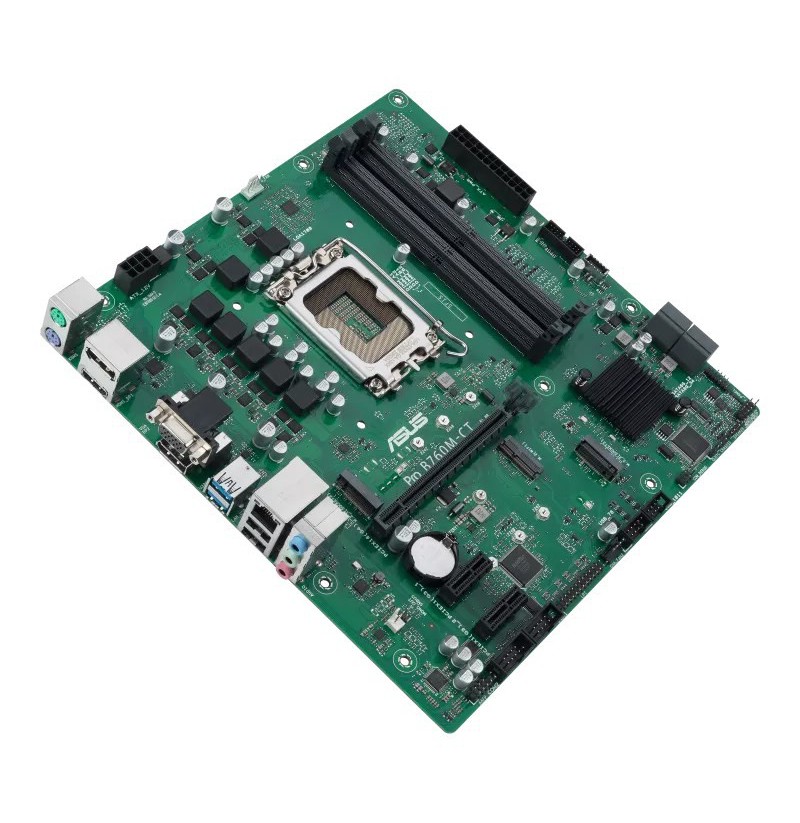

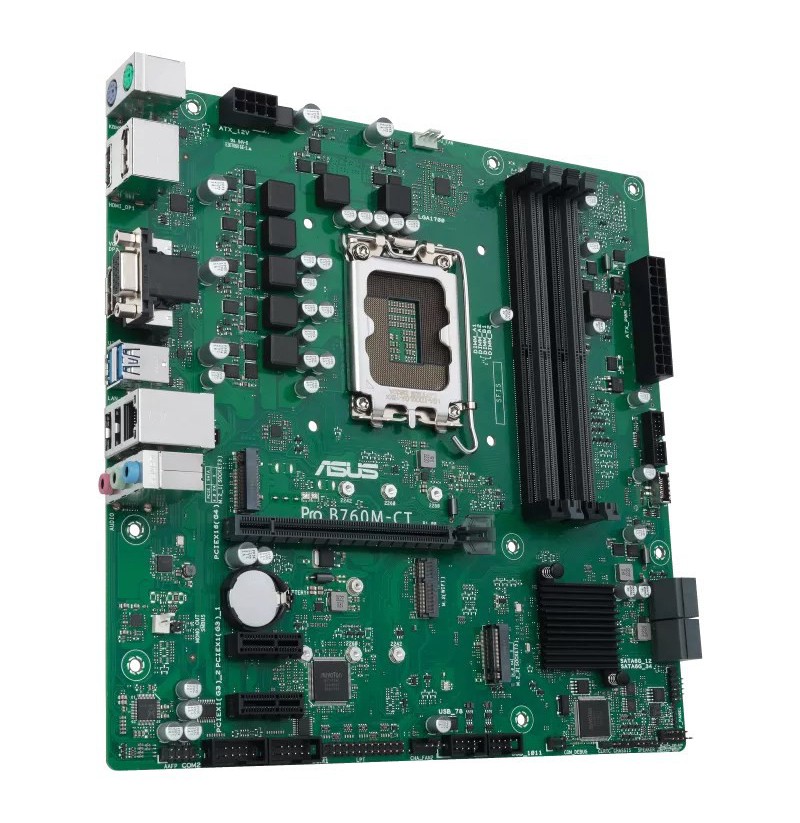

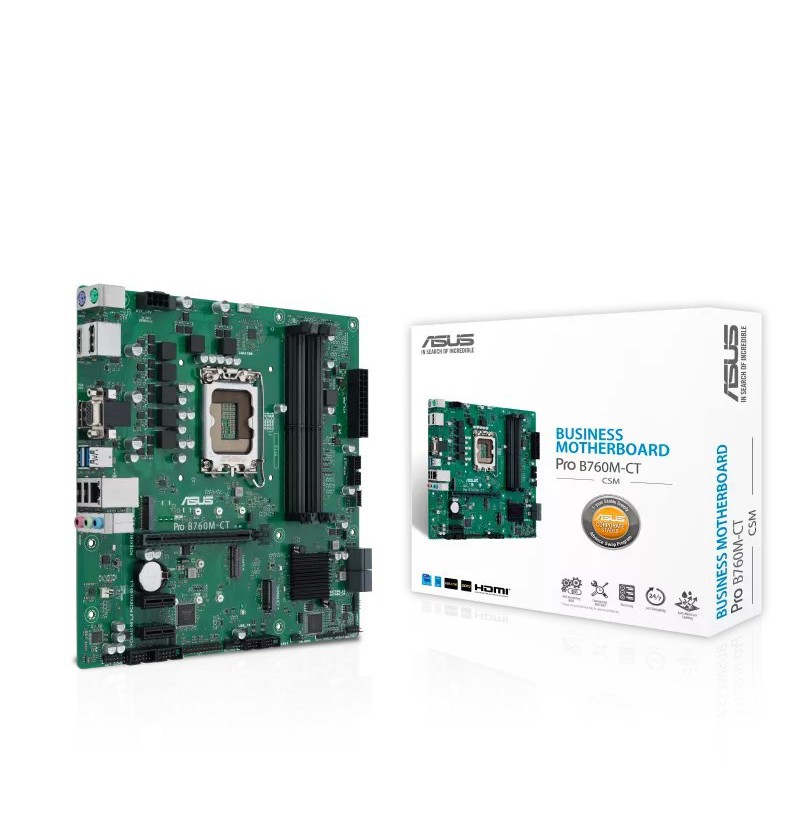

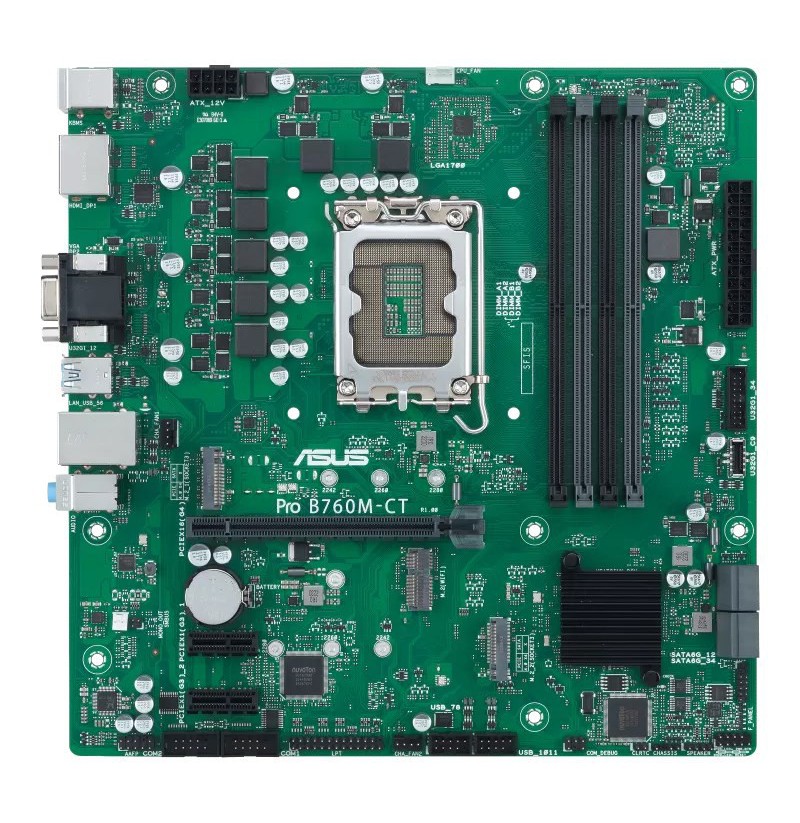

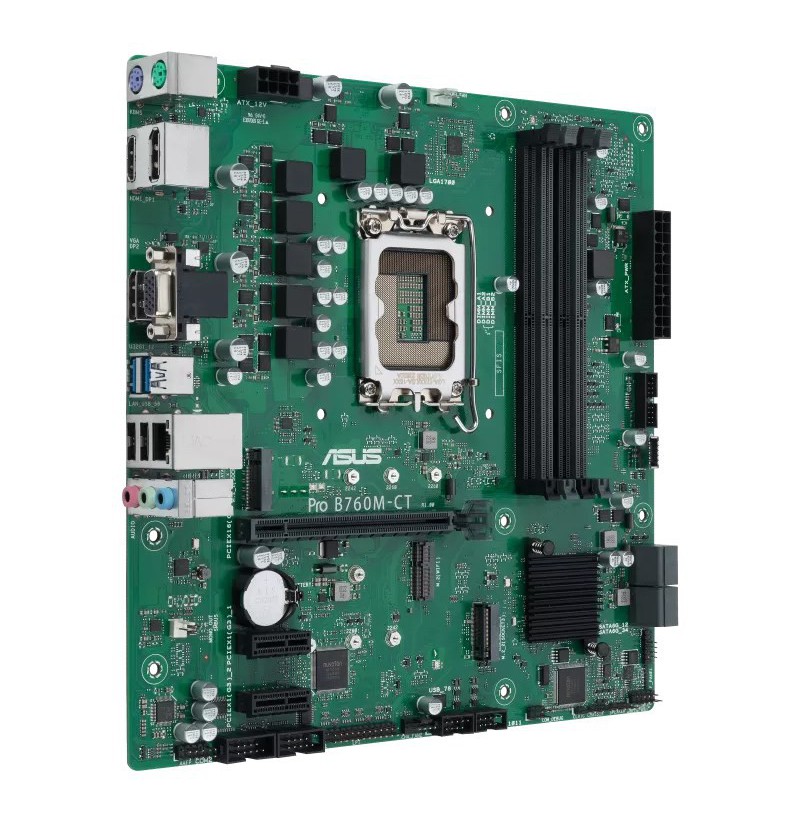

Płyta główna Asus PRO B760M-CT-CSM

Supported processor sockets: LGA 1700
Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3
Parallel processing technology support: Not supported
Motherboard form factor: micro ATX
Windows operating systems supported: Windows 11, Windows 10 x64
Motherboard chipset family: Intel
Product colour: Green
Audio output channels: 7.1 channels
Component for: PC
Motherboard chipset: Intel B760
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 6200 MHz
Memory channels: Dual-channel
Supported memory clock speeds: 5600, 5000, 6000, 5800, 5400, 6200, 4800
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Depth: 244 mm
Width: 244 mm
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wi-Fi: No
CPU fan connector: Yes
USB 2.0 connectors: 2
Number of COM connectors: 3
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of chassis fan connectors: 2
Chassis intrusion connector: Yes
Front panel audio connector: Yes
Audio connector: Yes
Clear CMOS button: Yes
BIOS memory size: 128 Mbit
Cables included: SATA
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD

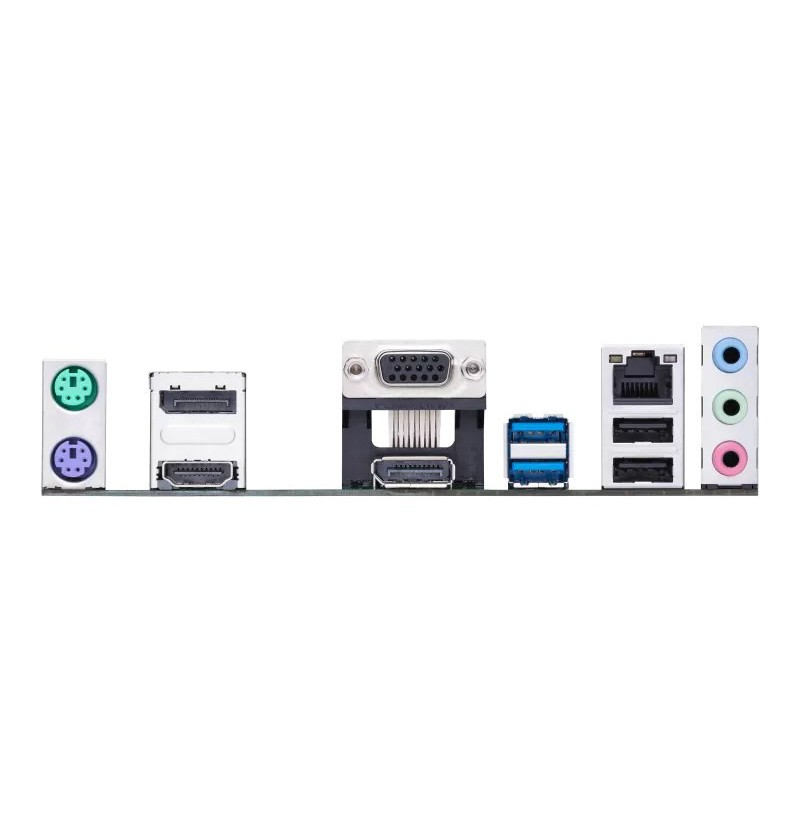

HDMI version: 2.1
DisplayPorts quantity: 2
DisplayPort version: 1.4
USB 2.0 ports quantity: 2
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
VGA (D-Sub) ports quantity: 1
Headphone outputs: 1
Microphone in: Yes
PS/2 ports quantity: 2
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
