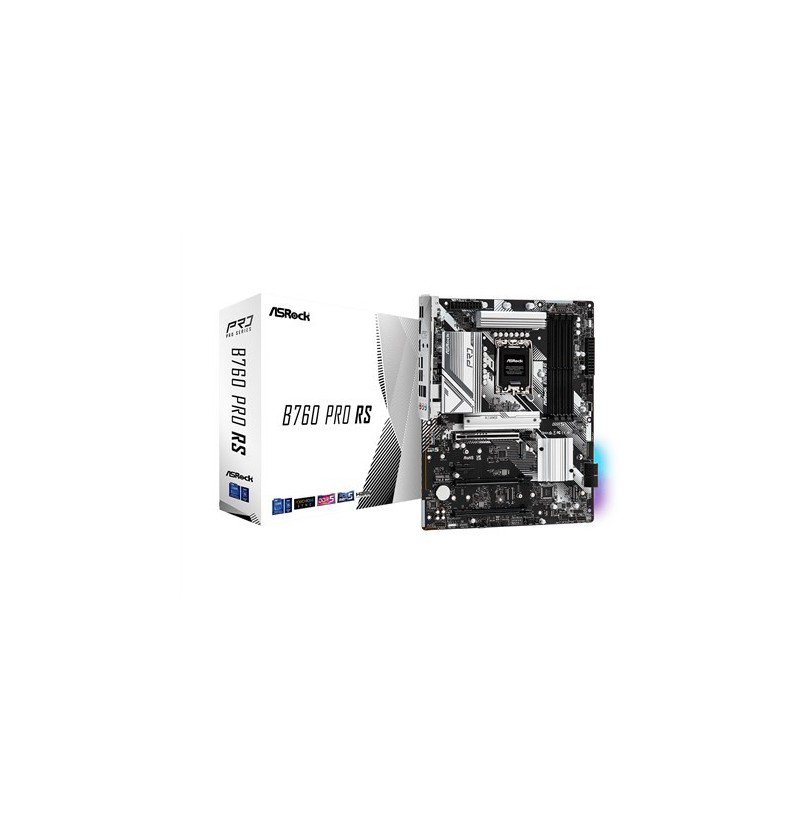

Asrock B760 PRO RS Intel B760 LGA 1700 ATX

Processor socket: LGA 1700
Compatible processor series: Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Processor manufacturer: Intel
Maximum number of SMP processors: 1
Motherboard form factor: ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard chipset: Intel B760
Audio output channels: 7.1 channels
Audio chip: Realtek ALC897
ECC сompatibility: Non-ECC
Number of memory slots: 4
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Depth: 244 mm
Width: 305 mm
Ethernet LAN: Yes
Wi-Fi: No
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Dragon RTL8125BG
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel audio connector: Yes
EPS power connector (8-pin): Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
RGB LED pin header: Yes
CPU fan connector: Yes
TPM connector: Yes
Thunderbolt headers: 1
BIOS type: UEFI AMI
Cables included: SATA
RAID support: Yes
RAID levels: 0, 5, 10, 1
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
DisplayPort version: 1.4
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
