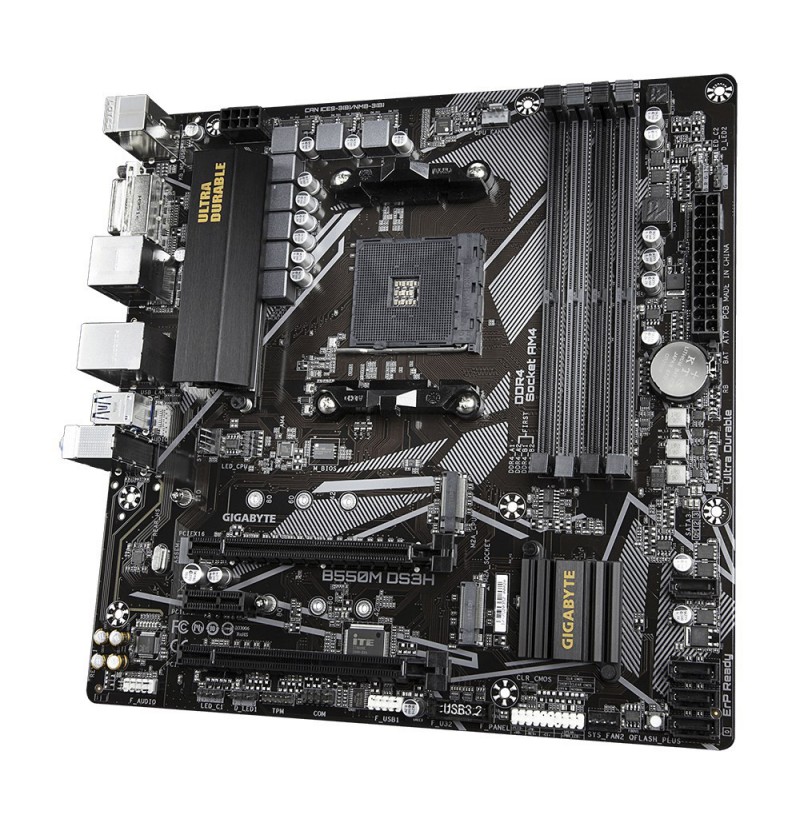

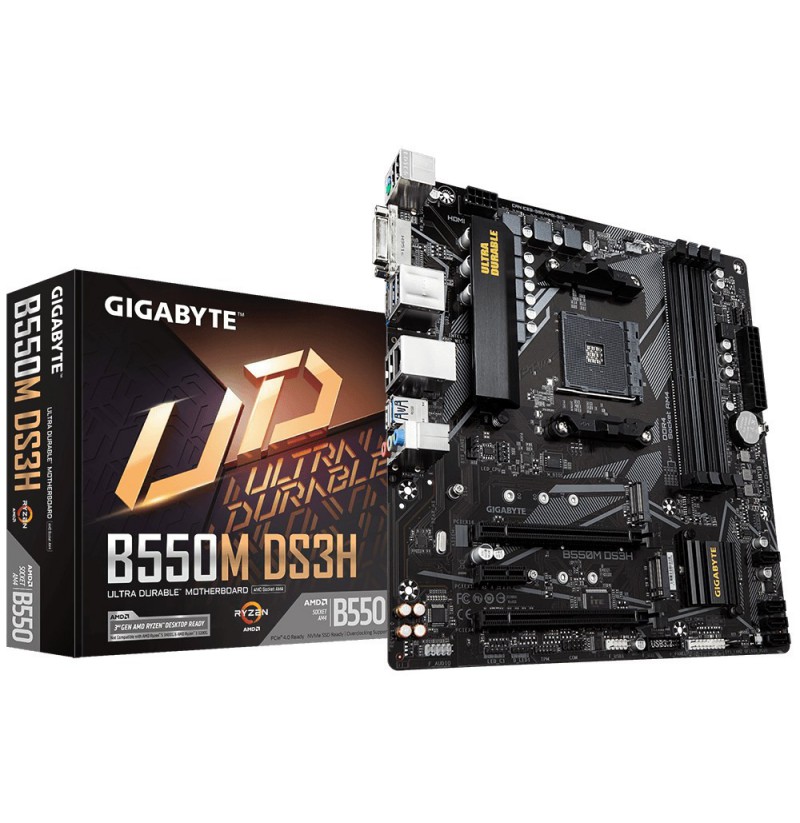

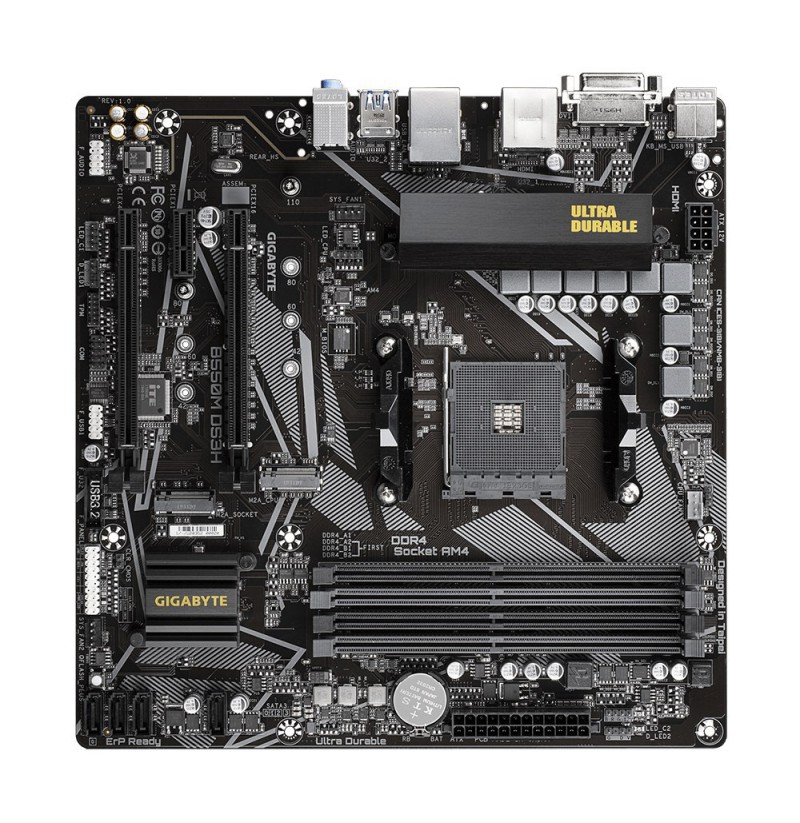

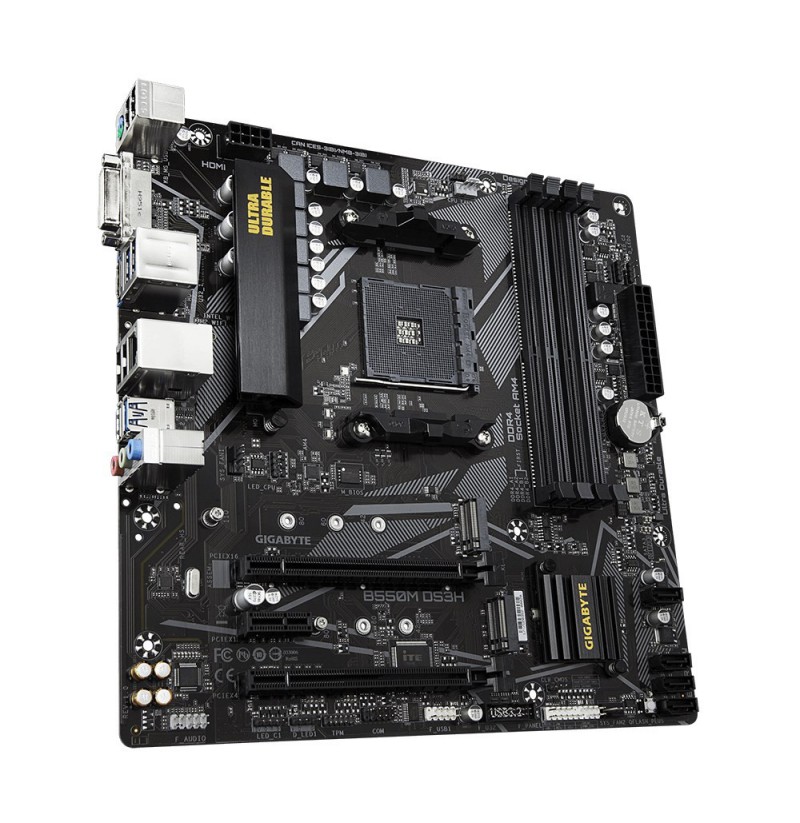

Gigabyte B550M DS3H Socket AM4 micro ATX AMD B550 Padidinti

Gigabyte | B550M DS3H 1.0 | Processor family AMD | Processor socket AM4 | DDR4 DIMM | Memory slots 4 | Number of SATA connectors

85,91 €

B550M DS3H

4719331809416

Galimas pasirinkimas

 1..4 d.d.


Maximum number of SMP processors: 1
Processor socket: Socket AM4
Compatible processor series: 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5
Processor manufacturer: AMD
HDCP: Yes
Maximum resolution: 4096 x 2160 pixels
Maximum graphics card memory: 16000 MB
PC health monitoring: Temperature, Voltage, Fan
Motherboard chipset: AMD B550
Windows operating systems supported: Windows 10 x64
Motherboard chipset family: AMD
Audio chip: Realtek ALC887
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
Unbuffered memory: Yes
Supported memory clock speeds: 4600, 3333, 2933, 3600, 4733, 2133 MHz, 2400, 3200, 4000, 2667, 4400
Memory channels: Dual-channel
Supported memory types: DDR4-SDRAM
Memory slots type: DIMM
Maximum internal memory: 128 GB
Number of memory slots: 4
Width: 244 mm
Depth: 244 mm
Ethernet interface type: Gigabit Ethernet
Wi-Fi: No
Ethernet LAN: Yes
Front panel connector: Yes
ATX Power connector (24-pin): Yes
Number of chassis fan connectors: 2
Front panel audio connector: Yes
Number of SATA III connectors: 4
USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Serial port headers: 1
TPM connector: Yes
12V power connector: Yes
CPU fan connector: Yes
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI
Cables included: SATA
Drivers included: Yes
RAID levels: 1, 10, 0
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: Serial ATA III

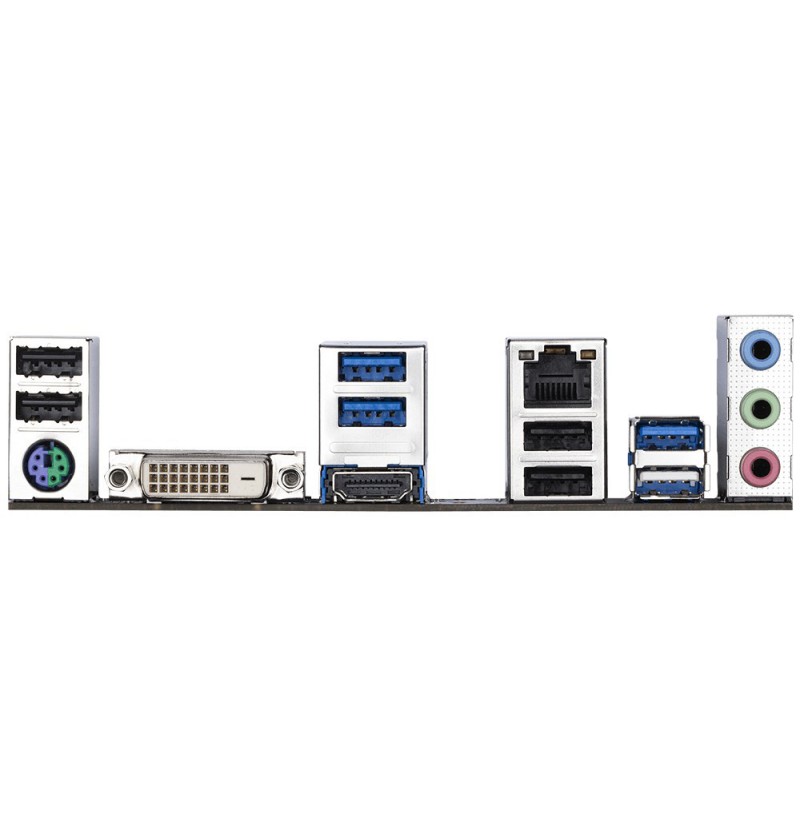

USB 2.0 ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI version: 2.1
DVI-D ports quantity: 1
HDMI ports quantity: 1
PCI Express x1 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 2
PCI Express x16 slots: 2
