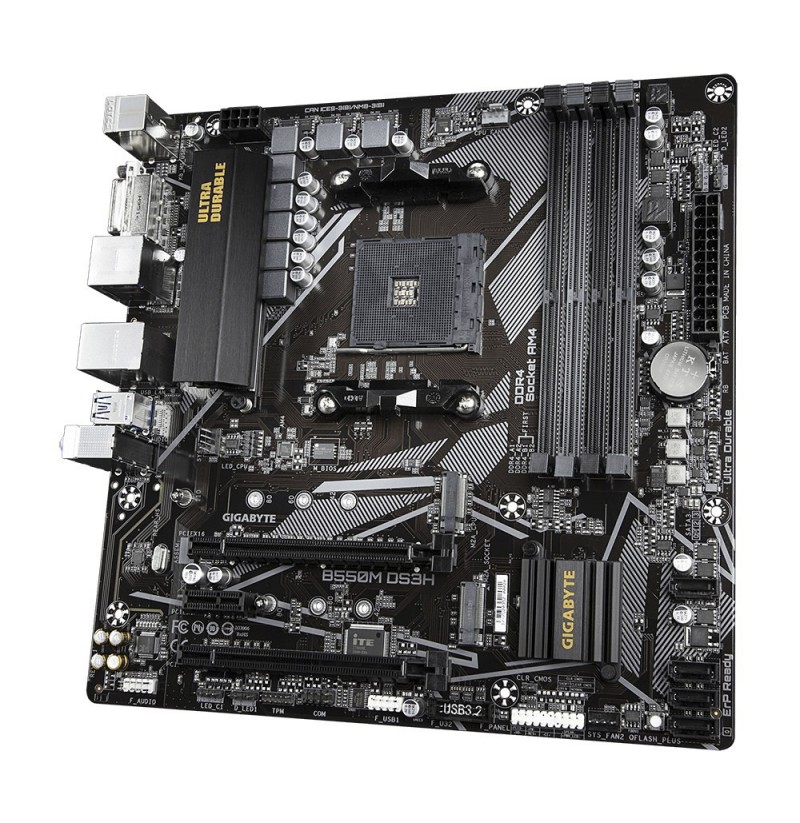

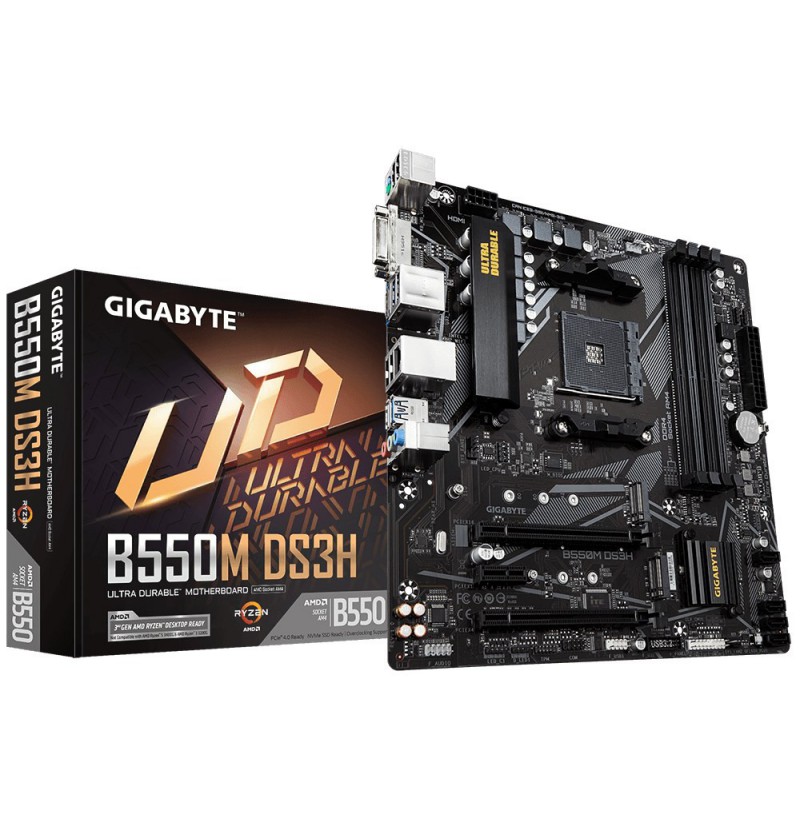

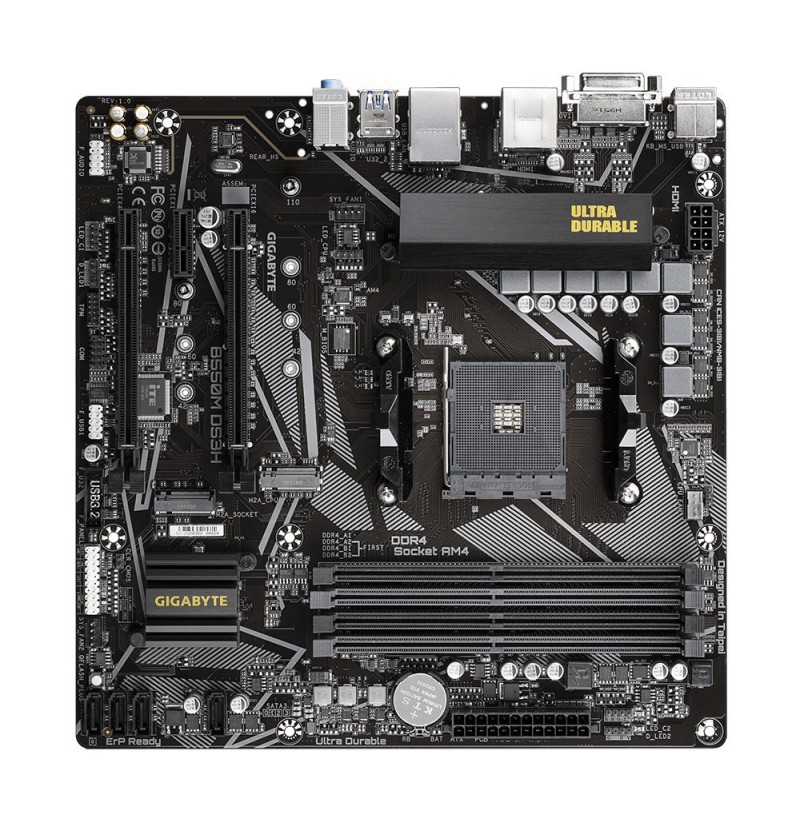

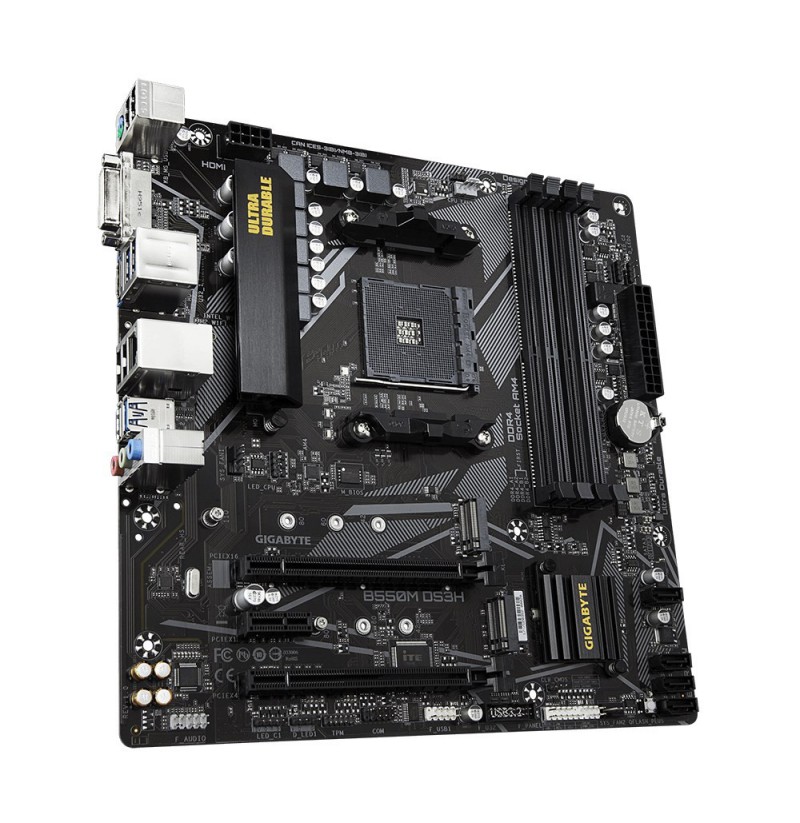

Gigabyte B550M DS3H 1.0 Processor family AMD Padidinti

Gigabyte B550M DS3H Socket AM4 micro ATX AMD B550

95,06 €

B550M DS3H

4719331809416

Galimas pasirinkimas

 pristatymas 5...7 d.d.


Compatible processor series: 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 3
Processor manufacturer: AMD
Maximum number of SMP processors: 1
Processor socket: Socket AM4
HDCP: Yes
Maximum graphics card memory: 16000 MB
Maximum resolution: 4096 x 2160 pixels
PC health monitoring: Fan, Temperature, Voltage
Windows operating systems supported: Windows 10 x64
Motherboard chipset: AMD B550
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Audio chip: Realtek ALC887
Maximum internal memory: 128 GB
Number of memory slots: 4
Unbuffered memory: Yes
Supported memory clock speeds: 2933, 3600, 4733 MHz, 2400, 2667, 4400 MHz, 3333, 3200, 4600, 2133, 4000
Memory slots type: DIMM
Memory channels: Dual-channel
Supported memory types: DDR4-SDRAM
Depth: 244 mm
Width: 244 mm
Ethernet LAN: Yes
Wi-Fi: No
Ethernet interface type: Gigabit Ethernet
ATX Power connector (24-pin): Yes
12V power connector: Yes
USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of chassis fan connectors: 2
Number of SATA III connectors: 4
Serial port headers: 1
Front panel audio connector: Yes
Front panel connector: Yes
TPM connector: Yes
CPU fan connector: Yes
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
Drivers included: Yes
Cables included: SATA
RAID levels: 10, 1, 0
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: Serial ATA III

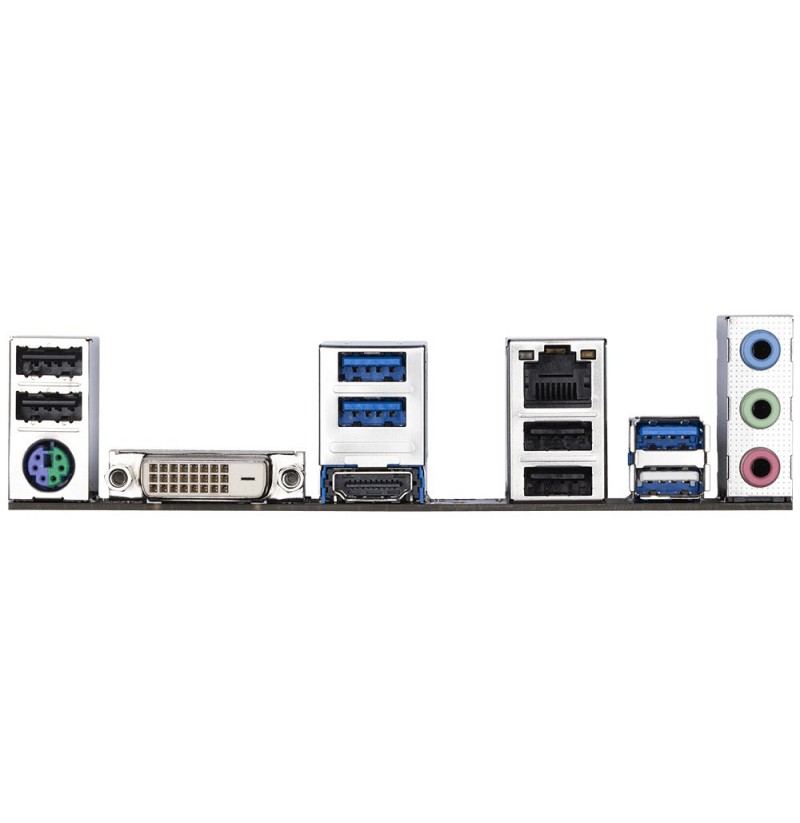

Ethernet LAN (RJ-45) ports: 1
DVI-D ports quantity: 1
PS/2 ports quantity: 1
HDMI version: 2.1
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1
PCI Express x1 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 2
PCI Express x16 slots: 2
