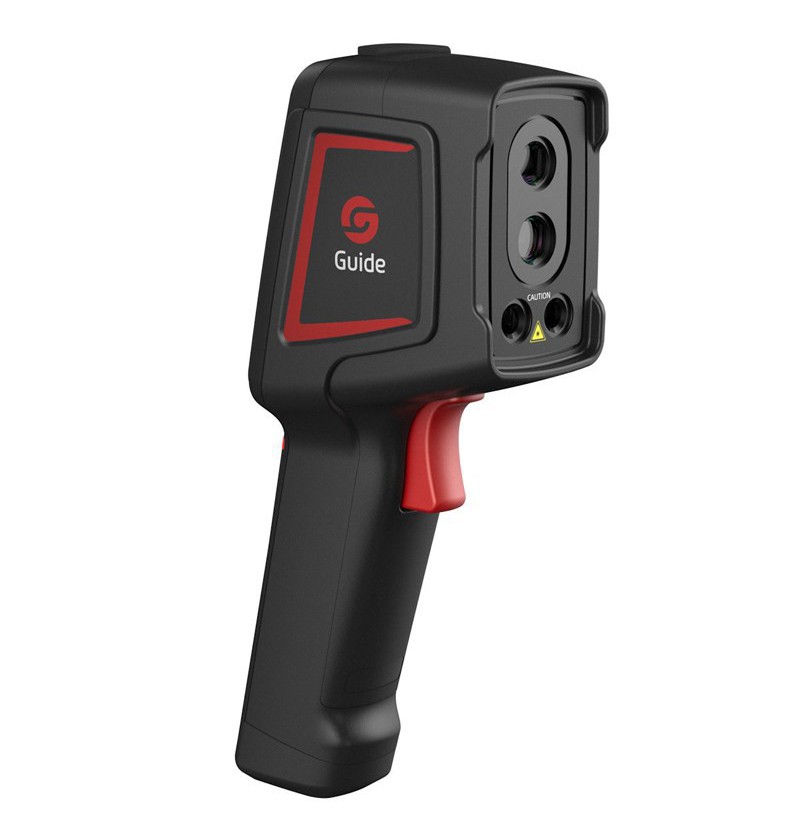

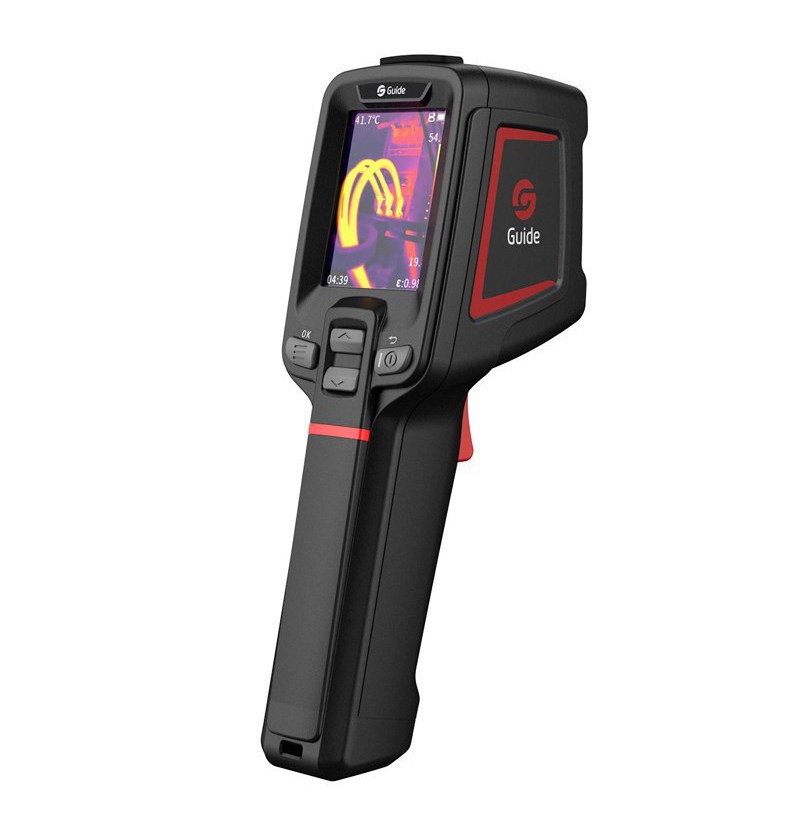

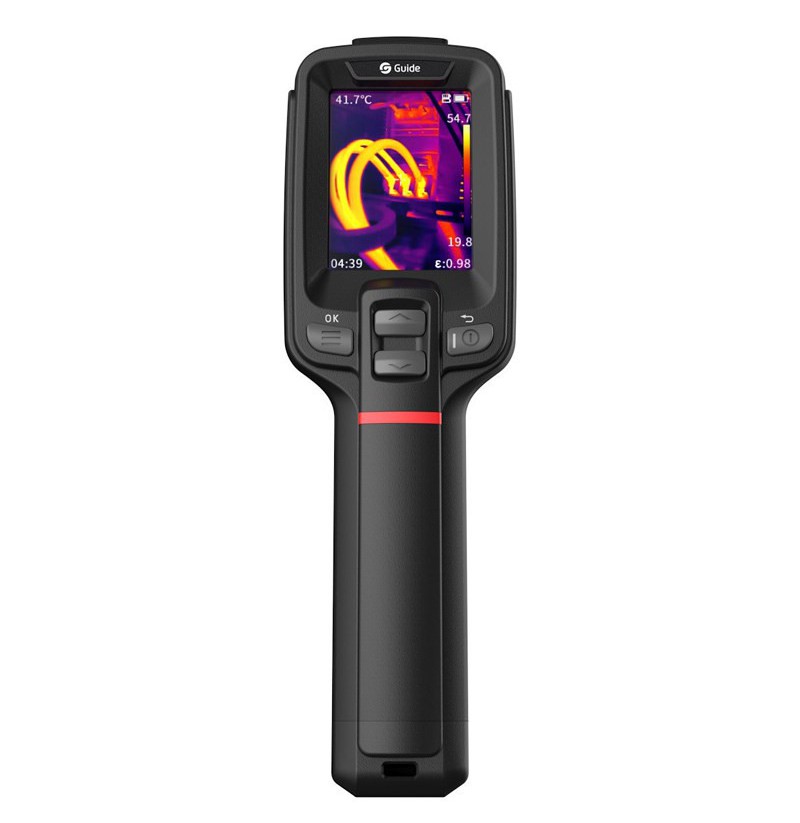

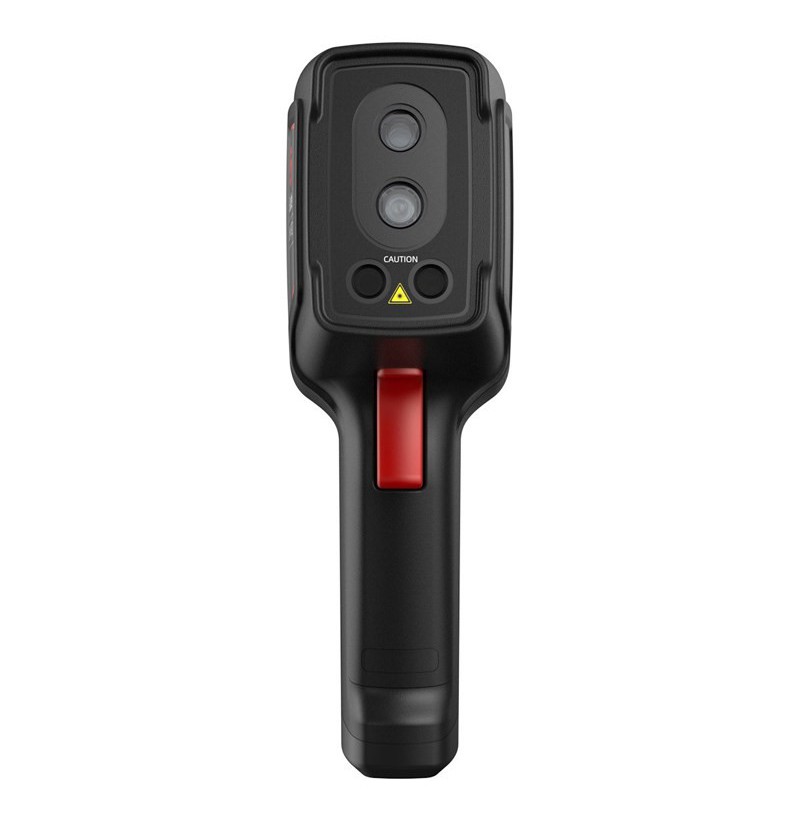

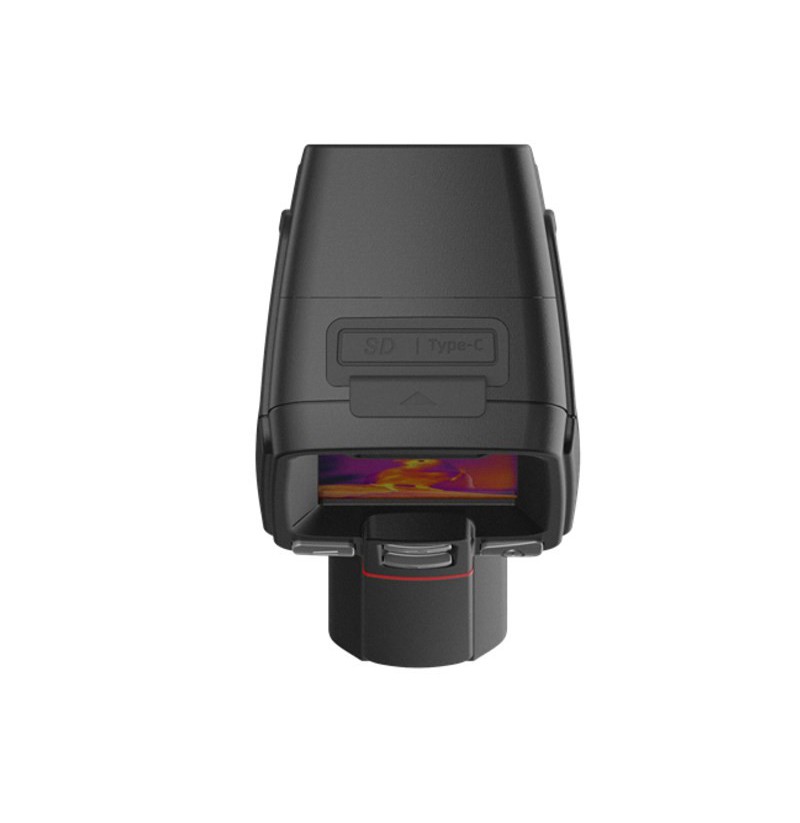

Guide Sensmart E1+ thermal imaging camera Vanadium Oxide Uncooled Focal Plane Arrays Black 120 x 90 pixels Built-in display LCD Padidinti

Guide Sensmart E1+ thermal imaging camera Vanadium Oxide Uncooled Focal Plane Arrays Black 120 x 90 pixels Built-in display LCD

354,42 €

6970883551798

Galimas pasirinkimas

 pristatymas 5...7 d.d.

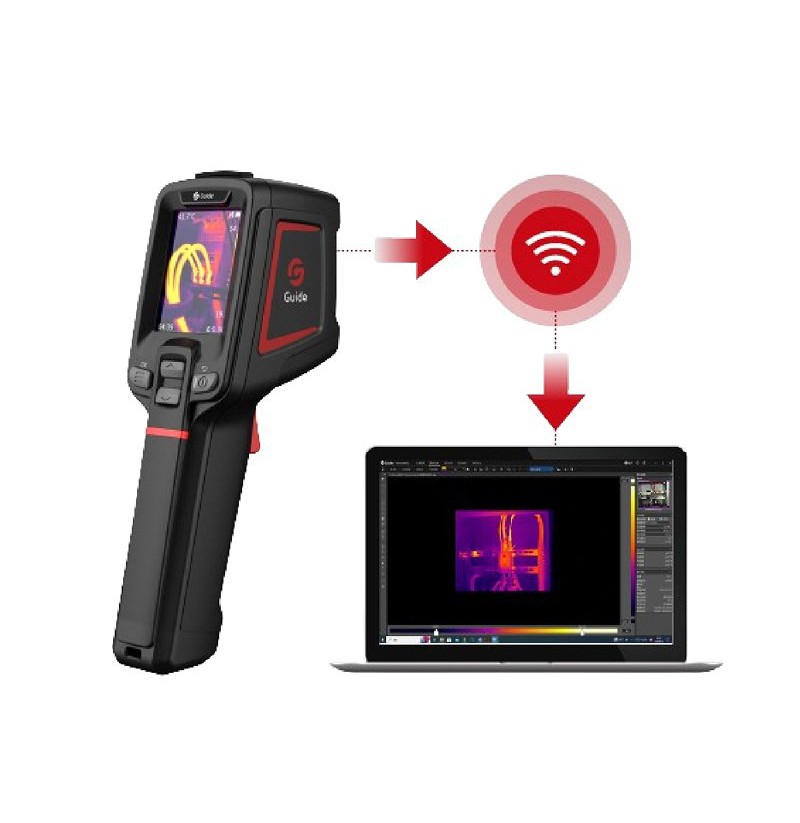

Wi-Fi: Yes
Maximum memory card size: 16 GB
Display diagonal: 6.1 cm (2.4")
Product colour: Black
Built-in display: Yes
International Protection (IP) code: IP54
Housing material: Metal
Display type: LCD
Drop proof: 200 cm
Weight: 350 g
Width: 194 mm
Depth: 62 mm
Height: 76 mm
Maximum resolution: 240 x 180 pixels
Thermal sensitivity (NETD): 60 mK
Internal storage capacity: 16 GB
Thermal frame rate: 25 Hz
Temperature measurement range: -20 - 550 °C
Accuracy: 2 °C
Infrared spectral band: 7.5 - 14 µm
Sensor type (thermal module): Vanadium Oxide Uncooled Focal Plane Arrays
Vertical field of view: 38°
Horizontal field of view: 50°
Built-in viewfinder: Yes
Built-in laser pointer: Yes
Image frequency: 25 Hz
Package type: Box
Cables included: USB Type-A to USB Type-C
Manual: Yes
Battery charger included: Yes
Wrist strap included: Yes
USB connector type: USB Type-C
USB port: Yes
Battery life (max): 8 h
Fixed focal length: 2.28 mm
Sensor resolution (thermal module): 120 x 90 pixels
