EX.8222

Product colour: Black
Redundant fans support: No

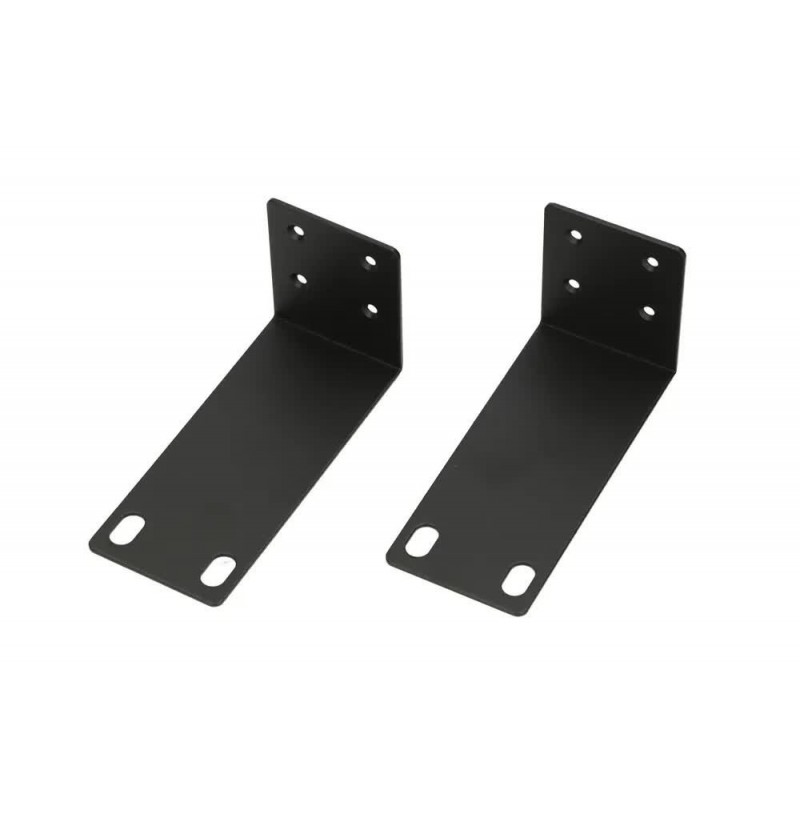

Rack mounting: Yes
Stackable: Yes
Reset button: Yes
Form factor: 1U
LED indicators: Power, PoE, Link, Activity, System
DIN rail mounting: No
Number of fans: 1 fan(s)
AC input frequency: 50 - 60 Hz
Power source: AC
Power supply included: Yes
Redundant power supply (RPS) support: No
AC input voltage: 100 - 240 V
MAC address entries: Static MAC address entries, Dynamic MAC address entries
DHCP features: DHCP snooping
SSH/SSL support: Yes
Loop protection: Yes
Access Control List (ACL): Yes
IGMP snooping: Yes
Web-based management: Yes
Configuring Location Settings (CLI): Yes
Switch layer: L2/L4
Quality of Service (QoS) support: Yes
Switch type: Managed
Height: 44 mm
Depth: 180 mm
Width: 285 mm
Networking standards: IEEE 802.3x, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at, IEEE 802.3ad, IEEE 802.3, IEEE 802.3ab, IEEE 802.1s, IEEE 802.3i, IEEE 802.1w, IEEE 802.1D, IEEE 802.3z
VLAN support: Yes
Auto-negotiation: Yes
Full duplex: Yes
Number of VLANs: 4096
10G support: No
Auto-sensing: Yes
Spanning tree protocol: Yes
IP routing: Yes
Package type: Box
Package width: 290 mm
Package height: 49 mm
Package depth: 185 mm
Cables included: DC
User guide: Yes
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Console port: RJ-45
Gigabit Ethernet (copper) ports quantity: 8
SFP module slots quantity: 2
MAC address table: 8000 entries
Switching capacity: 20 Gbit/s
Forwarding rate: 14.88 Mpps
Store-and-forward: Yes
Jumbo frames support: Yes
Power over Ethernet (PoE) type supported: Active PoE
Power over Ethernet (PoE) ports quantity: 8
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) budget: 150 W
Power over Ethernet (PoE) power per port: 30 W
Power over Ethernet plus (PoE+) ports quantity: 8
Power over Ethernet (PoE) voltage: 48 V
Multicast support: Yes
Warnings: Ensure the unit is adequately ventilated during operation., The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations., Do not open the case or try to repair it yourself.
