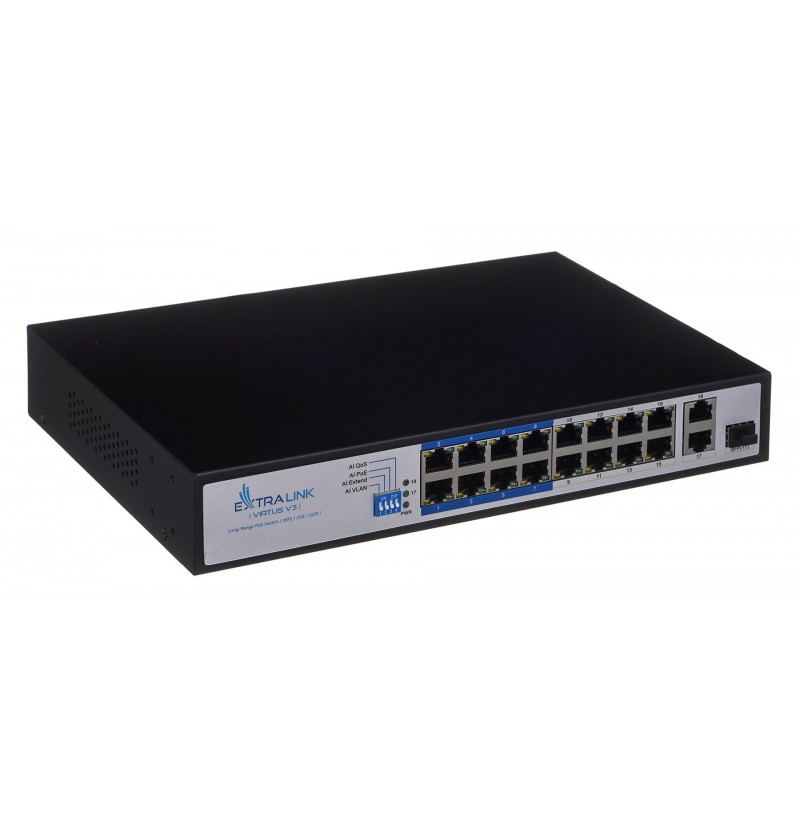

EX.16101

Form factor: 1U
Reset button: Yes
Product colour: Black
Stackable: No

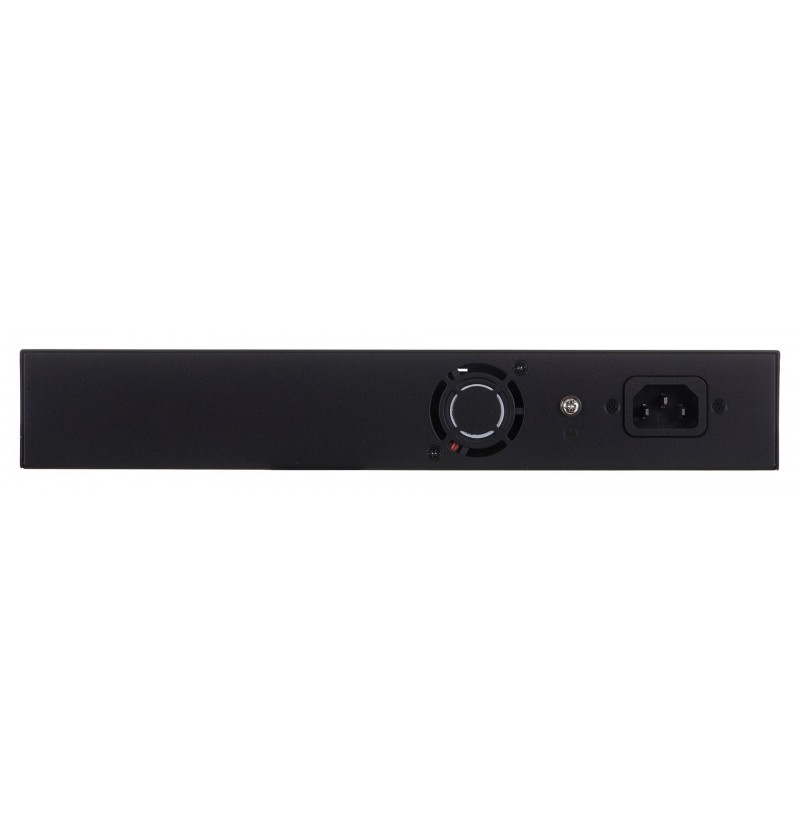

Number of fans: 1 fan(s)
LED indicators: PoE, Power, Link

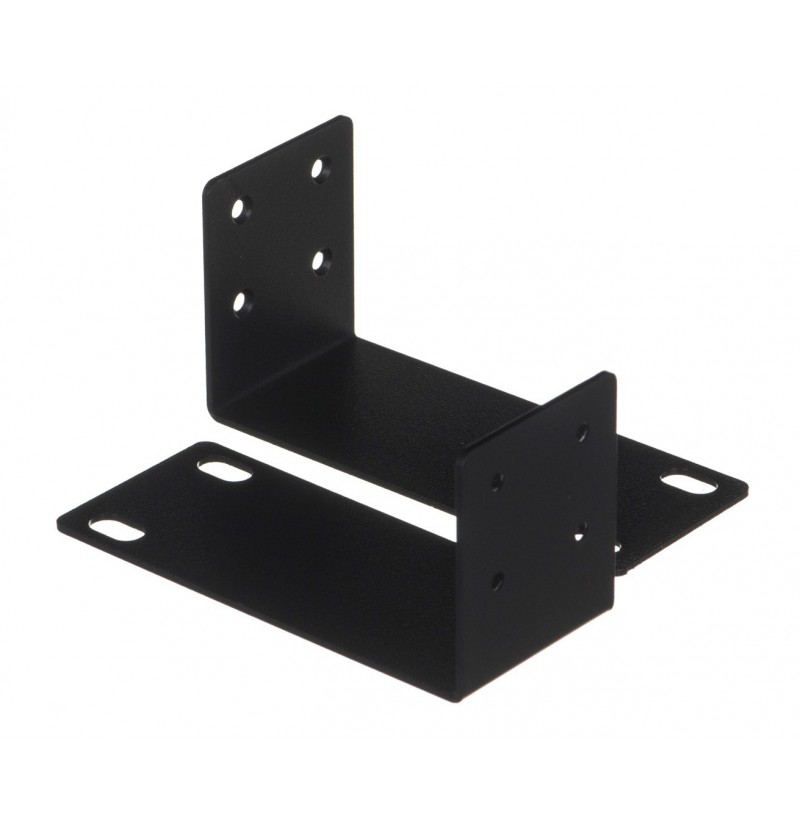

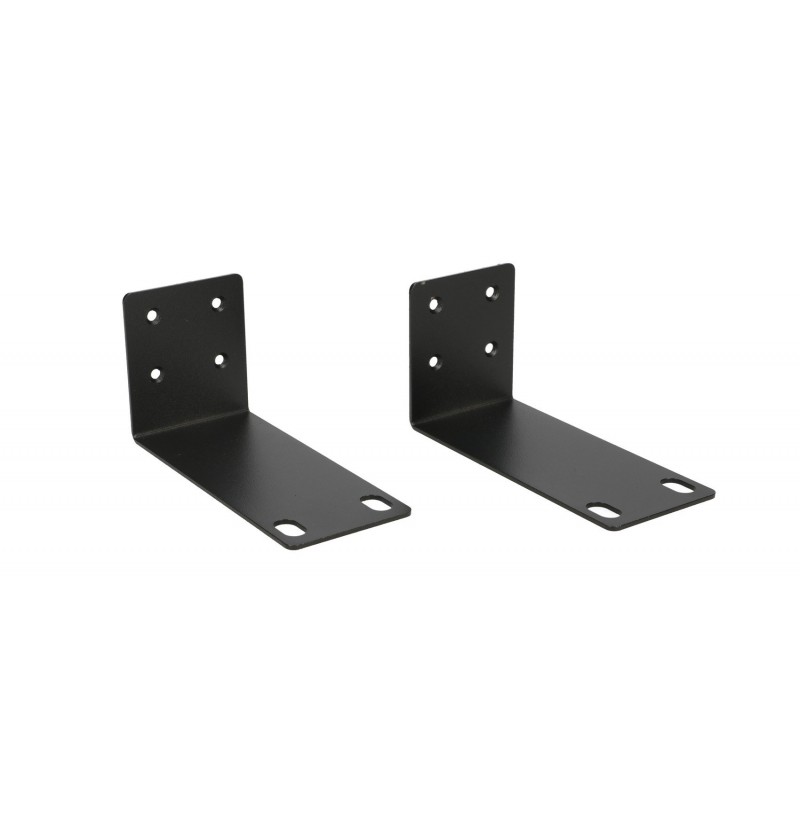

Rack mounting: Yes
Power source: AC
AC input voltage: 100 - 240 V
Power supply included: Yes
AC input frequency: 50 - 60 Hz
System event log: No
Web-based management: No
Quality of Service (QoS) support: No
Switch layer: L2
Switch type: Unmanaged
Cloud-managed: No
Configuring Location Settings (CLI): No
User operation log: No
Traffic classification: No
Traffic shaping: No
Depth: 180 mm
Height: 44 mm
Width: 285 mm
Networking standards: IEEE 802.3i, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3x, IEEE 802.3af, IEEE 802.3u
10G support: No
Ethernet LAN data rates: 10,100 Mbit/s
Copper ethernet cabling technology: 100BASE-TX
Auto-negotiation: Yes
Auto-sensing: Yes

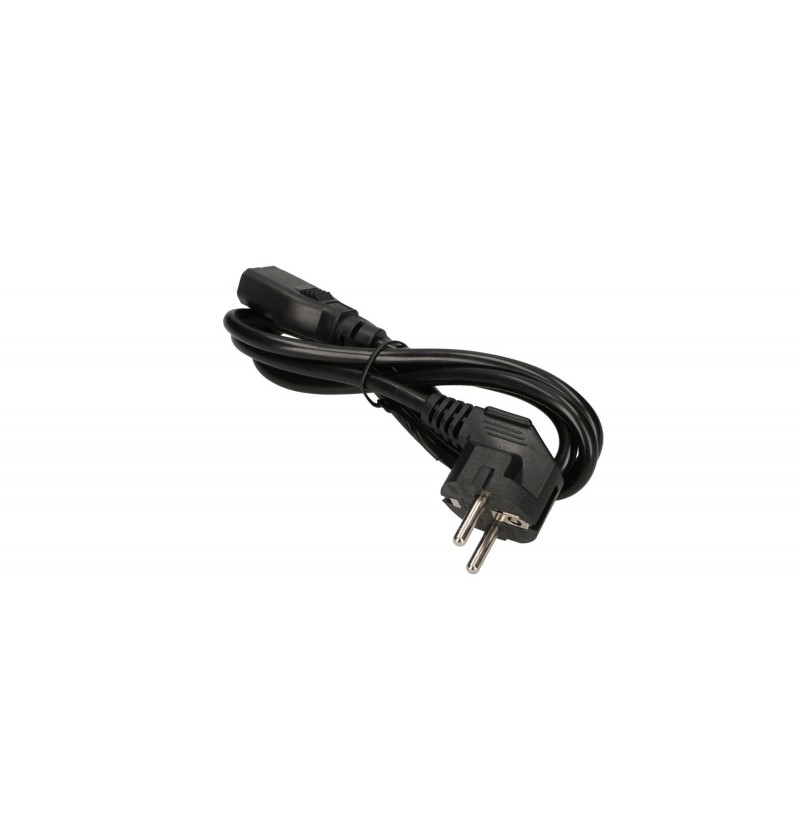

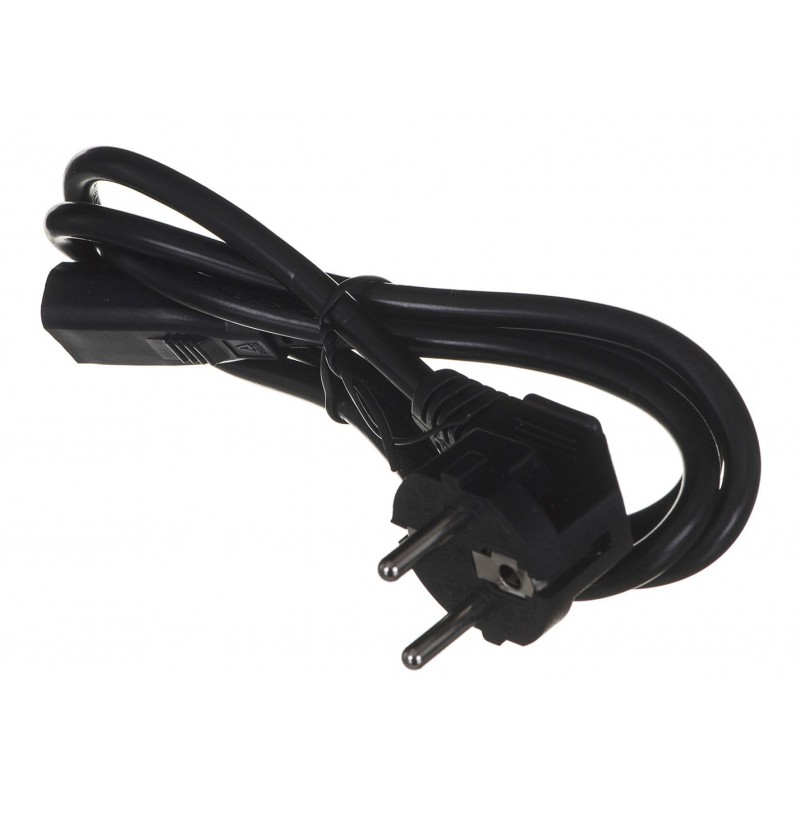

Cables included: AC
Combo SFP ports quantity: 1
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity: 16
Gigabit Ethernet (copper) ports quantity: 2
Fast Ethernet (copper) ports quantity: 16
Store-and-forward: Yes
Switching capacity: 5.2 Gbit/s
MAC address table: 16000 entries
Forwarding rate: 3.868 Mpps
Power over Ethernet (PoE) power per port: 30 W
Power over Ethernet (PoE) voltage: 48 V
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) budget: 150 W
Power over Ethernet (PoE) ports quantity: 16
Power over Ethernet (PoE) type supported: Active PoE
Power over Ethernet (PoE) pass through: No
