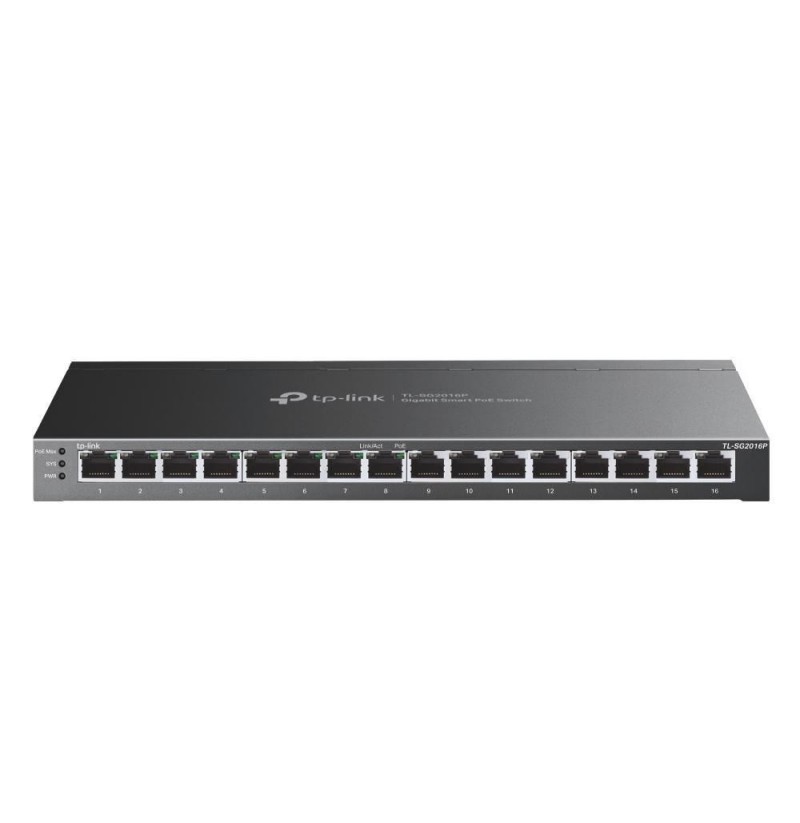

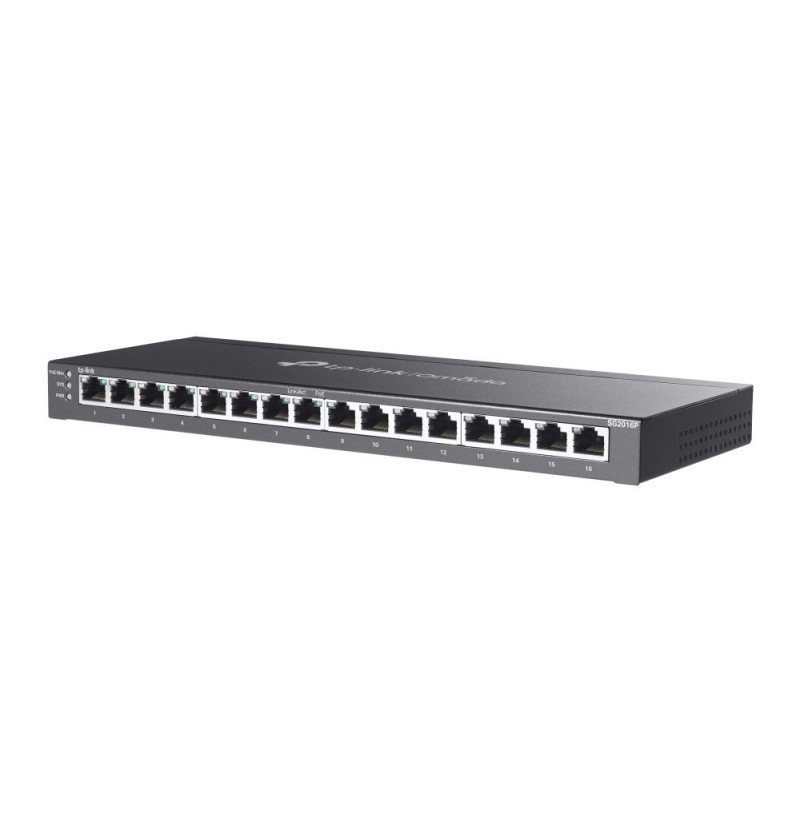

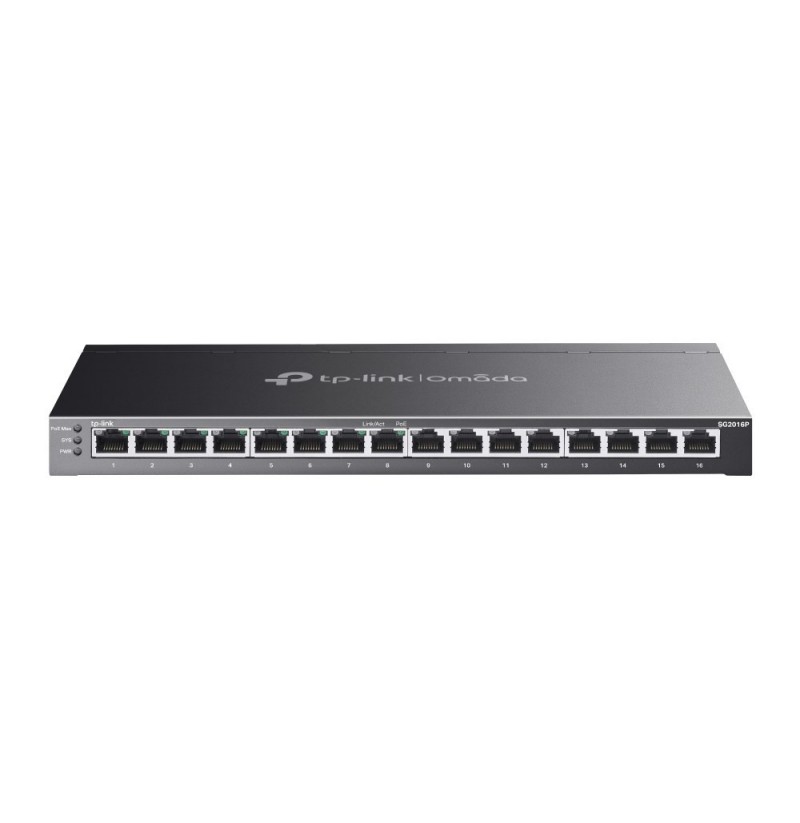

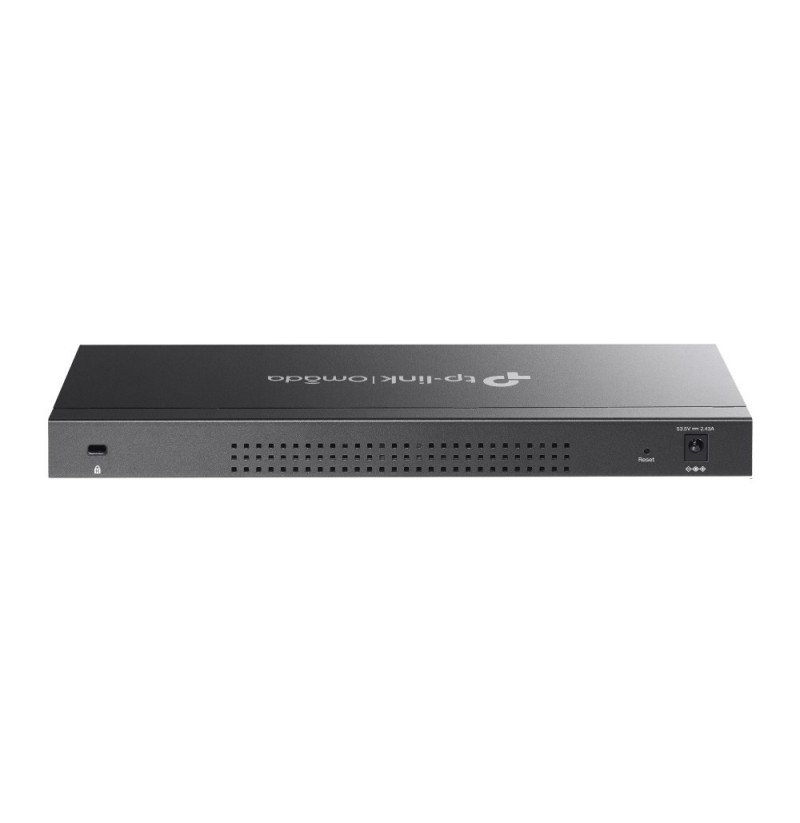

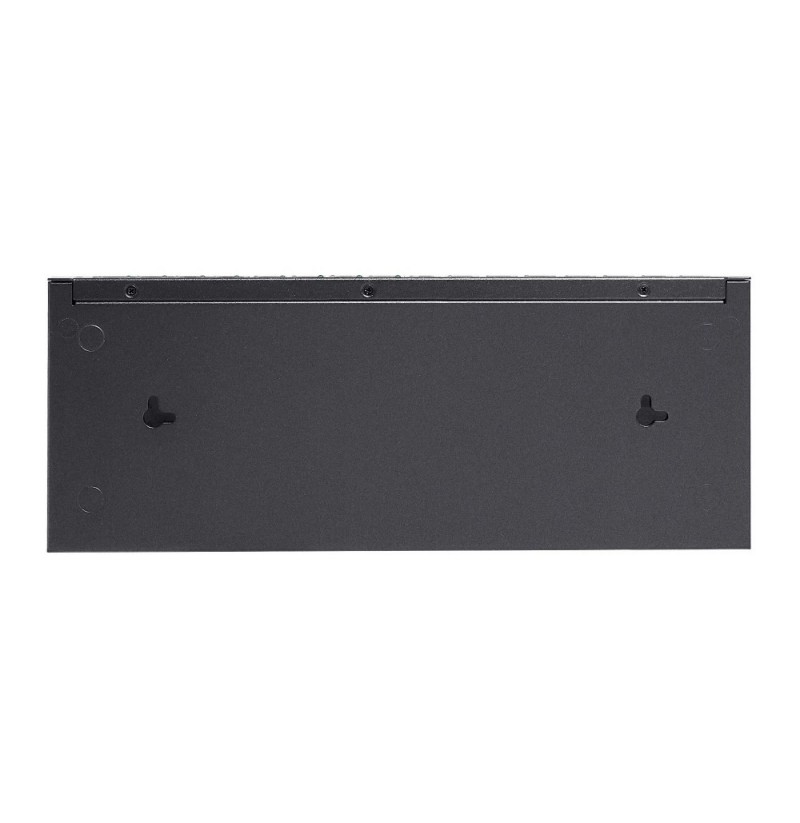

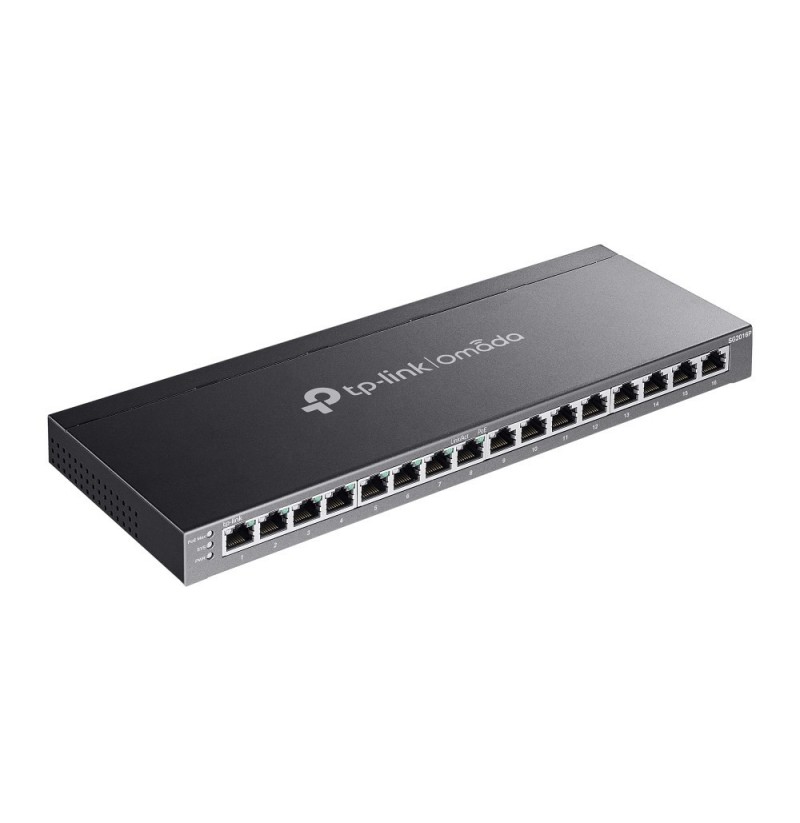

TP-Link TL-SG2016P network switch L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Rack mounting: Yes
Product colour: Black
LED indicators: PoE, System, Power
DC input voltage: 53.5 V
Power source: DC/PoE
Power consumption (max): 146.5 W
SSH/SSL support: Yes
Authentication: Guest VLAN, MAC-based authentication, Port-based authentication
MAC address entries: Static MAC address entries, Dynamic MAC address entries
IP-MAC-Port binding: Yes
BPDU filtering/protection: Yes
Queue scheduling algorithms: SP, Weighted Round Robin (WRR)
IGMP snooping: Yes
DHCP features: DHCP snooping, DHCPv6 client, DHCPv6 snooping, DHCP relay
Access Control List (ACL): Yes
Security algorithms: SSH, SNMP, SNMPv2, SNMPv3, SSL/TLS, EAP-MD5, HTTPS
MAC address filtering: Yes
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 499.98 BTU/h
ARP inspection: Yes
System event log: Yes
Configuring Location Settings (CLI): Yes
Cloud-managed: Yes
Quality of Service (QoS) support: Yes
Switch layer: L2/L2+
MIB support: RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757
Switch type: Managed
Web-based management: Yes
Height: 25.4 mm
Width: 286 mm
Depth: 111.7 mm
Link aggregation: Yes
Spanning tree protocol: Yes
Rate limiting: Yes
Virtual LAN features: Voice VLAN, Multicast VLAN, Tagged VLAN
Auto-negotiation: Yes
Flow control support: Yes
10G support: No
Auto MDI/MDI-X: Yes
Number of VLANs: 4000
Broadcast storm control: Yes
Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
VLAN support: Yes
Port mirroring: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3ad, IEEE 802.1s, IEEE 802.1x, IEEE 802.3af, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.1D, IEEE 802.11w
Fanless: Yes
Firmware upgradeable: Yes
Manual: Yes
Cables included: AC
GARP VLAN Registration Protocol (GVRP): Yes
IPv4 & IPv6 features: Dual stack IPv4/IPv6
Supported network protocols: ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2
Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power connector: DC-in jack
Jumbo frames: 9000
Number of queues: 8
Jumbo frames support: Yes
MAC address table: 8000 entries
Packet buffer memory: 4.1 MB
Forwarding rate: 23.81 Mpps
Switching capacity: 32 Gbit/s
Total Power over Ethernet (PoE) budget: 120 W
Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 8
Multicast Listener Discovery (MLD) snooping: MLD v1, MLD v2
Multicast support: Yes
Warnings: Ensure the unit is adequately ventilated during operation., The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations., Do not open the case or try to repair it yourself.
