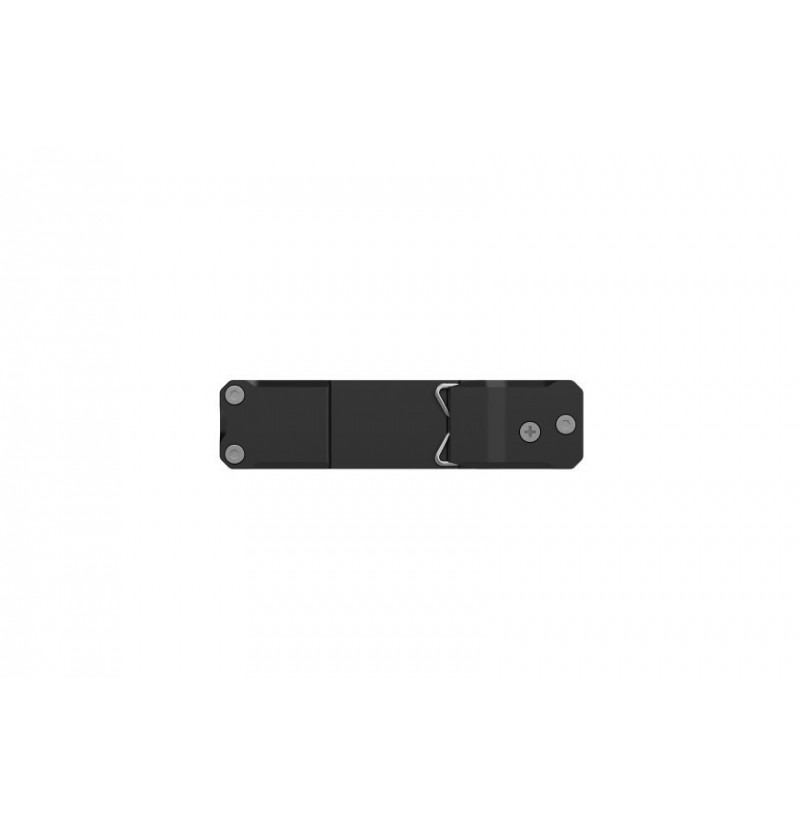

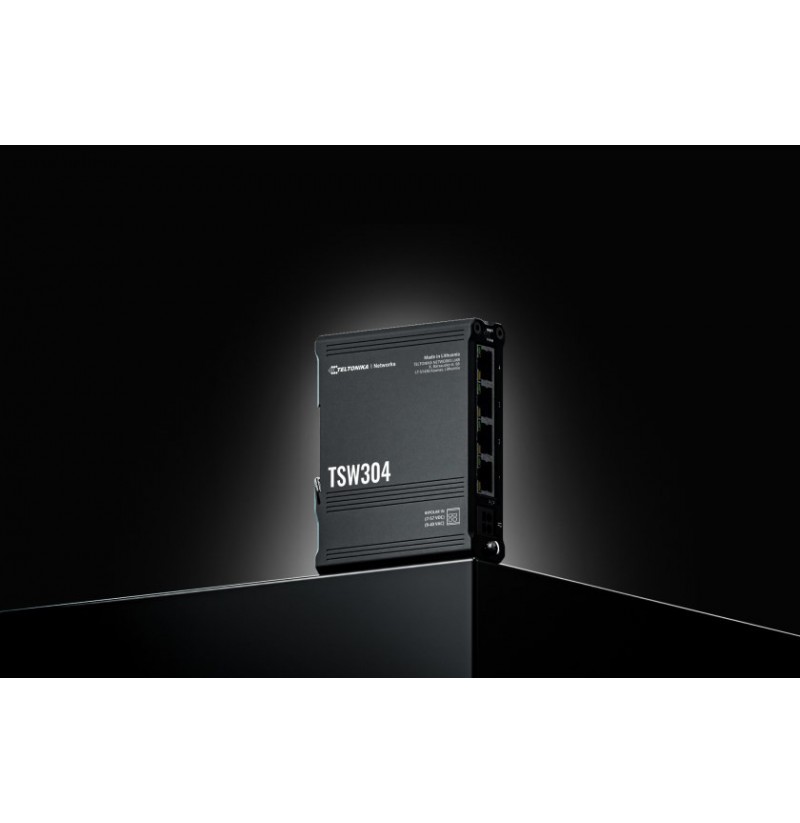

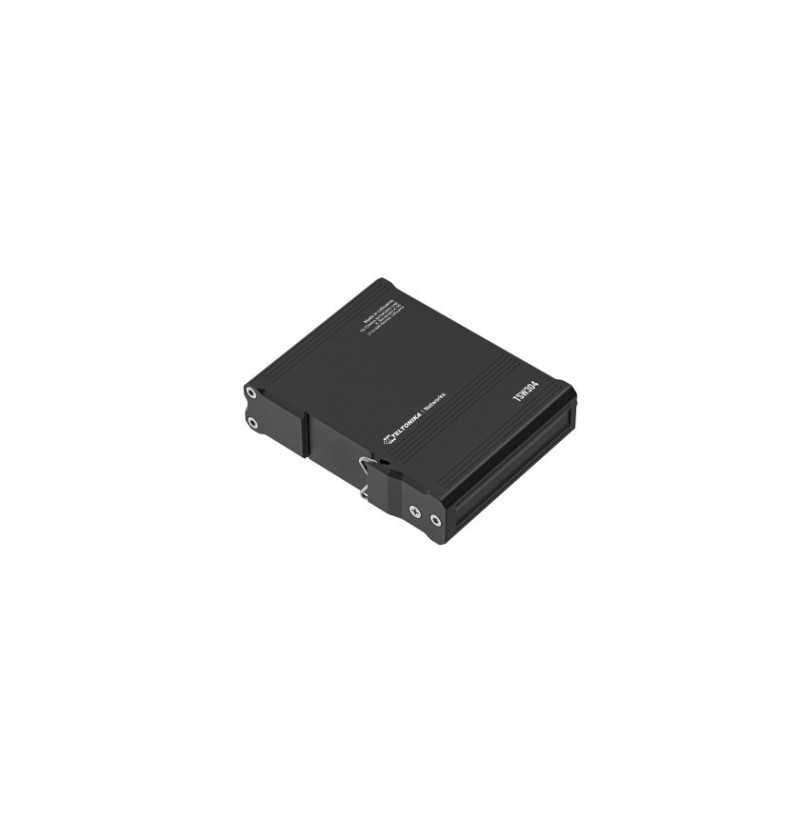

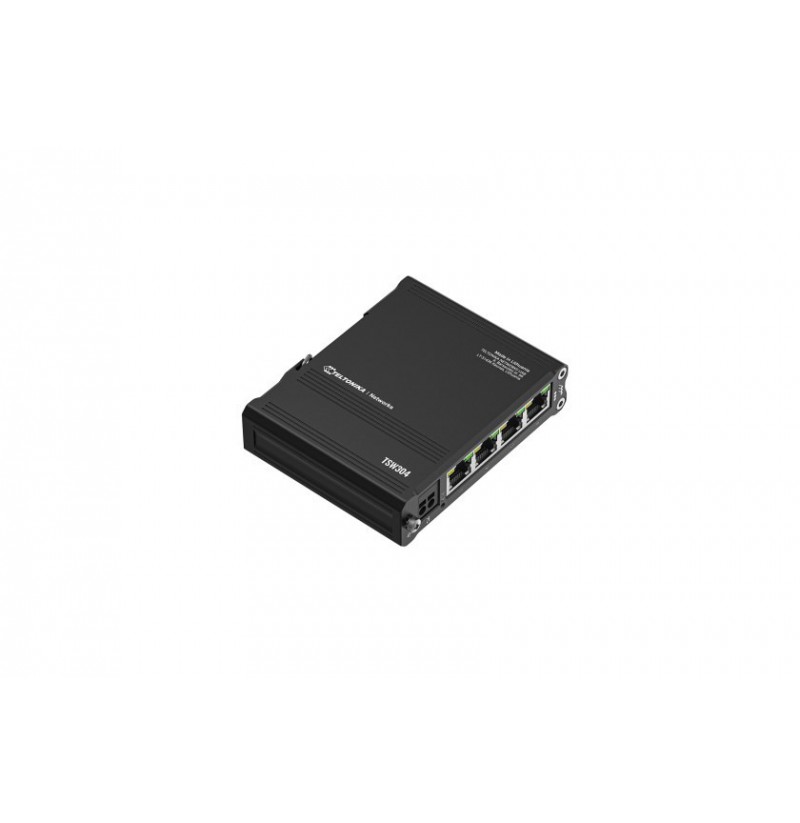

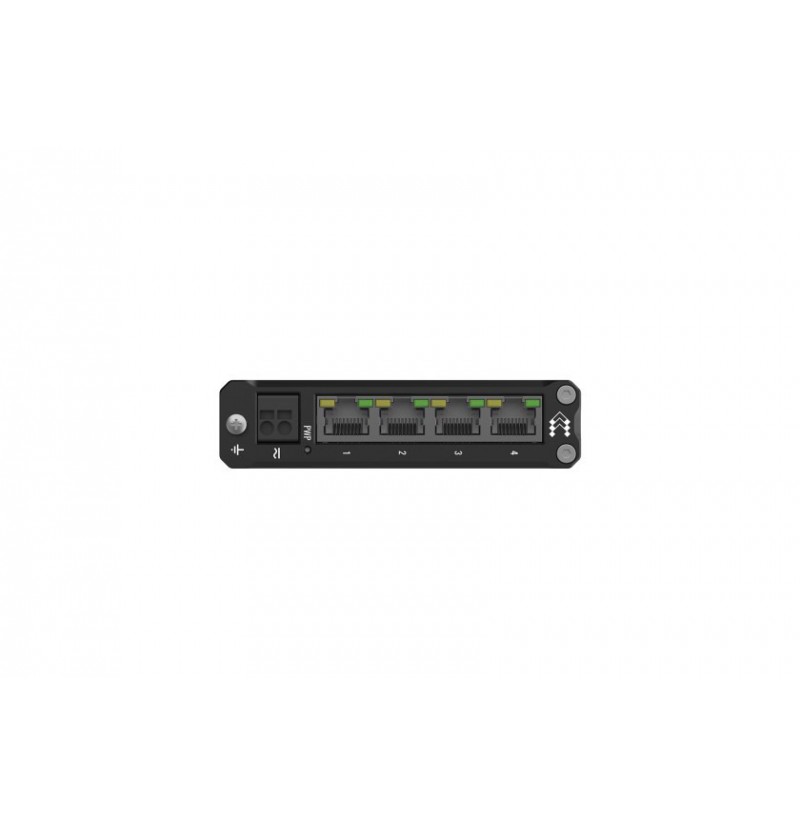

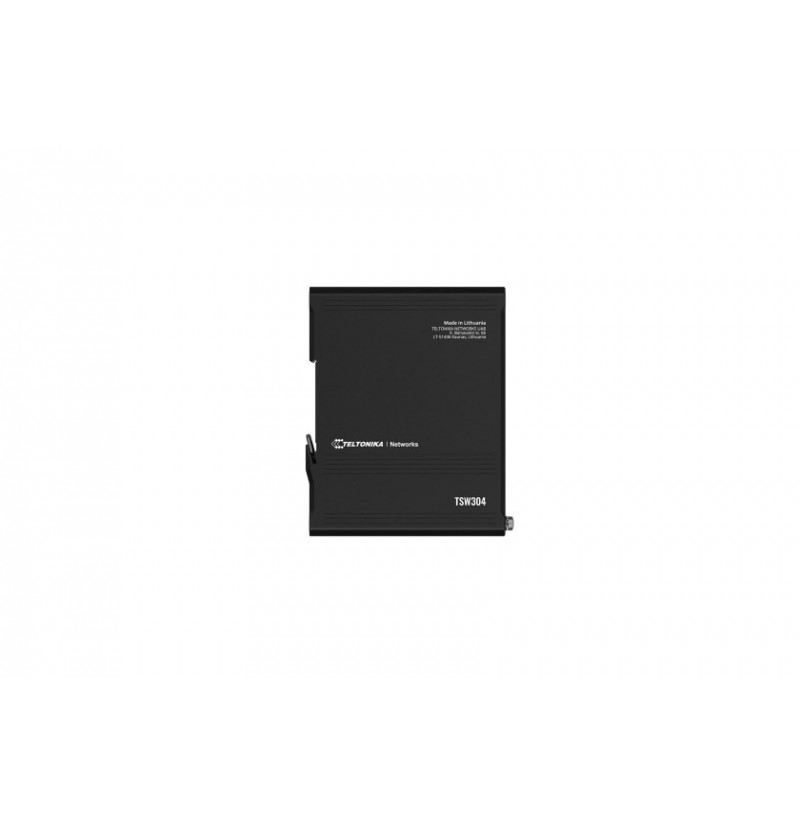

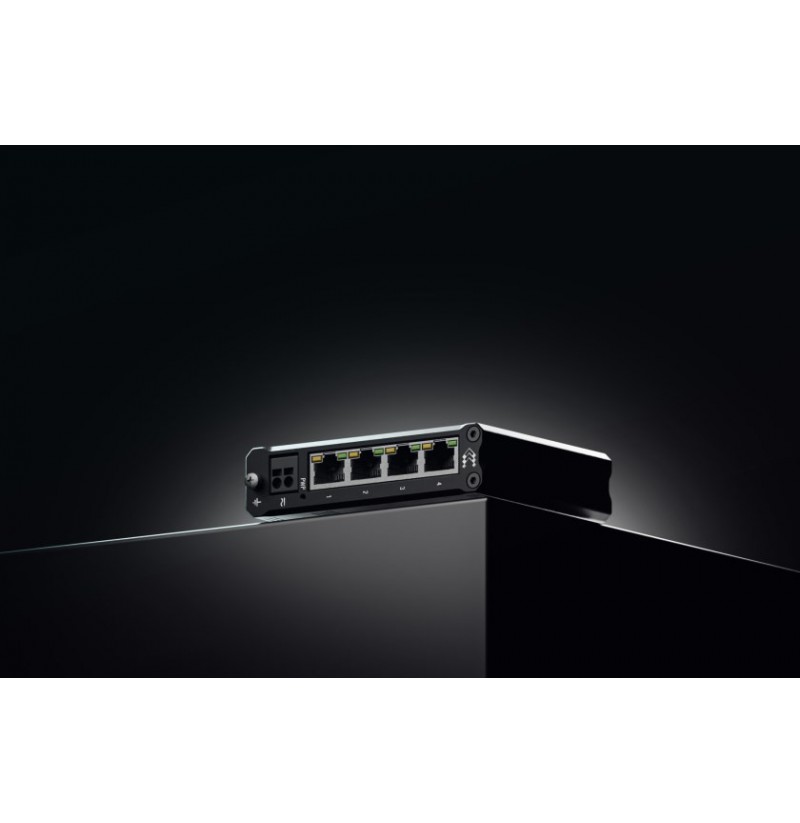

Teltonika DIN Rail Switch | TSW304 | Unmanaged | Wall-mountable

Certification: CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM
Product colour: Black
LED indicators: Power, Status
DIN rail mounting: Yes
Housing material: Aluminium
International Protection (IP) code: IP30
Wall mountable: Yes
DC input voltage: 7 - 57 V
Power consumption (typical): 0.26 W
Power source: AC/DC
Input voltage: 9 - 40 V
Power consumption (max): 1.44 W
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): -40 - 75 °C
Height: 25 mm
Width: 102 mm
Weight: 210 g
Depth: 81.5 mm
Networking standards: IEEE 802.3az, IEEE 802.3, IEEE 802.3u
Auto MDI/MDI-X: Yes
10G support: No
Ethernet LAN data rates: 10,100,1000 Mbit/s
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 4
Jumbo frames support: Yes
Packet buffer memory: 0.128 MB
Jumbo frames: 9216
Switching capacity: 8 Gbit/s
MAC address table: 2000 entries
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) type supported: Passive PoE
