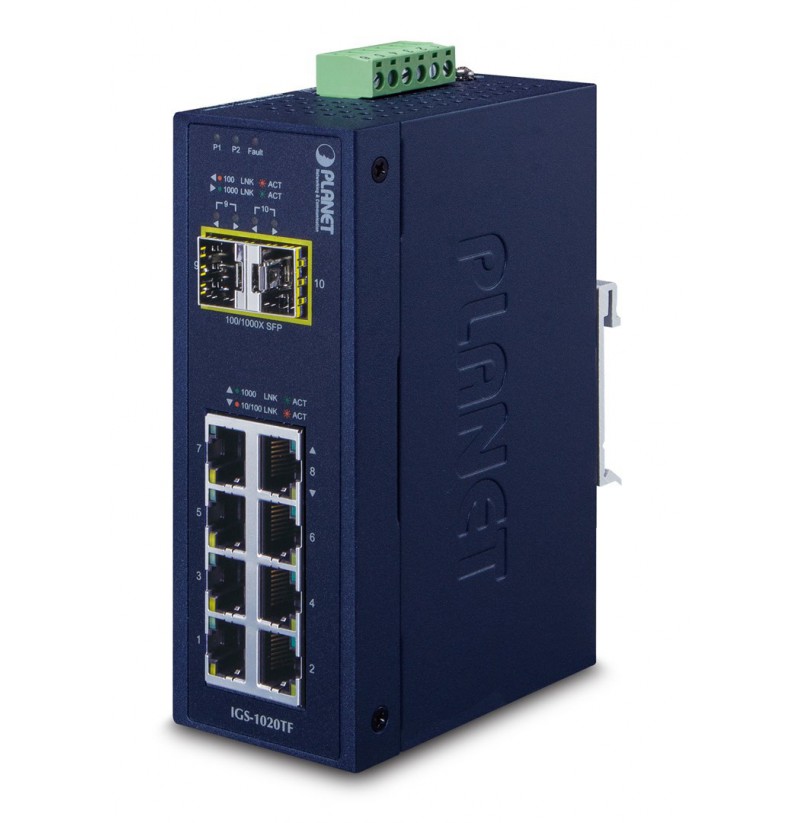

Planet IGS-1020TF network switch Unmanaged Gigabit Ethernet (10/100/1000) Black

DIN rail mounting: Yes
Housing material: Metal
Stackable: No
Rack mounting: No
Wall mountable: Yes
International Protection (IP) code: IP30
LED indicators: Power, Link, Activity
Product colour: Blue
DC input voltage: 24 V
Input voltage: 12 - 48 V
Power protection features: Reverse polarity
Redundant power supply (RPS) support: Yes
Power consumption (typical): 8.7 W
Storage temperature (T-T): -40 - 75 °C
Operating temperature (T-T): -40 - 75 °C
Storage relative humidity (H-H): 5 - 95%
Heat dissipation: 29.69 BTU/h
Operating relative humidity (H-H): 5 - 95%
Switch type: Unmanaged
Height: 135 mm
Depth: 87 mm
Width: 56 mm
Weight: 540 g
Networking standards: IEEE 802.3x, IEEE 802.3u, IEEE 802.3az, IEEE 802.3, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p
Copper ethernet cabling technology: 10BASE-T, 1000BASE-T, 100BASE-TX
Full duplex: Yes
10G support: No
Cable types supported: Cat6, Cat5, Cat5e
Auto MDI/MDI-X: Yes
Flow control support: Yes
Auto-negotiation: Yes
Basic switching RJ-45 Ethernet ports quantity: 8
Fiber optic connector: SFP
SFP module slots quantity: 2
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Terminal block port: Yes
Harmonized System (HS) code: 85176990
Jumbo frames: 9216
Jumbo frames support: Yes
Throughput: 14.88 Mpps
Switching capacity: 20 Gbit/s
Store-and-forward: Yes
MAC address table: 4000 entries
Power over Ethernet (PoE): No
Fiber ethernet cabling technology: 100BASE-FX
Transmission distance (max): 60 km
