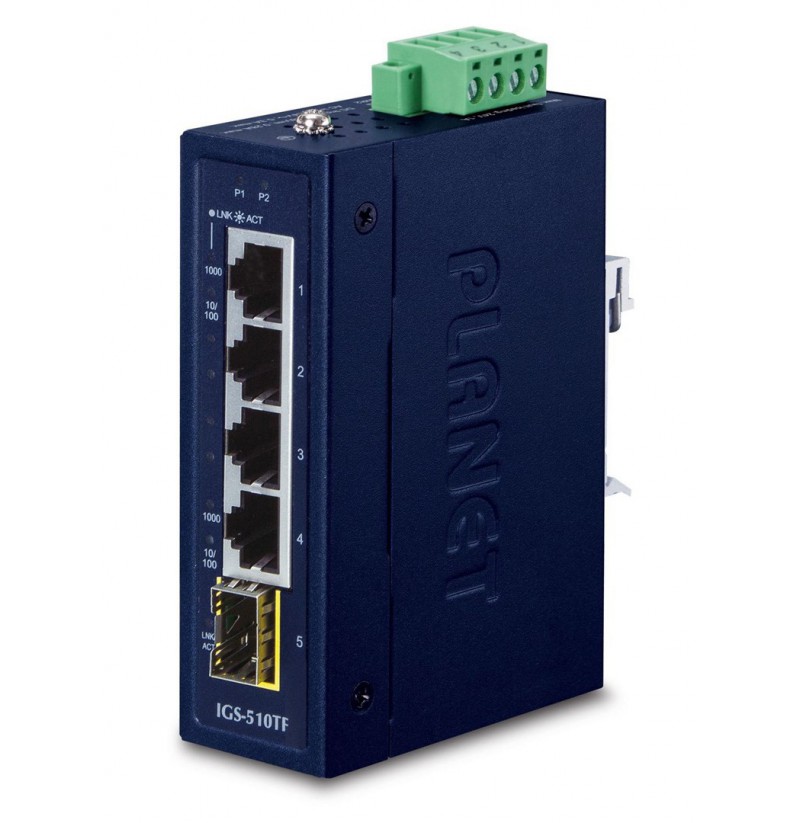

PLANET Industrial 4-Port GE Switch + Port 100/1000X SFP

International Protection (IP) code: IP30
Wall mountable: Yes
LED indicators: Power
DIN rail mounting: Yes
Product colour: Blue
Housing material: Metal
Power consumption (max): 2.8 W
Input current: 24 A
Input voltage: 9 - 48 V
DC input voltage: 9 - 48 V
Heat dissipation: 9.5 BTU/h
Operating relative humidity (H-H): 5 - 90%
Storage temperature (T-T): -40 - 75 °C
Storage relative humidity (H-H): 5 - 90%
Operating temperature (T-T): -40 - 75 °C
Switch type: Unmanaged
Weight: 252 g
Height: 104 mm
Width: 30 mm
Depth: 70 mm
Auto MDI/MDI-X: Yes
Cable types supported: Cat3, Cat5, Cat5e, Cat4, Cat6
Ethernet LAN data rates: 10,100,1000 Mbit/s
Auto-negotiation: Yes
Half duplex: Yes
Full duplex: Yes
Flow control support: Yes
Networking standards: IEEE 802.3, IEEE 802.1p, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az, IEEE 802.3ad
10G support: No
Maximum data transfer rate: 1000 Mbit/s
Fiber ports quantity: 1
Basic switching RJ-45 Ethernet ports quantity: 4
Fiber optic connector: SFP
SFP module slots quantity: 1
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Connectivity technology: Wired
Ethernet interface type: Gigabit Ethernet
Ethernet LAN (RJ-45) ports: 4
Harmonized System (HS) code: 85176990
Switching capacity: 10 Gbit/s
Jumbo frames: 9000
Jumbo frames support: Yes
Throughput: 7.4 Mpps
Store-and-forward: Yes
MAC address table: 4000 entries
Power over Ethernet (PoE): No
