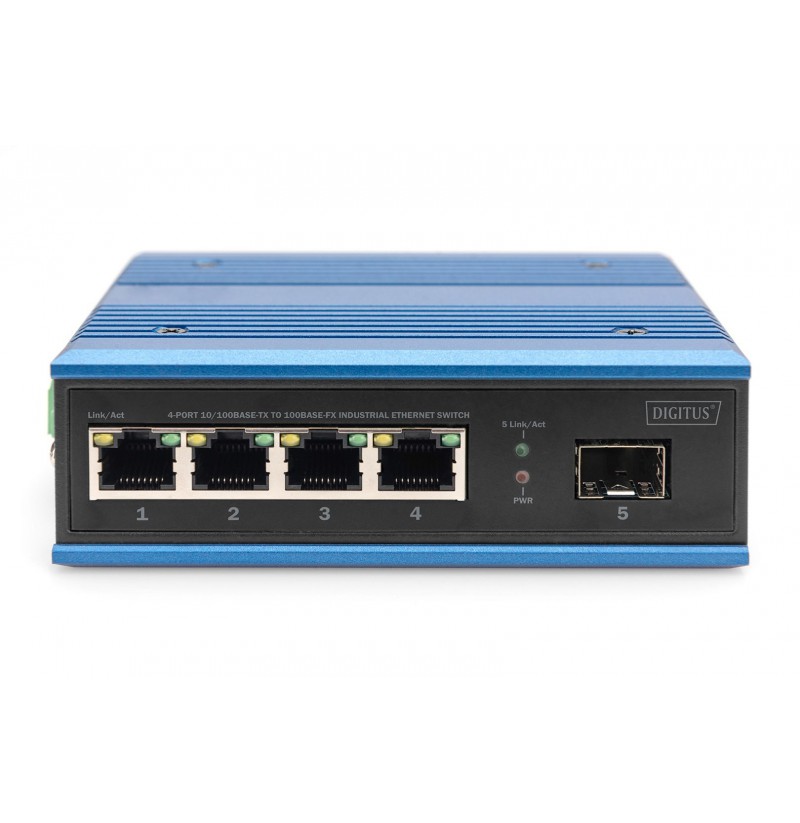

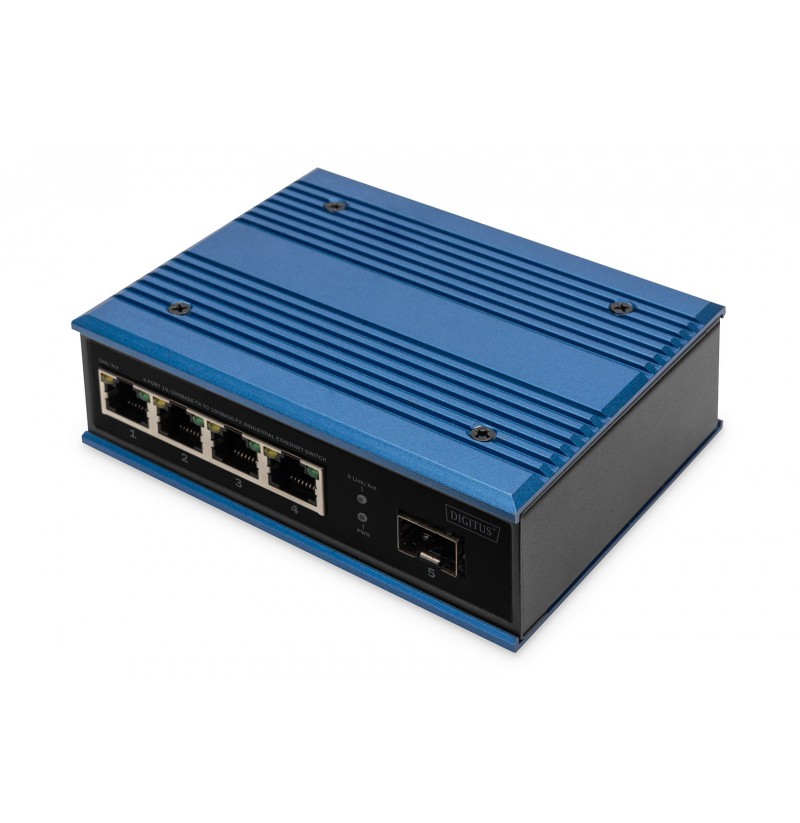

Industrial switch 4x100Base-TX, 1xuplink FX

International Protection (IP) code: IP40
Product colour: Blue, Black
LED indicators: Yes
Housing material: Aluminium
Suitable for outdoor use: No
Stackable: No
Rack mounting: No
Vandal-proof: No

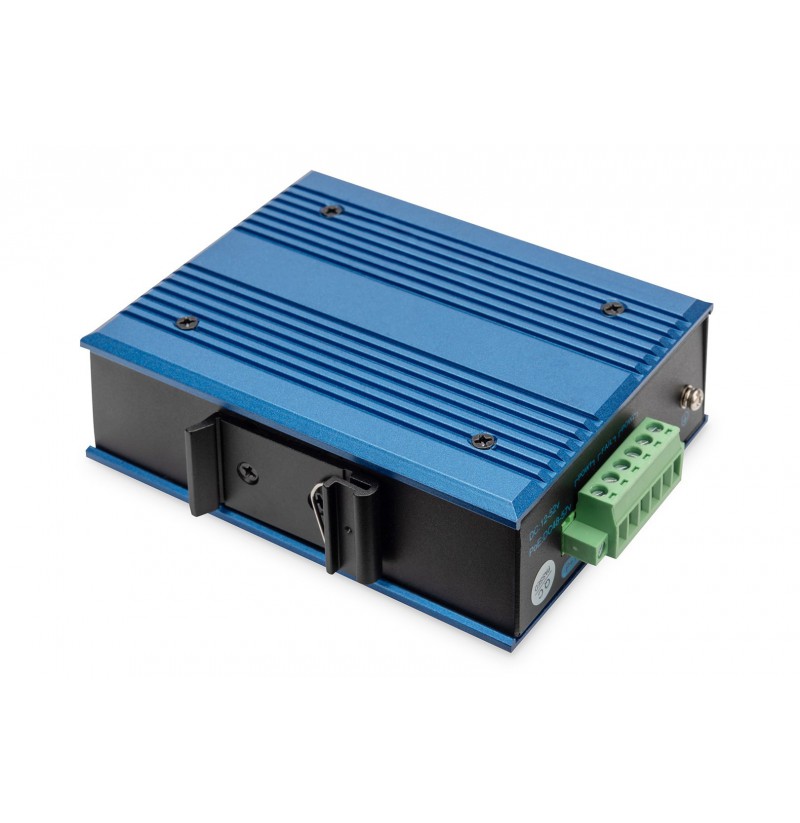

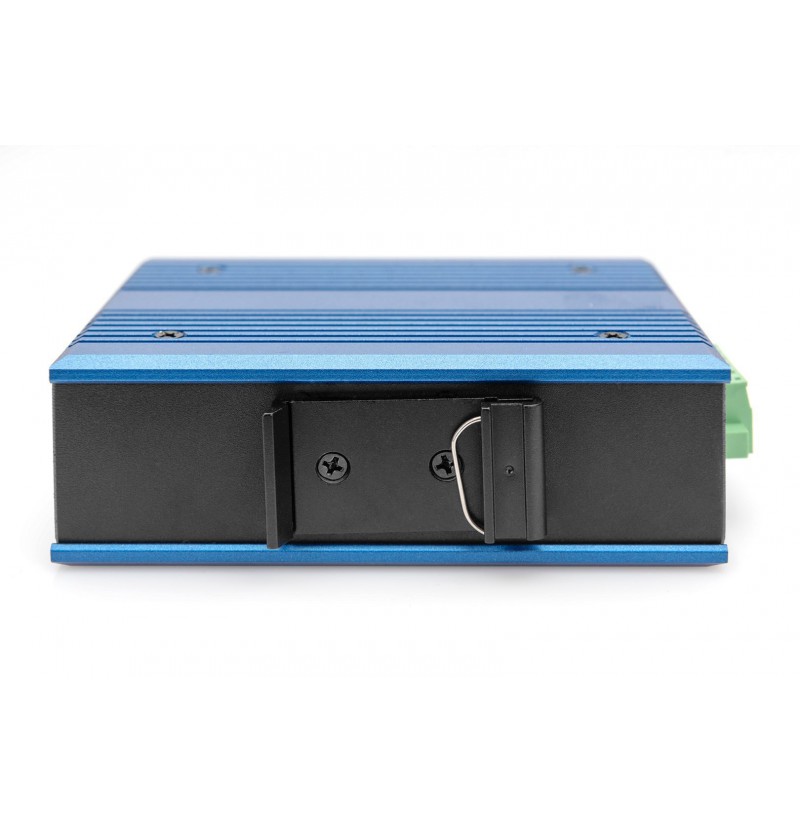

DIN rail mounting: Yes
Power source: DC
Power consumption (typical): 3 W
DC input voltage: 12 - 52 V
Storage temperature (T-T): -40 - 80 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%
Operating temperature (T-T): -40 - 80 °C
Switch type: Unmanaged
Height: 34 mm
Depth: 86 mm
Weight: 450 g
Width: 128 mm
Copper ethernet cabling technology: 100BASE-TX, 10BASE-T, 100BASE-FX
VLAN support: No
Full duplex: Yes
10G support: No
Auto MDI/MDI-X: Yes
Networking standards: IEEE 802.3, IEEE 802.3u
Flow control support: Yes
Ethernet LAN data rates: 10,100 Mbit/s
Half duplex: Yes
Package height: 165 mm
Package depth: 54 mm
Package weight: 541.667 g
Package width: 135 mm
Package volume: 1202.85 cm³
Manual: Yes

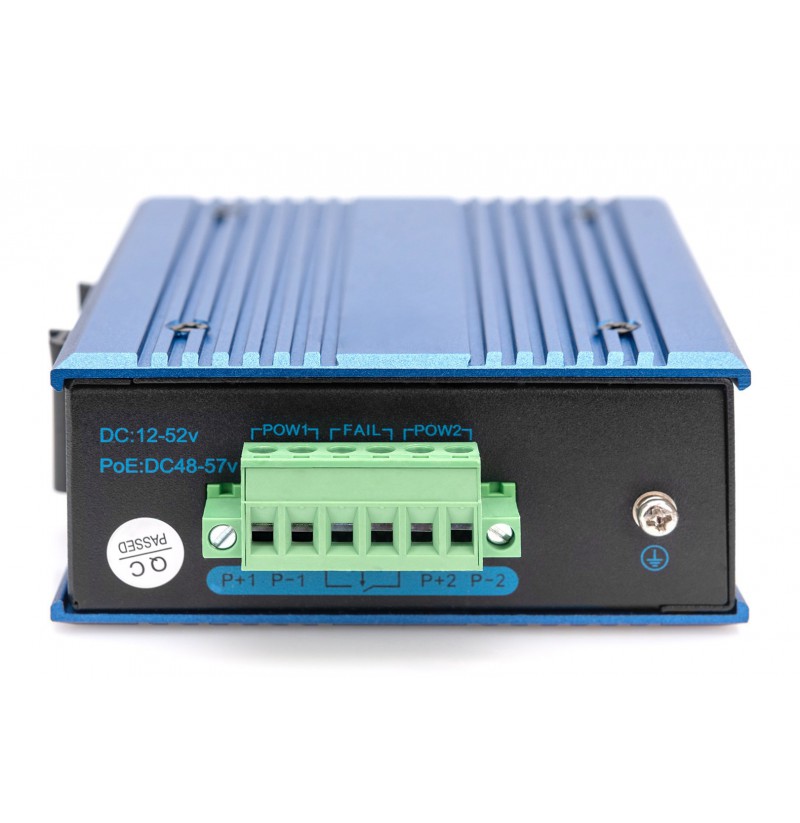

Power connector: Terminal block (6-pin)
Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
SFP module slots quantity: 1
Uplink ports quantity: 1
Fast Ethernet (copper) ports quantity: 4
Ethernet interface type: Fast Ethernet
Bandwidth: 1.6 Gbit/s
Country of origin: China
UK Trade Tariff code: 85176200
Switching capacity: 0.1 Gbit/s
Packet buffer memory: 1 MB
MAC address table: 2000 entries
Forwarding rate: 1.2 Mpps
Power over Ethernet (PoE): No
