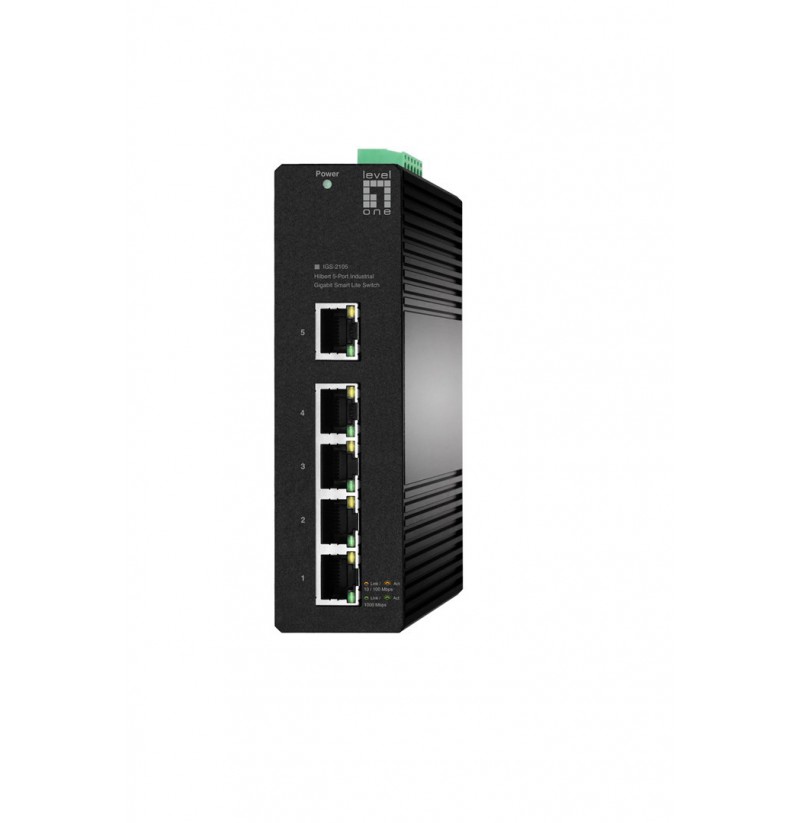

LevelOne Hilbert 5-Port Industrial Gigabit Smart Lite Switch

Pallet gross width: 120 cm
Pallet gross length: 80 cm
Layers per pallet (air): 16 pc(s)
Product colour: Black
LED indicators: Power, Activity, Link
International Protection (IP) code: IP30

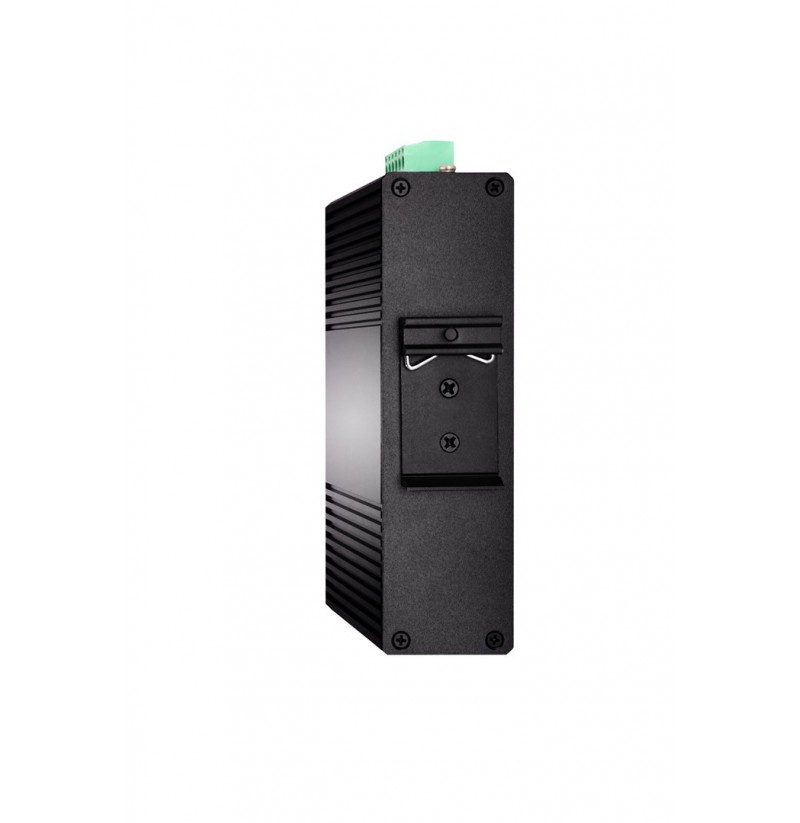

DIN rail mounting: Yes
Redundant power supply (RPS) support: Yes
Power consumption (typical): 5 W
Power source: DC
Surge protection voltage: 4 kV
Power protection features: Surge protection

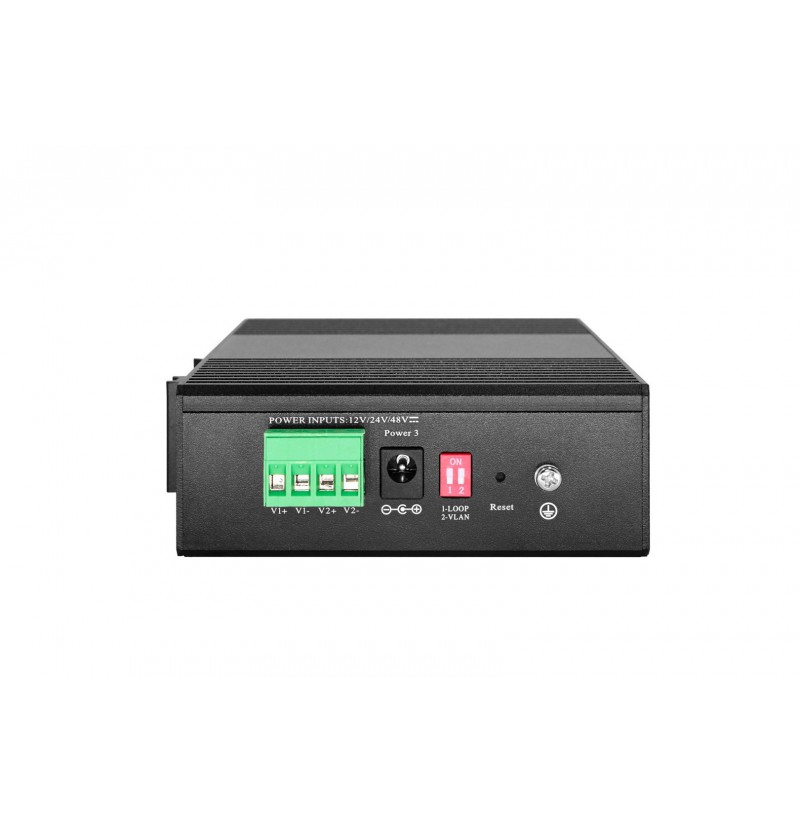

DC input voltage: 12 - 57 V
Power supply included: No
Surge protection: Yes
Queue scheduling algorithms: Priority queuing (PQ)
IGMP snooping: Yes
Operating temperature (T-T): -40 - 75 °C
Storage relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -40 - 85 °C
Heat dissipation: 17.06 BTU/h
Operating relative humidity (H-H): 10 - 90%
Quality of Service (QoS) support: Yes
Web-based management: Yes
Switch type: Managed
Switch layer: L2
Depth: 108 mm
Height: 38.5 mm
Width: 136 mm
Weight: 430 g
Networking standards: IEEE 802.3az, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1D, IEEE 802.3u, IEEE 802.3, IEEE 802.3ab, IEEE 802.1w
Flow control support: Yes
Auto MDI/MDI-X: Yes
Number of VLANs: 32
Rate limiting: Yes
Virtual LAN features: Tagged VLAN
10G support: No
VLAN support: Yes
Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
MAC address auto-learning supported: Yes
Full duplex: Yes
MAC address auto-aging supported: Yes
Auto-negotiation: Yes
Link aggregation: Yes
Port mirroring: Yes
Spanning tree protocol: Yes
Broadcast storm control: Yes
Half duplex: Yes
Flash memory: 2 MB
Mean time between failures (MTBF): 43800 h
Noise level: 0 dB
Fanless: Yes
Package width: 191 mm
Package depth: 135 mm
Terminal block included: Yes
Package weight: 680 g
Package type: Box
Package height: 60 mm
DIN rail included: Yes
Quick start guide: Yes
Compliance certificates: Federal Communications Commission (FCC), UKCA, RoHS, CE
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 5
Uplink ports quantity: 1
Gigabit Ethernet (copper) ports quantity: 5
Master (outer) case length: 395 mm
Master (outer) case gross weight: 24 kg
Country of origin: China
Products per master (outer) case: 34 pc(s)
Master (outer) case width: 480 mm
Harmonized System (HS) code: 8517620090
Pallet gross height: 154.4 cm
Master (outer) case height: 350 mm
Packet buffer memory: 1.5 MB
Forwarding rate: 7.44 Mpps
Switching capacity: 10 Gbit/s
MAC address table: 2000 entries
Jumbo frames: 9000
Jumbo frames support: Yes
Power over Ethernet (PoE): No
Multicast support: Yes
Sustainability compliance: Yes
