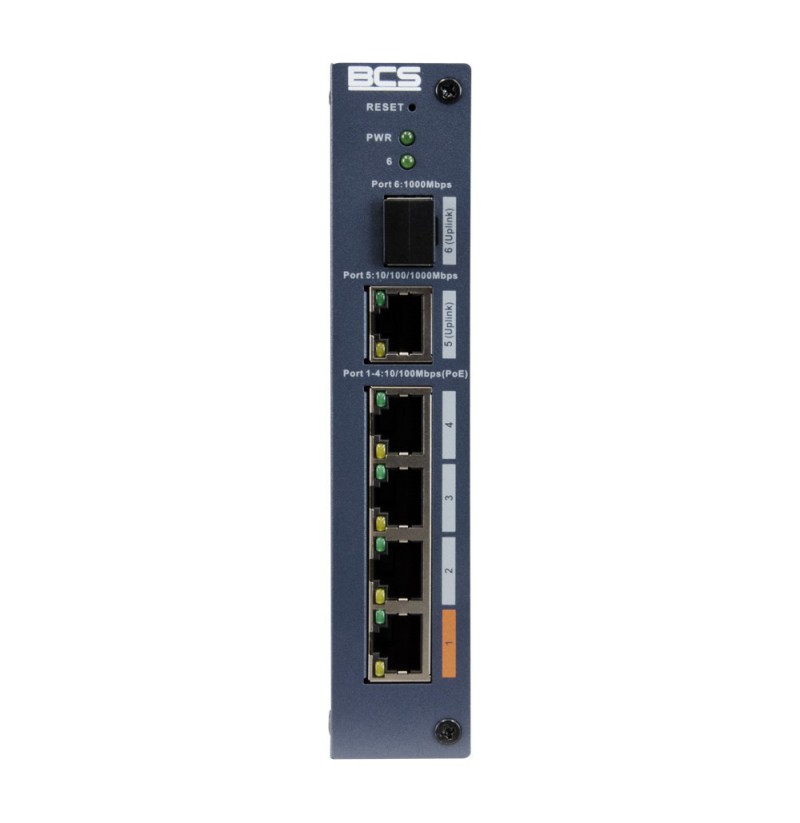

BCS-L-SP0401G-1SFP-M

Rack mounting: No
Market segment: Industrial
Electromagnetic compatibility: Air discharge: 8 kV Contact discharge: 6 kV Common mode: 4 kV Differential mode: 2 kV
DIN rail mounting: Yes
Power source: DC
Input voltage: 48 - 57 V
DC input voltage: 48 - 57 V
Power supply included: Yes
Power consumption (max): 60 W
MAC address filtering: Yes
Loop protection: Yes
DHCP features: DHCP client
Operating temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 0 - 95%
Web-based management: Yes
Switch type: Managed
Cloud-managed: Yes
System event log: Yes
Width: 154.3 mm
Depth: 110.4 mm
Height: 30 mm
Weight: 320 g
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cable types supported: Cat5e, Cat6
Networking standards: IEEE 802.3x, IEEE 802.3at, IEEE 802.3af, IEEE 802.3z, IEEE 802.3, IEEE 802.3ab, IEEE 802.3bt, IEEE 802.3u
Virtual LAN features: Port-based VLAN
VLAN support: Yes
Flow control support: Yes
Full duplex: Yes
Auto-negotiation: Yes
Port mirroring: Yes
Half duplex: Yes
Broadcast storm control: Yes
Mean time between failures (MTBF): 1852444 h
Supported network protocols: IEEE802.3 / 802.3u / 802.3x / 802.3ab / 802.3z / 802.3af / 802.3at
Switching protocols: IEEE 802.3x Flow Control, LLDP
Fiber ports quantity: 1
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity: 4
Basic switching RJ-45 Ethernet ports quantity: 4
Fiber optic connector: SFP
SFP module slots quantity: 1
Gigabit Ethernet (copper) ports quantity: 1
Connectivity technology: Wired
Switching capacity: 4.8 Gbit/s
Throughput: 4.8 Gbit/s, 3.57 Mpps
MAC address table: 8000 entries
Forwarding rate: 3.57 Mpps
Power over Ethernet (PoE) power per port: 60 W
Power over Ethernet (PoE) type supported: PoE+, PoE++ (4PPoE)
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 4
Total Power over Ethernet (PoE) budget: 60 W
Power over Ethernet 4PPoE (PoE++) ports quantity: 1
Multicast support: Yes
Multicast features: Multicast traffic suppression
Switching optical modules type: Gigabit Ethernet
