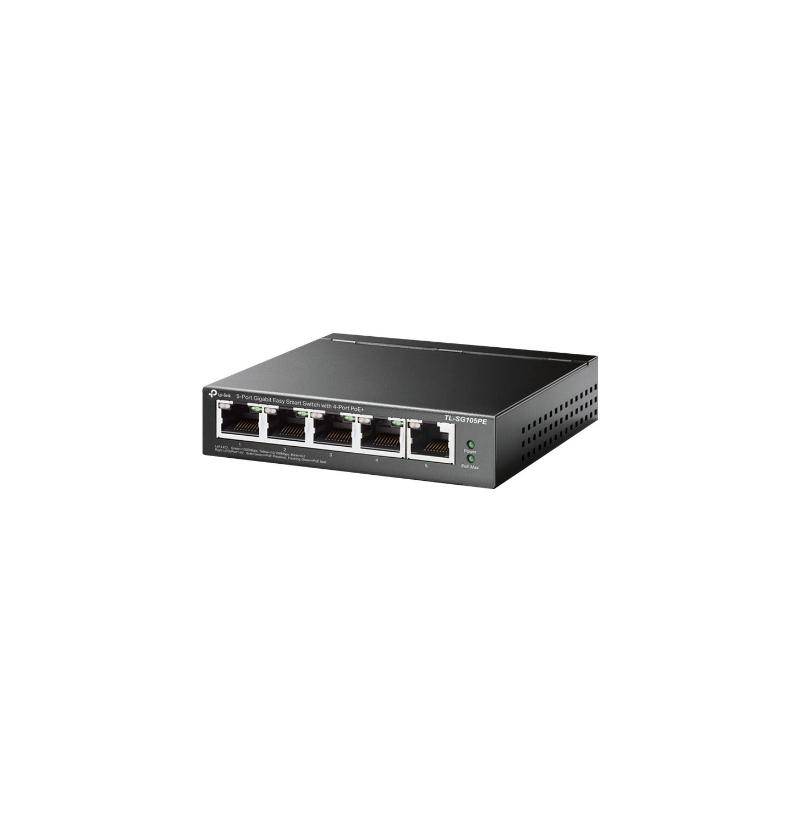

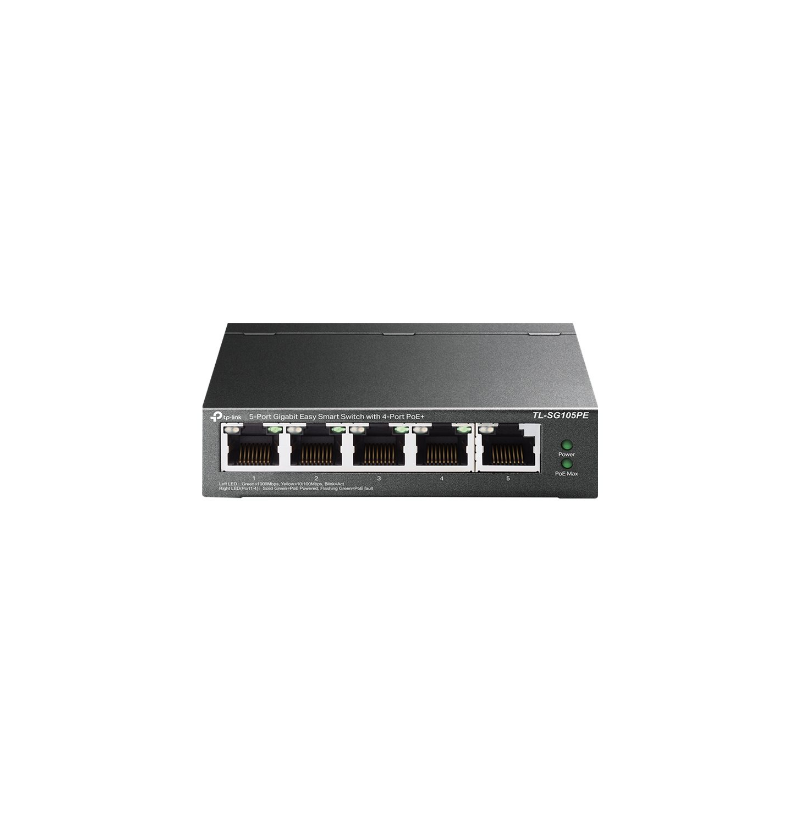

TP-LINK | Switch | TL-SG105PE | Unmanaged | Desktop | PoE+ ports quantity 4 | Power supply type External Padidinti

TP-LINK TL-SG105PE network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black Power over Ethernet (PoE)

45,73 €

TL-SG105PE

6935364052744

Galimas pasirinkimas

 pristatymas 5...7 d.d.


LED indicators: PoE, Power, Link, Status, Activity, Speed
Rack mounting: No
Product colour: Black
Input voltage: 53.5 V
Power consumption (max): 75.16 W
Power supply included: Yes
Input current: 1.31 A
Power source: DC
Loop protection: Yes
IGMP snooping: Yes
Storage relative humidity (H-H): 5 - 95%
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Heat dissipation: 256.3 BTU/h
Switch layer: L2
Web-based management: Yes
Quality of Service (QoS) support: Yes
Switch type: Managed
Width: 99.8 mm
Height: 25 mm
Depth: 98 mm
VLAN support: Yes
Cable types supported: Cat4, Cat3, Cat6, Cat5, Cat5e
Networking standards: IEEE 802.3at, IEEE 802.3af, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3i, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3x
Flow control support: Yes
10G support: No
Link aggregation: Yes
Auto MDI/MDI-X: Yes
Broadcast storm control: Yes
Port mirroring: Yes
Copper ethernet cabling technology: 100BASE-TX, 10BASE-T, 100BASE-FX, 1000BASE-T
Rate limiting: Yes
Virtual LAN features: Port-based VLAN, Tagged VLAN
Auto-negotiation: Yes
Number of VLANs: 4000
Fanless: Yes
Package depth: 196 mm
Package width: 131 mm
Package weight: 770 g
Package height: 121 mm
User guide: Yes
Gigabit Ethernet (copper) ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 5
Harmonized System (HS) code: 85176990
Packet buffer memory: 1 MB
Store-and-forward: Yes
Forwarding rate: 7.44 Mpps
MAC address table: 2000 entries
Number of queues: 4
Switching capacity: 10 Gbit/s
Jumbo frames support: Yes
Jumbo frames: 16000
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 65 W
Power over Ethernet plus (PoE+) ports quantity: 4
Warnings: Do not open the case or try to repair it yourself.
