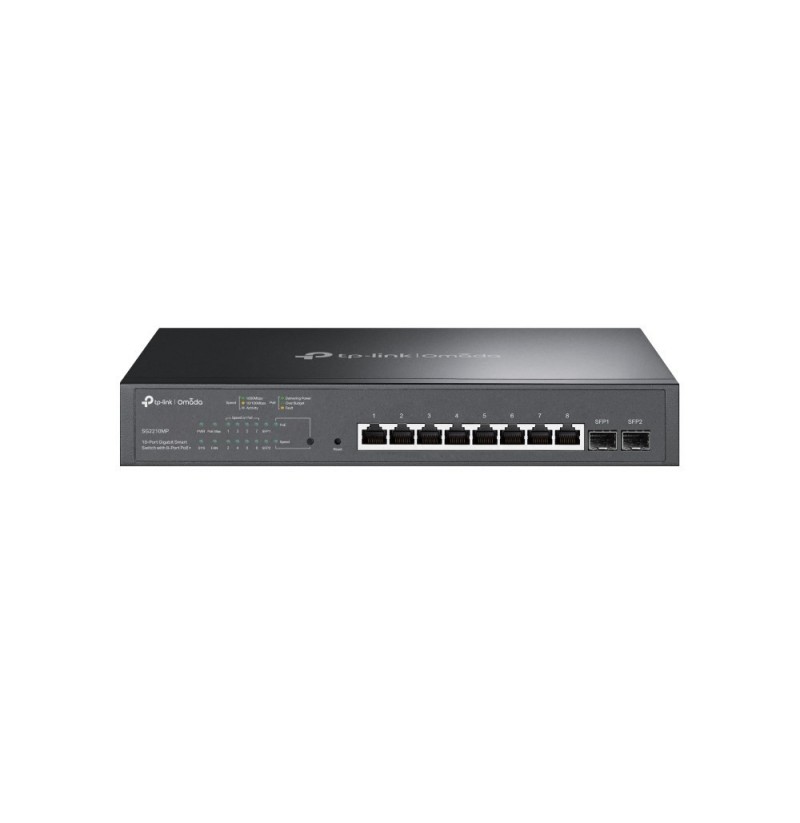

TP-LINK JetStream 10-Port Gigabit Smart PoE Switch with 8-Port PoE+

Certification: CE, FCC, RoHS
Product colour: Black
Number of fans: 1 fan(s)
Rack mounting: Y
Form factor: 1U
Power supply included: Y
AC input frequency: 50/60 Hz
Power consumption (max): 173.9 W
AC input voltage: 100 - 240 V
Power source: AC
DHCP features: DHCP server, DHCPv6 client, DHCP client, DHCP relay, DHCPv6 snooping, DHCP snooping
Queue scheduling algorithms: SP, Weighted Round Robin (WRR)
SSH/SSL support: Y
IP-MAC-Port binding: Y
IGMP snooping: Y
BPDU filtering/protection: Y
Access Control List (ACL): Y
Security algorithms: EAP-TLS, EAP-MD5, SNMP, SSH, SNMPv2, SNMPv3, SSH-2, SSL/TLS, EAP-TTLS, EAP-LEAP, HTTPS
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 50 °C
Storage relative humidity (H-H): 5 - 90%
MIB support: RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1213, RFC2233, RFC1643, RFC1493
Cloud-managed: Y
Switch layer: L2/L2+
System event log: Y
Switch type: Managed
Web-based management: Y
Quality of Service (QoS) support: Y
Height: 44 mm
Width: 294 mm
Depth: 180 mm
Broadcast storm control: Y
Rate limiting: Y
Copper ethernet cabling technology: 100BASE-TX, 10BASE-T, 1000BASE-T
Virtual LAN features: Protocol-based VLAN, Voice VLAN, MAC address-based VLAN, Multicast VLAN, Tagged VLAN
10G support: N
Spanning tree protocol: Y
Port mirroring: Y
Flow control support: Y
Link aggregation: Y
Number of VLANs: 4000
Networking standards: IEEE 802.3af, IEEE 802.3az, IEEE 802.1D, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1s, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3u, IEEE 802.1w, IEEE 802.3i, IEEE 802.1x
VLAN support: Y
Management protocols: SNMPv1/v2c/v3, SNTP
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8
SFP module slots quantity: 2
Basic switching RJ-45 Ethernet ports quantity: 8
Harmonized System (HS) code: 85176990
Jumbo frames support: Y
Jumbo frames: 9000
Packet buffer memory: 4.1 MB
MAC address table: 8000 entries
Forwarding rate: 14.9 Mpps
Switching capacity: 20 Gbit/s
Number of queues: 8
Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 150 W
Power over Ethernet (PoE): Y
Multicast support: Y
Fiber ethernet cabling technology: 100BASE-FX, 1000BASE-X
