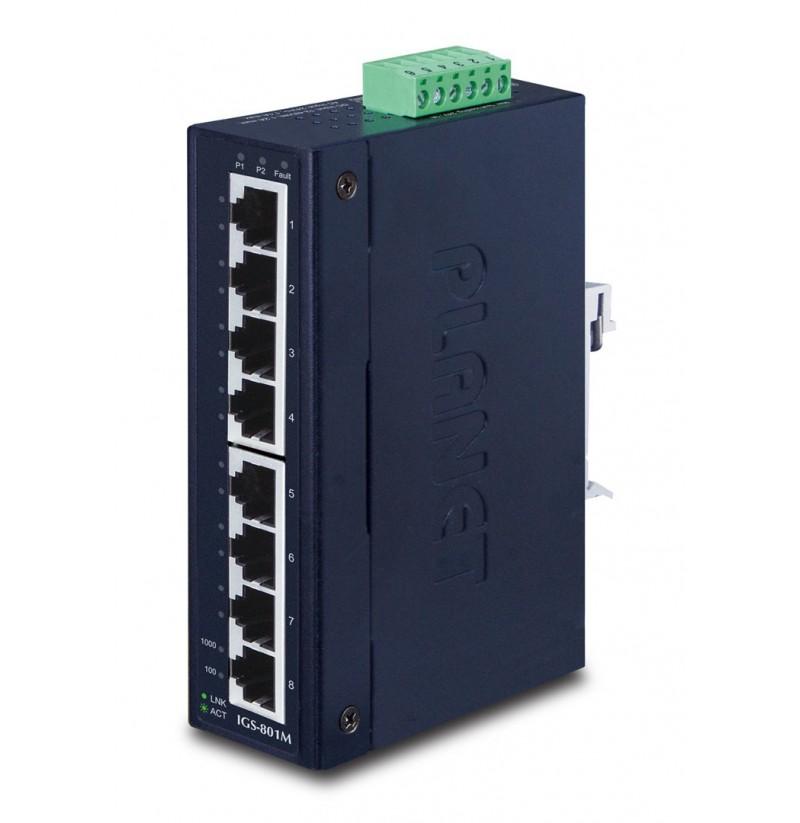

PLANET IGS-801M network switch Managed L2/L4 Gigabit Ethernet (10/100/1000) 1U Blue

Form factor: 1U
Reset button: Yes
Housing material: Metal
International Protection (IP) code: IP30
Product colour: Blue
Wall mountable: Yes
DIN rail mounting: Yes
Rack mounting: Yes
LED indicators: Yes
Power consumption (max): 10 W
Power consumption (typical): 4.5 W
IGMP snooping: Yes
SSH/SSL support: Yes
Security algorithms: SSL/TLS, SSH
Authentication: Port-based authentication
MAC address filtering: Yes
BPDU filtering/protection: Yes
Loop protection: Yes
Access Control List (ACL): Yes
Storage relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): -40 - 75 °C
Heat dissipation: 15 BTU/h
Quality of Service (QoS) support: Yes
Web-based management: Yes
ARP inspection: Yes
Traffic classification: Yes
System event log: Yes
Switch layer: L2/L4
Switch type: Managed
Height: 135 mm
Weight: 472 g
Depth: 87 mm
Width: 32 mm
Virtual LAN features: Stacked VLAN, Tagged VLAN, Protocol-based VLAN, Private VLAN
Spanning tree protocol: Yes
10G support: No
VLAN support: Yes
Networking standards: IEEE 802.1x, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.1s, IEEE 802.3u, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1w, IEEE 802.3az
Port mirroring: Yes
Number of VLANs: 4094
Full duplex: Yes
Copper ethernet cabling technology: 10BASE-T, 1000BASE-T, 100BASE-TX
Rate limiting: Yes
Link aggregation: Yes
Auto MDI/MDI-X: Yes
Broadcast storm control: Yes
Half duplex: Yes
Flow control support: Yes
Firmware upgradeable: Yes
Supported network protocols: IPv4 / IPv6
Management protocols: Telnet/SNMP
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8
Basic switching RJ-45 Ethernet ports quantity: 8
Terminal block port: Yes
Harmonized System (HS) code: 85176990
Store-and-forward: Yes
Jumbo frames: 10000
Jumbo frames support: Yes
MAC address table: 8000 entries
Switching capacity: 16 Gbit/s
Throughput: 11.9 Mpps
Number of queues: 8
Power over Ethernet (PoE): No
Multicast support: Yes
Number of multicast groups filtered: 256
