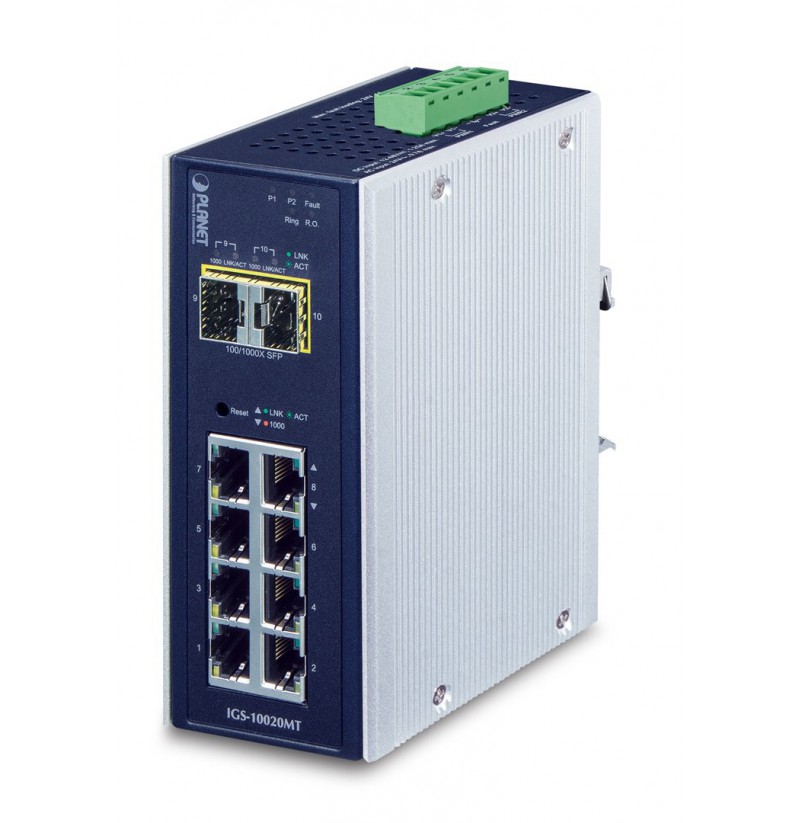

PLANET IGS-10020MT network switch Managed L2+ Gigabit Ethernet (10/100/1000) Black

Housing material: Aluminium
International Protection (IP) code: IP30
Wall mountable: Yes
DIN rail mounting: Yes
Rack mounting: No
LED indicators: Yes
Product colour: Black
Power consumption (typical): 10 W
Security algorithms: SSL/TLS, 802.1x RADIUS, SSH
IGMP snooping: Yes
Access Control List (ACL): Yes
Storage relative humidity (H-H): 5 - 95%
Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -40 - 75 °C
Heat dissipation: 34 BTU/h
MIB support: MIB, MIB-II
Switch layer: L2+
Quality of Service (QoS) support: Yes
Switch type: Managed
Web-based management: Yes
Depth: 87.8 mm
Width: 56 mm
Weight: 720 g
Height: 135 mm
Networking standards: IEEE 802.1D, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3u, IEEE 802.1ab, IEEE 802.3ah, IEEE 802.1ad, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1x, IEEE 802.3bz, IEEE 1588, IEEE 802.1w, IEEE 802.1ag, IEEE 802.3
Auto MDI/MDI-X: Yes
Spanning tree protocol: Yes
Port mirroring: Yes
Link aggregation: Yes
Copper ethernet cabling technology: 100BASE-TX, 10BASE-T, 1000BASE-T
VLAN support: Yes
Full duplex: Yes
Number of VLANs: 255
10G support: No
Flow control support: Yes
Buffer size: 512 KB
Firmware upgradeable: Yes
Management protocols: SSH, SSL, SNMP, Telnet
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 2
Basic switching RJ-45 Ethernet ports quantity: 8
Harmonized System (HS) code: 85176990
Store-and-forward: Yes
Jumbo frames: 9000
MAC address table: 8000 entries
Jumbo frames support: Yes
Throughput: 14.8 Mpps
Switching capacity: 26 Gbit/s
Number of queues: 8
Power over Ethernet (PoE): No
Multicast support: Yes
Warnings: Avoid contact of the device with liquid., Follow the safety guidelines for electrical current., Make sure the ventilation of the equipment is not blocked.
