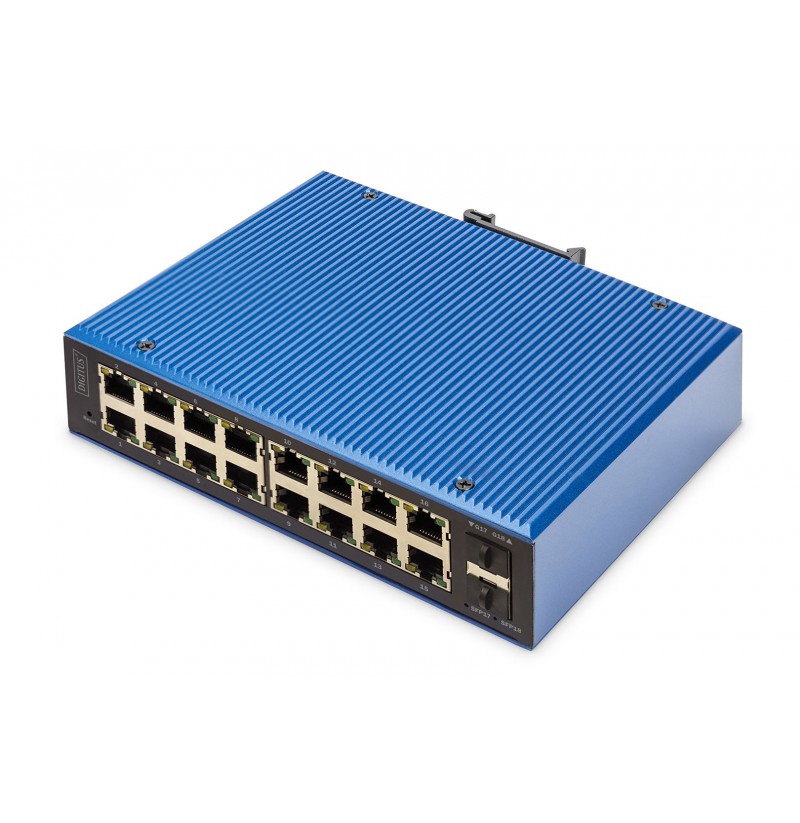

Industrial 16+2-Port Gigabit L2 managed Ethernet POE Switch 16 x GE RJ45+2 SFP Port,IEEE802.3at(30W)

DIN rail mounting: Yes
Vandal-proof: No
Product colour: Black, Blue
Rack mounting: No
International Protection (IP) code: IP40
Housing material: Metal
Stackable: No
Suitable for outdoor use: No
DC input voltage: 48 - 57 V
Surge protection voltage: 4 kV
Power source: DC/PoE
Power consumption (typical): 15 W
Redundant power supply (RPS) support: Yes
Surge protection: Yes
Power supply included: Yes
MAC address filtering: Yes
IGMP snooping: Yes
Access Control List (ACL): Yes
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -40 - 80 °C
Operating temperature (T-T): -40 - 80 °C
Storage relative humidity (H-H): 5 - 95%
Quality of Service (QoS) support: Yes
Switch type: Managed
Switch layer: L2
Width: 175.6 mm
Depth: 135 mm
Weight: 1.2 kg
Height: 45.5 mm
Virtual LAN features: MAC address-based VLAN, IP subnet–based VLAN, Voice VLAN, Port-based VLAN, Protocol-based VLAN
Link aggregation: Yes
Half duplex: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
VLAN support: No
Networking standards: IEEE 802.3af
Full duplex: Yes
Flow control support: Yes
Number of VLANs: 4094
10G support: No
Port mirroring: Yes
Broadcast storm control: Yes
Mean time between failures (MTBF): 300000 h
Package weight: 75 g
Package depth: 72.5 mm
Package height: 208 mm
Package width: 186 mm
Package volume: 2804.88 cm³
Quick start guide: Yes
Installed SFP modules quantity: 2
Gigabit Ethernet (copper) ports quantity: 16
Basic switching RJ-45 Ethernet ports quantity: 16
Fiber optic connector: SFP
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Bandwidth: 56 Gbit/s
Ethernet interface type: Gigabit Ethernet
UK Trade Tariff code: 85176200
Country of origin: China
Forwarding rate: 42 Mpps
Store-and-forward: Yes
Jumbo frames: 10240
Switching capacity: 1 Gbit/s
MAC address table: 8000 entries
Packet buffer memory: 4.1 MB
Jumbo frames support: Yes
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) budget: 30 W
