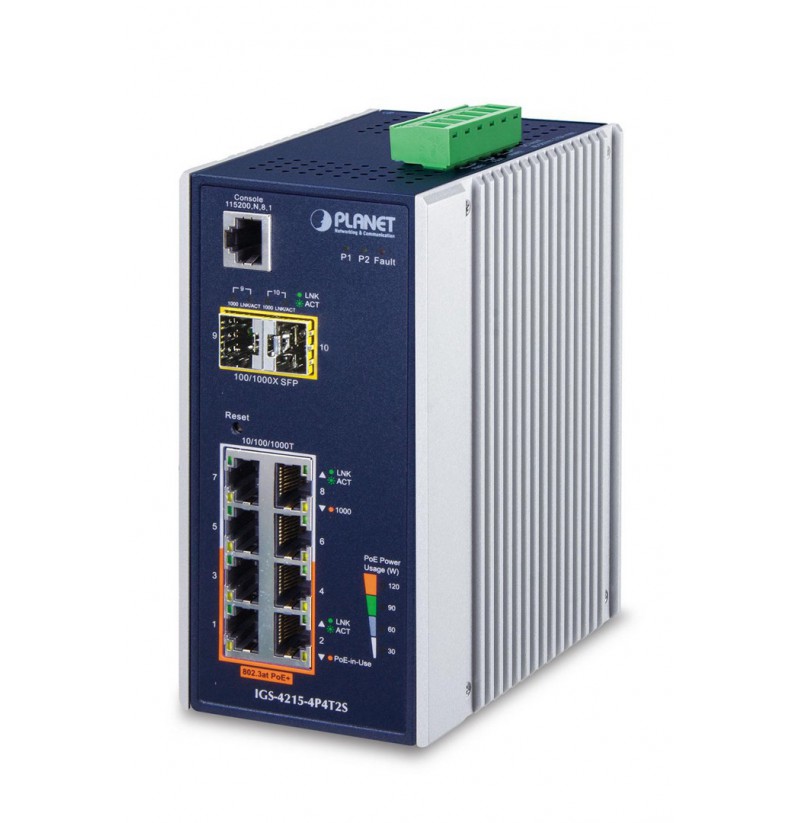

PLANET IGS-4215-4P4T2S network switch Managed L2/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Blue, White

LED indicators: Link, Power, Activity, System, PoE
International Protection (IP) code: IP30
Safety: IEC 60068-2-32, IEC 60068-2-27, IEC 60068-2-6
Wall mountable: Yes
Rack mounting: No
Housing material: Aluminium
Product colour: White, Blue
Reset button: Yes
DIN rail mounting: Yes
Stackable: No
Input current: 3.5 A
Power consumption (typical): 5.04 W
Power consumption (max): 152.96 W
DC input voltage: 48 - 56 V
Security algorithms: 128-bit SSL, SSH, SNMP, 802.1x RADIUS
Access Control List (ACL): Yes
IP-MAC-Port binding: Yes
Static port security: Yes
IGMP snooping: Yes
SSH/SSL support: Yes
Authentication: Port-based authentication
BPDU filtering/protection: Yes
DHCP features: DHCP client
MAC address filtering: Yes
Storage temperature (T-T): -40 - 85 °C
Storage relative humidity (H-H): 5 - 95%
Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 5 - 95%
Heat dissipation: 523.8 BTU/h
System event log: Yes
Quality of Service (QoS) support: Yes
Switch layer: L2/L4
Switch type: Managed
MIB support: RFC 1215, RFC 1493, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 3635
ARP inspection: Yes
Web-based management: Yes
Traffic classification: Yes
Height: 152 mm
Width: 76.8 mm
Weight: 1 kg
Depth: 107.3 mm
Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3u, IEEE 802.3x, IEEE 802.1D, IEEE 802.3z, IEEE 802.3ad, IEEE 802.1s
Copper ethernet cabling technology: 10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-LX, 1000BASE-SX
Rate limiting: Yes
VLAN support: Yes
10G support: No
Number of VLANs: 256
Auto MDI/MDI-X: Yes
Flow control support: Yes
Spanning tree protocol: Yes
Port mirroring: Yes
Link aggregation: Yes
Virtual LAN features: Stacked VLAN, Protocol-based VLAN, Private VLAN
Broadcast storm control: Yes
Firmware upgradeable: Yes
SFP module slots quantity: 2
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 8
Terminal block port: Yes
Harmonized System (HS) code: 85176990
Jumbo frames support: Yes
Switching capacity: 20 Gbit/s
Number of trunks: 4
Throughput: 14.8 Mpps
MAC address table: 8000 entries
Jumbo frames: 10000
Packet buffer memory: 4.1 MB
Store-and-forward: Yes
Total Power over Ethernet (PoE) budget: 144 W
Power over Ethernet (PoE) voltage range: 48 - 56 V
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 4
Number of multicast groups filtered: 256
Multicast support: Yes
Fiber ethernet cabling technology: 1000BASE‑BX, 100BASE-FX, 1000BASE‑LX, 1000BASE‑SX
