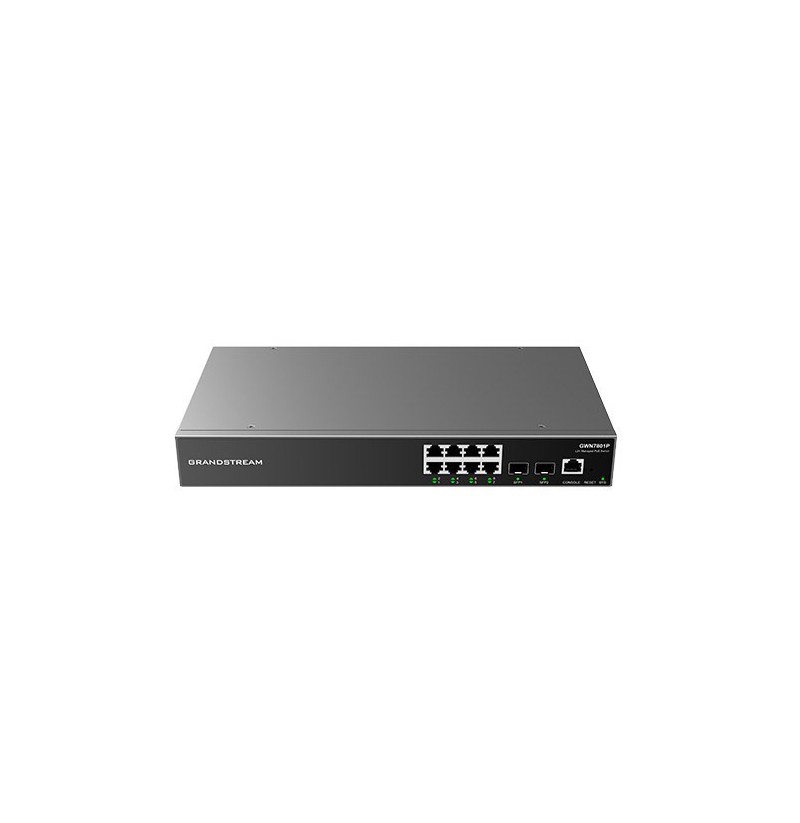

Grandstream GWN 7801P POE 8GE 2SFP manageable switch L2+

Housing material: Metal
Rack mounting: No
Product colour: Black
LED indicators: Yes
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Security algorithms: Telnet, HTTPS, SSH
MAC address filtering: Yes
DHCP features: DHCP server, DHCP snooping
Cable lock slot: Yes
Port isolation: Yes
IP source protection: Yes
Authentication: Port-based authentication
Authentication type: AAA, RADIUS, TACACS+
Broadcast storm control: Yes
ARP inspection: Yes
BPDU filtering/protection: Yes
IP-MAC-Port binding: Yes
Operating temperature (T-T): 0 - 45 °C
Web-based management: Yes
Quality of Service (QoS) support: Yes
Switch type: Managed
System event log: Yes
Switch layer: L2+
Depth: 175 mm
Weight: 2 kg
Width: 300 mm
Height: 44 mm
Number of VLANs: 4000
Networking standards: IEEE 802.1D, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3x, IPv6, IEEE 802.1w, IEEE 802.3af, IPv4, IEEE 802.3p, IEEE 802.3at, IEEE 802.3i, IEEE 802.1s, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3u
10G support: No
VLAN support: Yes
Link aggregation: Yes
Spanning tree protocol: Yes
Flow control support: Yes
Port mirroring: Yes
Connection aggregator number of groups: 8
Spanning tree protocol number of instances: 16 for STP/RSTP/MSTP
CPU and memory monitoring: Yes
Additional functions: Syslog, alarms
Backup and restore: Yes
Firmware upgradeable: Yes
Diagnostics: Ping, Traceroute, UDLD(TBD), Copper wire test
Supported network protocols: RMON, LLDP, LLDP-MED
Access Control List (ACL): Yes
Automatic packet detection (type): Voice, Video, RTP, SIP, other delay-sensitive
Maximum number of rules (ACL): 1500
Checklist types (ACL): IPV4, IPV6
Automatic packet detection and prioritisation: Yes
Traffic shaping: Yes
Priority mapping: Yes
Queue scheduling: Yes (SP, WRR, WFQ, SP-WRR, SP-WFQ)
Management protocols: SNMP, Telnet
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Fiber ports quantity: 8
Basic switching RJ-45 Ethernet ports quantity: 8
Fiber optic connector: SFP
Console port: RJ-45
Installed SFP modules quantity: 2
Switching capacity: 160 Gbit/s
MAC address table: 8000 entries
Jumbo frames support: Yes
Packet forwarding rate: 14.88 million per second
Forwarding mode: Storage and transfer
Throughput: 80 Gbps
PoE standard: IEEE 802.3af/at
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 120 W
PoE+ support: Yes
Multicast support: Yes
Multicast MAC address table: 512 entries
