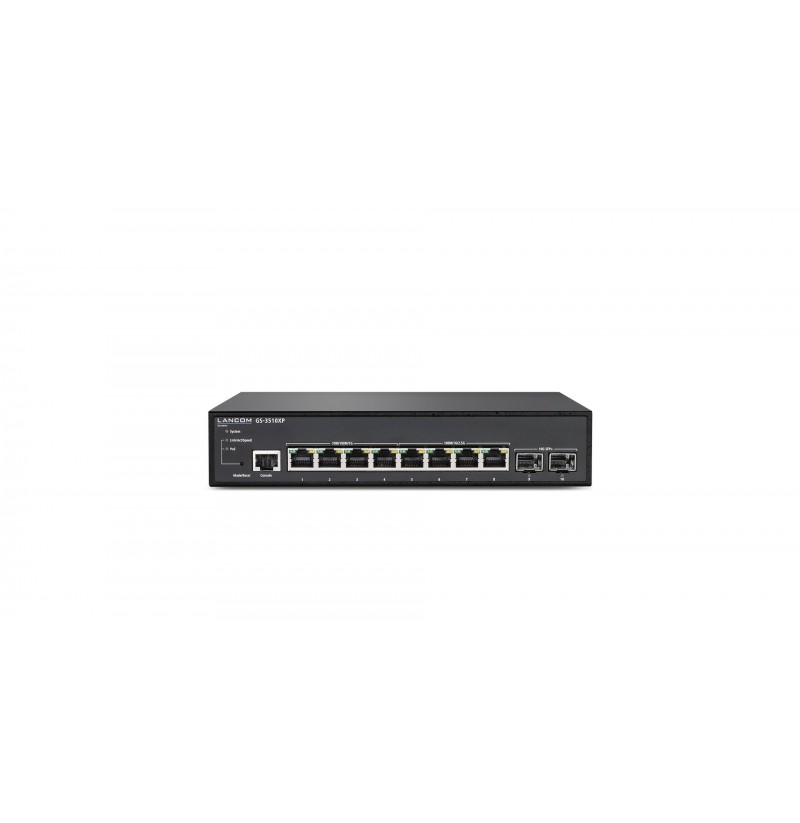

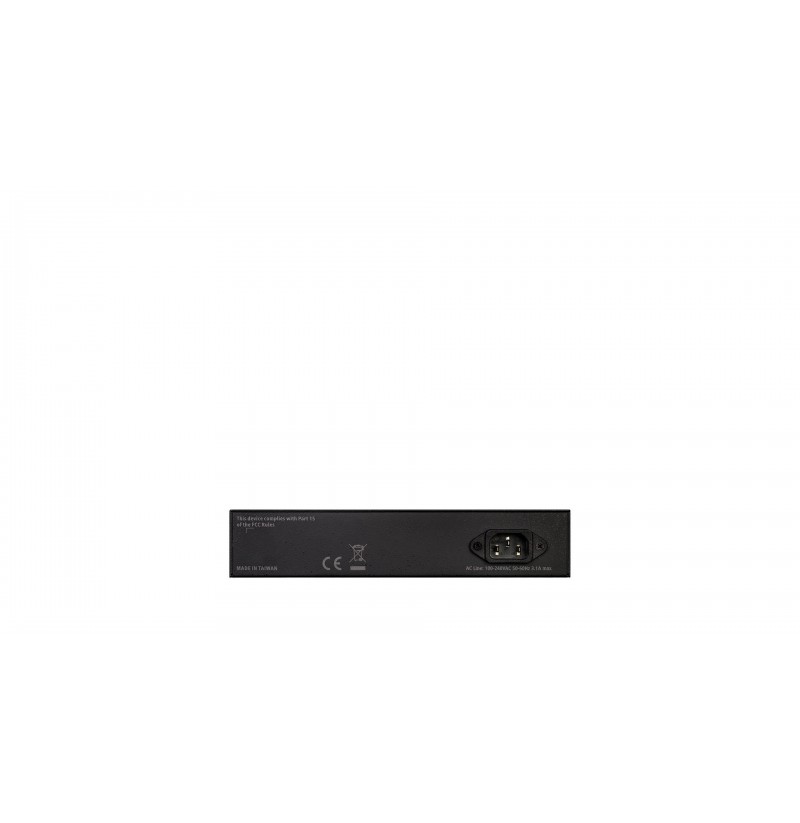

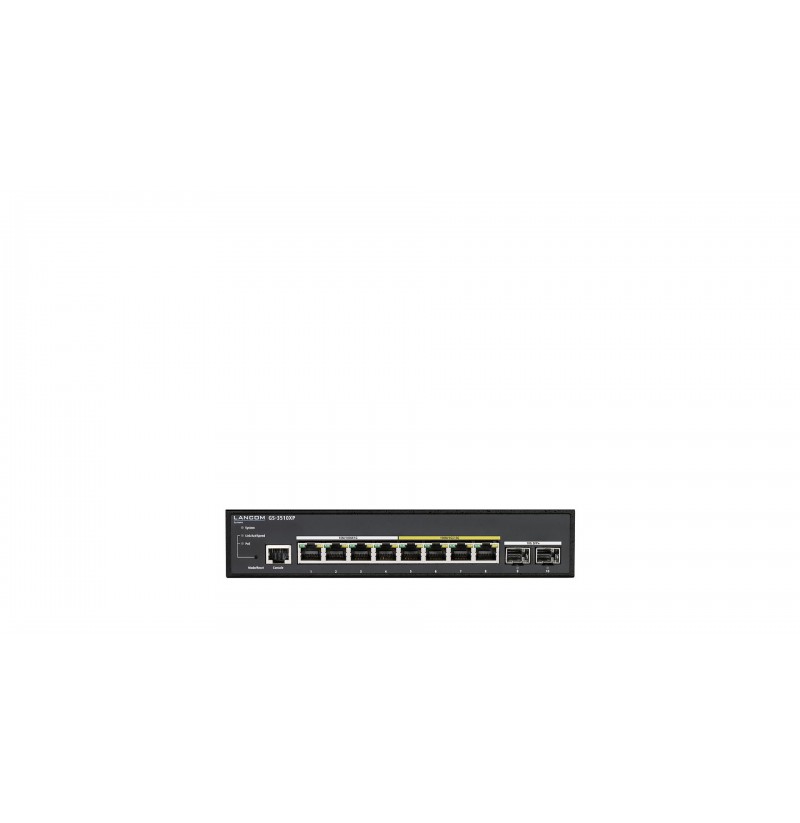

LANCOM GS-3510XP Managed L2 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black

Product colour: Black
Rack mounting: Yes
Housing material: Metal
Number of fans: 1 fan(s)
Form factor: 1U
AC input frequency: 50 - 60 Hz
Power consumption (max): 145 W
Power source: AC/PoE
AC input voltage: 100 - 240 V
Power supply included: Yes
IGMP proxy: Yes
Authentication type: IEEE 802.1x, RADIUS, TACACS+
Access Control List (ACL): Yes
DHCP features: DHCP Option 67, DHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCP Option 66
SSH/SSL support: Yes
Authentication: Guest VLAN
IGMP snooping: Yes
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Heat dissipation: 51 BTU/h
Configuring Location Settings (CLI): Yes
Web-based management: Yes
Switch type: Managed
Switch layer: L2
Height: 44 mm
Width: 220 mm
Weight: 2.35 kg
Depth: 242 mm
Virtual LAN features: Port-based VLAN, Private VLAN, Voice VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID), MVRP, MAC address-based VLAN
Networking standards: IEEE 802.1w, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3at, IEEE 802.1ad, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1ak, IEEE 802.1D, IEEE 802.3z, IEEE 802.3ae, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.1s, IEEE 802.3af, IEEE 802.3az, IEEE 802.1x, IEEE 802.1AX, IEEE 802.3u
VLAN support: Yes
10G support: Yes
Number of VLANs: 4093
Flow control support: Yes
Port mirroring: Yes
Cable length detection: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Spanning tree protocol: Yes
Fanless: Yes
Firmware upgradeable: Yes
Package width: 470 mm
Package height: 100 mm
Package depth: 534 mm
Package weight: 2.96 kg
Mounting brackets included: Yes
Cables included: AC, Serial
Quick start guide: Yes
Compliance certificates: Federal Communications Commission (FCC), CE
GARP VLAN Registration Protocol (GVRP): Yes
IP Source Guard (IPSG): Yes
2.5G Ethernet (copper) ports quantity: 4
Gigabit Ethernet (copper) ports quantity: 4
Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
Power connector: AC-in jack
SFP+ module slots quantity: 2
Console port: RJ-45
Customs product code (TARIC): 85176200
Harmonized System (HS) code: 85176990
Country of origin: Taiwan
Number of static routes: 128
Static route: Yes
Jumbo frames: 10240
Switching capacity: 68 Gbit/s
MAC address table: 16000 entries
Jumbo frames support: Yes
Throughput: 51 Mpps
Store-and-forward: Yes
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) budget: 130 W
Power over Ethernet plus (PoE+) ports quantity: 8
Multicast Listener Discovery (MLD) snooping: Y
Multicast support: Yes
